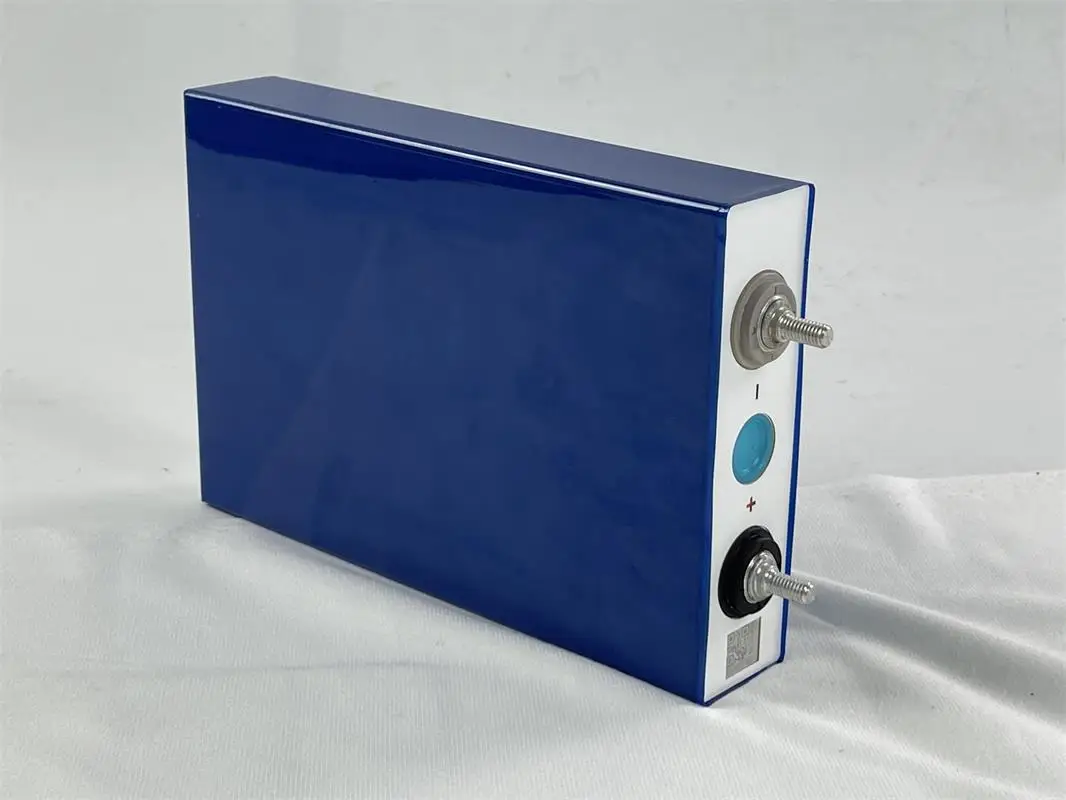

3.2V Lifepo4 Battery 105AH Brand New Lithium Iron Phosphate Cell DIY 12V 24V 48V for Camping Boat Golf Cart RV EV Forklift

[About European Warehouse]

The Battery are in stock in warehouses in Europe . Customers from Europe who place an order today can receive the product approx 7-15working days after order ship out.!!!

Note:

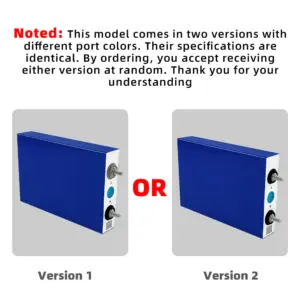

This model comes in two versions with different port colors. Their specifications are identical. By ordering, you accept receiving either version at random. Thank you for your understanding

[No delivery to certain postal codes. Check before ordering.]

Spain: 07000-07999, 38000-38999, 35000-35999, 51000-52999

105AH Lifepo4 Battery

* Brand New and Grade A
* 6000 Cycles
* Long Sercice Life
* 100% Depth of discharge

Product Specification

Battery Type:lithium iron phosphate battery
Shell Material:Aluminium
Nomincal Capacity:90-105Ah
Nominal Voltage:3.2V
Operating Voltage Range:2.5V-3.65V
Internal impedance:≤0.5mΩ
Recommend Constant charge Current:0.5C
Max Charge Current:1C
Recommend Constant Discharge Current:0.5C
Max Discharge Current:3C
Dimensions(L*W*H):130.3*36.7*195.5mm
Cycle life :6000 cycles
Weight:1.98kg±0.05kg
Charging Temperature：0~55°C
Discharging Temperature：-20~55°C
Screw Size：M6

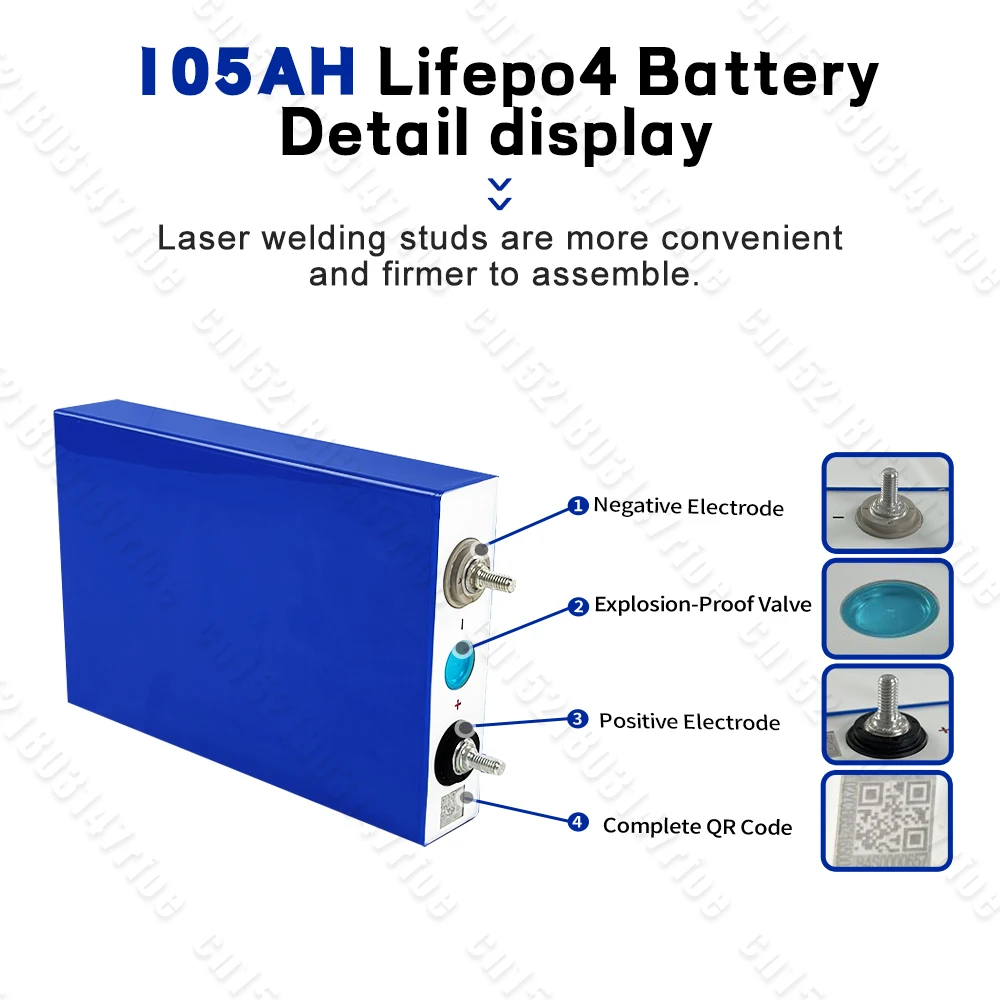

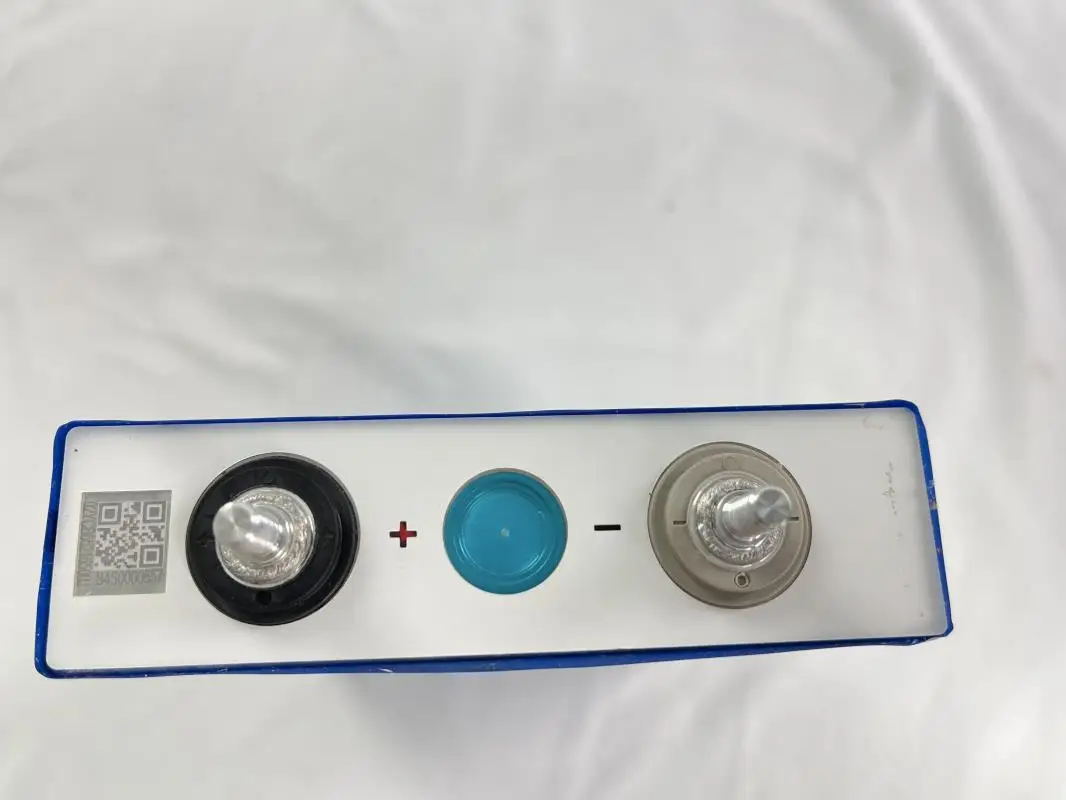

Product Detail:

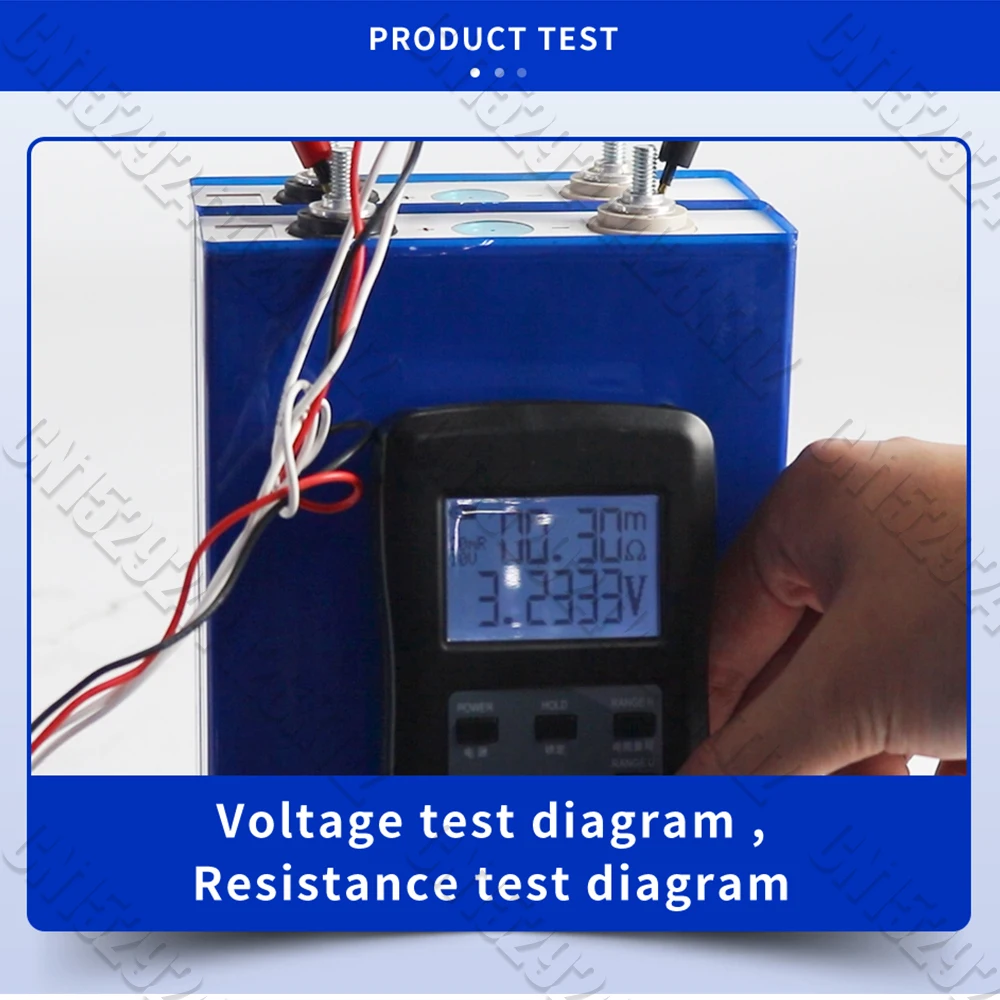

Product Test:

Nominal Voltage:3.2V
Internal impedance:Less than 0.5mΩ

Why Choose Us？

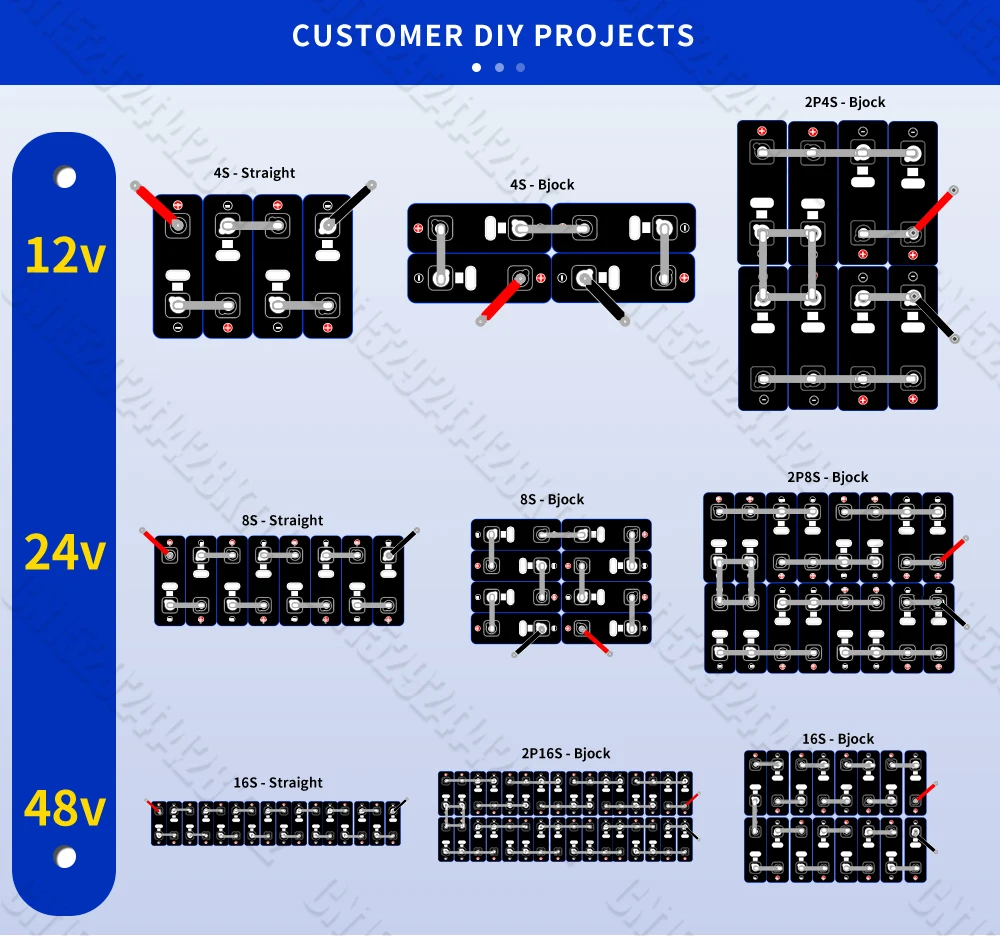

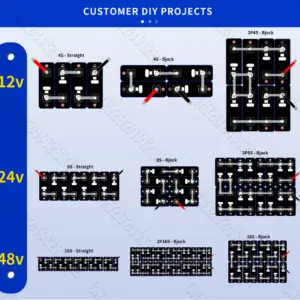

How to DIY assemble batteries?

1. Please balance the battery cells
before assembly.
2. Install and connect the screws.
3. Fix the entire battery pack with
an insulation board and wrap it
with nylon tape.
4. Install the BMS (Battery
Management System)!!.

🔸lf you have any questions or
concerns, please contact us and we
will help you resolve any doubts..

Precautions for assembling batteries

1.Lifepo4 battery packs should be
well waterproof and insulated
2.Prevent overshoot and discharge
3.Correctly connect the screws.
4.Be sure to install BMs properly!!!

Note:
It is recommended that all screw assembly be done manually; It is not recommended to use electric tools since Electric tools have a torque peak that can easily damage the terminals of laser welding.

Product Package:

Customized high-strength sponge foam and aviation UN super hard Carton to ensure safe transportation

Note:Packaging may vary depending on the batch and upgrade situation. Please refer to the actualproduct for accuracy.

Q：Does the sending battery include BusBar connector and screws?

Yes!we ship the battery with the BusBar connector and screws

Q：What is the life expectancy of a Lithium battery?

A: The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years, 8000 charge cycles. One charge cycle is a period

Q:If I want to solar charge LiFePO4/Lithium Ion battery, which already has PCB, would a normal controller work fine?

A: For LiFePO4 / Lithium Ion battery, we always recommend to use LiFePO4/Lithium Ion solar controller. Especially if you are using the battery as UPS (back up power supply). The Lead Acid solar controller will constantly provide pulse current to the battery, in the long run, it might damage the PCB. So the PCB won’t be able to protect the battery when it should be..

Q:Why I can’t buy cells from your store？

A: This is usually unable to provide accurate logistics prices for your country. If you have any demand, please feel free to contact us

Q:Is the cells I bought balanced?

A: we know the importance of maintaining the consistency of each cell in the battery pack, so we will match and balance all cells to ensure that the internal resistance, voltage and capacity of cells are completely matched and balanced before delivery. This process is very necessary.
