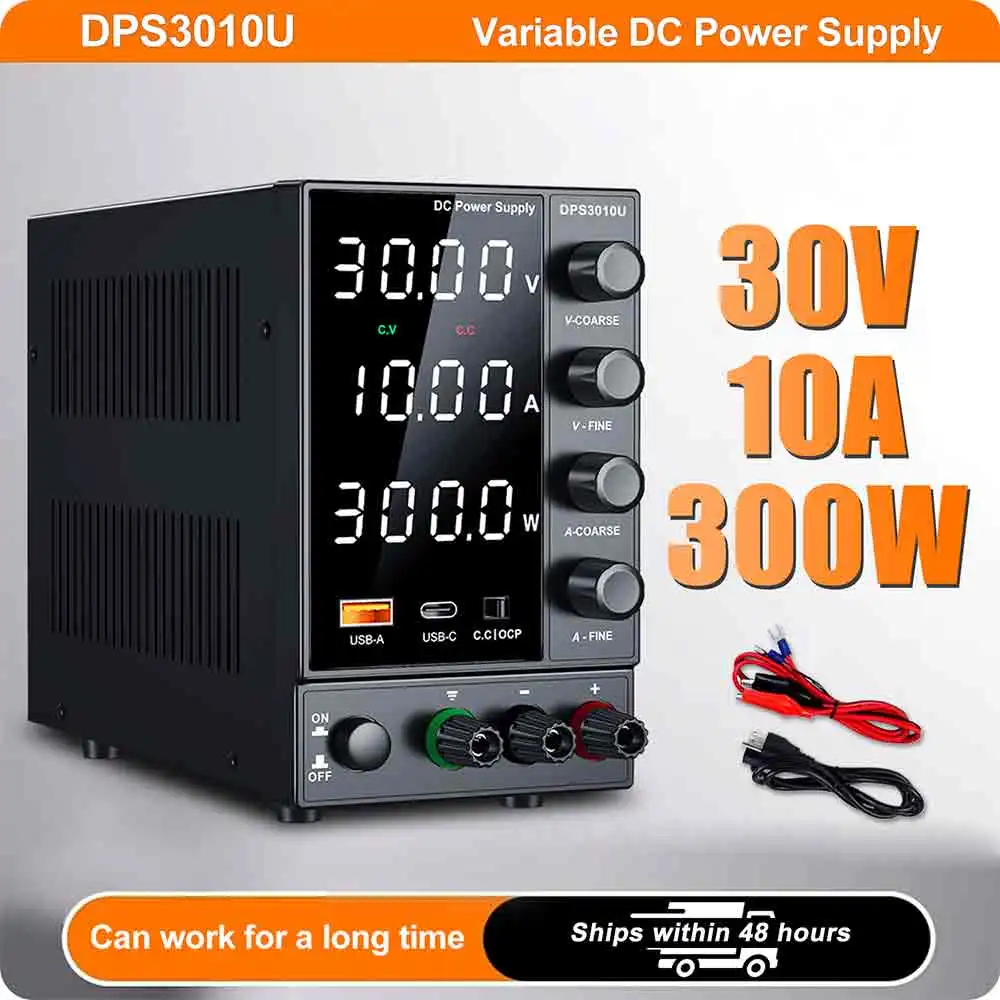

Adjustable DC Power Supply 30V 5A 10A 60V 120V 3A LaboratoryBench Power Source Switching Stabilized LCD Power Supply regulator

92,08 $ 137,30 $Price range: 92,08 $ through 137,30 $

Please select a variation to see estimated shipping cost.
Add to Compare
Add to Wishlist
SKU: 1005007522339668 Categories: , Tag:
  • Hign-concerned Chemical: None
  • Output Power: 201 – 300W
  • is_customized: No
  • Output Current: 0-10A
  • Model Number: dps3010u
  • Output Frequency: 50hz 60hz
  • Brand Name: wanptek
  • Output Type: SINGLE
  • Origin: Mainland China

kf H3af5872754c94a4ba1e720d59bd642cbf

There are included 3 packages:

Four-digit display 0.01 V/0.001 A

1.wanptek Encoder adjustment DPS305U DC power supply with power display 30V 5A

2.wanptek Encoder adjustment DPS3010U DC power supply with power display 30V 10A

3.wanptek Encoder adjustment DPS605U DC power supply with power display 60V 5A

4.wanptek Encoder adjustment DPS1203U DC power supply with power display 120V 3A

kf H6825e01a323f49be8e3a721b6dcb65558

DPS series products are a three window four position display high precision switching DC power supply, which can display voltage, current and power at the same time. The product is widely used in mobile phone maintenance, computer maintenance, school and production line. Its output voltage and current can be continuously adjustable between 0 and nominal value. The stability and ripple coefficient of the power supply are very good, with USB fast charging function and perfect short-circuit protection circuit. Its small size, beautiful design, convenient operation, can work for a long time with full load, deeply loved by the majority of users.

INTRODUCTION:
The series of switching power supplies for measuring instrument have ruled out the inconvenience of bigvolume and heavyweight of a traditional power supply possess.Four adjustment buttons,The output voltage and current respectively is controlled by two variable resistors with coarse and fine regulation for morehandy and precise adjustment.
Input voltage:AC 110V/220V 50/60Hz
Output voltage:0 ~ 30V/0 ~ 60V0 ~ 120V(Optional)
Output current:0 ~ 3A/0 ~ 5A/0 ~ 10A(Optional)
Output Power: 150W/300W(Optional)
Voltage display resolution:0.01V
Current display resolution:0.001A
Output Voltage ranges from 0 to rating voltage with continuous adjustment .
Operation Temperature & Humidity : 0 ~ 40 C, RH<80%.
Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.
Constant voltage CV
Voltage stability：0.1%±3mV
Load stability： 0.2%±3mV
Ripple voltage：≤0.5% Vp-p
0 to rated voltage continuously adjustable
Constant current CC
Current stability：0.1%±3mA
Load stability： 0.2%±3mA
Ripple current：≤0.5% Vp-p
Recovery time：≤500μS
Temperature coefficient：≤100ppm/℃
0 to rated current continuously adjustable

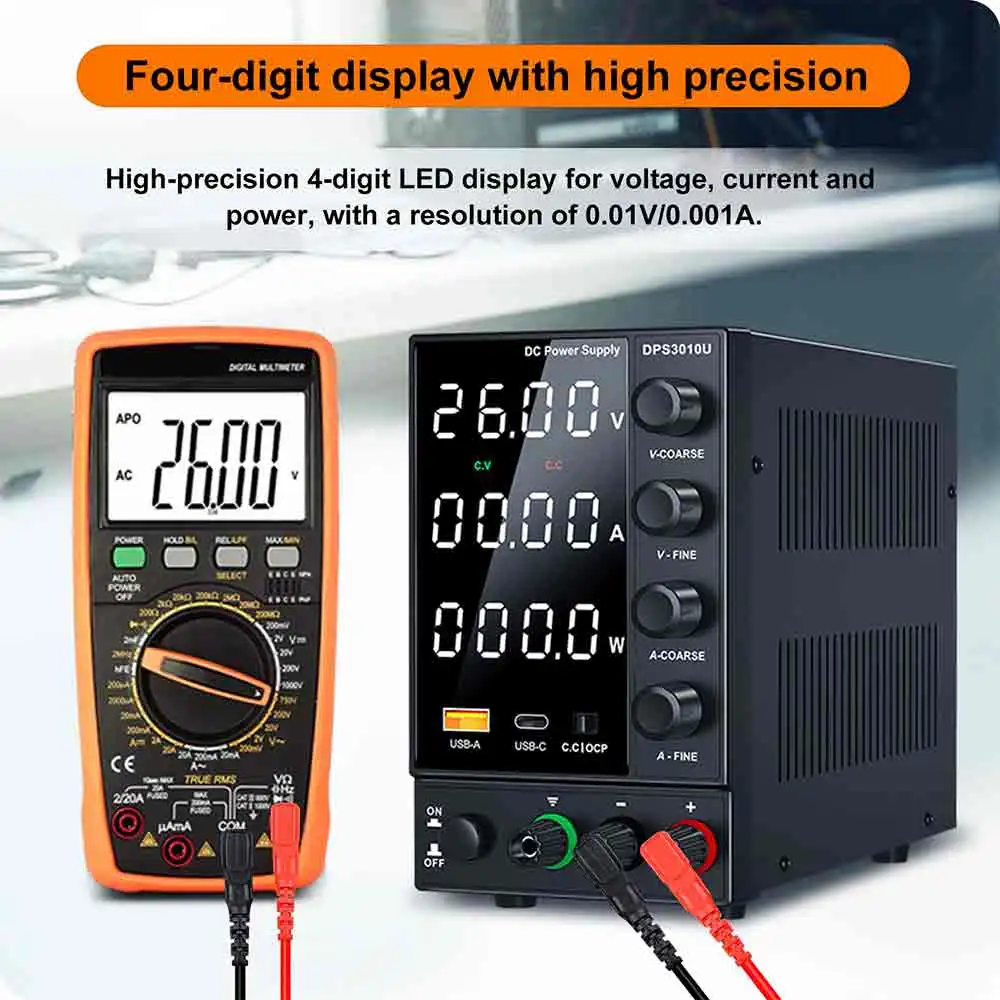

Display
0.56 inch white light four digit digital tube display
Display accuracy：0.5%±digits
Display resolution： voltage  0.01V， current  0.001A
Material: Aluminium alloy

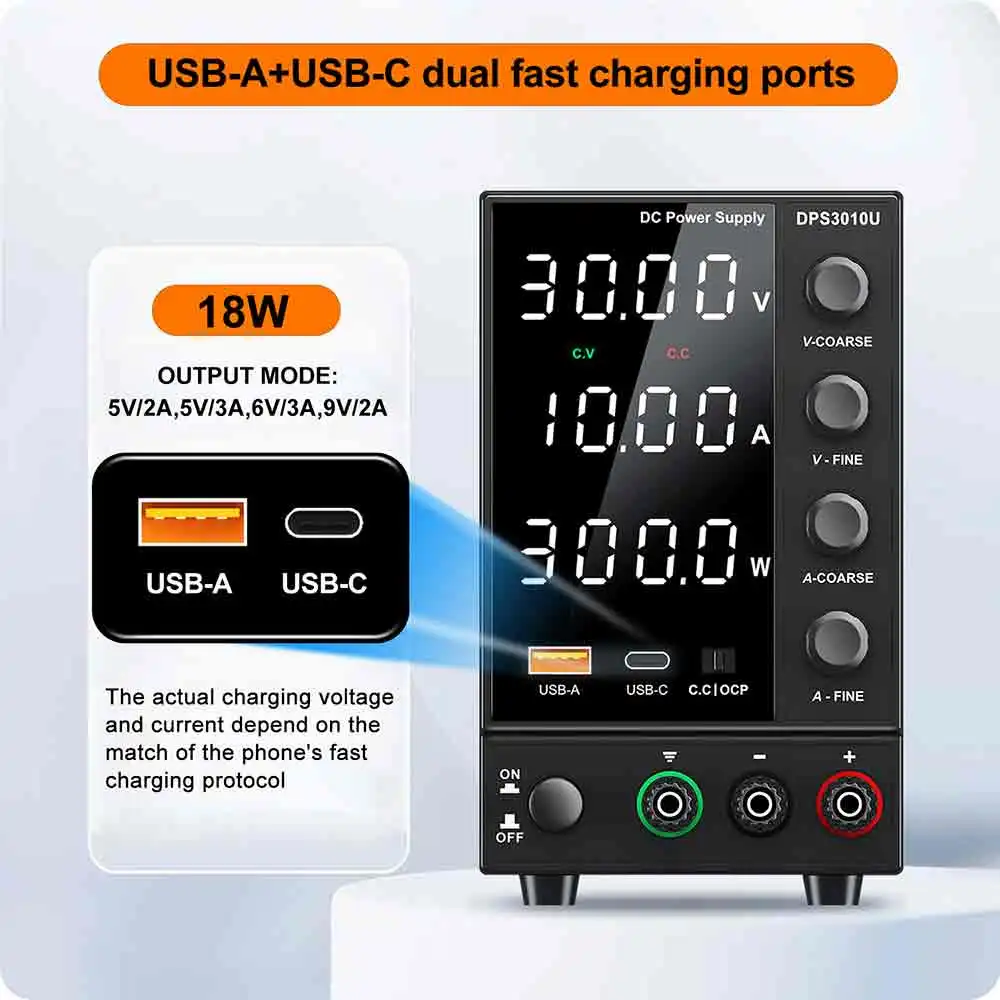

Auxiliary functions: USB fast charging, supporting various fast charging protocols
Protection mode: Current limiting protection / short circuit alarm stop output, self recovery

kf H856cada3f10548529d526bdc5decd8555

1. Production line test.

2. Mobile phone repair,computer repair,monitor repair,electrical appliance maintenance,Car DVD, car audio.

3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.

4. Charge the battery.

5. Laboratory, scientific research teaching,school,factory,scientific research production lines,maintenance power supply.

6. All other occasions requiring DC power supply.

1.USB fast charging function,supporting a variety of fast charging protocols.

2.Short circuit protection function, short circuit stop output.

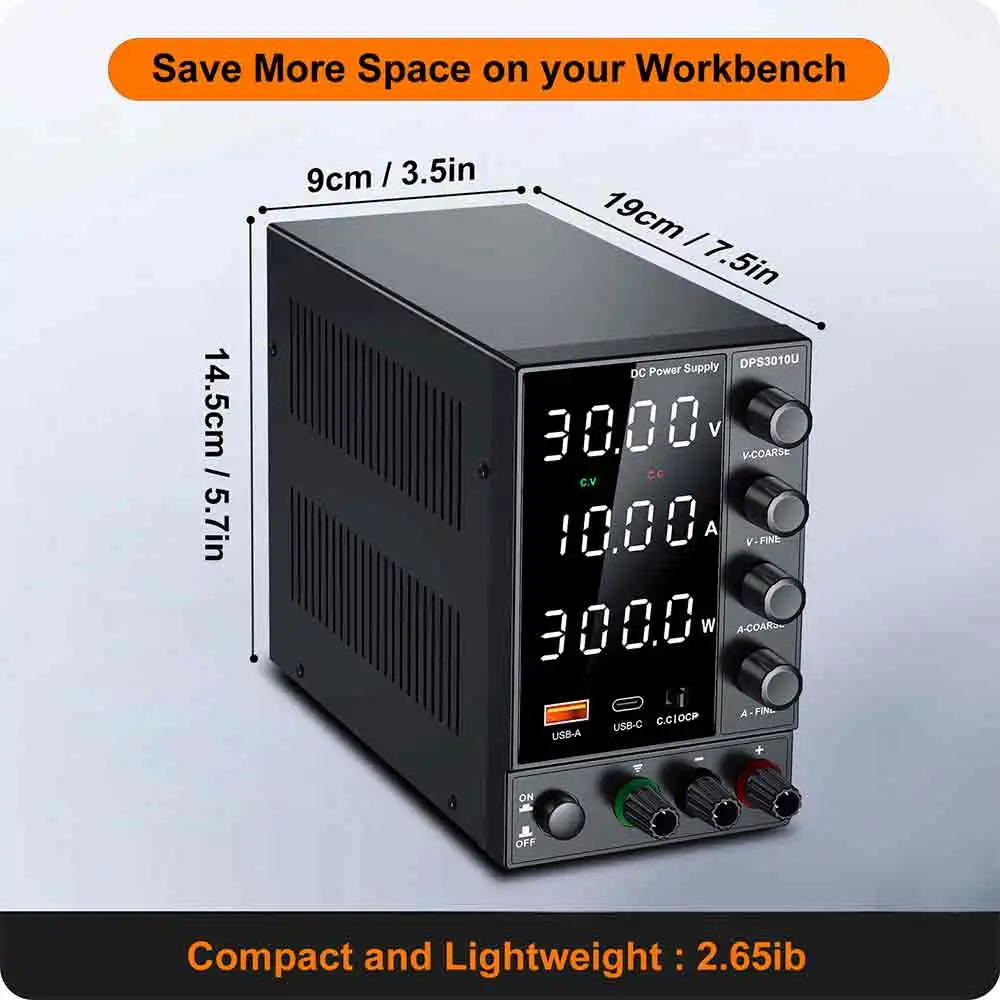

3.Small size, low ripple,light weight and high power density,Highly efficient.
4.Voltage stabilization, current limiting, simple operation.
5.Constant pressure and constant current switch automatically.

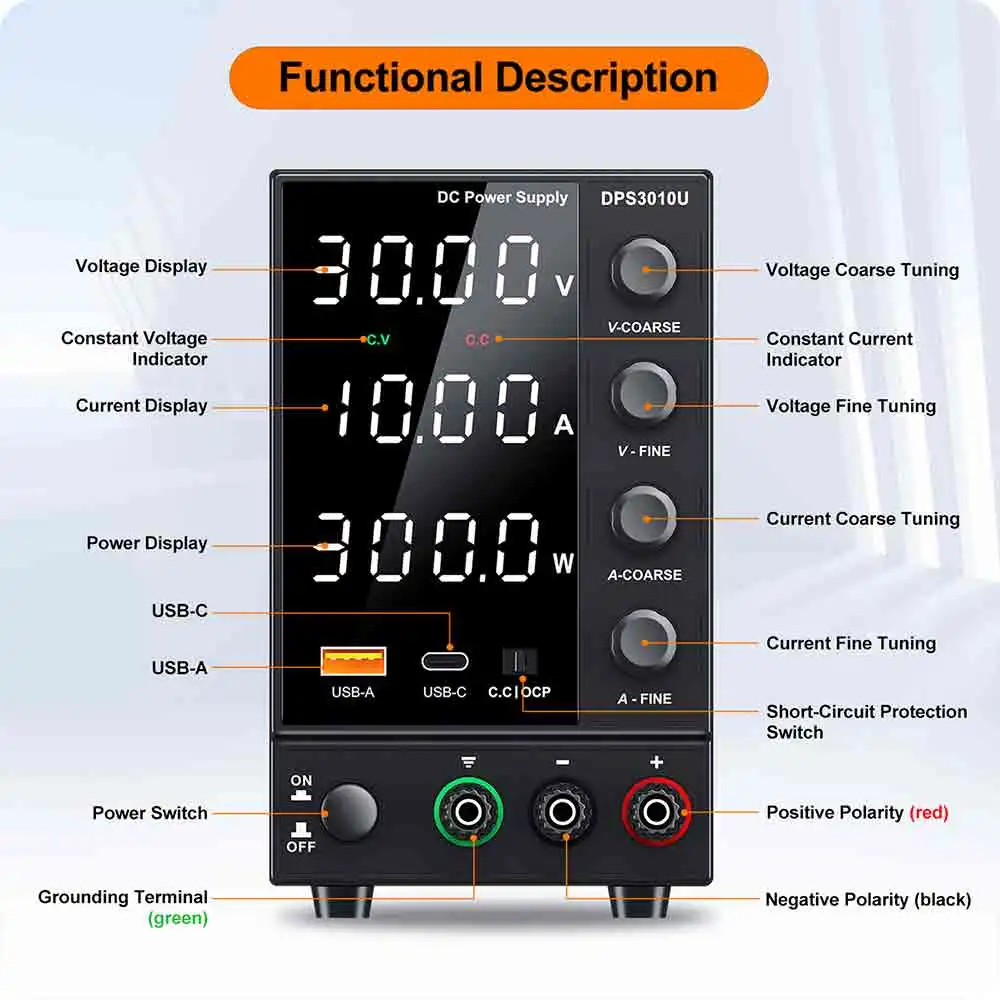

6.Three LED display of voltage, current and power, high precision.

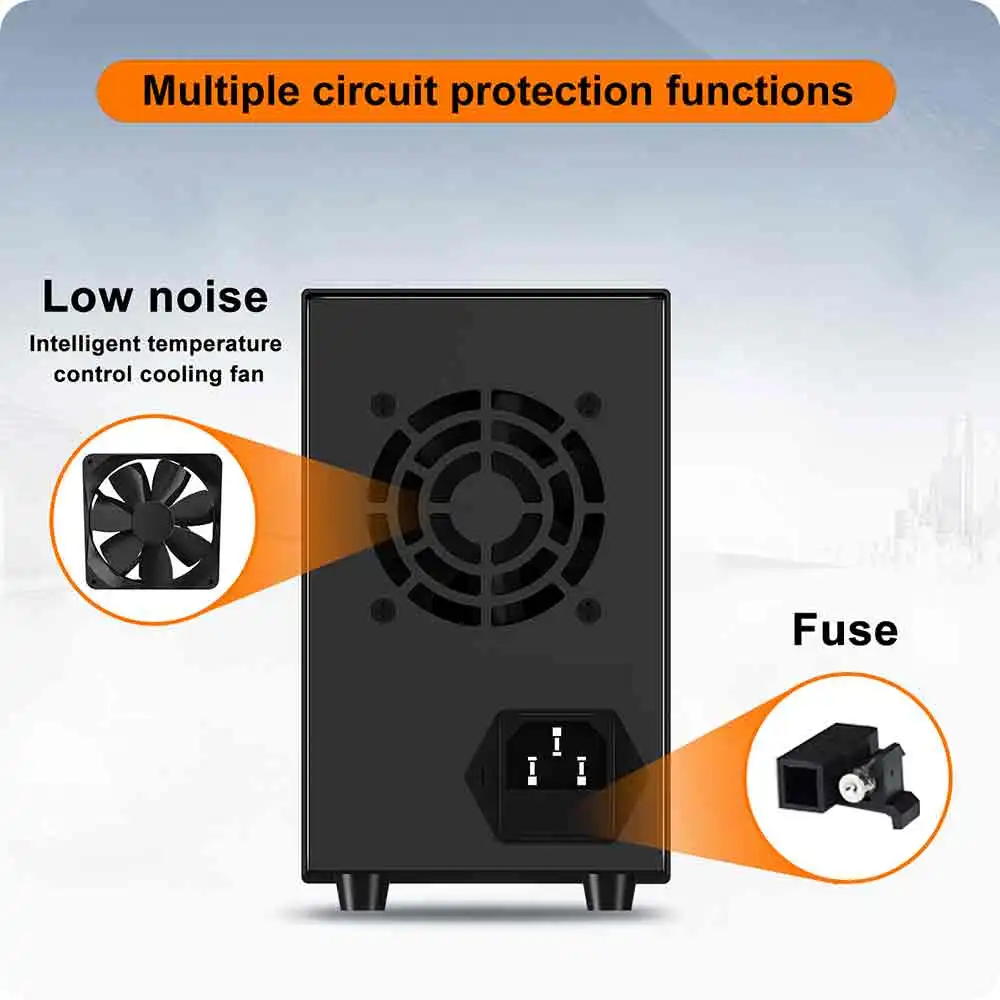

7.Temperature controlled fan heat dissipation, low noise, long life.

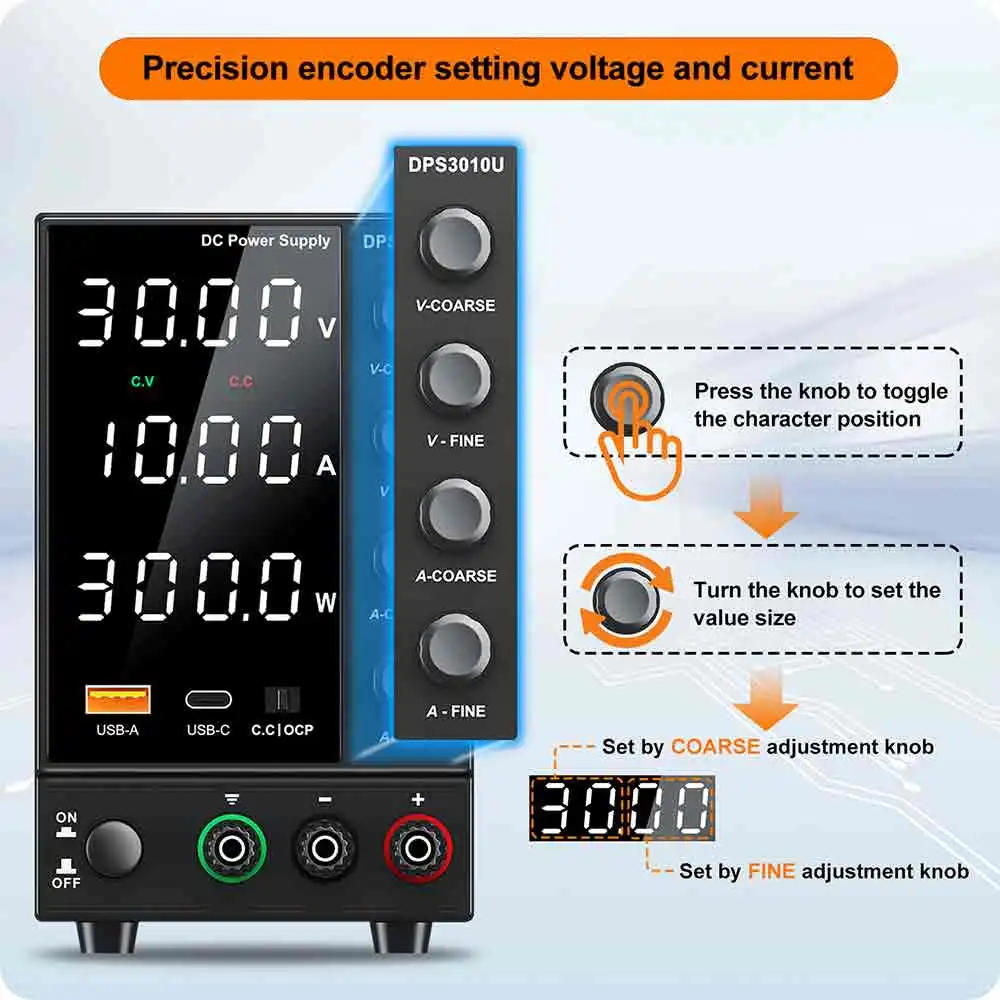

8.Four potentiometer more precise adjustment.
9.Dual voltage input and convenient choice.
10.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
11.Output current ranges from 0 to rating current with continuous adjustment
12.AC 110v and 220vcan work, rest assured to choose.

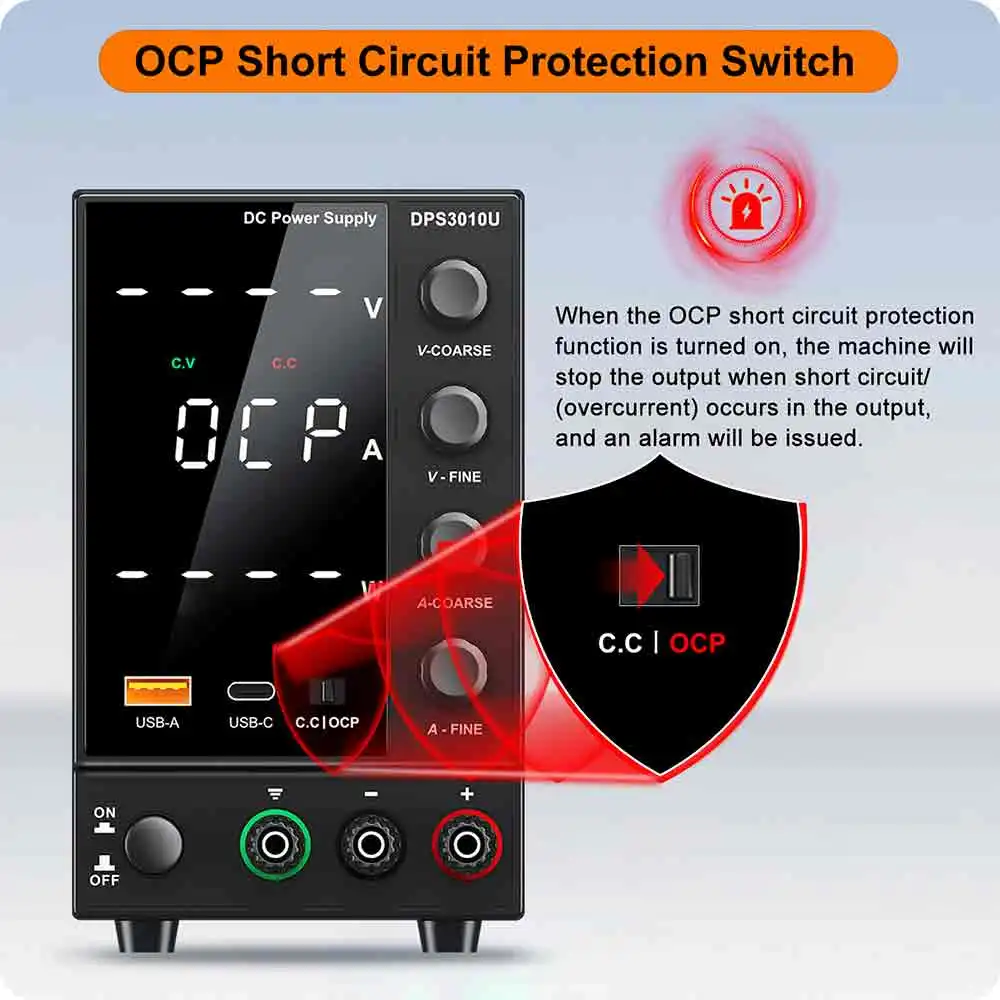

13.With over-voltage protection (OVP), over-current protection (OCP), over-temperature protection and upgraded short-circuit alarm function.

kf H5a3778c0699d4ac0a237fd5b725d48bfc

1x DC power supply

1x power cord (EU,US,UK,AU)

1xAlligator Clip Line

1x Instructions

kf S2ad1bac6cb494575967983e2622da17fWkf S83c14044d5c14d09b7c4c13011804665hkf Sdb2120a46323481da207d269ebcb1f61gkf S9c70c0acc51649a7b5d191576cdd542cckf S0e13575baa8d4c0fa4d25d5ab08d60c6pkf Saa2ce6361daa432ebdf7d04dfd2d6d110kf S2ff5d83797a84fb1bcb8a241cbf8bc2cykf S4c5db141789c4c9ea38e0a8ad9c75562Xkf S16434d9e00124715b0aa0c1351c5a961L

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Delivery from

Poland, spain, United States
Hign-concerned Chemical

None
Output Power

201 – 300W
is_customized

No
Output Current

0-10A
Model Number

dps3010u
Output Frequency

50hz 60hz
Brand Name

wanptek
Output Type

SINGLE
Origin

Mainland China
Color

DPS1203U 120V 3A, DPS3010U 30V 10A, DPS305U 30V 5A, DPS605U 60V 5A
