- Hochbesorgniserregende Chemikalie: Keiner
- RAID Supported: NEIN
- Processor compatibility: Intel Xeon
- Ports: USB 3.0
- Usage Scenario: Gaming,Audio & Video,Office,Video Production,others
- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,4-pin +12V Power Connector
- Back I/O Ports: 1x RJ45
- Support USB Type: USB 2.0,USB 3.0
- Max LAN Speed: 1000Mbps
- Onboard LAN: 1x RJ45
- Audio Channels: 7.1
- Supports M.2 SSD: 2280
- Number of M.2: 3
- Number of SATA Ports: 6
- Storage Interface Type: SATA,M.2 (NVMe)
- Number of PCI: 0
- Number of PCIe x 1: 1
- Number of PCIe x 4: 0
- Number of PCIe x 8: 0
- Number of PCIe x 16: 4
- PCI – E standards: PCI-E 3.0
- Number Of Memory Slots: 8
- Support Memory Type: DDR4
- Memory channel: Four
- Package: Ja
- Maximum Ram Capacity: 256GB
- Form Factor: ATX
- Chipset Manufacturer: Intel
- Battery Included: NEIN
- With CPU: Ja
- Chipset: Q87
- Anwendung: Desktop
- Socket Type: LGA 2011-3
- Markenname: MACHINIST
- Special Features: Keiner
- Herkunft: Festlandchina
- Produktsicherheitsinformationen/Warnhinweise: Do not place this product near flammable or explosive items.
! ! ! Please pay attention to the bundle options before purchasing. Purchase a single motherboard. We do not send CPU and memory. Please check carefully.

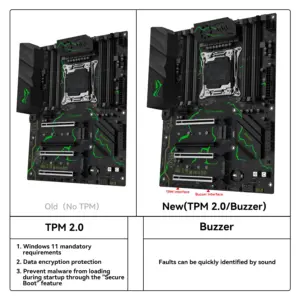

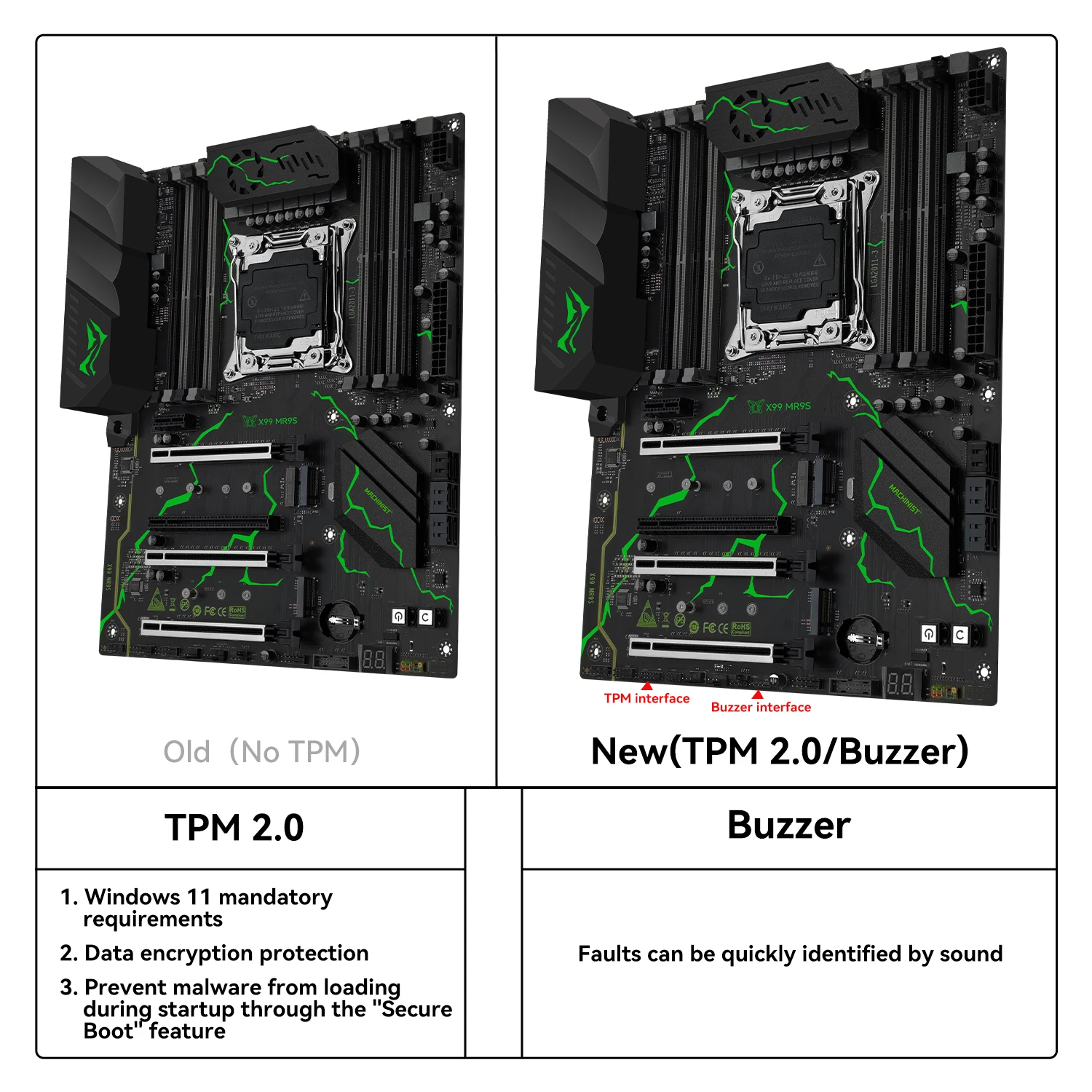

! ! ! This link sends the latest version that supports TPM 2.0.

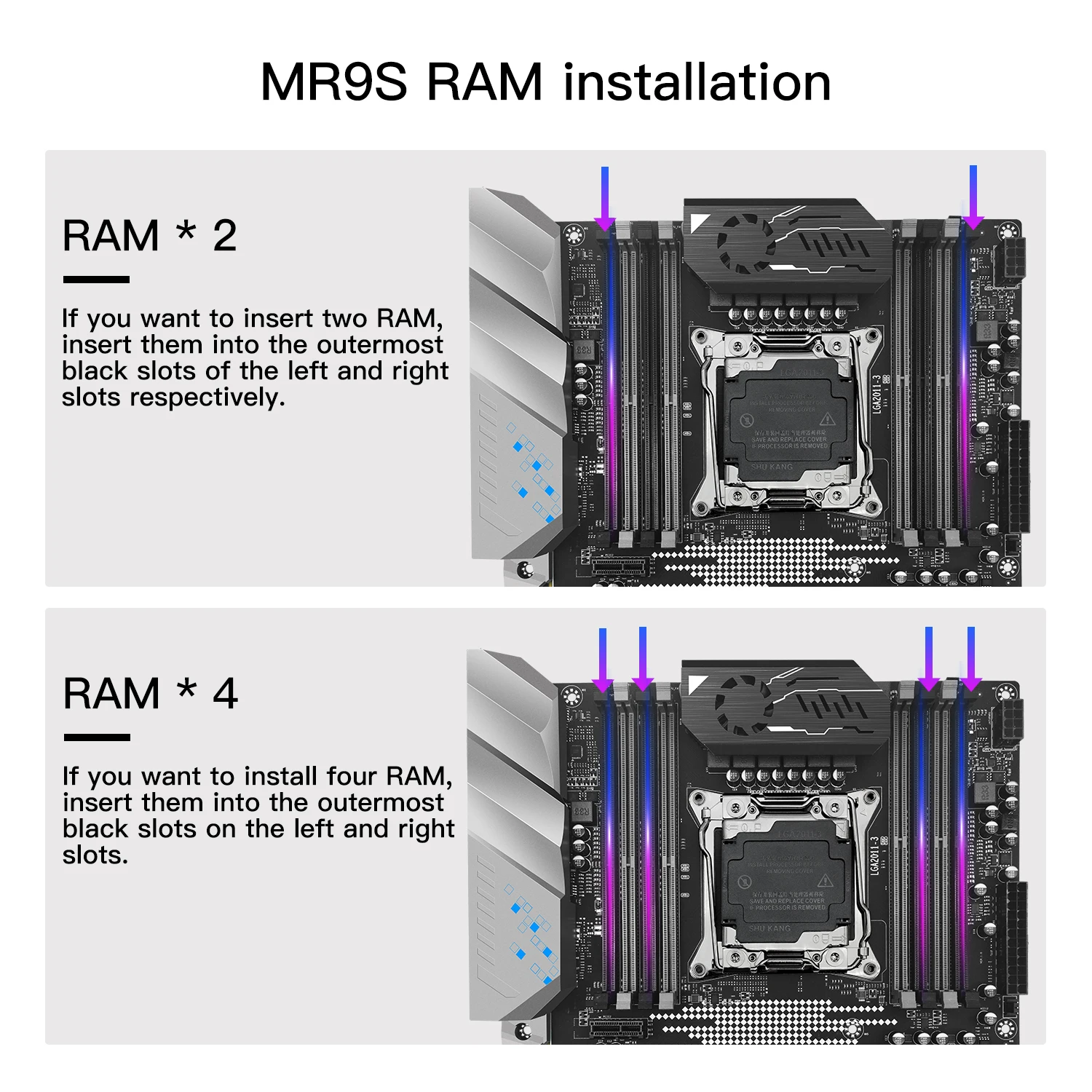

! ! ! When inserting memory into this motherboard, please pay attention. Please refer to the detailed description in the fifth picture of the main image.

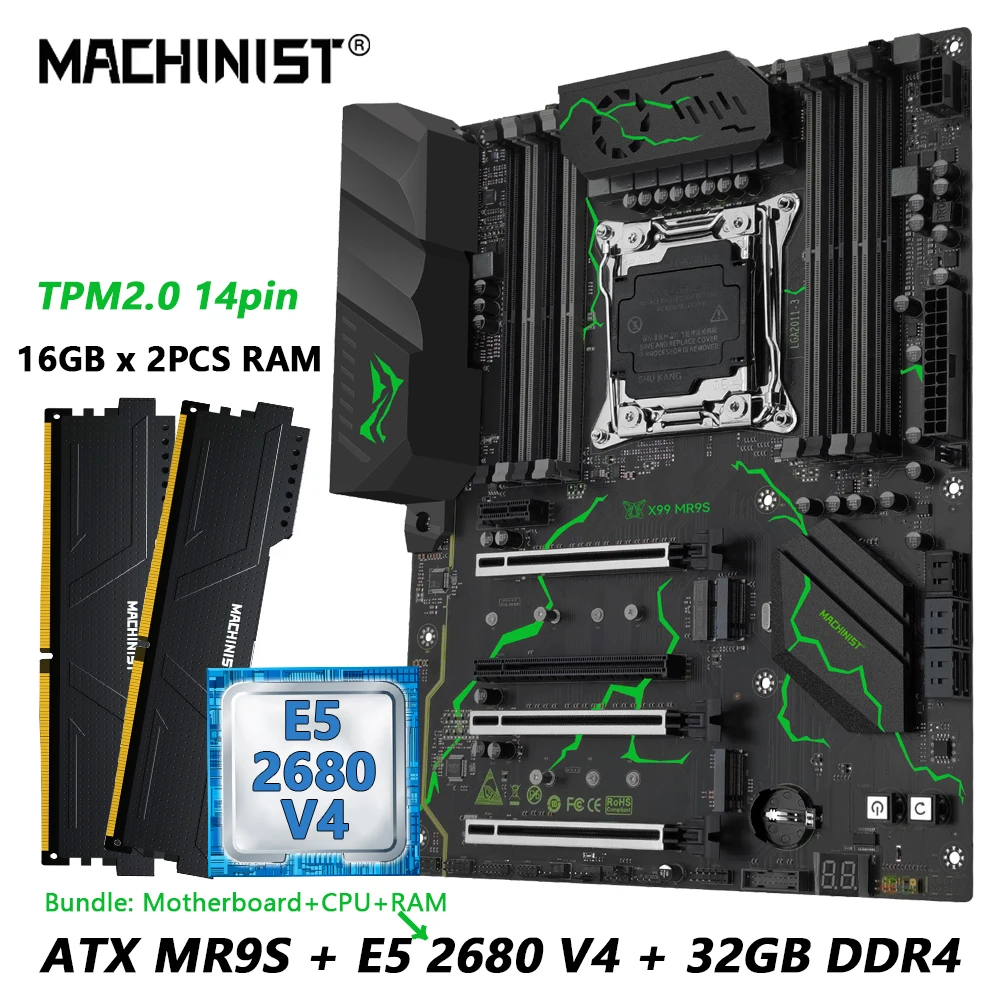

>> The motherboard +CPU+RAM package includes:

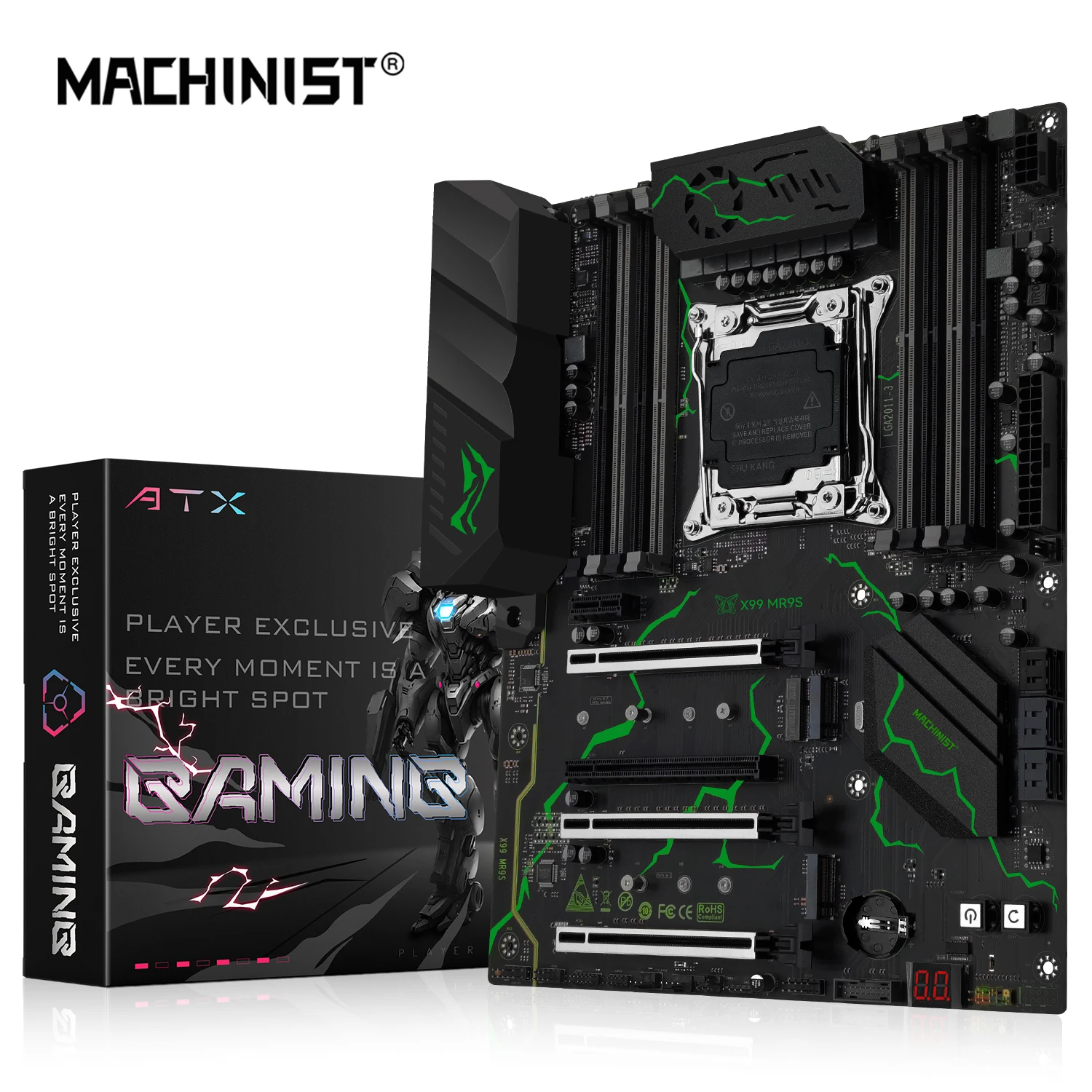

Motherboard: 1 piece of MACHINIST X99 MR9S motherboard.
Processor: Used Intel Xeon E5 2680 V4 *1PCS.
RAM: DDR4 16GB 2133MHz server memory *2PCS (black heat sink).
Complimentary accessories: I/O shield *1, SATA cable *1, lga 2011 heat sink *1.
(All items are manually tested before sending and then packaged. If any gifts are missing, it cannot be used as a reason for a refund. Please understand!)”
>> Motherboard information:
Brand: MACHINIST.

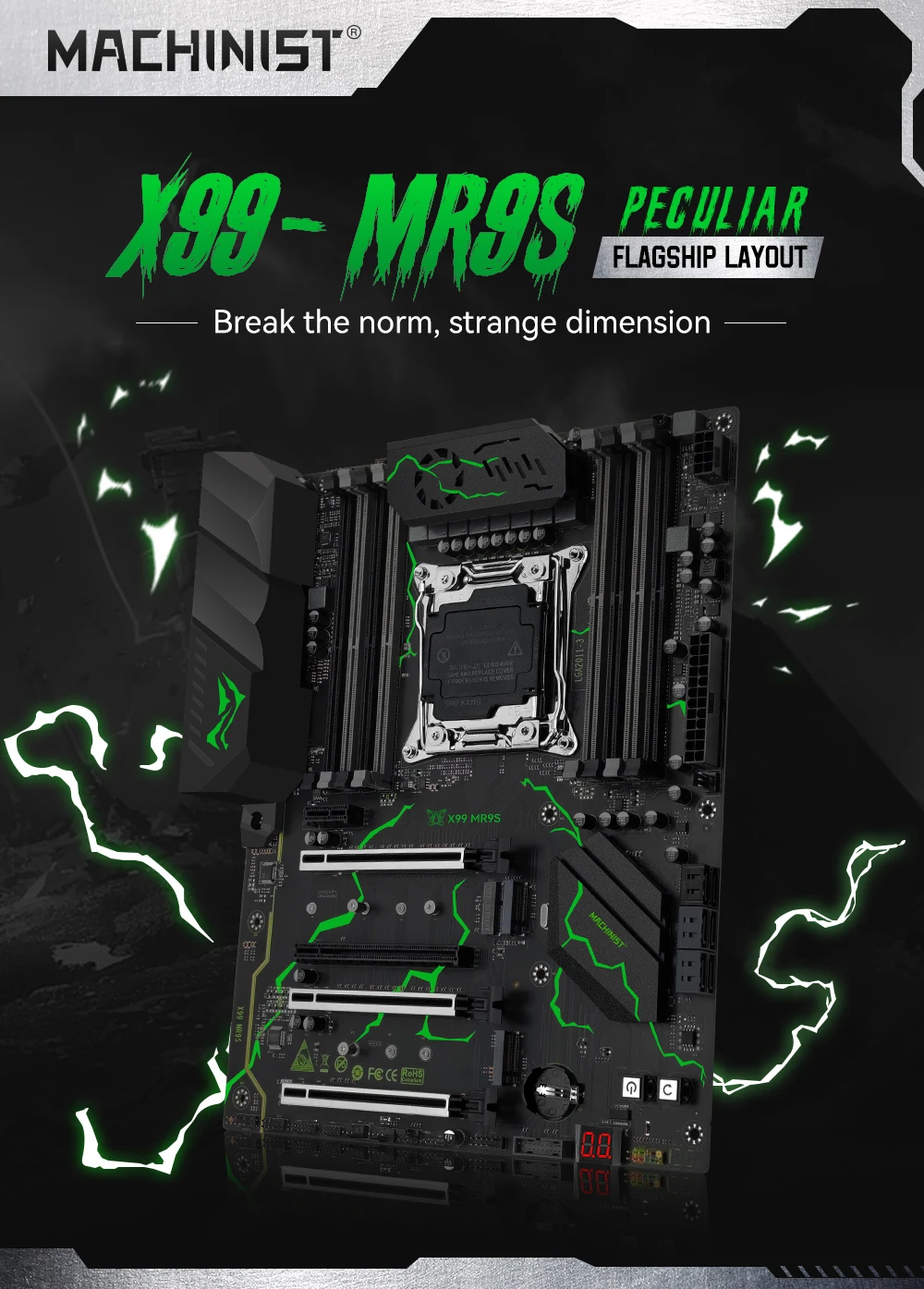

Motherboard model: X99 MR9S.
Processor: Supports Intel LGA 2011-3-pin series processors.
Chipset: B85/X226/Q87 chipset.
>> Memory:

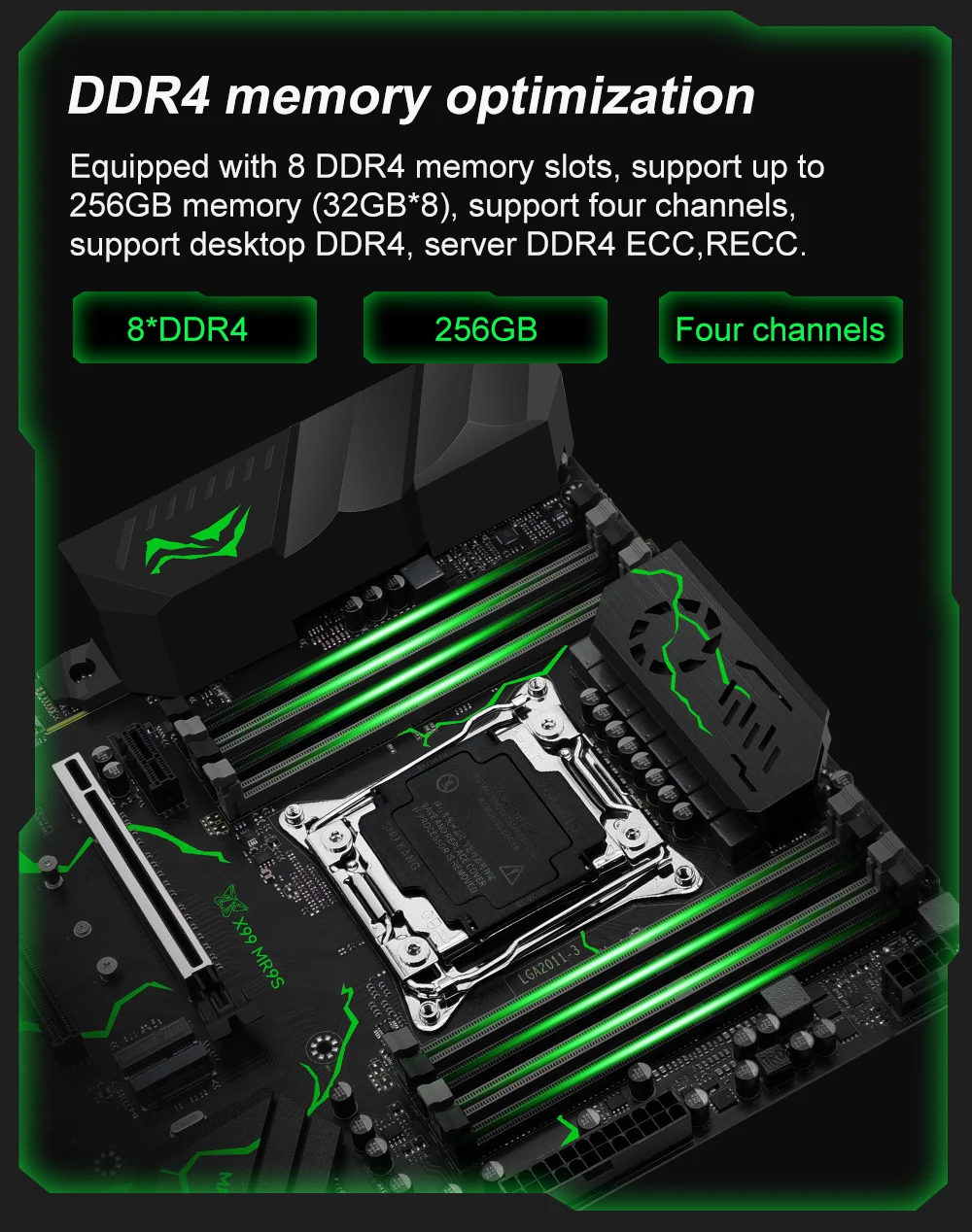

Technology: Four-channel DDR4. Supports 2133/2666/3200 MHZ.
The maximum capacity is 256GB (32G x 8).
Memory slot: 2* 288-pin DDR4.
Supported memory types: Supports DDR4 desktop memory and ECC memory.
Please use international brands such as Samsung, Kingston, Sandee, Micron, and Hynix. Other brands may not be compatible.
>> Post-i /O:
PS/2: 1 KB interface + 1 MS interface.
USB interface: 4 USB2.0 ports; Two USB3.0 ports.
Ethernet: Gigabit network adapter port.
Audio: 7.1 (microphone input, line output, line input).

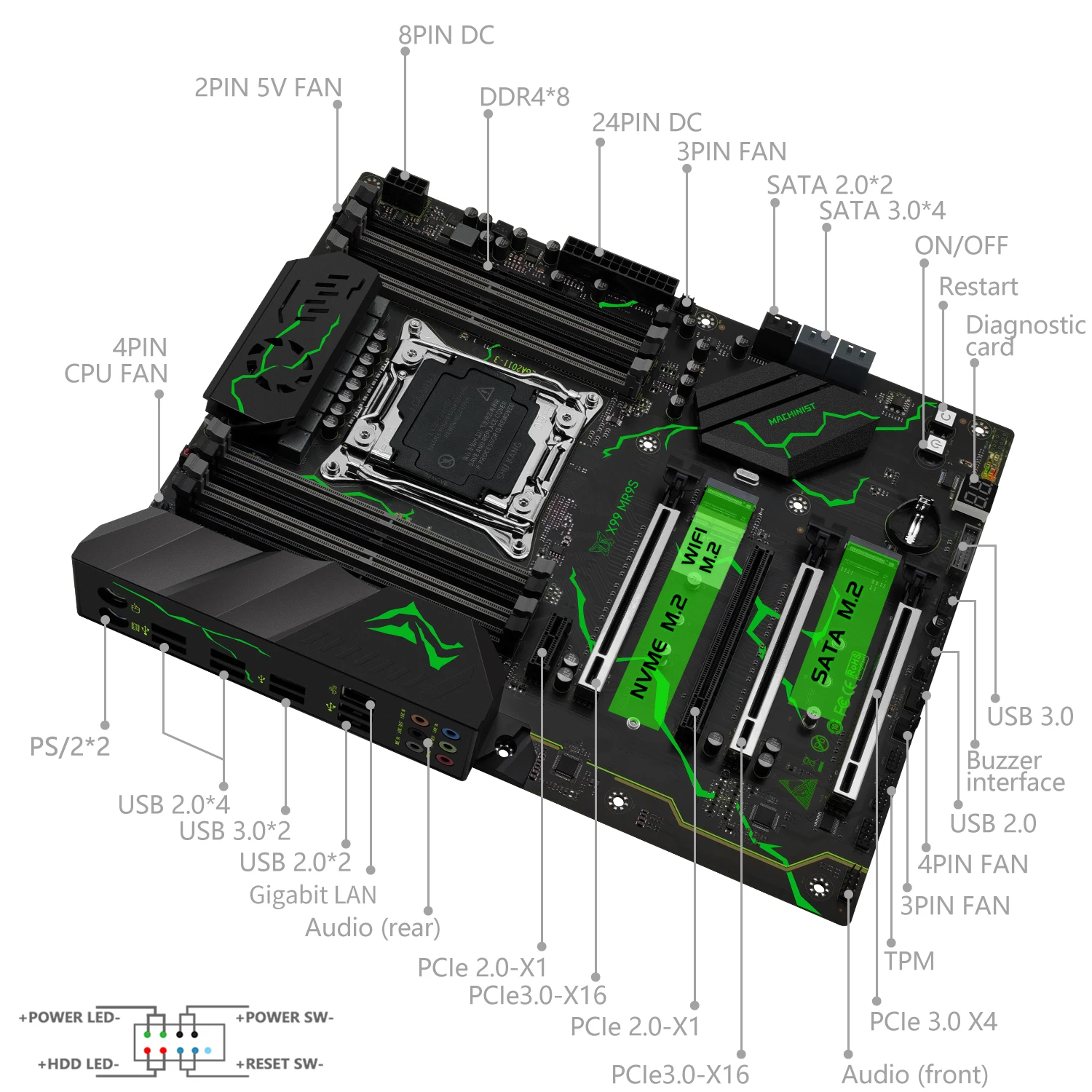

>> Internal connector:
TPM2.0: Applicable to the MSI 14-pin interface.
SATA interfaces: 4 (SATA3.0), 2 (SATA2.0).
M.2:1 PCIE interface, 1 SATA interface, and 1 wifi SATA interface.
PCIe: 3 X16 PCIe, 1 X1 PCIe, 1 pcie 3.0.

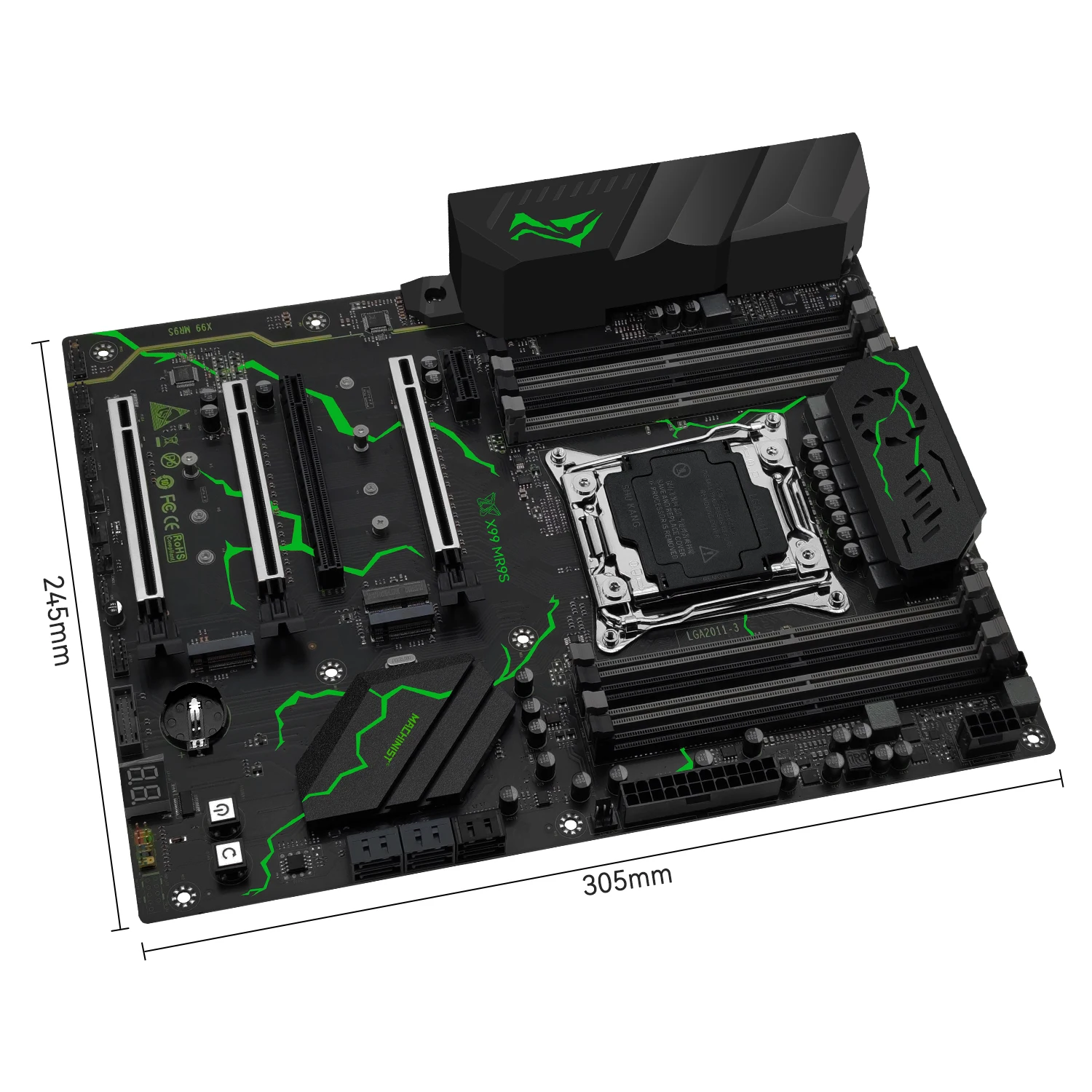

Size: 305mm*245mm.
>> Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.
>> Note:
(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1 to 3mm.
(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.
(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply
(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
2 reviews for MACHINIST X99 MR9S Motherboard kit LGA2011-3 Xeon E5 2680 V4 cpu 32GB DDR4 Four channel TPM 2.0 Interface NVME M.2 USB3.0
Nur eingeloggte Kunden, die dieses Produkt gekauft haben, können eine Bewertung abgeben.
| Bundle | Motherboard+CPU, Motherboards |
|---|---|
| Hochbesorgniserregende Chemikalie | Keiner |
| RAID Supported | NEIN |
| Processor compatibility | Intel Xeon |
| Ports | USB 3.0 |
| Usage Scenario | Gaming,Audio & Video,Office,Video Production,others |
| Onboard Connectors & Header | 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,4-pin +12V Power Connector |
| Back I/O Ports | 1x RJ45 |
| Support USB Type | USB 2.0,USB 3.0 |
| Max LAN Speed | 1000Mbps |
| Onboard LAN | 1x RJ45 |
| Audio Channels | 7.1 |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 3 |
| Number of SATA Ports | 6 |
| Storage Interface Type | SATA,M.2 (NVMe) |
| Number of PCI | 0 |
| Number of PCIe x 1 | 1 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 8 | 0 |
| Number of PCIe x 16 | 4 |
| PCI - E standards | PCI-E 3.0 |
| Number Of Memory Slots | 8 |
| Support Memory Type | DDR4 |
| Memory channel | Four |
| Package | Ja |
| Maximum Ram Capacity | 256GB |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Battery Included | NEIN |
| With CPU | Ja |
| Chipset | Q87 |
| Anwendung | Desktop |
| Socket Type | LGA 2011-3 |
| Markenname | MACHINIST |
| Special Features | Keiner |
| Herkunft | Festlandchina |
| Produktsicherheitsinformationen/Warnhinweise | Do not place this product near flammable or explosive items. |
r***r (Verifizierter Käufer) –
My first x99 system. I ordered machinist tpm2 module to go with it. Cpu and ddr4 already installed when package arrived.system working great. Bios and new a install of windows 11, both found tpm. System is fast, with an m.2 as boot drive. Awaiting support to get back to me with latest bios and drivers. Recommended product and seller
AliExpress Shopper (Verifizierter Käufer) –
It’s my 2nd bumdle of this platform… It’s an amazing kit! Very well made, and very good quality. I haven’t tested this one yet, but the product arrived in pristine condition.
The connector for tpm 2.0 is present on the board.
Best recommendations to this seller. Thankyou.
