- Hochbesorgniserregende Chemikalie: Keiner
- Zoom type: Keiner
- Zoom: Keiner
- Lens Quantity: Single Lens
- AI Functions: Motion Detection
- Color Night Vision: NEIN
- Operating Temperature: -10°-60°
- IP Rating: Andere
- App name: Andere
- Power Mode: Mains Electricity
- Rechargeable Battery Capability: Andere
- Rechargeable Battery: Keiner
- Scene: Indoor
- Movement Range(Pan): Andere
- Megapixels: 5 MP
- TF Card: Keiner
- Power Supply: Normal
- Internal Storage: Keiner
- Installation: Embedded
- Farbe: Grün
- is_customized: NEIN
- Audio Output: Keiner
- Minimum Illumination(Lux): 0.01
- Viewing Angle : 100°
- Video Compression Format: H.264,H.265
- IR Distance(m): 1-5M
- Dimensions (L x W x D)(mm): 41X41MM
- Power Supply(V): 12V
- Alarm Action: FTP Photo,Email Photo,Local Alarm
- Power Consumption(W): 3
- Supported Mobile Systems: Android,iOS
- Sensor Brand: SmartSens
- Sensor: CMOS
- Modellnummer: HQ-M21
- Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
- Lens (mm): 3.6mm
- Connectivity: IP/Network Wireless
- High Definition: 5.0 Megapixels
- Stil: Mini Camera
- Markenname: HQCAM
- Herkunft: Festlandchina
- Special Features: Vandal-proof
- Alarm Type: FTP Photo
- Shell Material: Metall
- Smart home platform: Keiner
- Optical Zoom: Keiner
- Stromquelle: Normal
CE Certificate
RED Report-2.4G Wifi WST21N060115-2ER

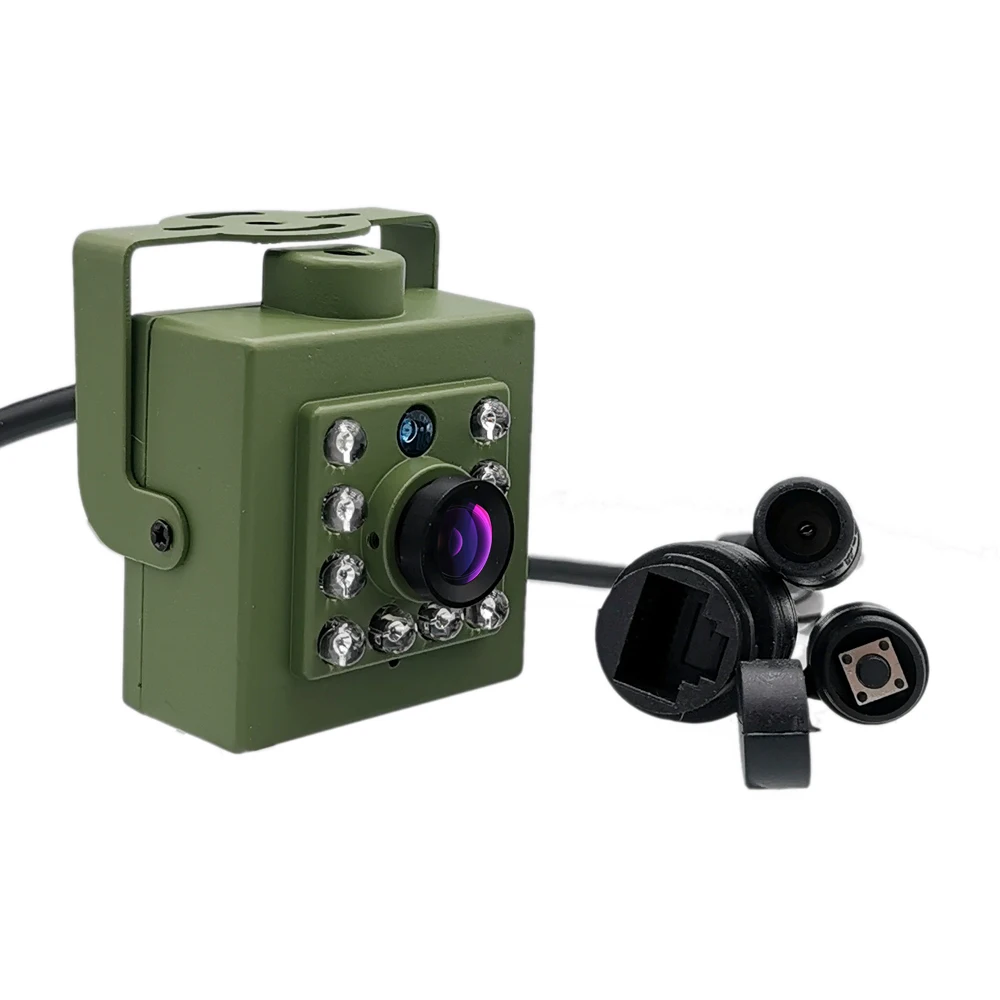

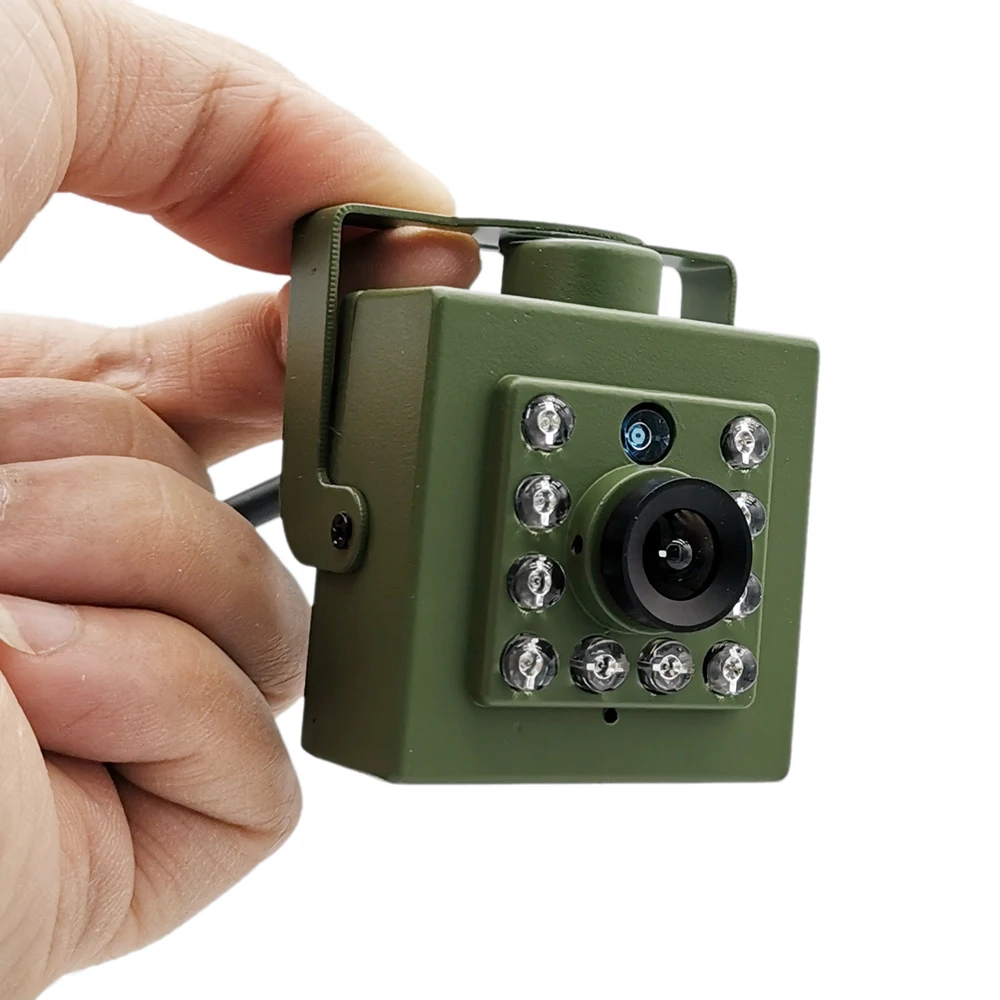

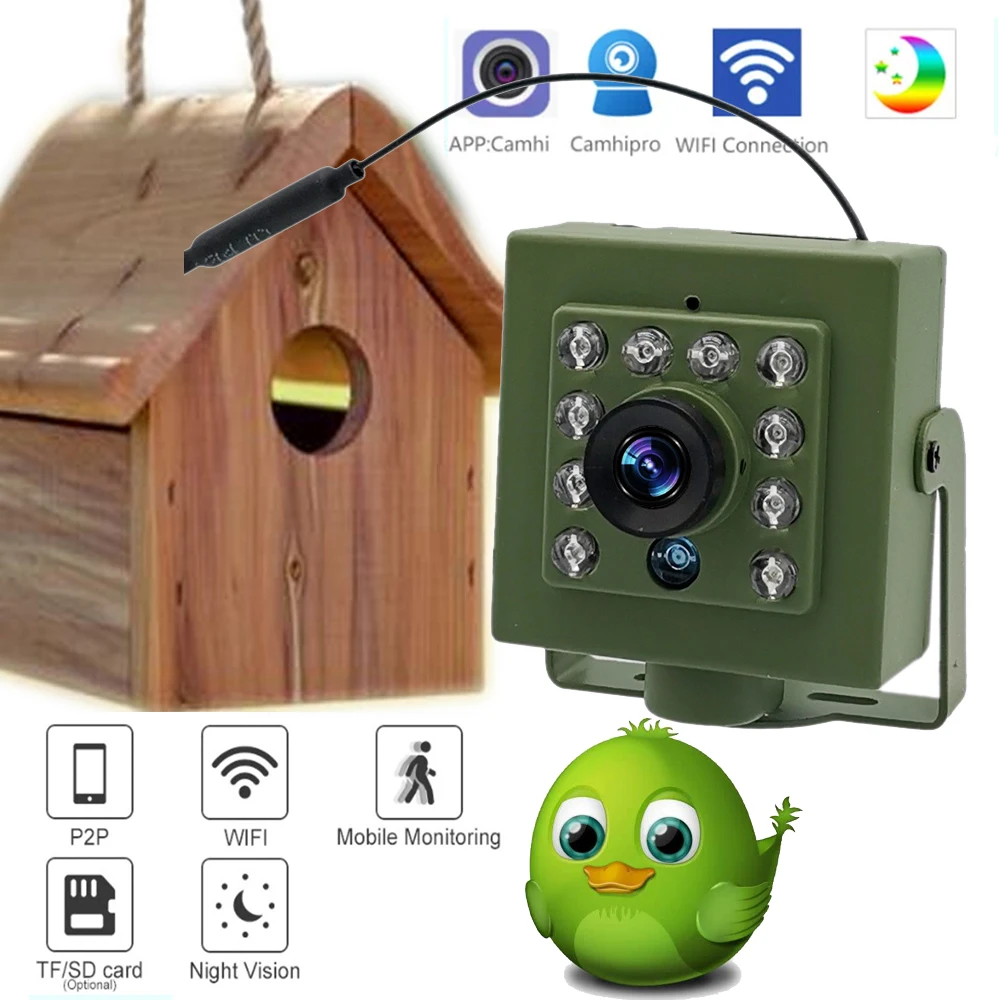

Our bird box camera with WiFi connection is our most popular camera for bringing nature indoors. Using the camhi or camhipro app you can watch nesting birds on your smartphone or tablet in HD.

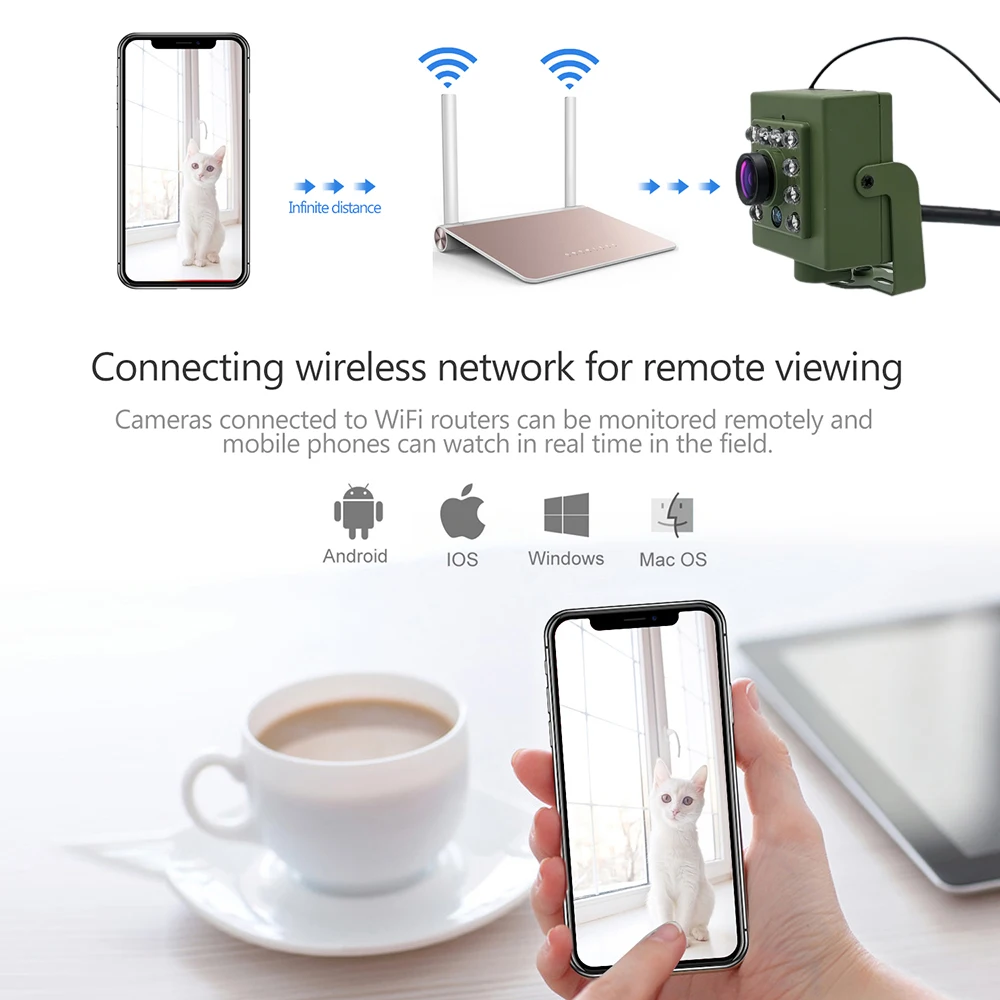

It’s straightforward to set up: simply connect up the power, mount the camera in your bird box and connect to your WiFi network. You can stream the camera live on your device, watch pre-recorded footage, and share the best bits with friends and family.
Camera default focal length: 30-50cm
Merkmale:

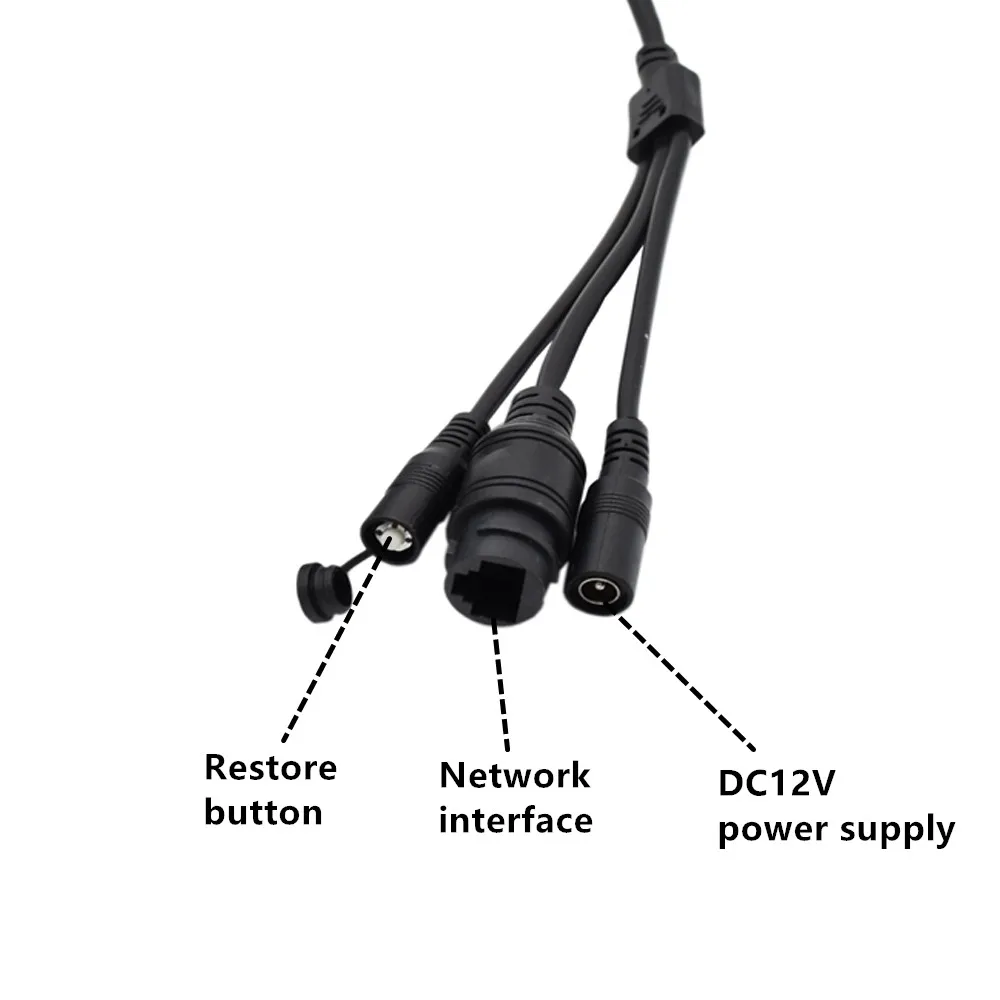

Support both WiFi connection and wired cable connection
Support Acess Point (AP WiFi) connection, you can connect camera by AP mode and live view / playback/ control pan tilt zoom even without internet

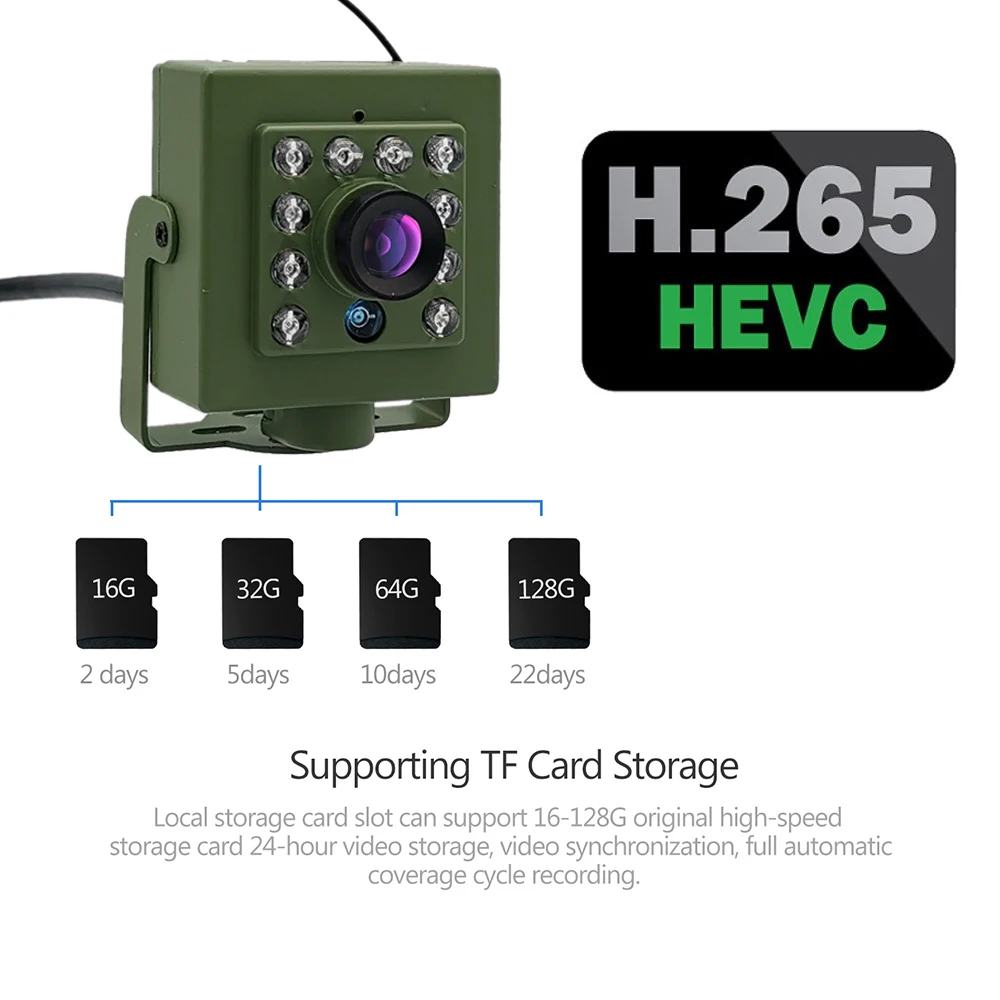

Camera built in memory card slot, Support TF card / micro SD card up to 128G
Support Motion detection Recording and email alarm.
Support send alarm pictures to the e-mail address,
Support upload alarm pictures and videos to the FTP server,
Support record alarm pictures and videos to Micro SD card,
Support alarm mobile phone message push
Support remote view and remote control pan tilt zoom from phone app /PC client at any time and any place
Support playback memory card records from phone app
Built in IR-CUT, Support both day and night vision,

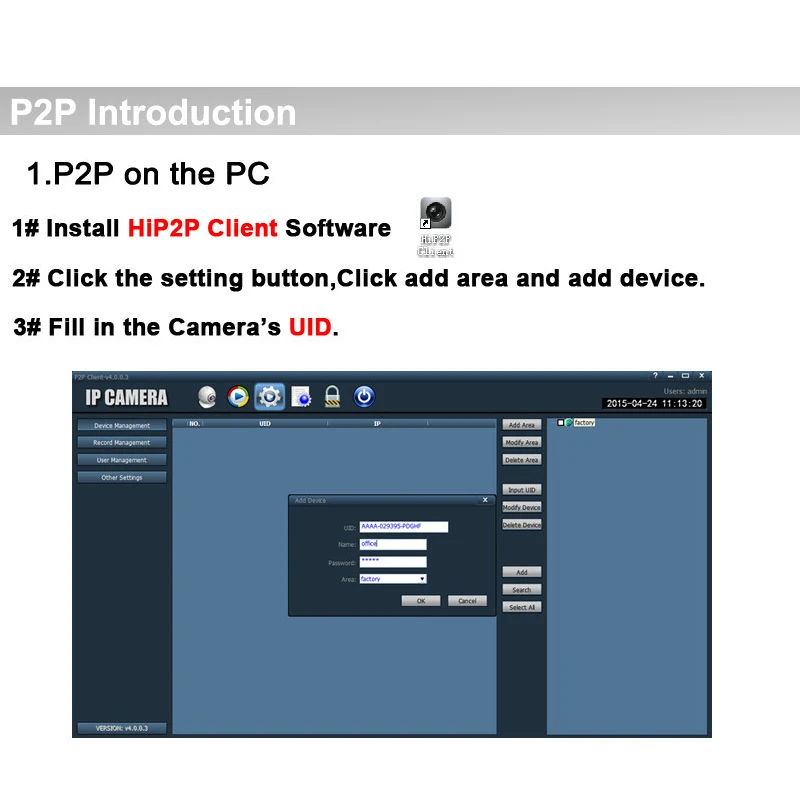

Provide android & ios APP and multi-channel CMS PC client software.
Elegant outline and easy installation.

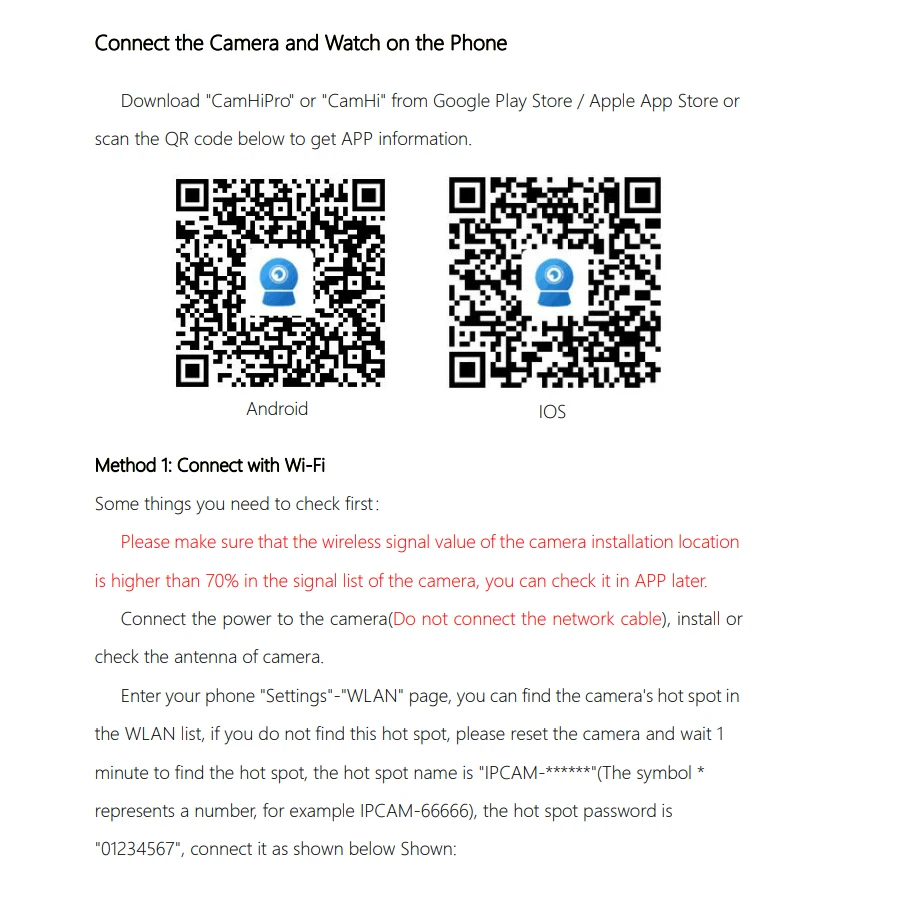

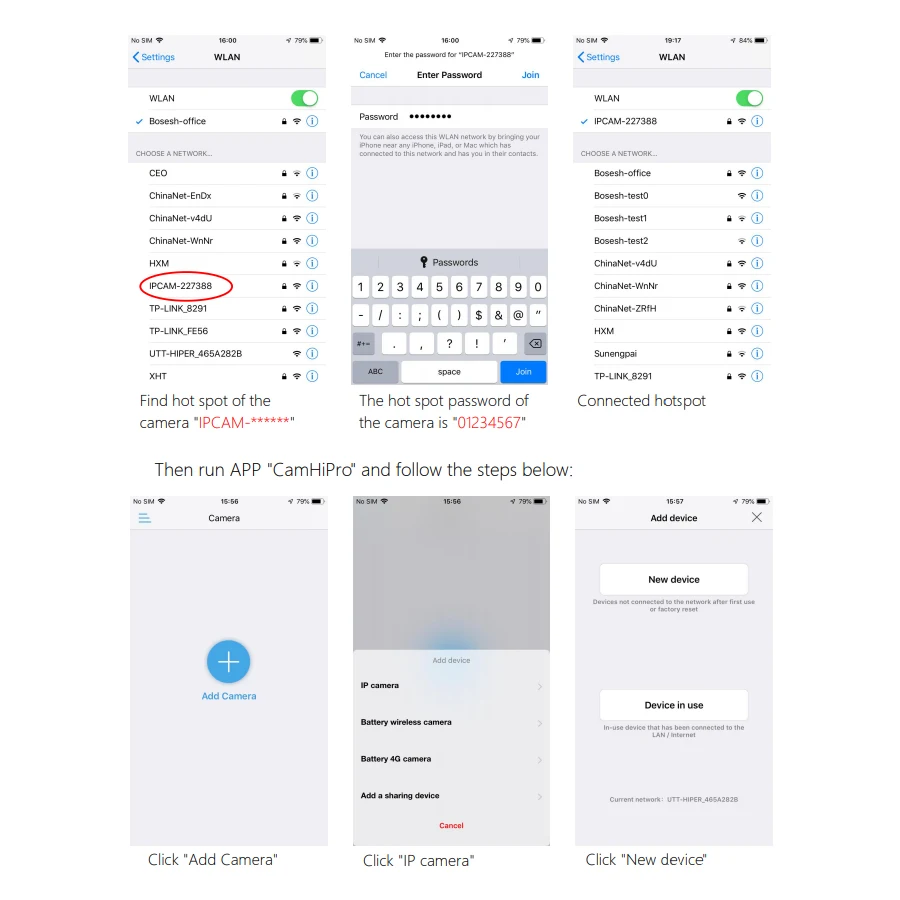

Phone app :CamHi camhipro
Support QR code login.
Support Plug n Play P2P
Support On,vif , camera can work with On,vif NVR recorder!
Different angle lens available
109 degree lens is 2.8mm, and the standard configuration is 3.6mm lens, about 90 degrees

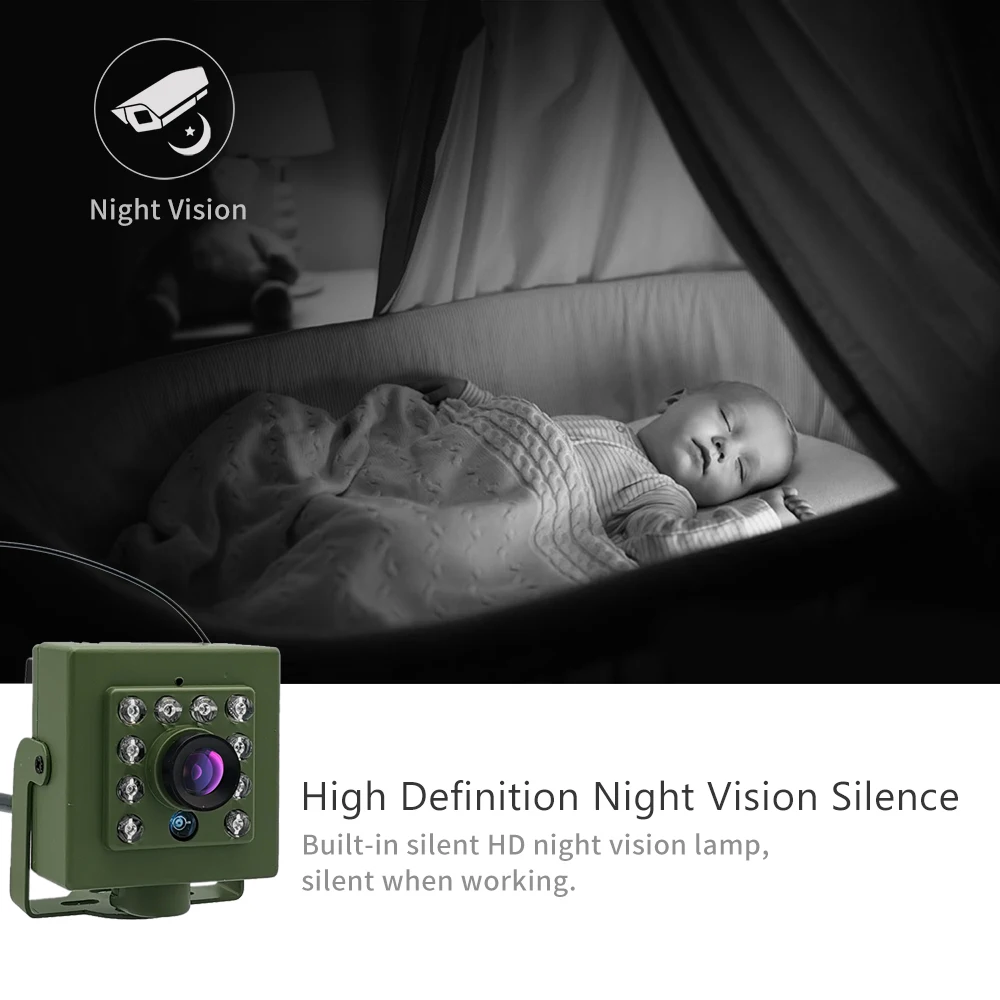

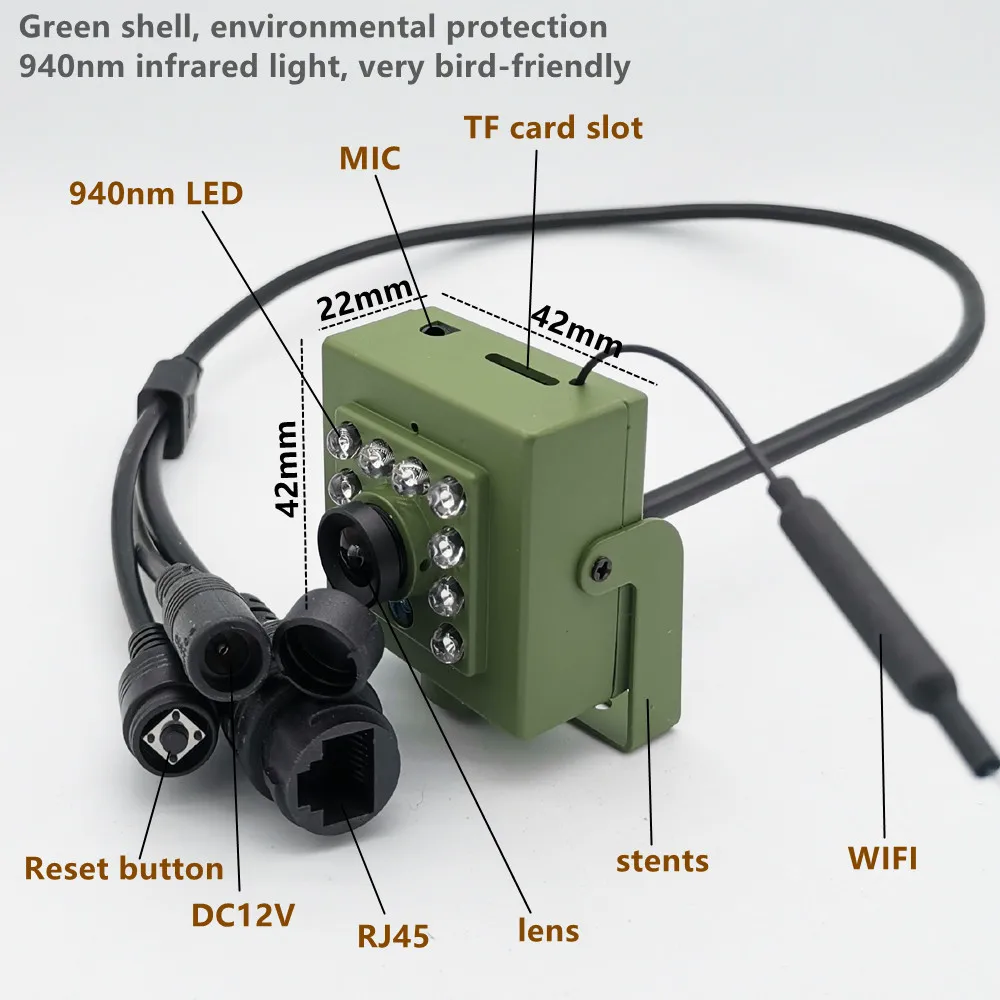

Hi dden infrared lamp
940nm infrared lamp, invisible light source to human eyes, no harm to birds and animals, very hi dden
Supports up to 128 GB memory card(Excluding TF card)

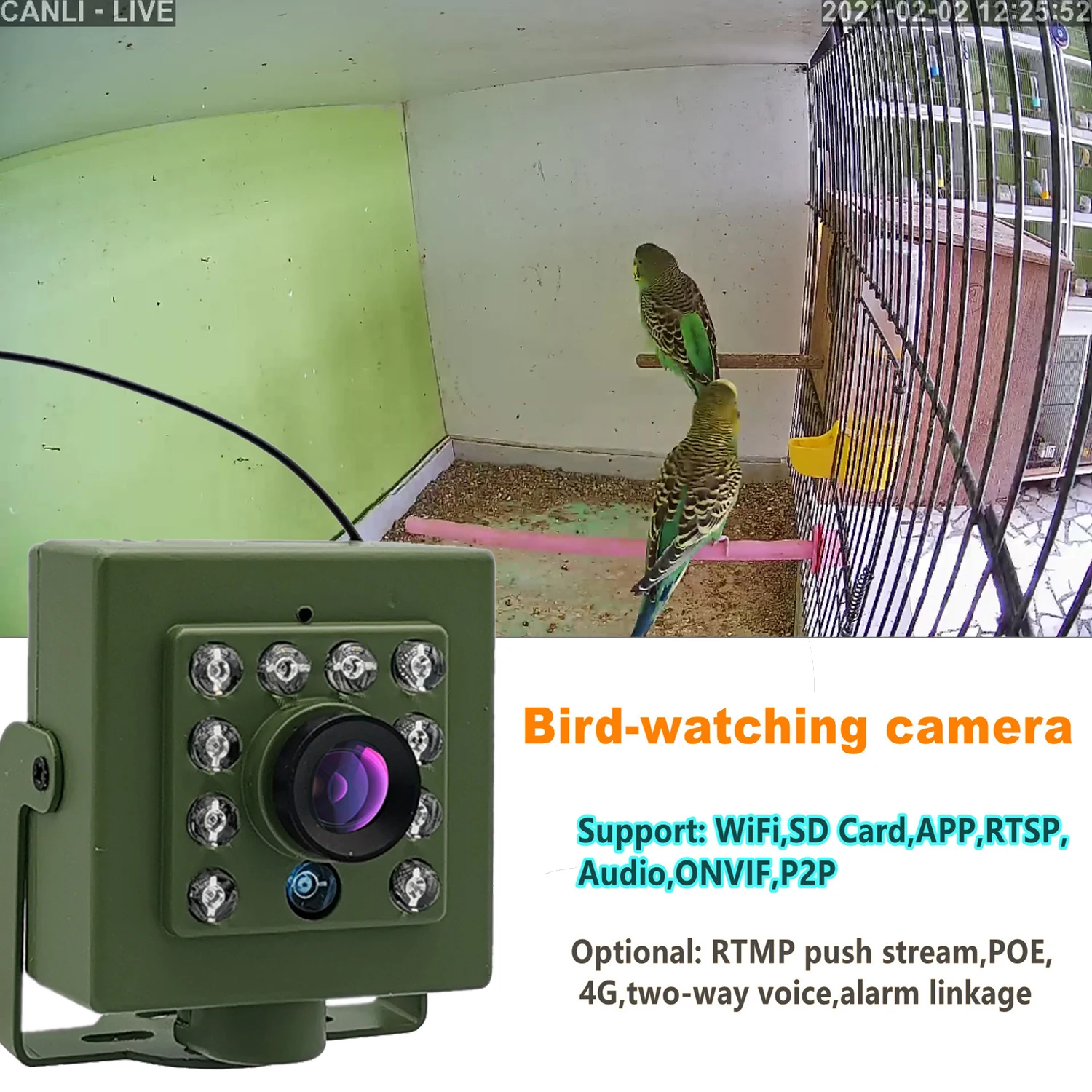

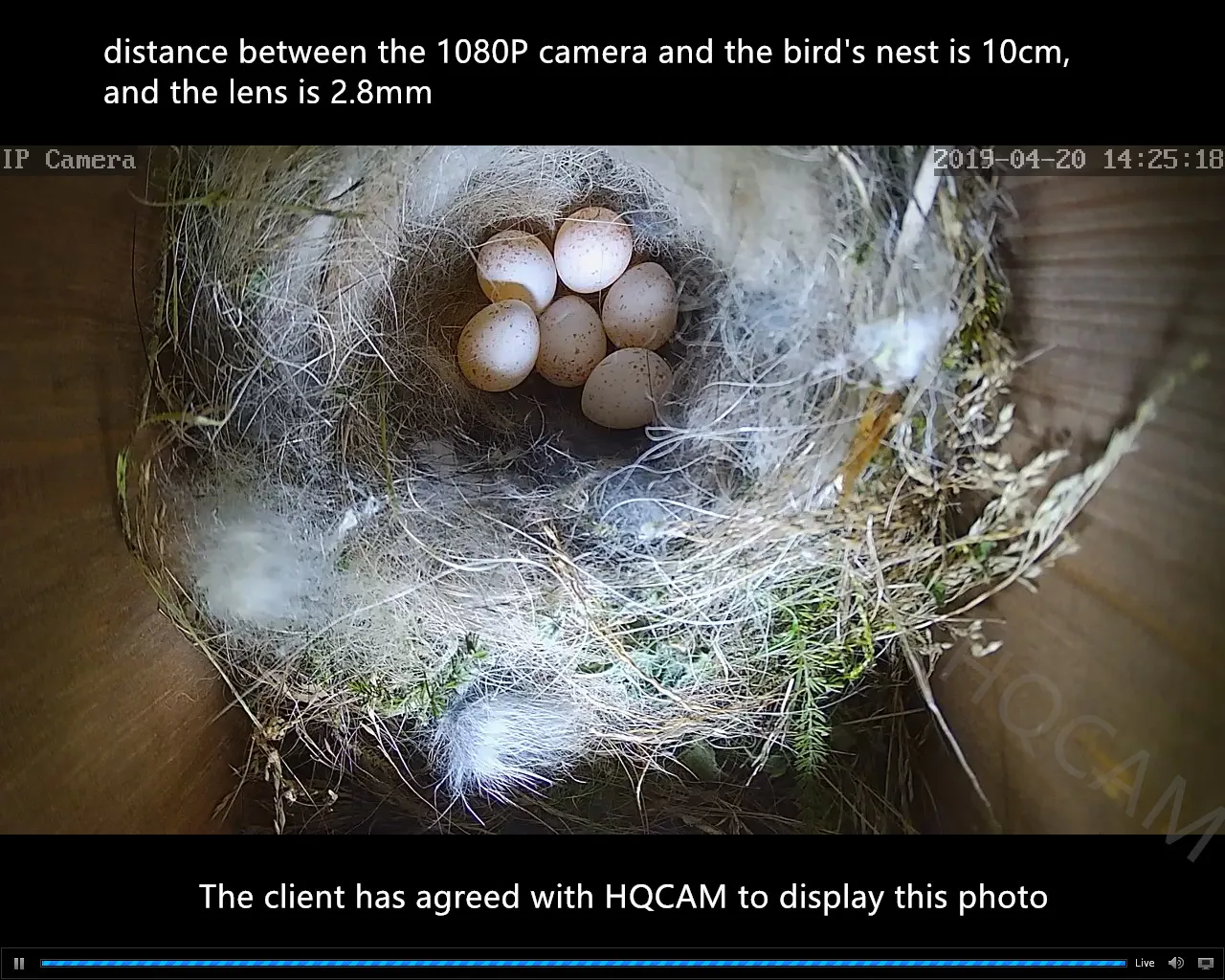

Customer real case presentation:
Größe
Q1: Is it wifi camera?
Re: Yes, it is wireless ip camera with wifi antenna.
Q2: Does it support sd card?
Re: YES, it bulits a sd card slot,you can install a micro SD card to save records.
Q3 Can i watch the camera video from another place remotely? What is the app for phone?
Re: Yes, you can. The phone app named” CamHi”. (User ID: admin; Password: admin)
Q4: Can i record the video into SD card or my computer hard disk or i have to use this camera with a recorder NVR?
Re: Yes, you can record video to your Micro sd card / PC hard disk, and you can also use it with a recorder NVR and record it into NVR hard disk. Both are OK!
Q5: Does it support ON,VIF?
Re: Yes.

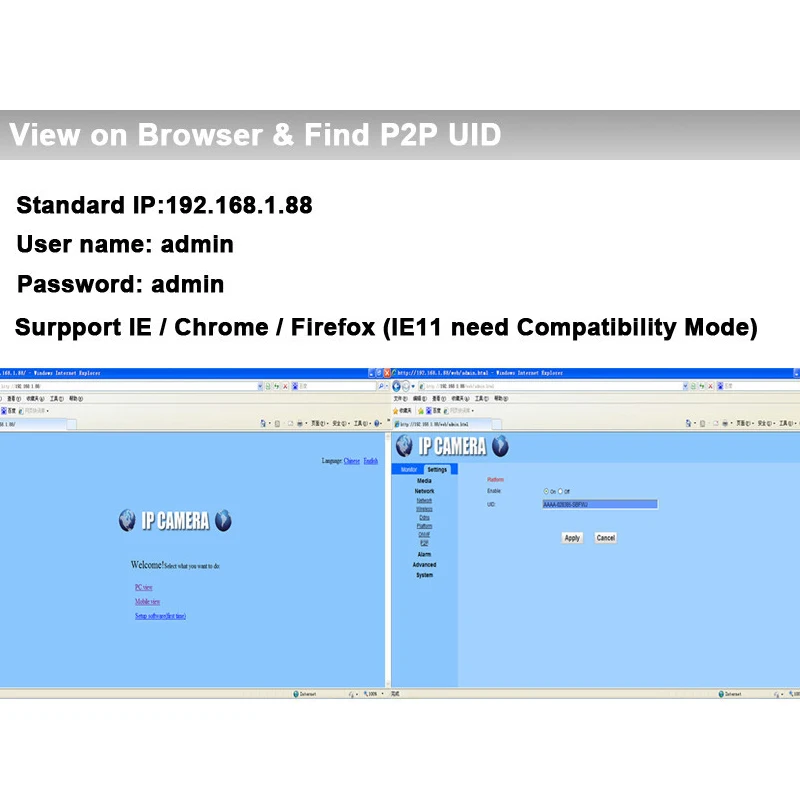

Q6: What browser access is supported?
Re：Support for Internet Explorer, other browsers can switch to IE compatibility mode can also be accessed, may remind you to download the plugin
Q7: Not a clear picture?
Re：Check whether it is the first stream. The first stream is the clearest
To check whether the focal length of the lens is correct, you can try to slowly rotate the lens, pay attention to loosen the small screws near the lens
Q8: How long is the power extension cord appropriate?
Re：The power extension cable used should not exceed 5 meters, and the extension cable of more than 5 meters is recommended to buy a power adapter above DC12V3A for power supply, otherwise it will lead to frequent restart of the power supply camera or no picture
Q9: The PC client software displays a message indicating that the password is incorrect or unavailable
Re: Please contact us for the latest version of the PC client software
Spezifikationen:
|
Model |
Bird box camera |
|
|
Video |
Sensor |
2.0megapixel. 1/2.8″ CMOS
5.0megapixel. 1/2.7″ CMOS
|
|
Video resolution |
Main stream: 1920*1080P@25fps, 1280×720@25fps
Sub stream: 640×480/640×352@25fps, 320×240/320×176@25fps Main stream: 2560×1920@20fps, 2560×1440@15fps
Sub stream:800×600/800×448@25fps, 640×480/640×352@25fps |
|
|
Video compression |
H.264 H.265 |
|
|
Lens |
2.8MM Lens default , |
|
|
View angle |
100 degree |
|
|
Night vision |
10pcs infrared LEDs, night vision distance 1-4m, 940nm ir leds default , |
|
|
Alarm |
Motion detecting alarm |
Can set 4 independent detection region (1-100 sensitivity can be set) |
|
Alarm linkage |
Alarm send pictures to the mailbox, |
|
|
Alarm recording |
Support Micro SD card and PC client linkage alarm recording |
|
|
Network |
Wireless |
IEEE 802.11 b/g/n |
|
Ethernet |
RJ45 Ethernet |
|
|
On,vif protocol |
Support ON VIF 2.4(backward compatible) |
|
|
Storage |
Micro SD card |
Support up to 128G micro SD card |
|
Recording mode |
Alarm record, timing record, |
|
|
Video playback |
Support APP, IE browser, remote client play and download the video |
|
|
Audio |
YES ,build with Mic |
|
|
Horizontal speed |
/ |
|
|
Vertical speed |
/ |
|
|
Preset |
/ |
|
|
General specification |
Power |
DC12V 2A |
|
Operating environment |
Environment -20℃~+60℃(-4℉~+140℉), |
|
|
Shell material |
metal shell(Waterproof not supported) |
|
|
Waterproof level |
NA |
|
|
Product size |
/ |
|
|
Product weight |
||
|
Package size |
/ |
|
|
Package weight |
||
|
Reset button |
Support |
|
Packliste:
1 x wifi camera
1 x User manual
1X adapter
25 reviews for Green Wifi Bird Box Camera Audio 1920P 1080P IR CUT Night Vision RTSP FTP Mini IP IPC Pet Nest Bird Watching 2.8mm lens Camhi
Nur eingeloggte Kunden, die dieses Produkt gekauft haben, können eine Bewertung abgeben.
| Sensor Size | 2MP WIFI, 5MP WIFI |
|---|---|
| Hochbesorgniserregende Chemikalie | Keiner |
| Zoom type | Keiner |
| Zoom | Keiner |
| Lens Quantity | Single Lens |
| AI Functions | Motion Detection |
| Color Night Vision | NEIN |
| Operating Temperature | -10°-60° |
| IP Rating | Andere |
| App name | Andere |
| Power Mode | Mains Electricity |
| Rechargeable Battery Capability | Andere |
| Rechargeable Battery | Keiner |
| Scene | Indoor |
| Movement Range(Pan) | Andere |
| Megapixels | 5 MP |
| TF Card | Keiner |
| Power Supply | Normal |
| Internal Storage | Keiner |
| Installation | Embedded |
| Farbe | Grün |
| is_customized | NEIN |
| Audio Output | Keiner |
| Minimum Illumination(Lux) | 0.01 |
| Viewing Angle | 100° |
| Video Compression Format | H.264,H.265 |
| IR Distance(m) | 1-5M |
| Dimensions (L x W x D)(mm) | 41X41MM |
| Power Supply(V) | 12V |
| Alarm Action | FTP Photo,Email Photo,Local Alarm |
| Power Consumption(W) | 3 |
| Supported Mobile Systems | Android,iOS |
| Sensor Brand | SmartSens |
| Sensor | CMOS |
| Modellnummer | HQ-M21 |
| Supported Operating Systems | Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003 |
| Lens (mm) | 3.6mm |
| Connectivity | IP/Network Wireless |
| High Definition | 5.0 Megapixels |
| Stil | Mini Camera |
| Markenname | HQCAM |
| Herkunft | Festlandchina |
| Special Features | Vandal-proof |
| Alarm Type | FTP Photo |
| Shell Material | Metall |
| Smart home platform | Keiner |
| Optical Zoom | Keiner |
| Stromquelle | Normal |
| Plug Type | EU Plug, UK Plug |
I bought two more of the cameras. One of them works, the second one has no infra-red ability - so only works in daylight. I don't have the strength to pursue this through the appalling mess that is aliexpress customer service.
Summary - cheap products - useless, unhelpful and obstructive customer support.
Fist-line customer support has been briefed to make all the right 'friendly' noises - but when it comes to the second-line folks - they are thoroughly unhelpful.
Only buy from aliexpress if you enjoy banging your head against a brick wall.
The ip camera software that they recommend you use is also a nightmare to set up.
Screengrab below shows two cameras working at night on ir, cam4's ir doesn't work so that screen is black - even though the camera is online.
Disaster from from start to finish.
Video settings not adjustable. Only 15 ftp, not adjustable, so no nice flowing footage.
Only 14 sec alarm videos.
Only 2 mb alarm videos.
5MP? Doesn't do anything. Just a marketing scam I believe.
Loses connection and will not always record and miss birds and alarms.
A lot of barrel distortion.
No software for PC. Links in manual not working.

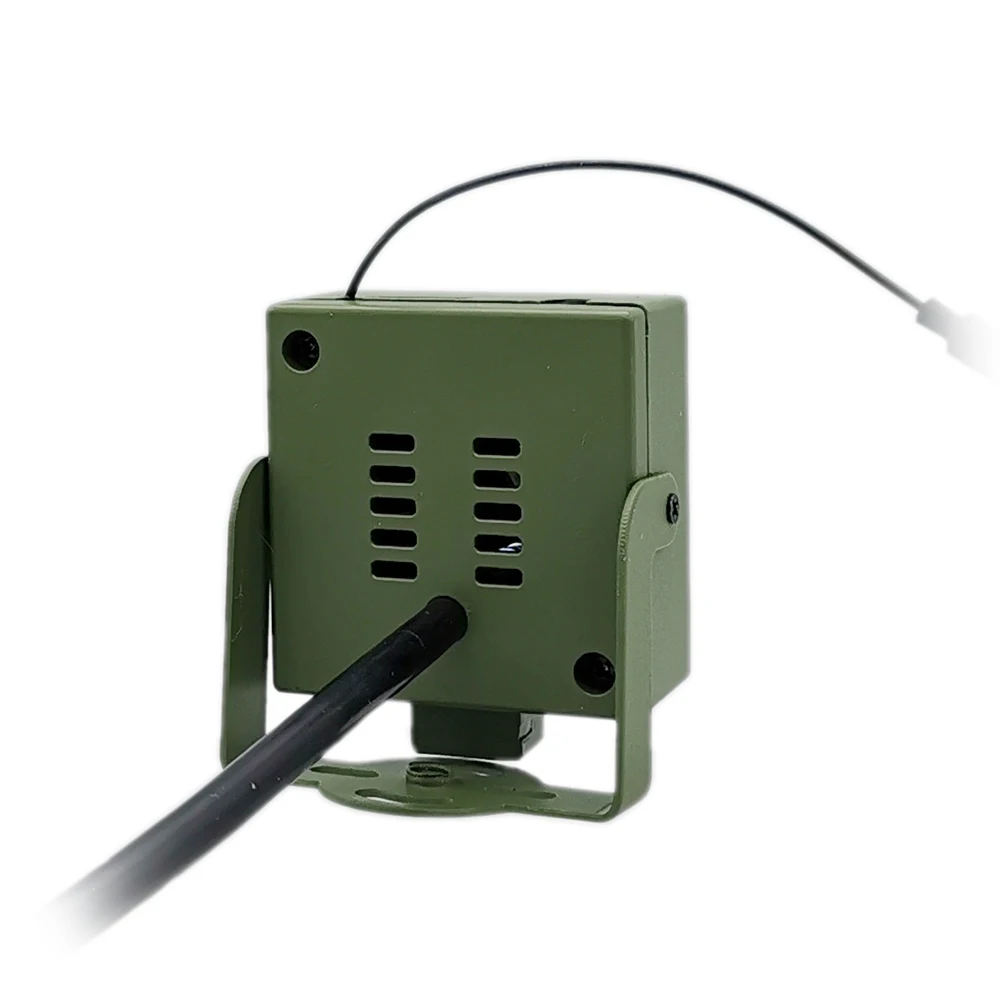

Not weatherproof, look at all the holes in the metal.
Metal scratches easily.
No easy clear manual to setup mail or ftp.
