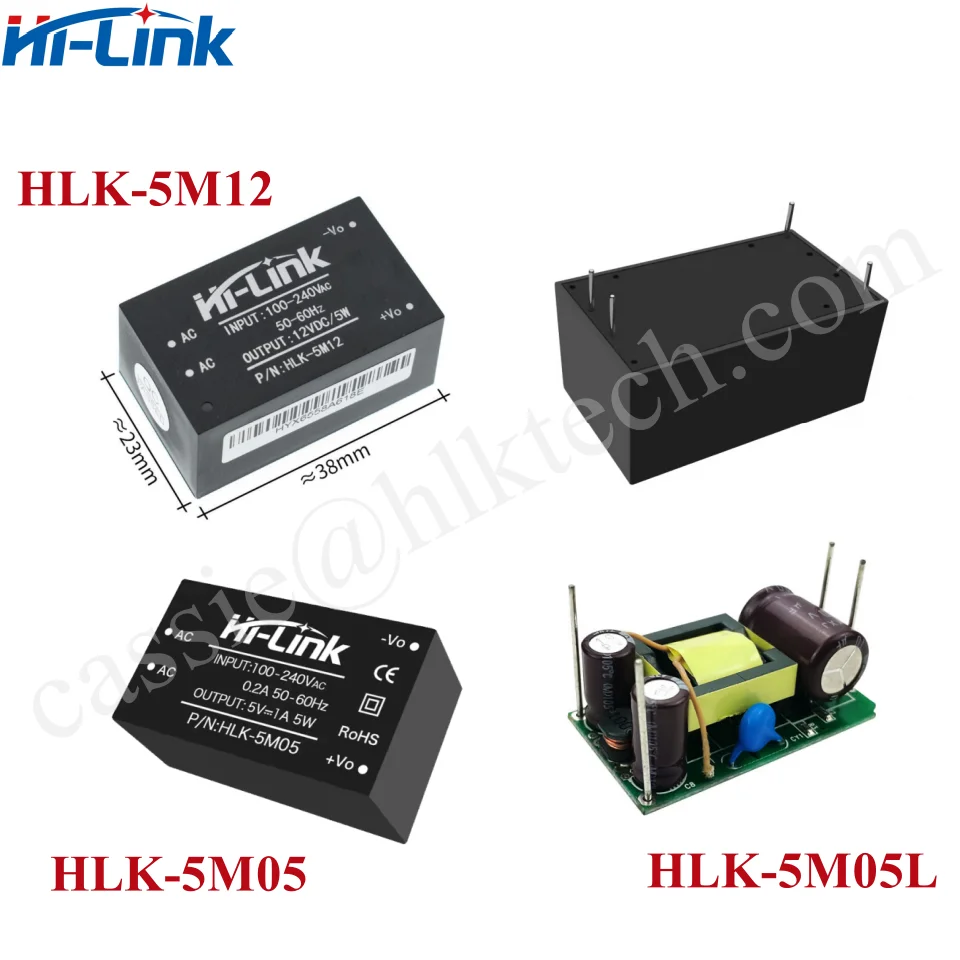

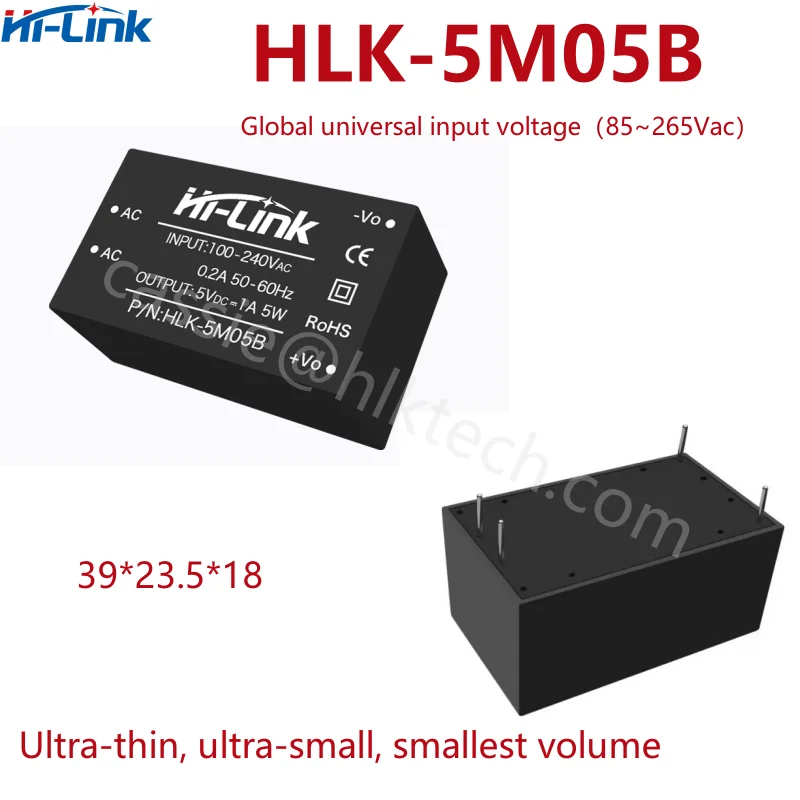

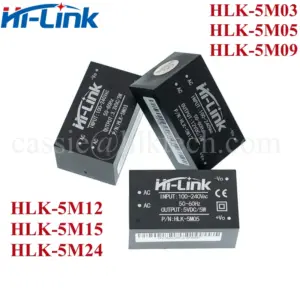

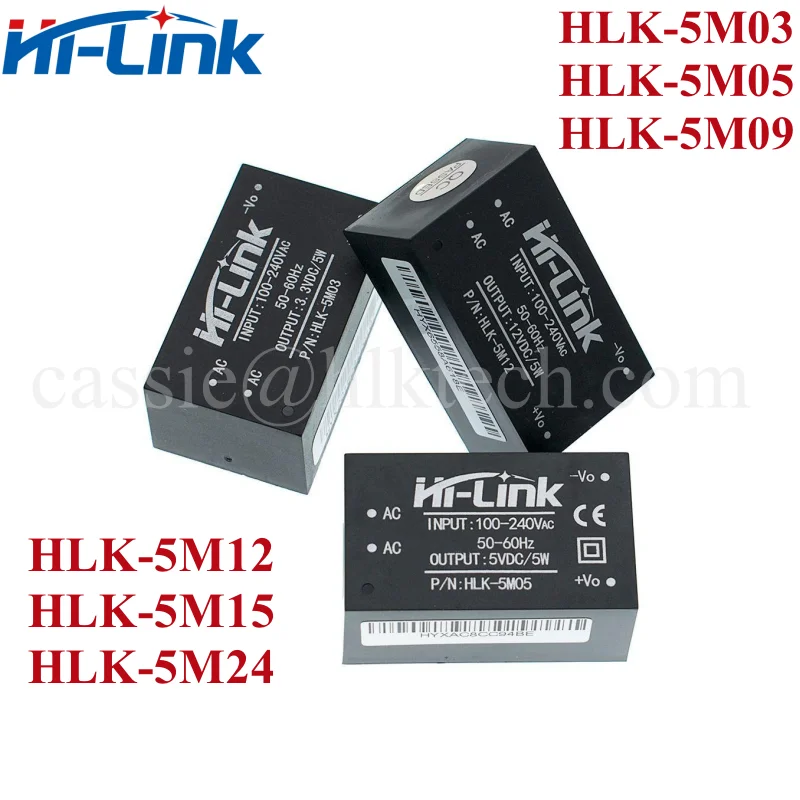

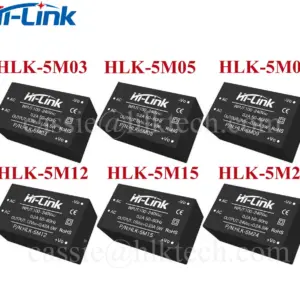

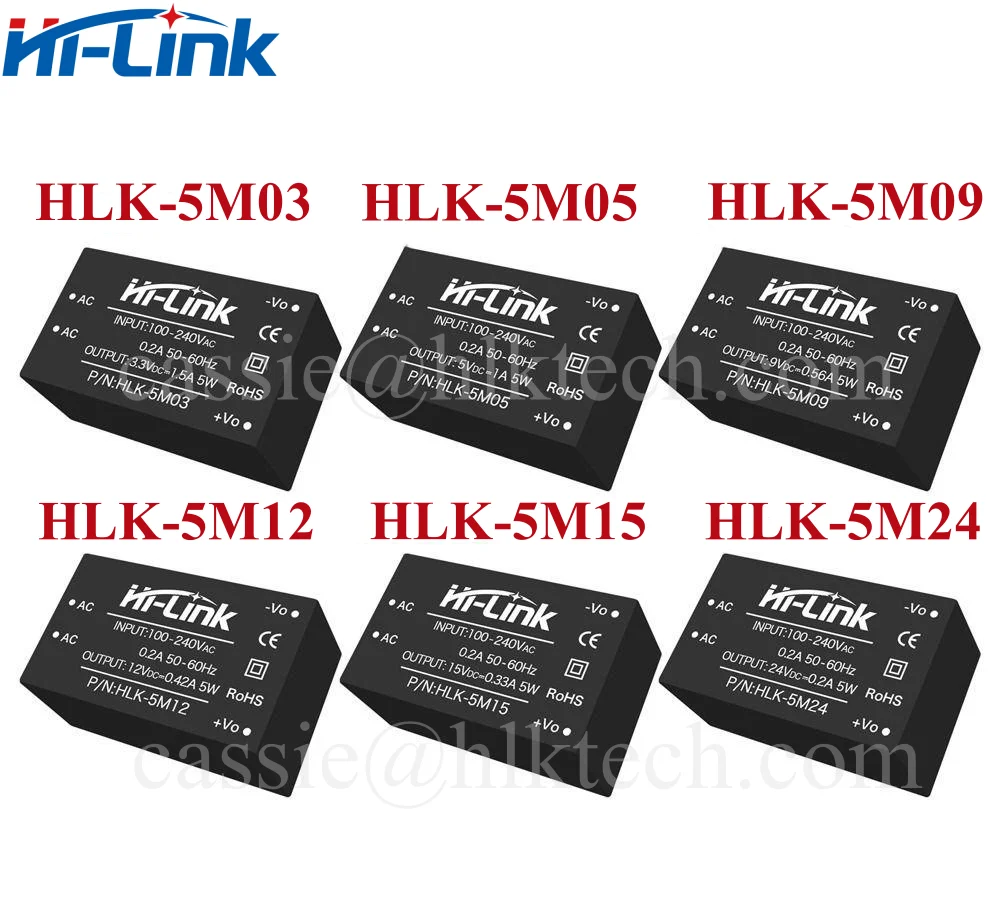

 HLK-5M03B/5M05B/5M09B/5M12B/5M15B/5M24B

Product Introduction

The 5W ultra-small series module power supply is a small-volume, high-efficiency AC DC power odule supply designed by Shenzhen Hi-Link Electronics Co.,Ltd. It has the advantages of global input voltage range, low temperature rise, low power consumption,high efficiency, high reliability and high safety isolation. It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.

Product Model

Product features

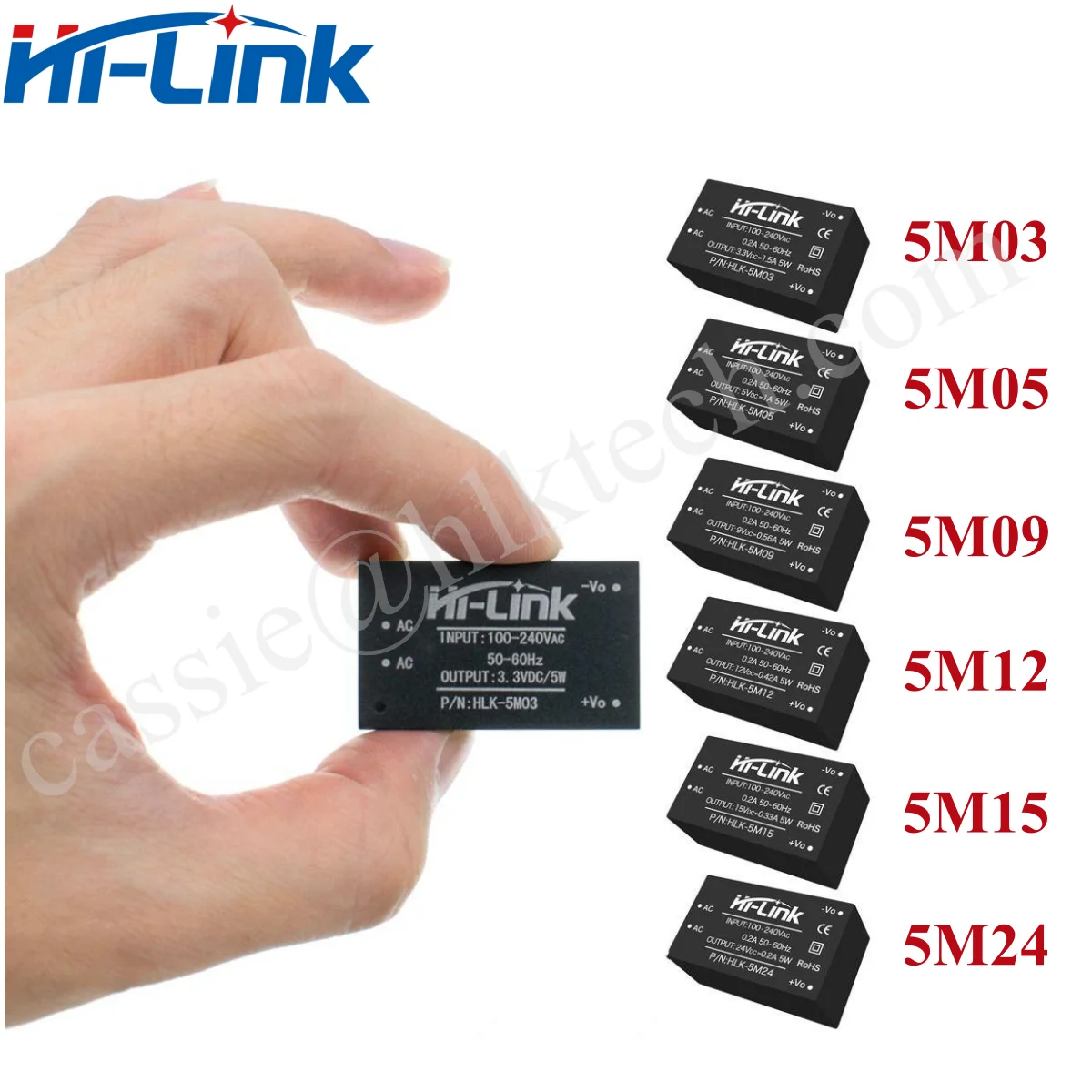

• Ultra-thin, ultra-small, smallest volume;

• Global universal input voltage（85~265Vac）

• Low power consumption, green environmental protection, no-load loss<0.1W

• Low ripple, low noise

• High output short circuit and over-current protection and self recovery

• High efficiency, high power density

• Input and output isolation voltage 3000Vac

• 100% full load aging and testing

• High reliability, long life design, continuous working time is greater than 100,000 hours;

• Meet UL, CE requirements; product design to meet EMC and safety testing requirement;

• Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards

• Economic solutions, cost-effective

• Work without external circuit

• 1 year quality guarantee period

Environmental conditions

Output features  (15V/333mA)

Input voltage and load characteristics

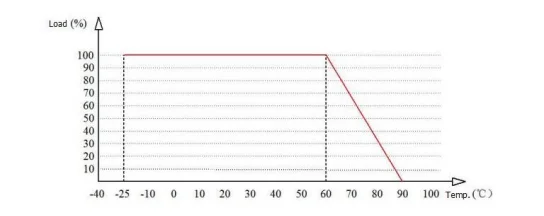

Working environment temperature and load characteristics

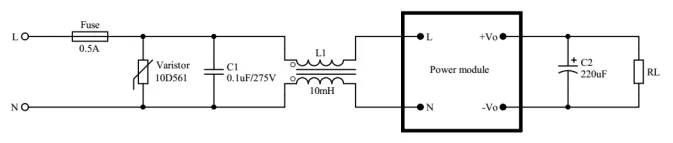

Typical application circuit

Safety and electromagnetic compatibility

• The input design adopts UL listed 1A / 250Vac slow-blow fuse or 10Ω wire-wound resistor

• The PCB board is made of double-sided copper clad foil, and the material fire resistance grade is 94-V0 grade

• Safety standard meetsUL1012,EN60950,UL60950

• Insulation voltage I/P-O/P:2500Vac

• Insulation resistance  I/P-O/P>100M Ohms/500Vdc25℃ 70% RH

• Conduction and radiationmeet EN55011, EN55022 (CISPR22)

• Electrostatic dischargeIEC/EN 61000-4-2 level 4 8kV/15kV

• Radio frequency radiation immunity IEC/EN 61000-4-3

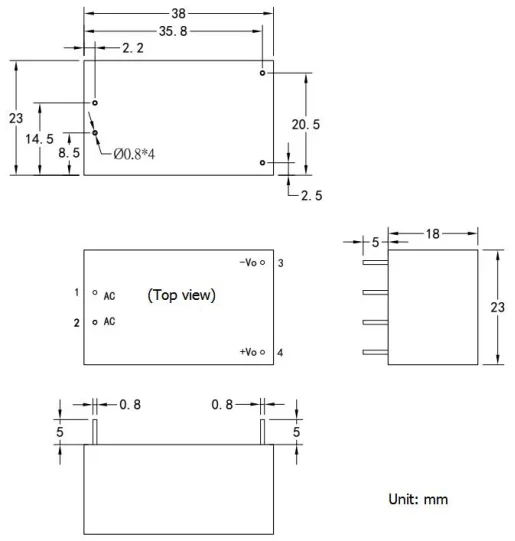

Dimensions and weight
