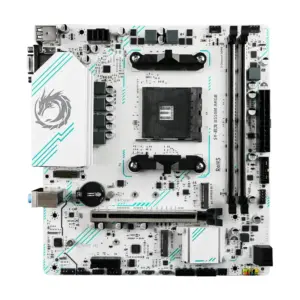

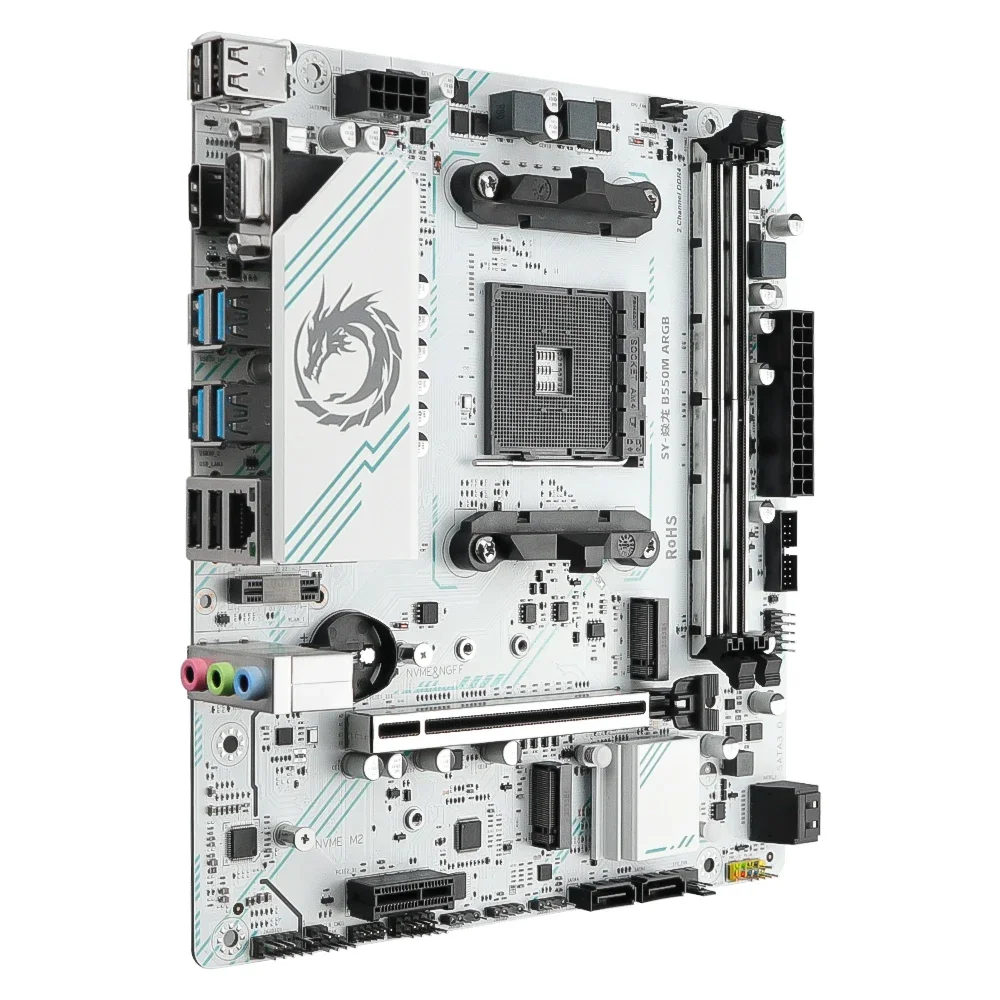

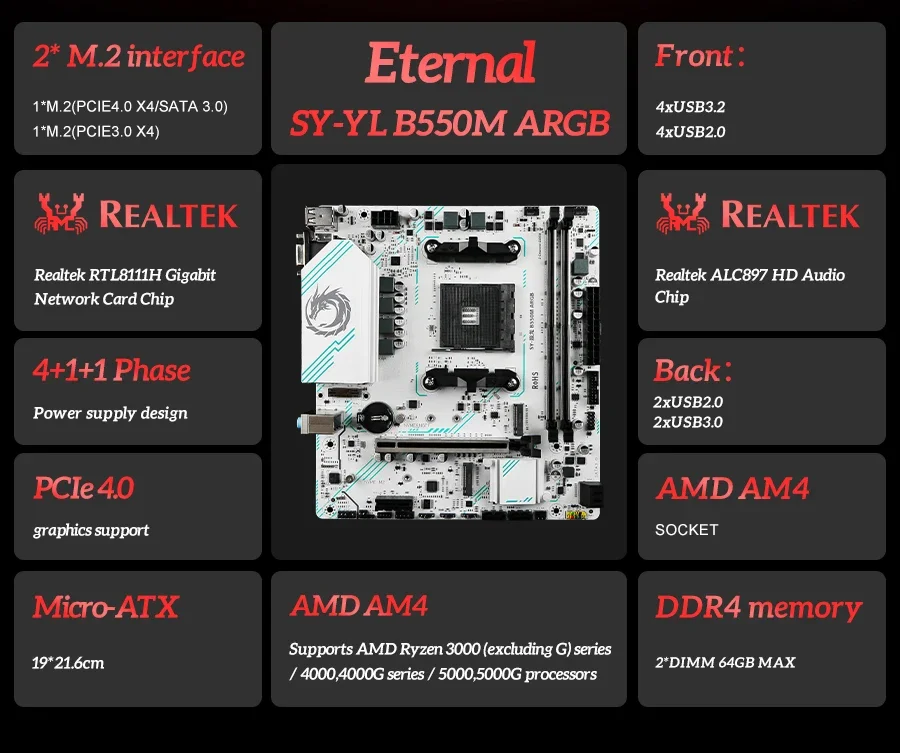

SOYO AMD B550M Gaming Motherboard AM4 Socket Supports AMD Ryzen 3000/4000/5000 Series Processors PCIe 4.0 x16 SATA 3.0 M.2 NVME

**Product Specifications**

**CPU Support**

– AMD AM4 Socket

– Compatible with AMD Ryzen 3000/4000/5000 Series Processors (e.g., R5-3600, R5-4650G, R5-5600G, R7-5700X, R7-5700X3D)

– *Excludes Ryzen 3000G APUs*

**Chipset**

– AMD B550 Chipset

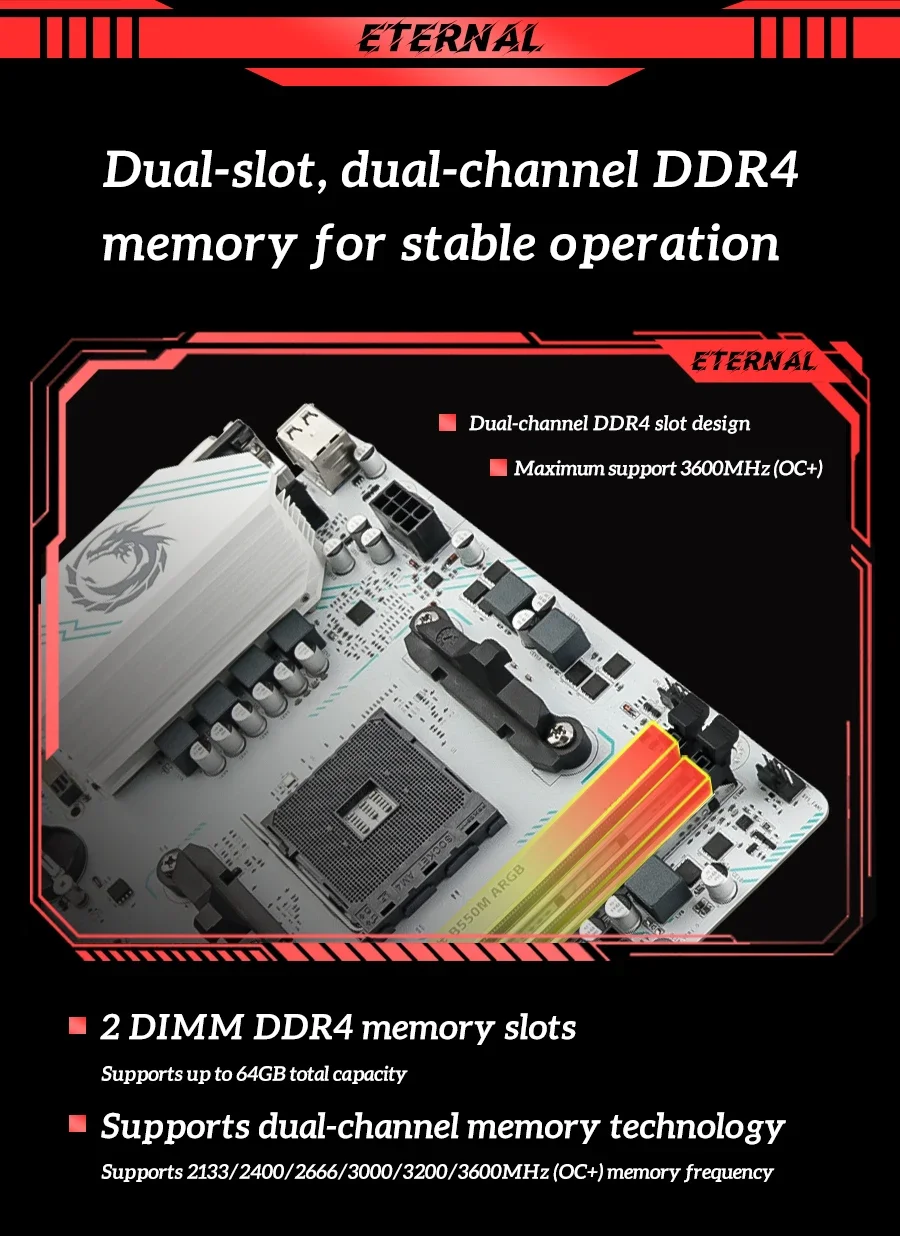

**Memory**

– 2x DDR4 DIMM Slots (Dual-Channel)

– Speed: 2133/2400/2666/3000/3200/3600 MHz (with XMP/OC Support)

– Maximum Capacity: 64GB (32GB per DIMM)

**Storage**

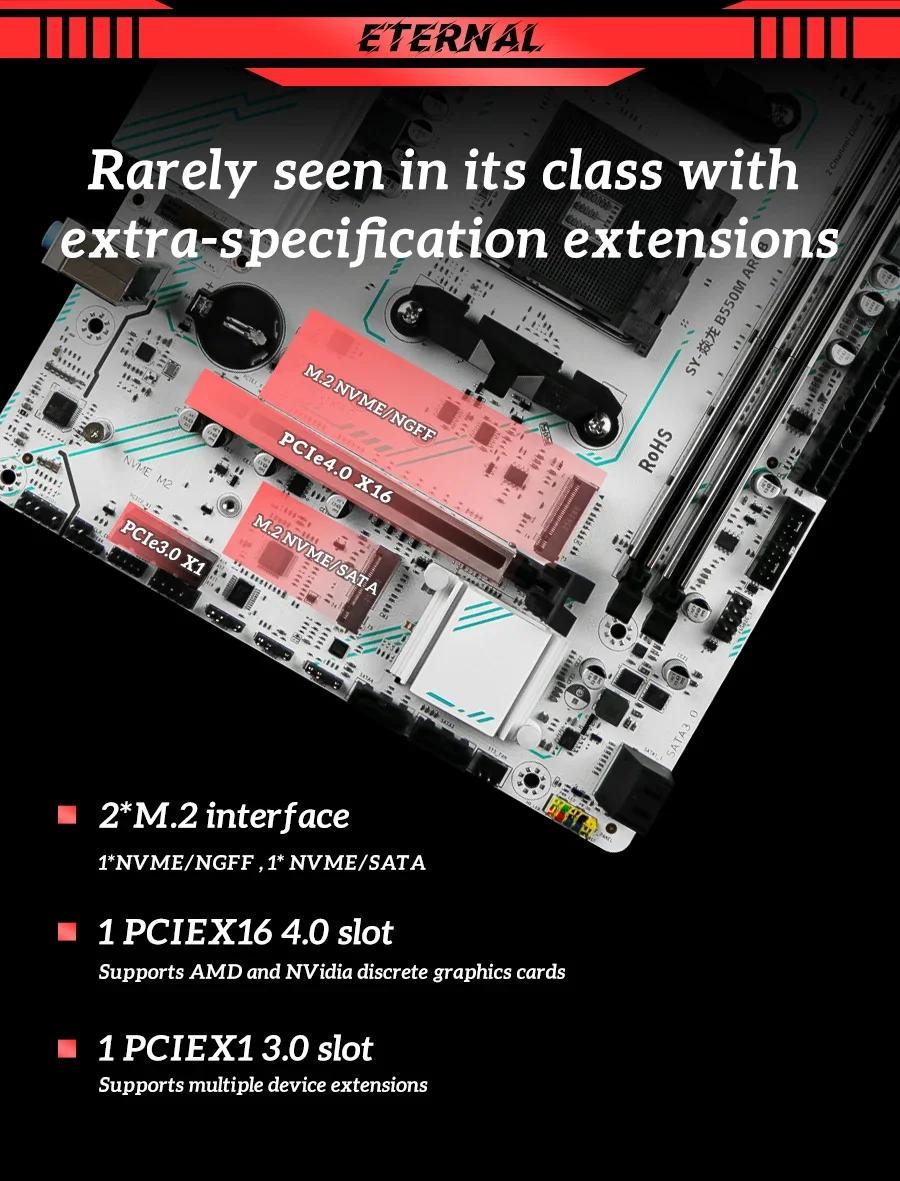

– 2x M.2 2280 Slots:

– **CN2**: PCIe 4.0 x4/SATA 3.0

– **CN3**: PCIe 3.0 x4

– 4x SATA 3.0 (6 Gb/s) Ports

**Expansion Slots**

– 1x PCIe 4.0 x16 Slot (for GPU)

– 1x PCIe 3.0 x1 Slot

– 1x WIFI Slot (PCIe Protocol)

**Display Outputs**

– 1x HDMI 2.0

– 1x VGA

**I/O Ports**

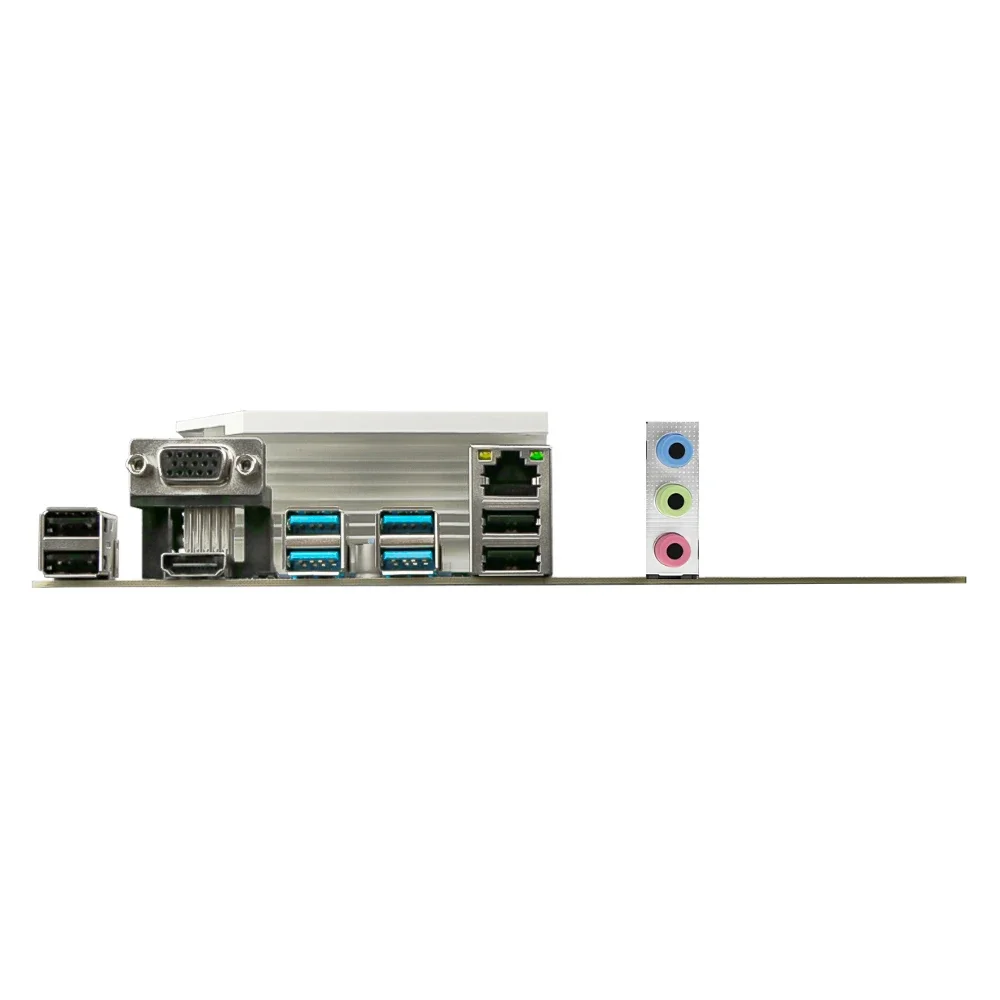

– **Rear Panel:**

– 4x USB 3.2 Gen1 (5 Gbps)

– 4x USB 2.0 Ports

– 1x RJ45 Gigabit LAN Port

– Audio Ports: Line Out, Line In, Mic In

– **Internal Headers:**

– 1x USB 2.0 Header (Supports 2x USB 2.0 Ports)

– 1x USB 3.0 Header (Supports 2x USB 3.0 Ports)

– 1x Front Audio Header (F_AUDIO)

**Networking**

– Integrated Realtek RTL8111H Gigabit LAN

– Supports PXE Boot and Wake-on-LAN

**Audio**

– Realtek ALC897 HD Audio Codec

**Power & Cooling**

– 1x 24-Pin ATX Power Connector

– 1x 8-Pin ATX12V Power Connector

– 1x 4-Pin CPU_FAN Header

– 1x 4-Pin + 1x 3-Pin SYS_FAN Headers

**Additional Features**

– 3x 5V 3-Pin ARGB Headers (Addressable RGB Lighting)

– 1x FPANEL Header (Front Panel Controls)

– 1x SPEAK Header (System Speaker)

– 2x COM Headers

– 2x Debug Headers

– 1x CLR_CMOS 2-Pin Header

**Form Factor**

– Micro-ATX Design (195mm x 216mm)

– 4-Layer PCB Construction

**Operating Environment**

– **Operating Temperature**: -10°C to 60°C

– **Storage Temperature**: -25°C to 70°C

– **Humidity**: 10-90% (Non-Condensing)

**Operating System Support**

– Windows 10/11

**Power Consumption**

– Idle: 30-70W

– Full Load: 200-450W
