- High-concerned chemical: None
- RAID Supported: No
- Processor compatibility: Intel Xeon
- Ports: USB 3.0
- Usage Scenario: Gaming,Audio & Video,Office,Video Production,others

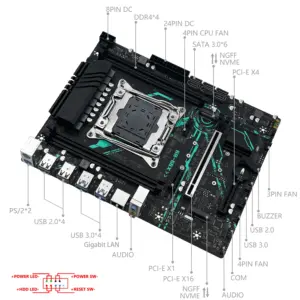

- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,4-pin +12V Power Connector

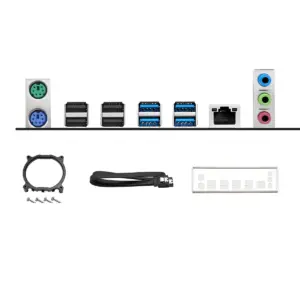

- Back I/O Ports: 1x RJ45
- Support USB Type: USB 2.0,USB 3.0
- Max LAN Speed: 1000Mbps
- Onboard LAN: 1x RJ45
- Audio Channels: 5.1
- Supports M.2 SSD: 2280
- Number of M.2: 2
- Number of SATA Ports: 6
- Storage Interface Type: M.2 (NVMe),M.2 (SATA)
- Number of PCI: 0
- Number of PCIe x 1: 1
- Number of PCIe x 4: 0
- Number of PCIe x 8: 0
- Number of PCIe x 16: 1
- PCI – E standards: PCI-E 3.0
- Number Of Memory Slots: 4
- Support Memory Type: DDR4
- Memory channel: Four
- Package: Yes
- Maximum Ram Capacity: 128 GB
- Form Factor: Micro-ATX
- Chipset Manufacturer: Intel
- Battery Included: No
- With CPU: Yes
- Chipset: C612
- Application: Desktop
- Socket Type: LGA 2011-3
- Brand Name: MACHINIST
- Special Features: None
- Origin: Mainland China
- Product Safety Information/Warning: Do not place this product near flammable or explosive items.
>> Please carefully check our bundle before purchasing. Purchase a single motherboard. We do not send CPU and memory. Please read carefully!!
–Motherboard: X99 B9 *1.
–Motherboard+CPU: X99 B9 *1 + E5 2640 V3 *1.
>> The product packaging boxes will be randomly dispatched, either new or old. The contents are not product parameters. For detailed parameters, please refer to the product detail page.

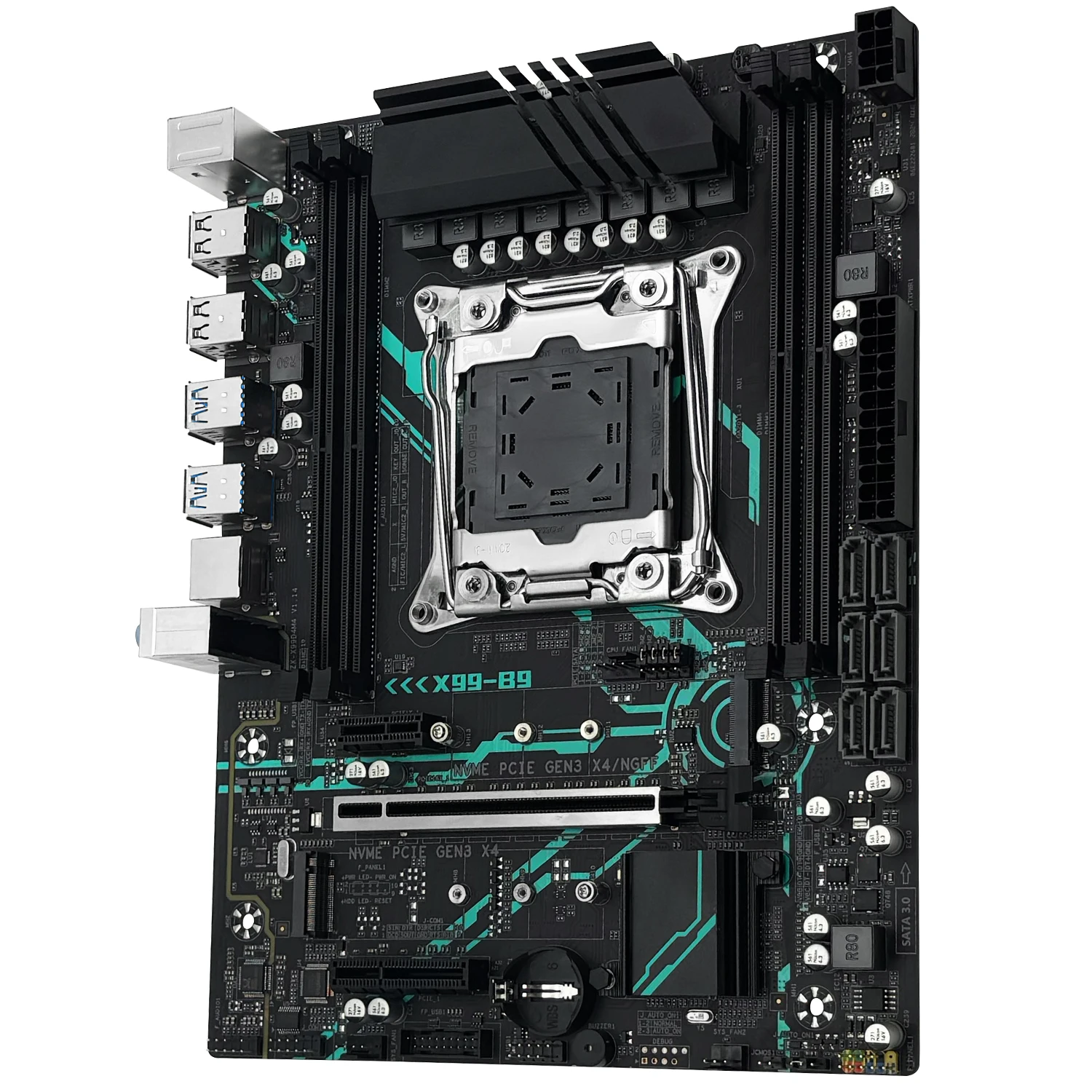

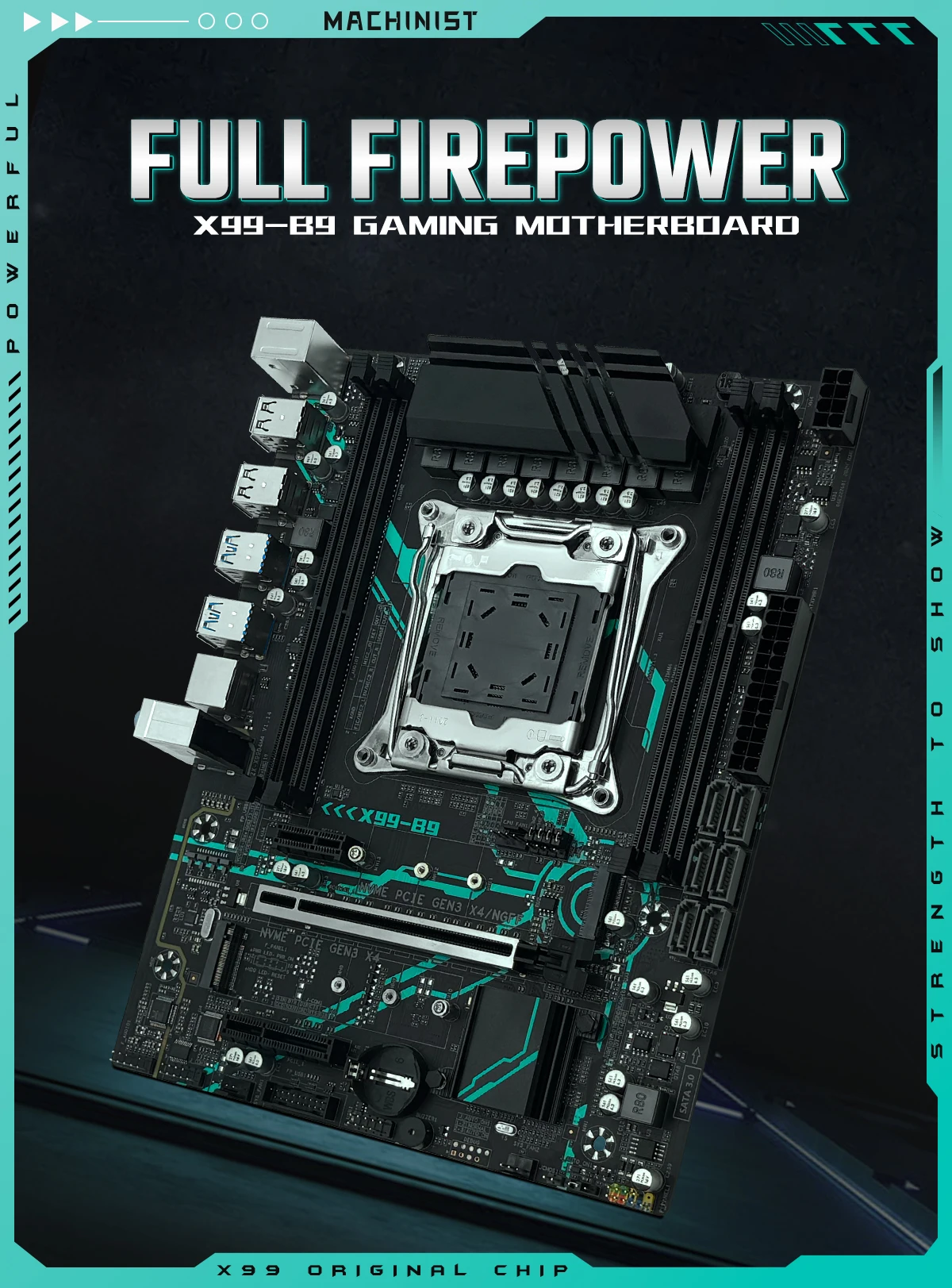

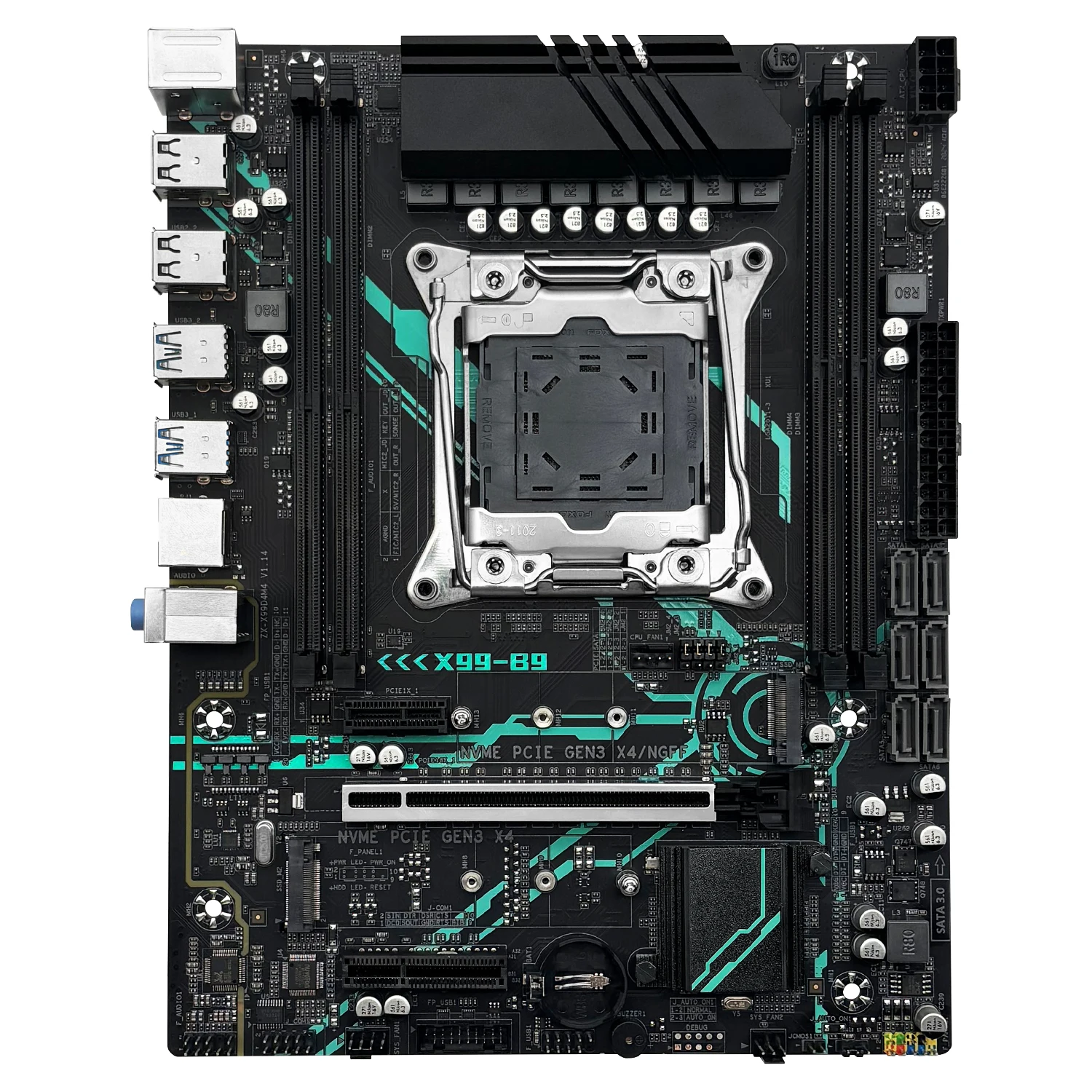

> > Motherboard information:
Brand :MACHINIST.
Motherboard model :X99 B9.
Processor: Supports Intel LGA 2011-3-pin series processors.
Chipset :X99/C612 Chipset.
> > Memory:
Technology: Four-channel DDR4. Supports 2133/2400/2666/3000/3200 MHZ.
The maximum capacity is 128GB (32G x 4).
Memory slot :4 * 288-pin DDR4.
Supported memory types: The memory type supports DDR4 desktop and server memory.
Please use international brands such as Samsung, Kingston, Sandee, Micron, and Hynix. Other brands may be incompatible.
>> Others:

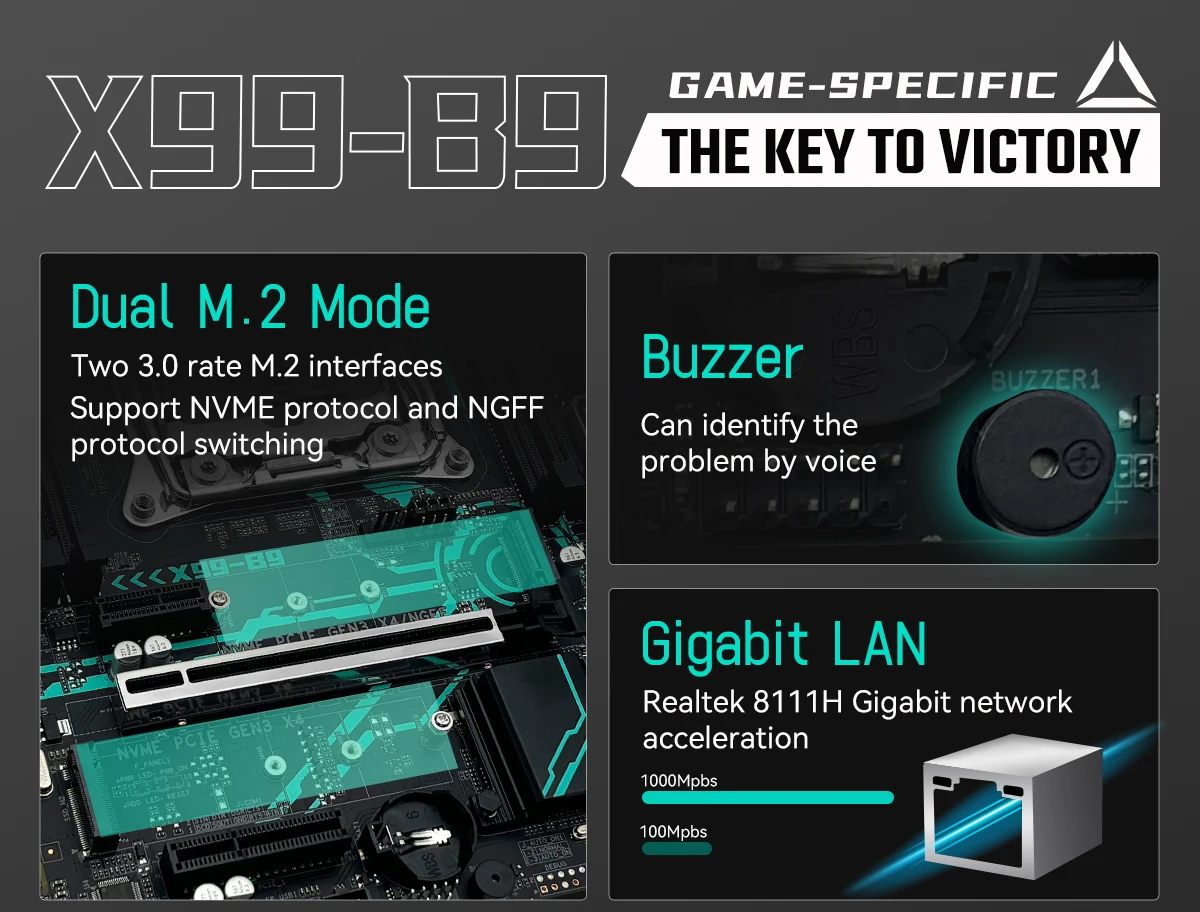

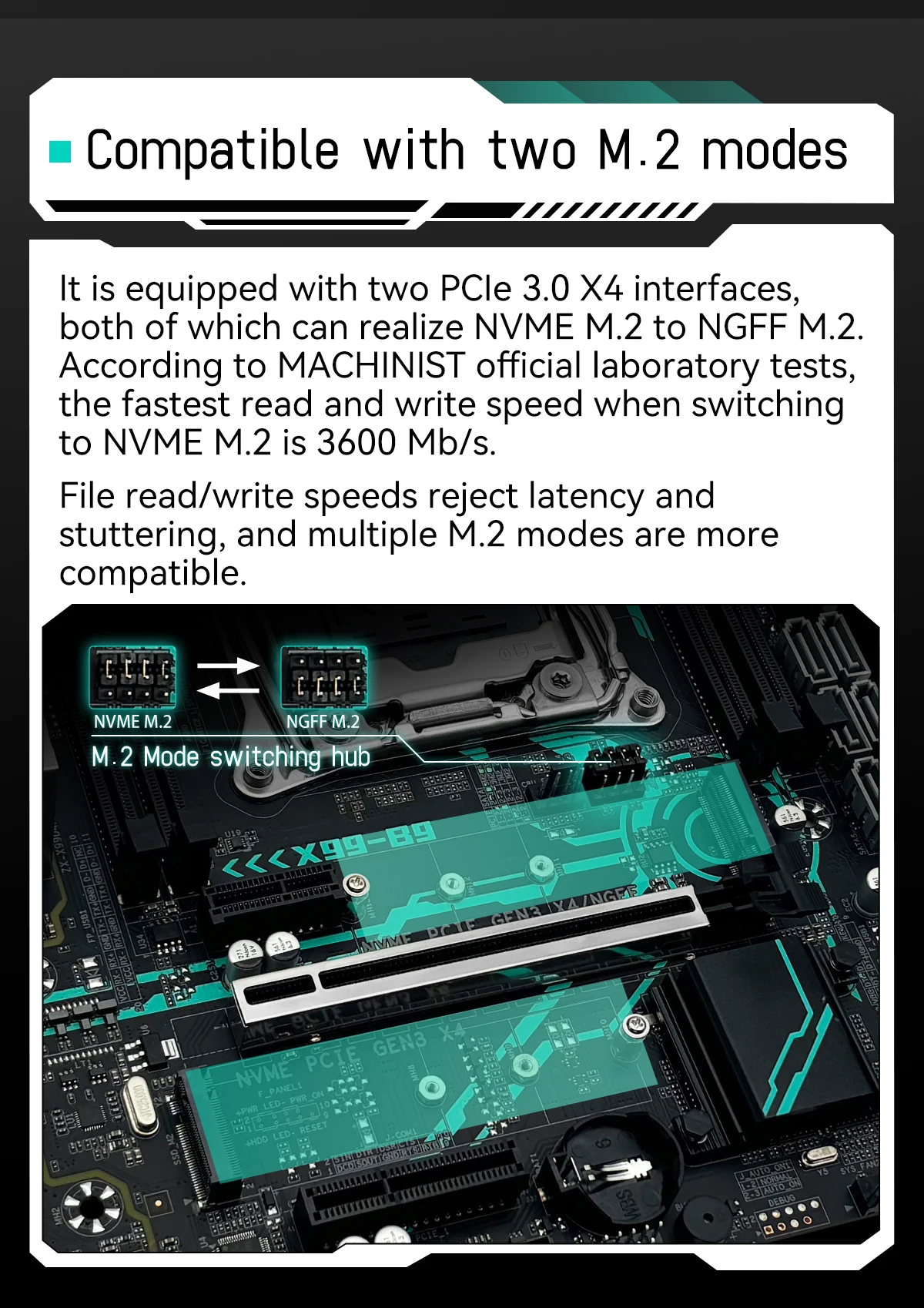

M.2 hard disk mode switching interface.
SATA3.0 interfaces *6.
PCIE 1x *1, PCIE 4x *1, PCIE 16x *1.
NVME/NGFF M.2 *1, NVME M.2 *1.
Ethernet: 1 Gigabit network card.

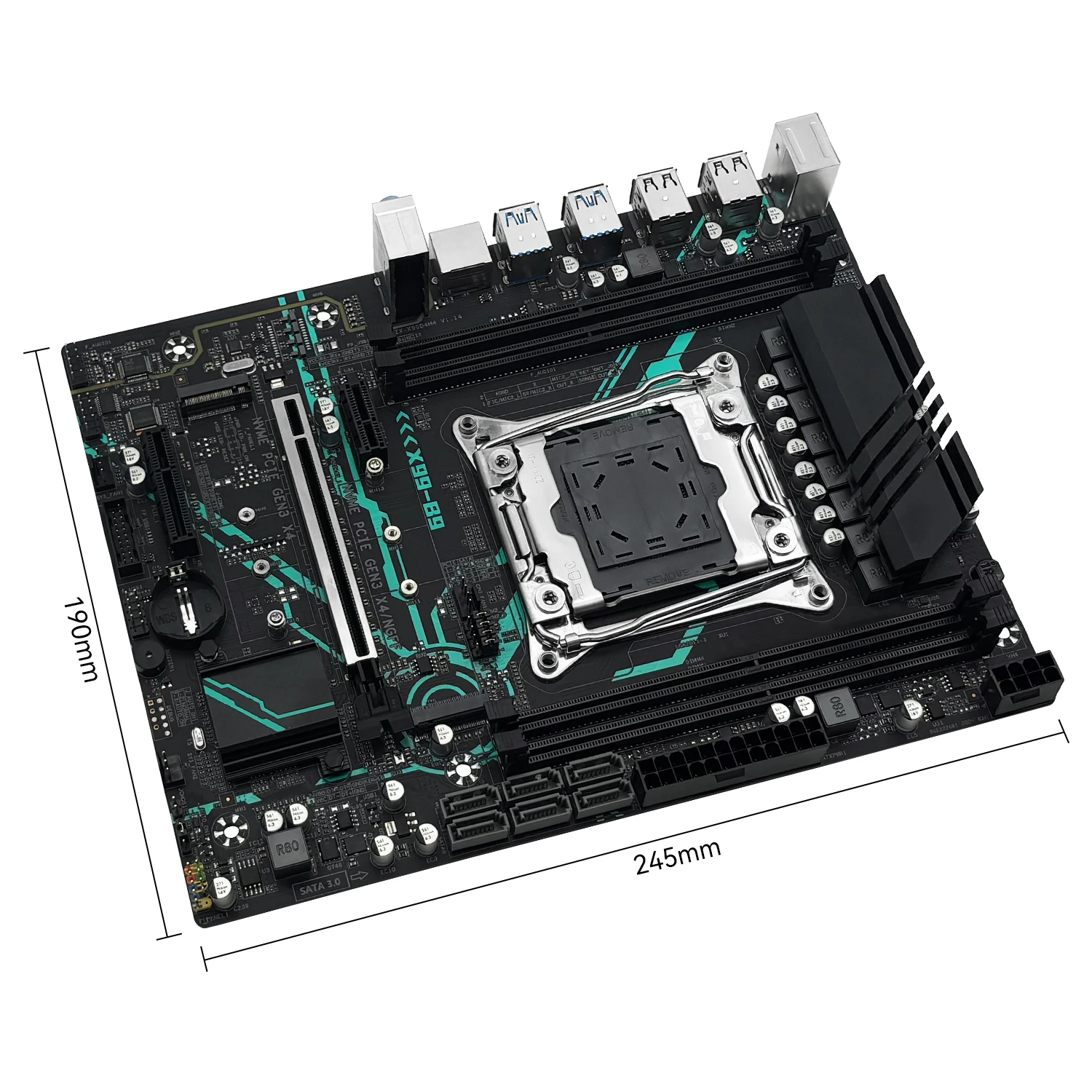

Overall dimensions :245mm * 190mm.
Motherboard weight (including packaging) : approximately 0.95 kilograms.
>> Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.
>> Note:
(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1 to 3mm.
(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.

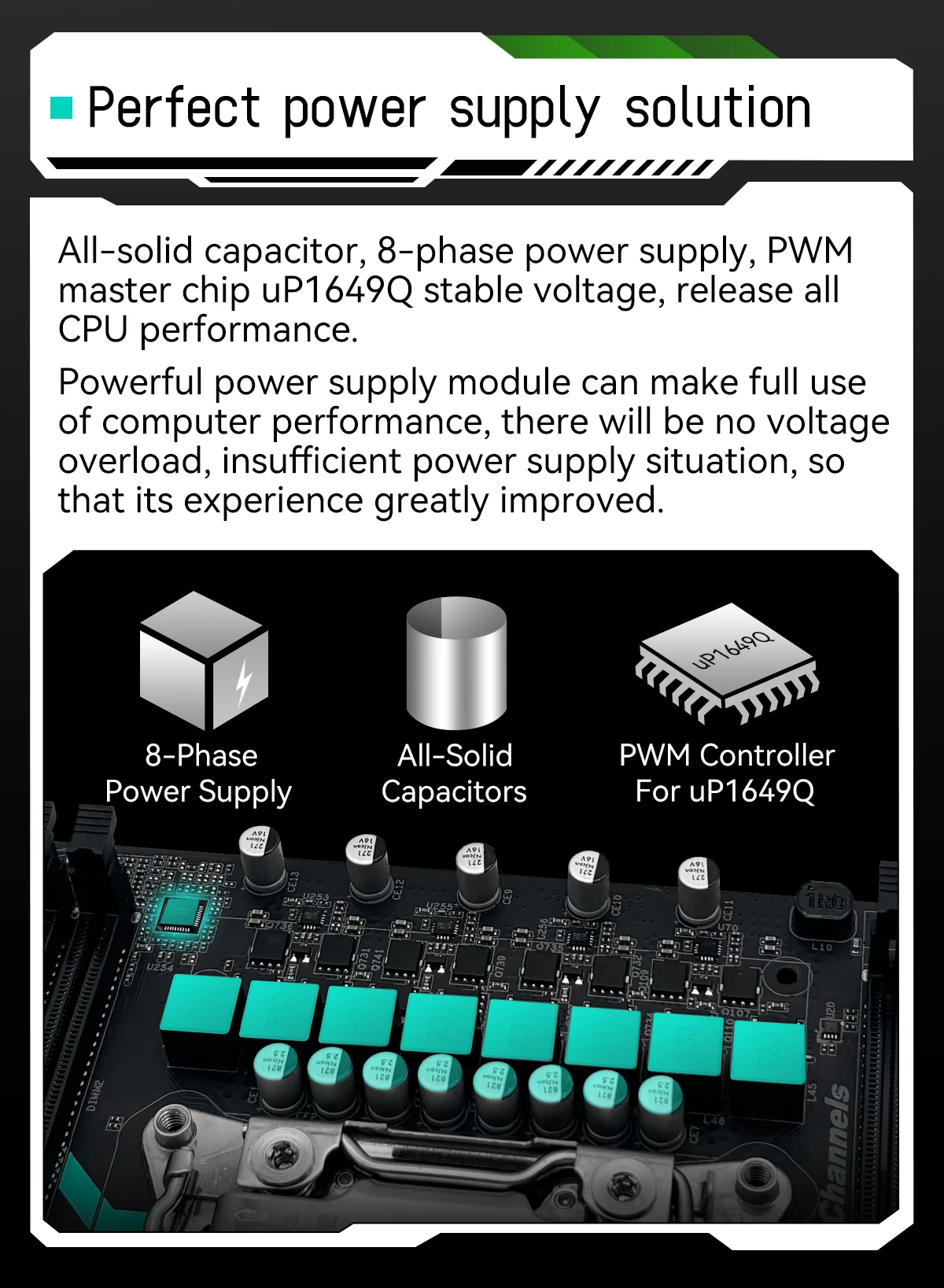

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply
(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
Only logged in customers who have purchased this product may leave a review.
| Bundle | Motherboard+CPU, Motherboards |
|---|---|
| High-concerned chemical | None |
| RAID Supported | No |
| Processor compatibility | Intel Xeon |
| Ports | USB 3.0 |
| Usage Scenario | Gaming,Audio & Video,Office,Video Production,others |
| Onboard Connectors & Header | 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,4-pin +12V Power Connector |
| Back I/O Ports | 1x RJ45 |
| Support USB Type | USB 2.0,USB 3.0 |
| Max LAN Speed | 1000Mbps |
| Onboard LAN | 1x RJ45 |
| Audio Channels | 5.1 |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 2 |
| Number of SATA Ports | 6 |
| Storage Interface Type | M.2 (NVMe),M.2 (SATA) |
| Number of PCI | 0 |
| Number of PCIe x 1 | 1 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 8 | 0 |
| Number of PCIe x 16 | 1 |
| PCI - E standards | PCI-E 3.0 |
| Number Of Memory Slots | 4 |
| Support Memory Type | DDR4 |
| Memory channel | Four |
| Package | Yes |
| Maximum Ram Capacity | 128 GB |
| Form Factor | Micro-ATX |
| Chipset Manufacturer | Intel |
| Battery Included | No |
| With CPU | Yes |
| Chipset | C612 |
| Application | Desktop |
| Socket Type | LGA 2011-3 |
| Brand Name | MACHINIST |
| Special Features | None |
| Origin | Mainland China |
| Product Safety Information/Warning | Do not place this product near flammable or explosive items. |
