- Substancja chemiczna budząca duże obawy: Nic
- RAID Supported: NIE
- Processor compatibility: Intel Xeon
- Ports: PCI-Express X1
- Usage Scenario: Gaming,Audio & Video,Office,Video Production,others
- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector
- Back I/O Ports: 1x RJ45
- Support USB Type: USB 2.0
- Max LAN Speed: 1000Mbps
- Onboard LAN: 1x RJ45
- Audio Channels: 2.1
- SATA RAID: 0
- Supports M.2 SSD: 2280
- Number of M.2: 1
- Storage Interface Type: SATA,M.2 (NVMe)
- Number of PCI: 1
- Number of PCIe x 1: 1
- Number of PCIe x 4: 0
- Number of PCIe x 8: 0
- Number of PCIe x 16: 1
- PCI – E standards: PCI-E 3.0
- Number Of Memory Slots: 4
- Support Memory Type: DDR4
- Quality Certification: ce,ROHS
- Memory channel: Double
- Package: Tak
- Maximum Ram Capacity: 128 GB
- Form Factor: Micro-ATX
- Chipset Manufacturer: Intel
- Battery Included: NIE
- With CPU: Tak
- Chipset: h55
- Aplikacja: Desktop
- Socket Type: LGA 2011-3
- Nazwa marki: MACHINIST
- Special Features: Nic
- Pochodzenie: Chiny kontynentalne
- Informacje/ostrzeżenie dotyczące bezpieczeństwa produktu: Do not use this product in a damp environment.
###: The motherboard will be shipped with a processor base protective cover. Please feel free to buy.
>>Please pay attention to the bundle options before purchasing. Purchase a single motherboard. We do not send CPU and memory. Please check carefully.
>>SKU 1: Motherboard .

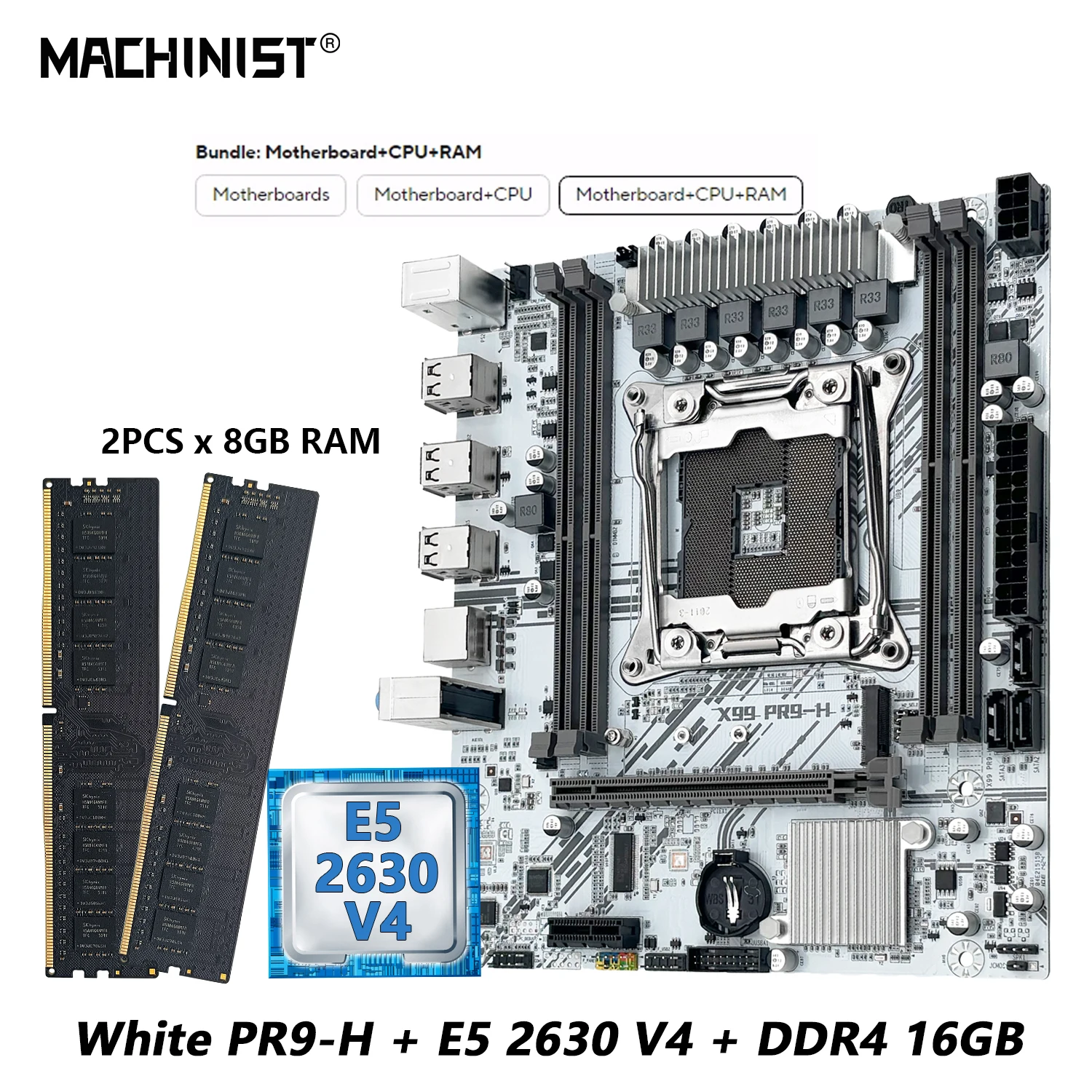

>>SKU 2: Motherboard + E5 2630 V4 .
>>SKU 3: Motherboard + E5 2630 V4 + DDR4 2*8GB 2133MHz Desktop RAM.

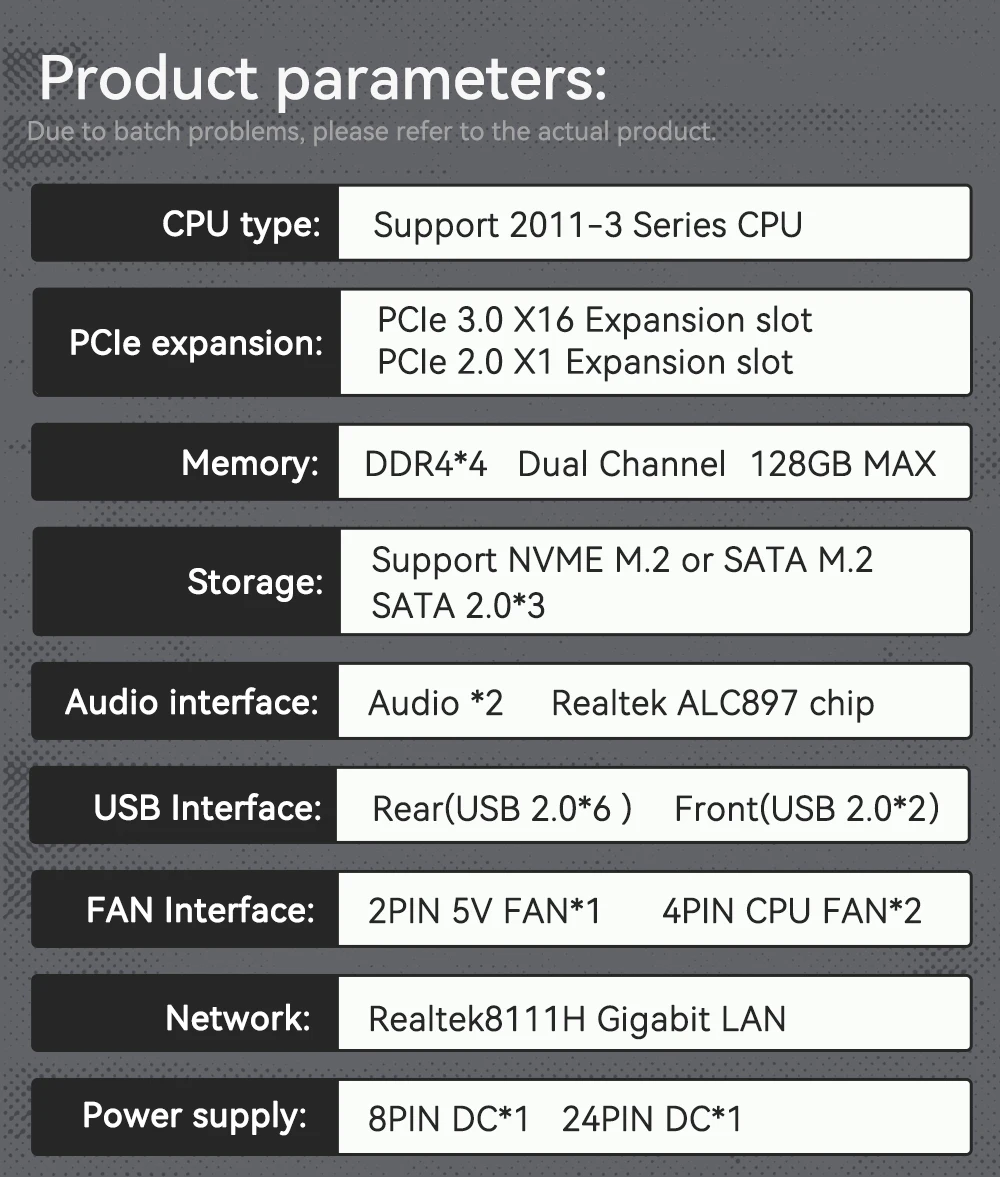

>>Motherboard information:
Brand:MACHINIST.

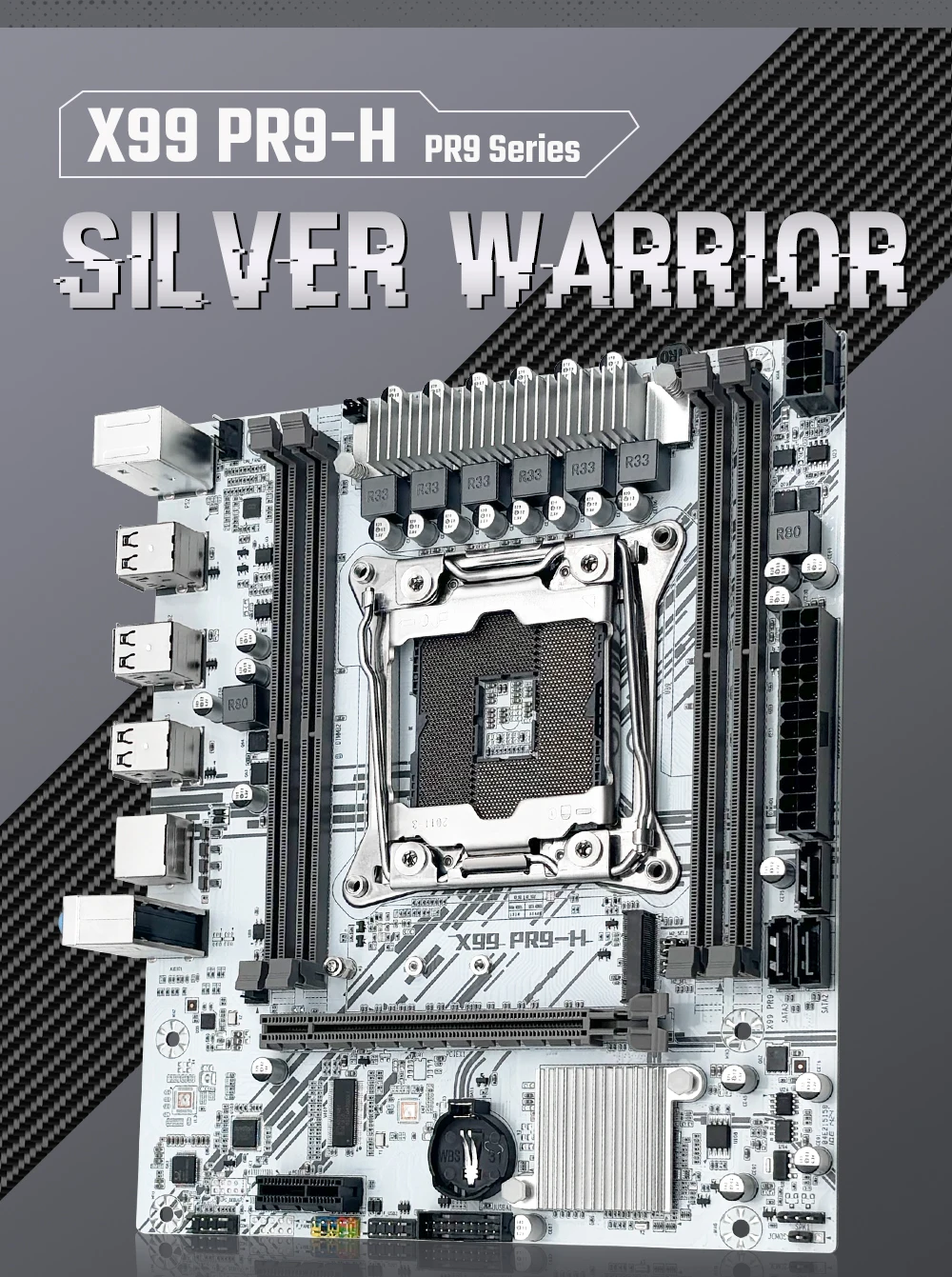

Motherboard model: X99 PR9-H white.
Processor: Support LGA 2011-3 series.

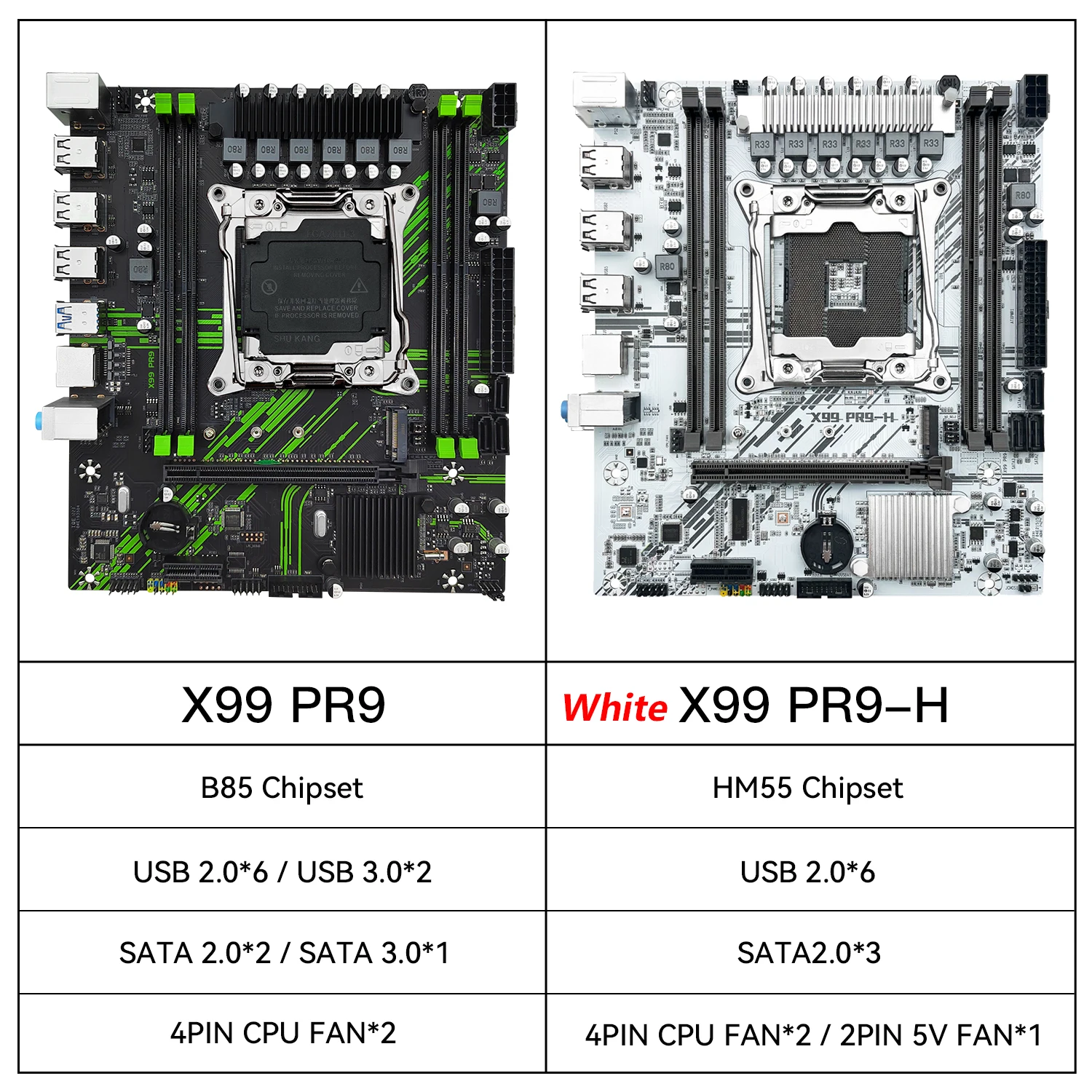

Chipset: HM55/H55 Chipset.
>>Memory:
Technology: Dual Channel DDR4. Support 2133/2400/2666/3000/3200 MHZ.
Maximum capacity :128GB (32Gx4).
Memory slot: 4*288 PIN DDR4
.(Note: Please use international brands such as Samsung, Kingston, SanDisk, and Micron. Other brands may be incompatible.)

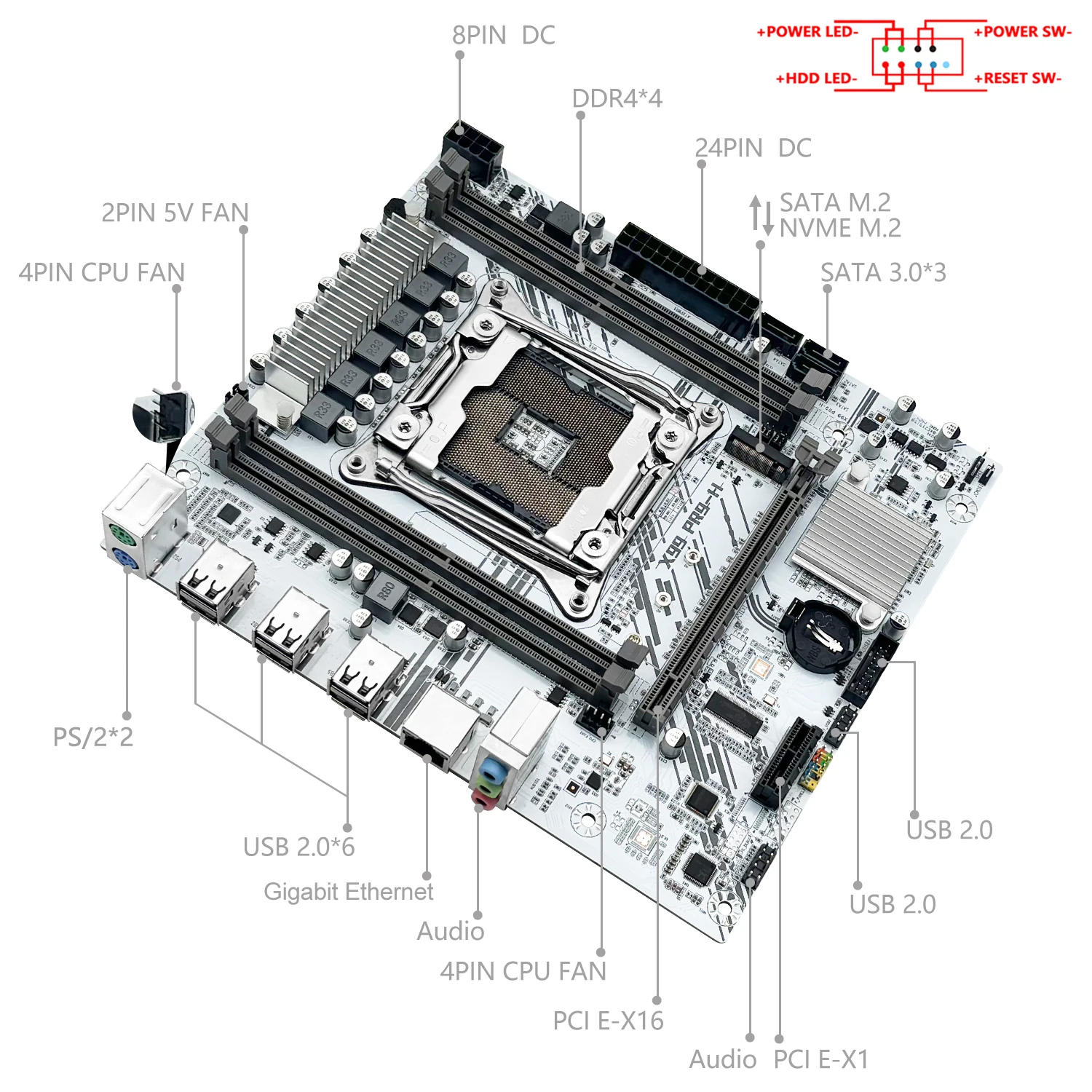

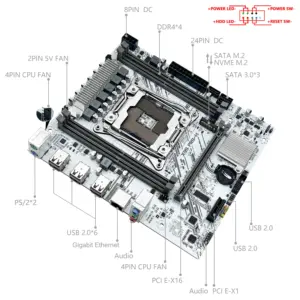

>> Post I/O:
PS/2: 1 KB interface + 1 MS interface.
USB interface: 6 USB2.0.
Ethernet: 1 Gigabit network card.
Audio: 1 (Mic-in, Line-out, Line-in).

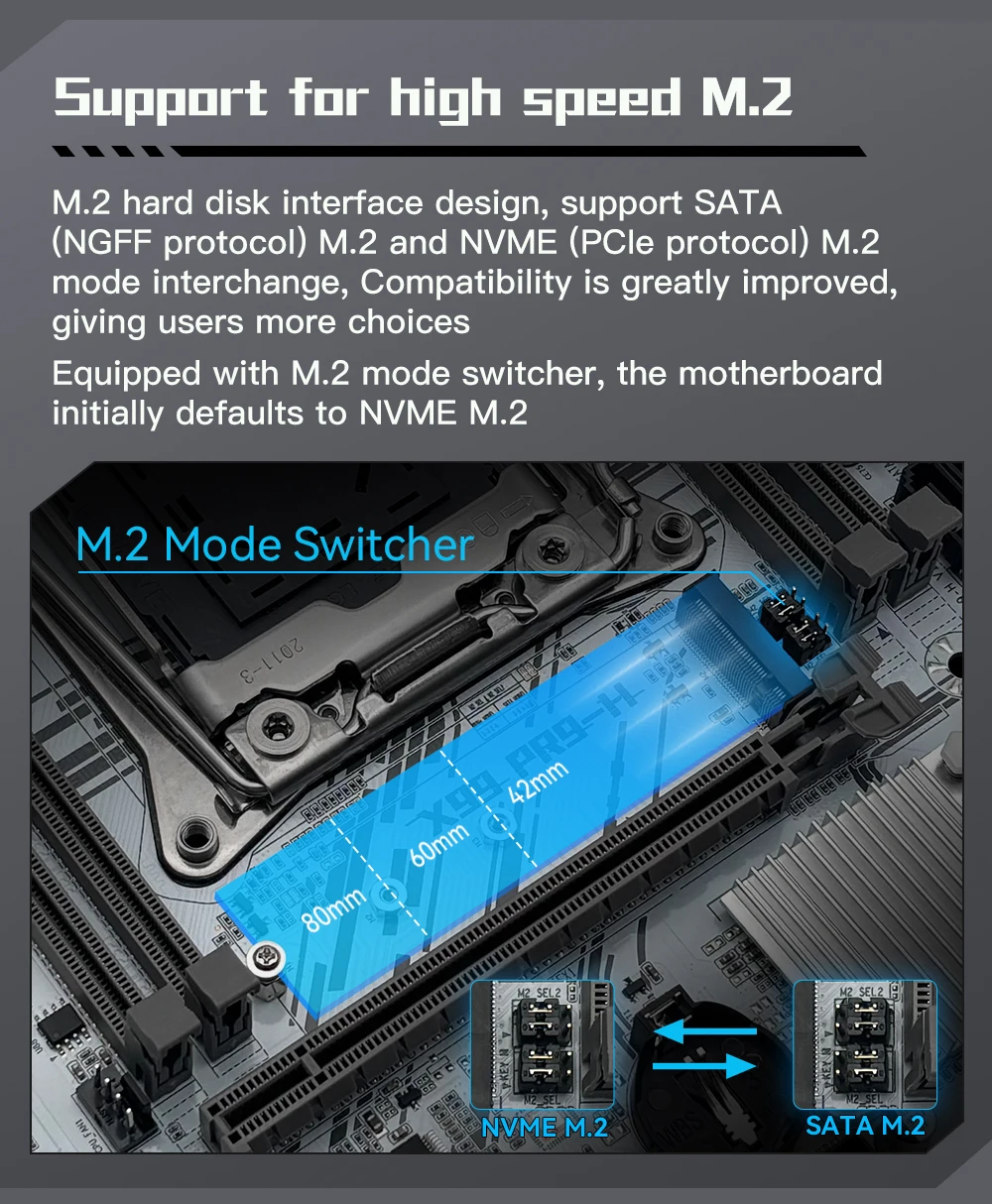

SATA interface: 3 (SATA2.0).M. 2:1 (nvme/sata).

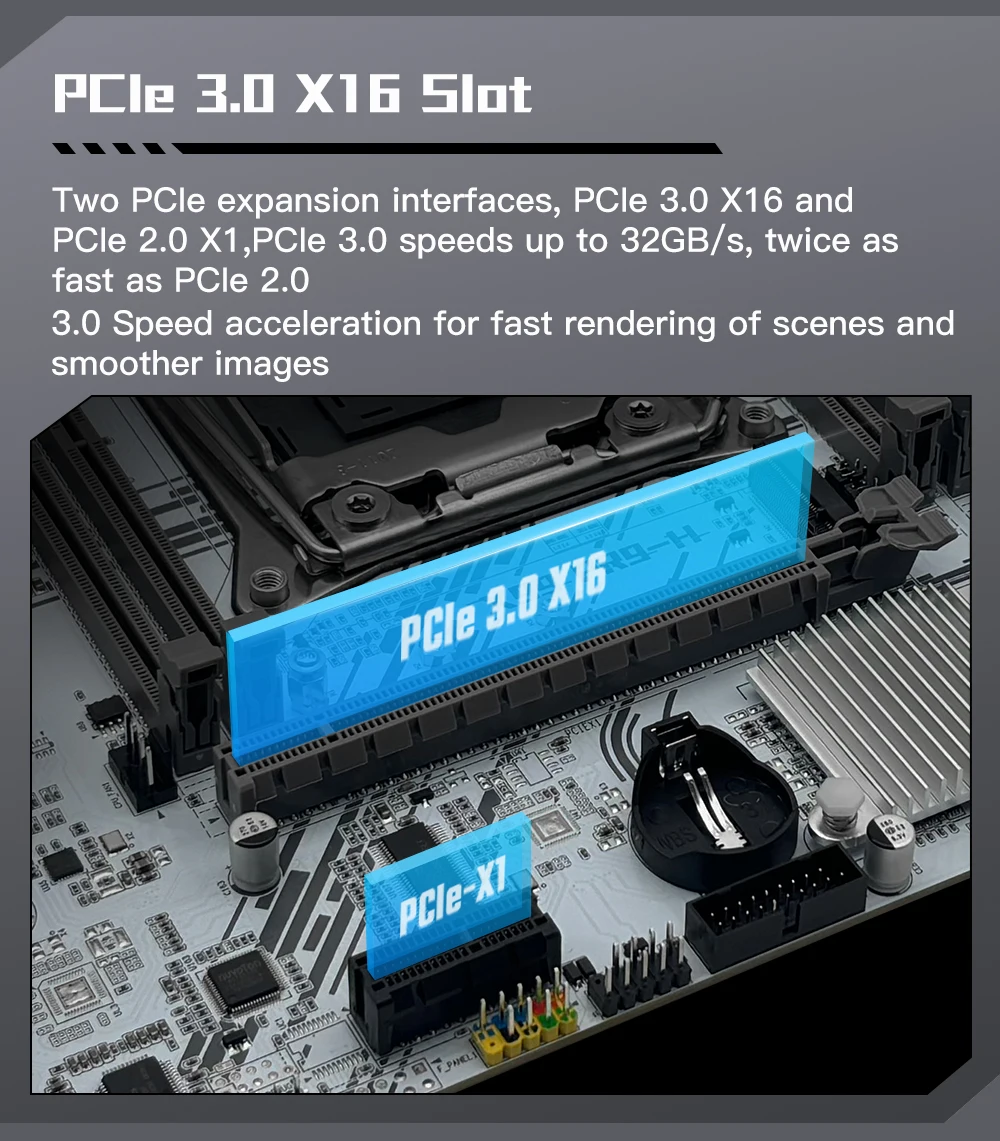

PCIe: 1 PCIe 16x, 1 PCIe 1x.

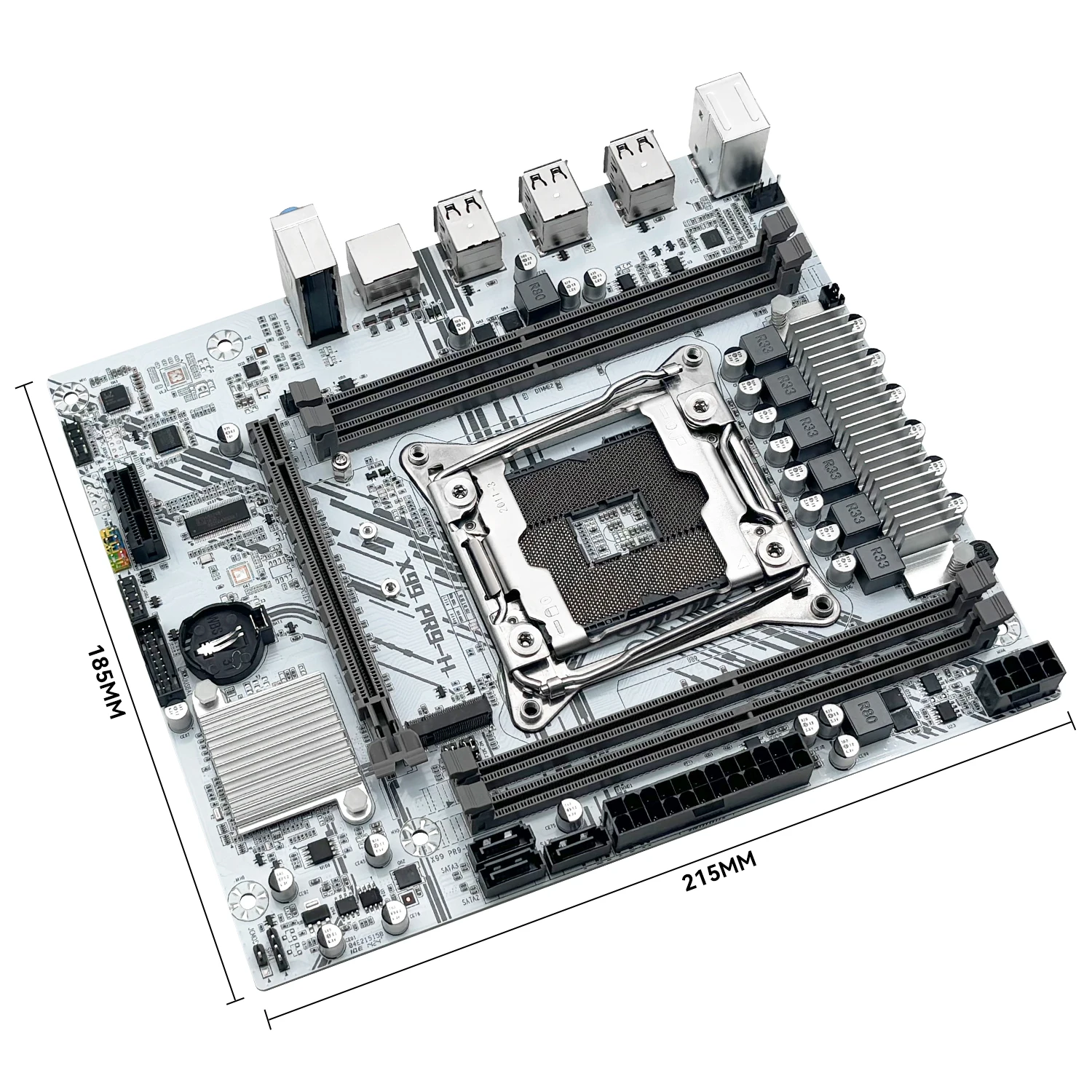

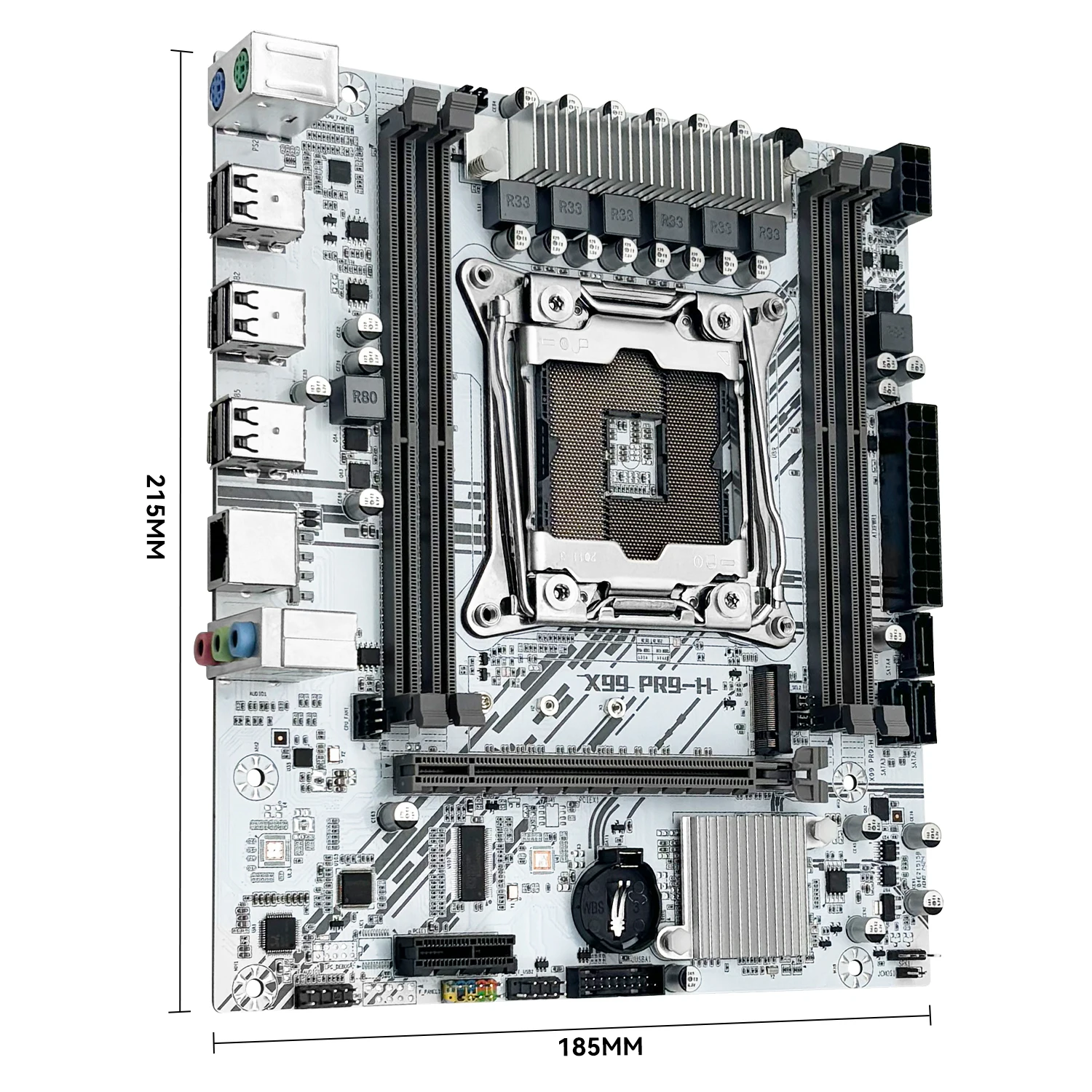

>>Outline dimensions: 215mm * 185mm.

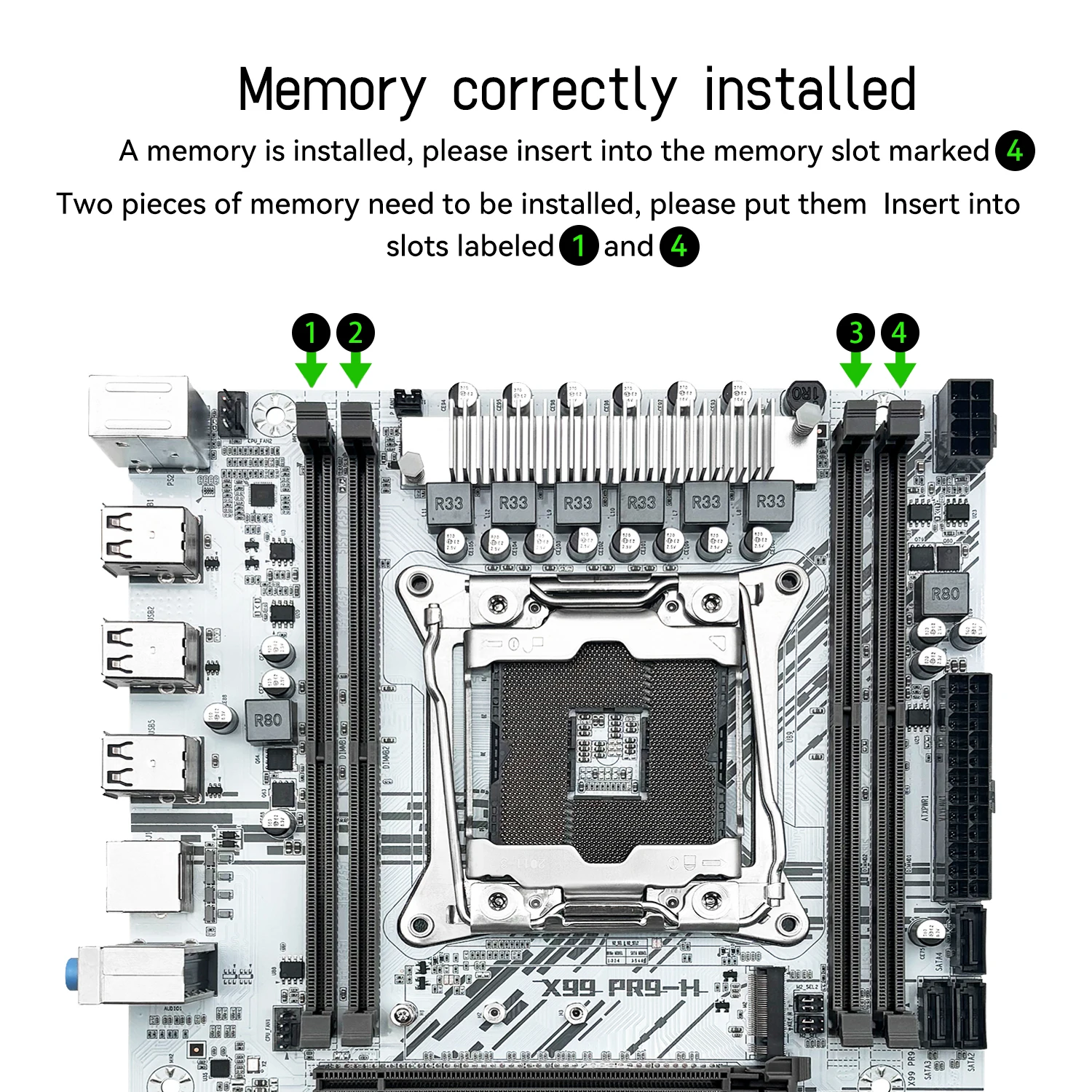

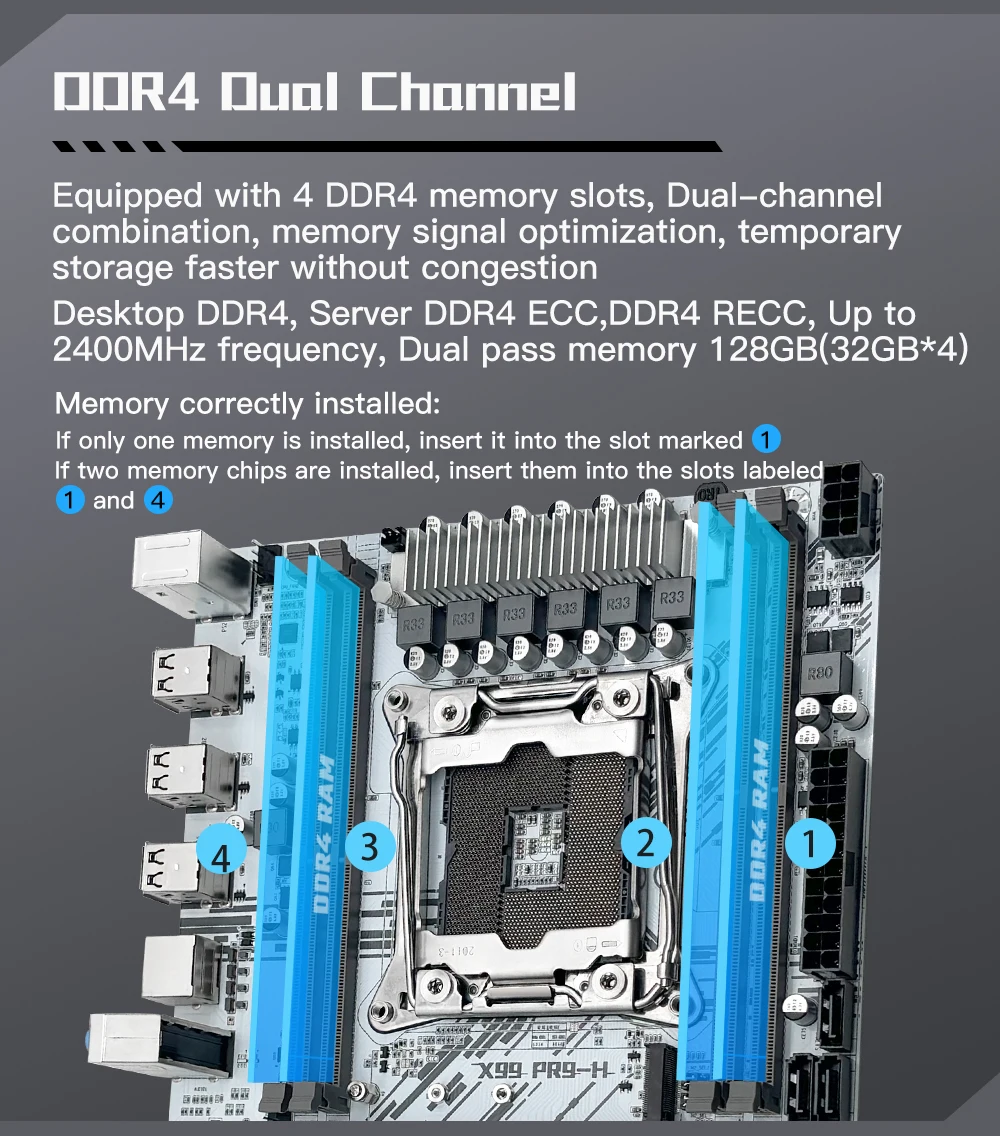

>>For installing memory. All RAM needs to be installed first in slot #1 and slot #4 (the outermost slot). The middle memory slots (#2/#3) of the motherboard cannot work alone.
>>Notice:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.
(4) The platform requires a powerful power supply. Please make sure your power supply is sufficient for this platform. (At least 500w brand power supply)
(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
>> Regarding customs issues, please ensure that you can solve the customs clearance problem by yourself. If you cannot solve it, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. thank you for understanding.
20 reviews for MACHINIST White X99 PR9-H Motherboard combo Intel Xeon E5 2630 V4 LGA 2011-3 CPU DDR4 16GB RAM NVME m.2 Optional kit set
Tylko zalogowani klienci, którzy kupili ten produkt, mogą napisać opinię.
| Bundle | Motherboard+CPU, Motherboard+CPU+RAM, Motherboards |
|---|---|
| Substancja chemiczna budząca duże obawy | Nic |
| RAID Supported | NIE |
| Processor compatibility | Intel Xeon |
| Ports | PCI-Express X1 |
| Usage Scenario | Gaming,Audio & Video,Office,Video Production,others |
| Onboard Connectors & Header | 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector |
| Back I/O Ports | 1x RJ45 |
| Support USB Type | USB 2.0 |
| Max LAN Speed | 1000Mbps |
| Onboard LAN | 1x RJ45 |
| Audio Channels | 2.1 |
| SATA RAID | 0 |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 1 |
| Storage Interface Type | SATA,M.2 (NVMe) |
| Number of PCI | 1 |
| Number of PCIe x 1 | 1 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 8 | 0 |
| Number of PCIe x 16 | 1 |
| PCI - E standards | PCI-E 3.0 |
| Number Of Memory Slots | 4 |
| Support Memory Type | DDR4 |
| Quality Certification | ce,ROHS |
| Memory channel | Double |
| Package | Tak |
| Maximum Ram Capacity | 128 GB |
| Form Factor | Micro-ATX |
| Chipset Manufacturer | Intel |
| Battery Included | NIE |
| With CPU | Tak |
| Chipset | h55 |
| Aplikacja | Desktop |
| Socket Type | LGA 2011-3 |
| Nazwa marki | MACHINIST |
| Special Features | Nic |
| Pochodzenie | Chiny kontynentalne |
| Informacje/ostrzeżenie dotyczące bezpieczeństwa produktu | Do not use this product in a damp environment. |
p***r (zweryfikowany) –
This is the second best mobo combo on AliExpress, I love it, and it looks great
N***y (zweryfikowany) –
Currently doing a build on this board, it’s pretty good for its price and performance. I only wish it had more fan connectors but other than that small detail it’s a very good and high quality board that is worth the price!
j***r (zweryfikowany) –
Great motherboard for the price and works well with my xeon 2680v4 so far.
It didn’t come with an instruction manual so i did have to guess the ram placement.
Looks great in my build.
j***r (zweryfikowany) –
At first i thought it was a scam, but then i ordered it cause i wanted to try building my first pc ever but i didn’t have that much money then i saw a youtuber try this build and it worked really well and also preformed well
e***o (zweryfikowany) –
I haven’t tried it yet but it is in good condition.
AliExpress Shopper (zweryfikowany) –
It arrived from China to Jalisco, Mexico in 1 week. It arrived quite intact. The only major damage it suffered during transportation was that the RAM perforated the ESD bag and part of the second cardboard box. Something that could have been avoided if they had also put a sponge in front; it already has one in the back. Putting that aside, it’s a good product. I was genuinely surprised. Yes, it does not include the BIOS battery. You have to purchase that separately. It arrived sealed and has marks indicating that the processor was indeed tested at the factory. Then I will return to add tests from CPU-Z, performance, and temperatures. At the moment, Satisfied with my purchase.
Ж***к (zweryfikowany) –
Fast delivery to the Kyiv region in 12 days by Nova Poshta, already ordered a second set, recommend to everyone.
W***r (zweryfikowany) –
Very top, it worked 100%. The motherboard accepted 4x 16GB DDR 4 ECC for a total of 64GB approved. 👍
Thank you.
On top, the Cooler arrived together.
Super recommended
Att Wscripts.com.br.
Recife, PE BR
c***r (zweryfikowany) –
Efficient and silent heatsink, maintains low temperature even in intensive use. Recommended.
Ж***к (zweryfikowany) –
This is my second purchase, the price is excellent, I recommend it to everyone for buying, fast delivery, 9 days by Nova Poshta to the Kiev region.
P***a (zweryfikowany) –
The plate arrived in excellent condition and is fully functional; the anti-static bag arrived slightly damaged. I suppose due to the friction that occurs when traveling by plane. And the delivery time was excellent.
Highly Recommended.
S***a (zweryfikowany) –
Worth the price, as a combo definitely worth it.
D***n (zweryfikowany) –
I got it on sale, thank you, the price is great. Without you, we would be sitting on some ancient fan for a lot of money. Well done for making a motherboard for server processors; for the money, the motherboard is almost free. I’m getting a second one; the first one worked honestly for 6 years until it burned out from power surges.
M***a (zweryfikowany) –
The ki is very good, it works perfectly when paired with other good components, and being white it matched well with my assembly.
J***l (zweryfikowany) –
Came in early beautiful design data speeds great.
AliExpress Shopper (zweryfikowany) –
The board arrived on time but upon installing it i discovered it has a blown chip. Im talking, a hole in the daggum thing! The board (obviously) does not post as a result.not to mention multiple bent pins. Primarily on the audio porn and cpu fan 1.
AliExpress Shopper (zweryfikowany) –
It’s a good combo for streaming or for upgrading if you have a very old PC, the build quality is good, it turned on the first time, I installed an E5 1650 V3 and with a 1660 Super it works very well.
The only thing to keep in mind is the limited BIOS it comes with.
AliExpress Shopper (zweryfikowany) –
All set! The motherboard arrived quickly at my location and is working perfectly! My first Machinist X99 motherboard in white. I recommend it to everyone.
AliExpress Shopper (zweryfikowany) –
In perfect condition, I took a while to get it working because the design of the fpanel is upside down haha the black colored one is the power.
The battery must be a CR2032.
GLOWAY brand ram memory
