- Substancja chemiczna budząca duże obawy: Nic
- RAID Supported: Tak
- Processor compatibility: Intel Xeon E Series
- Ports: PCI-Express X1
- Usage Scenario: Gaming,Audio & Video,Household,Office,Video Production,Server
- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),Chassis(SYS) Fan Connector(s),8-pin +12V Power Connector
- Back I/O Ports: 1x RJ45,PS/2 Combo,3 x Audio Jacks,4x USB 3.2/3.1 Gen 2,4 x USB 2.0
- Support USB Type: USB 2.0,USB 3.0
- Max LAN Speed: 1000Mbps
- Onboard LAN: 1x RJ45
- Audio Channels: 5.1
- SATA RAID: 0
- Supports M.2 SSD: 2280,22110
- Number of M.2: 2
- Liczba portów SATA: 8
- Storage Interface Type: SATA 3,M.2 (NVMe),M.2 (SATA)
- Number of PCI: 2
- Number of PCIe x 1: 2
- Number of PCIe x 4: 1
- Number of PCIe x 16: 1
- Crossfire: crossfire
- PCI – E standards: PCI-E 3.0
- Number Of Memory Slots: 8
- Support Memory Type: DDR4
- Memory channel: Four
- Package: Tak
- Maximum Ram Capacity: 256GB
- Chipset Manufacturer: Intel
- Bateria w zestawie: NIE
- With CPU: NIE
- Chipset: C612
- Aplikacja: Komputer stacjonarny, serwer
- Socket Type: LGA 2011-3
- Nazwa marki: MOUGOL
- Special Features: Cooling Armor
- Pochodzenie: Chiny kontynentalne
Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don’t send CPU and memory. Please check carefully.
Differences between packages

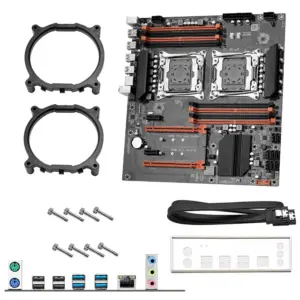

Motherboards: 1*MG-X99 Dual D4 motherboard
Motherboard+CPU: 1*MG-X99 Dual D4 +E5 2680 V4 CPU*2
Motherboard+CPU+RAM: 1*MG-X99 Dual D4 +E5 2680 V4 CPU*2+DDR4 16G*4
Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

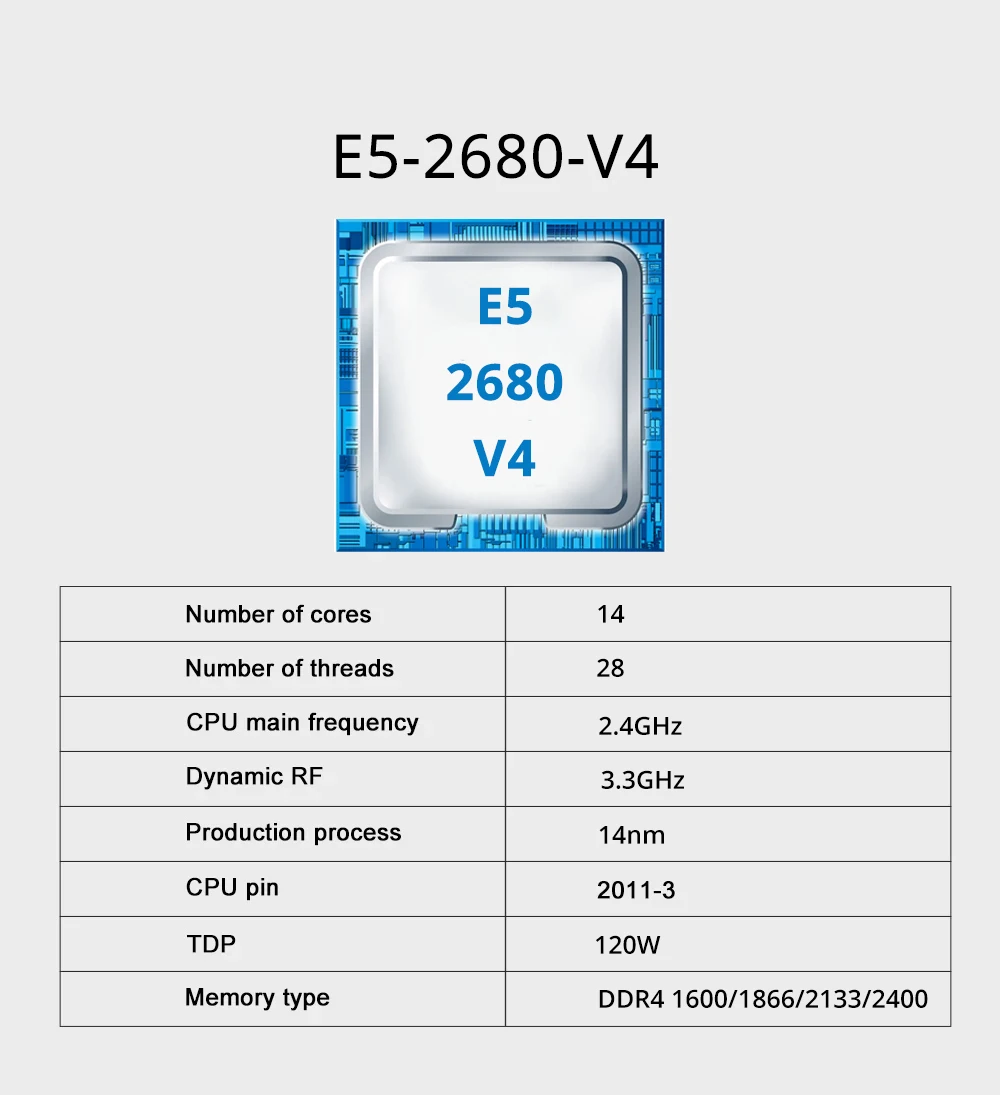

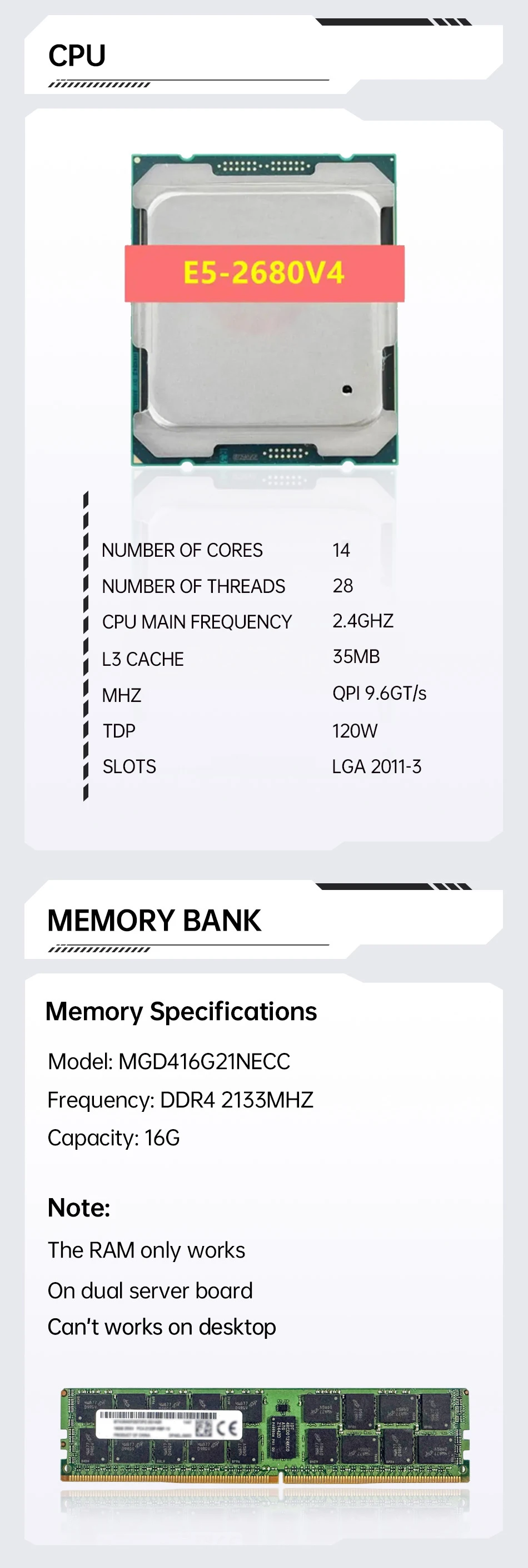

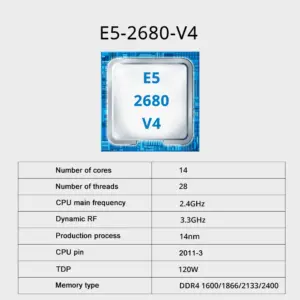

CPU:
Processor Series: Intel Xeon
Model number: E5 2680 V4
Processor Speed: 2.4GHz
Maximum core frequency: 3.3GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 14
The number of threads: 28
L3 cache size (MB): 35 MB
Wattage: 120 Watts
cpu will be final double tested before shipping
In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don’t place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)

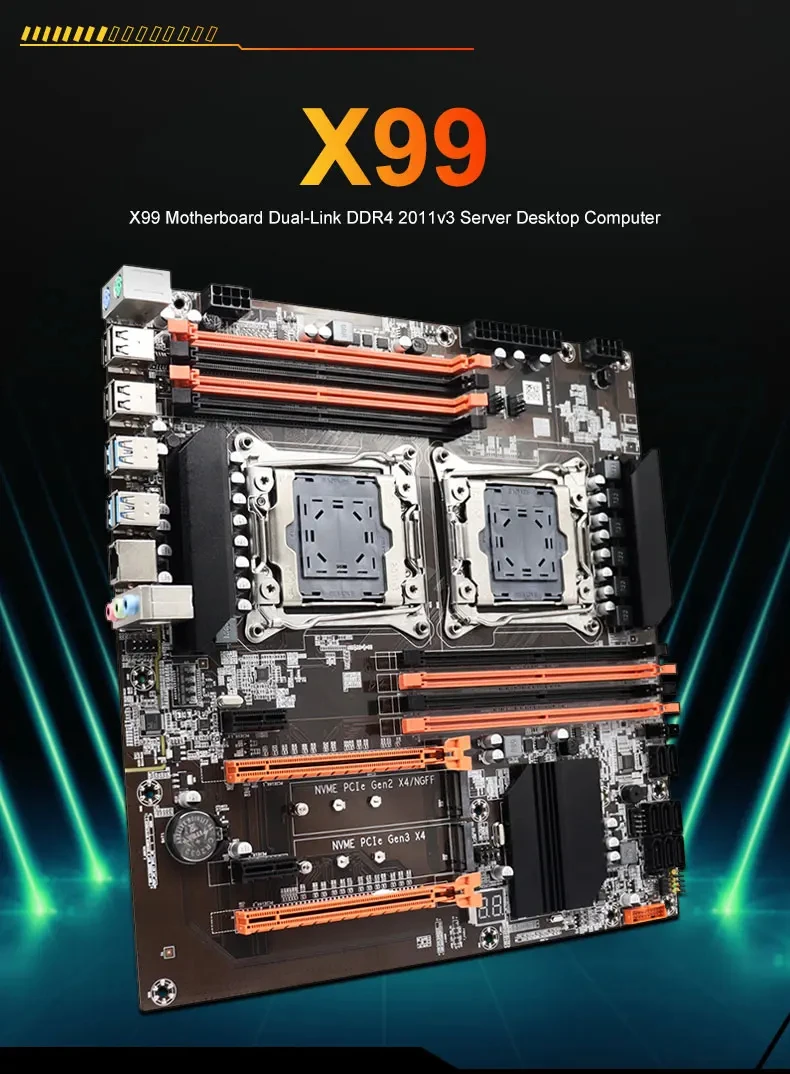

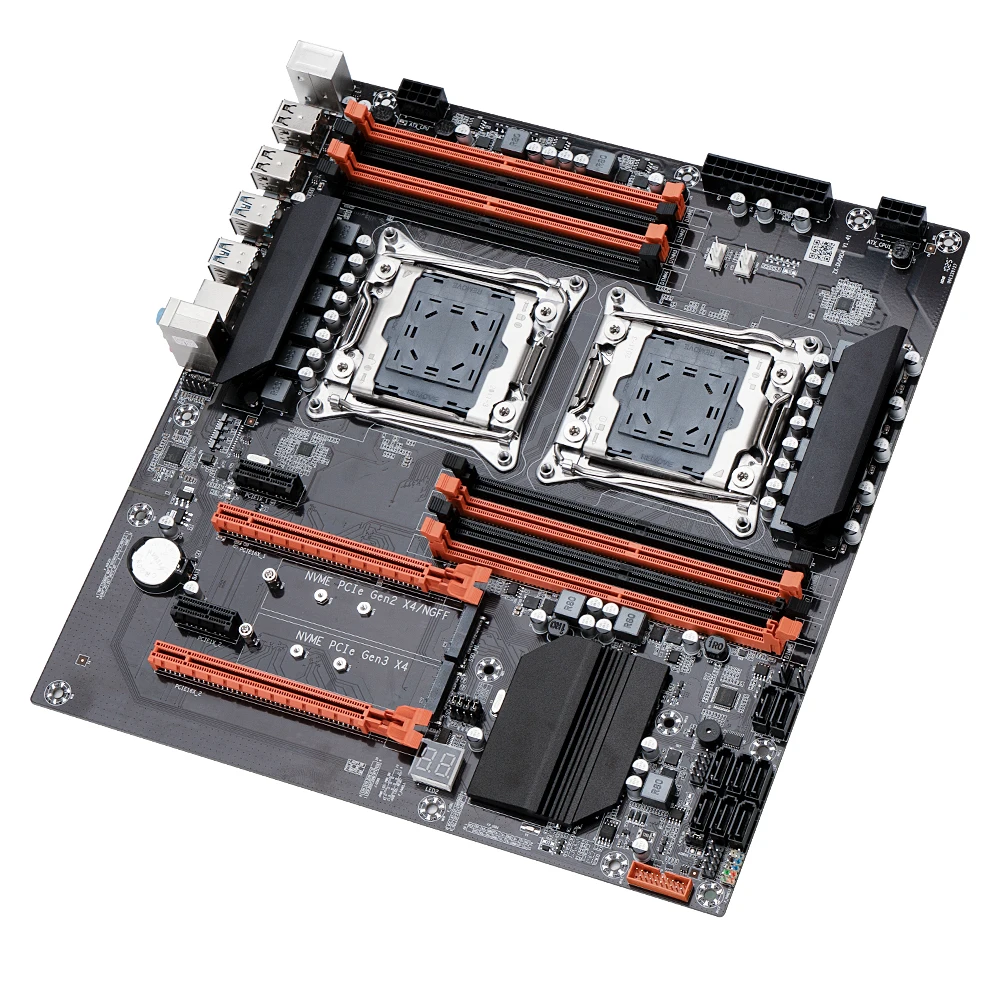

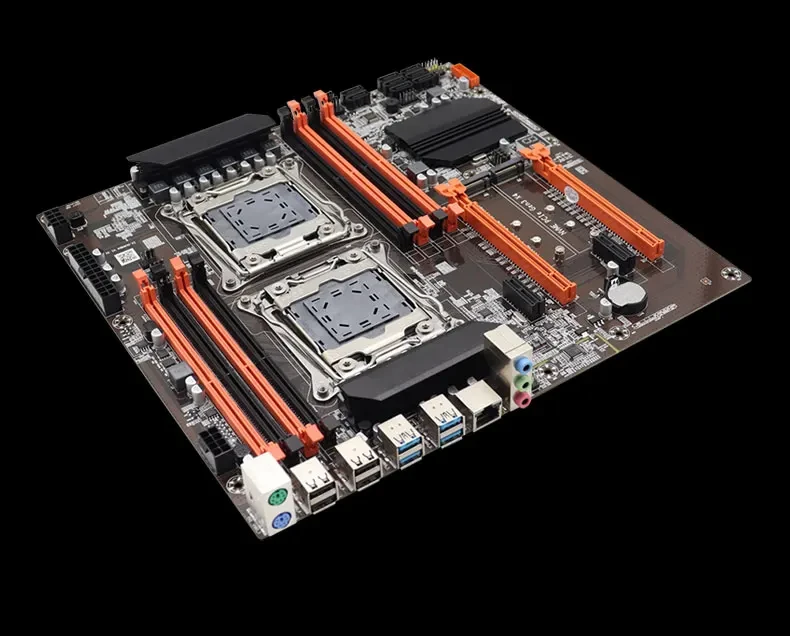

Motherboard Specifications:
Chipset: Intel X99 (C612 Chip)

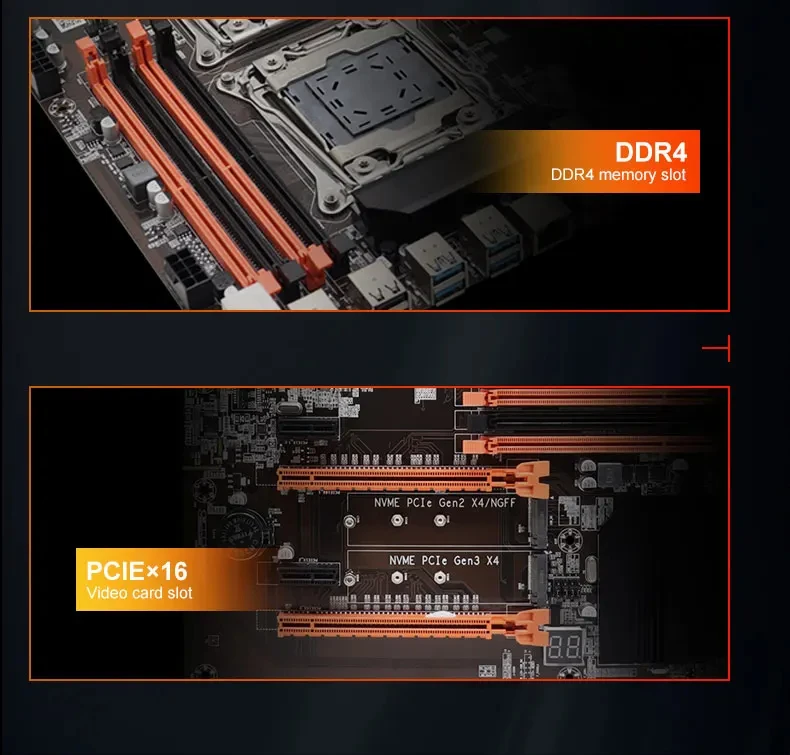

Memory System:
Four-Channel DDR4 Slots
Supports 2133/2400/2800MHz Frequencies
Maximum Expansion: 256GB (32GB Single Stick Support)
Storage Expansion:
6×SATA 3.0 6Gbps Ports

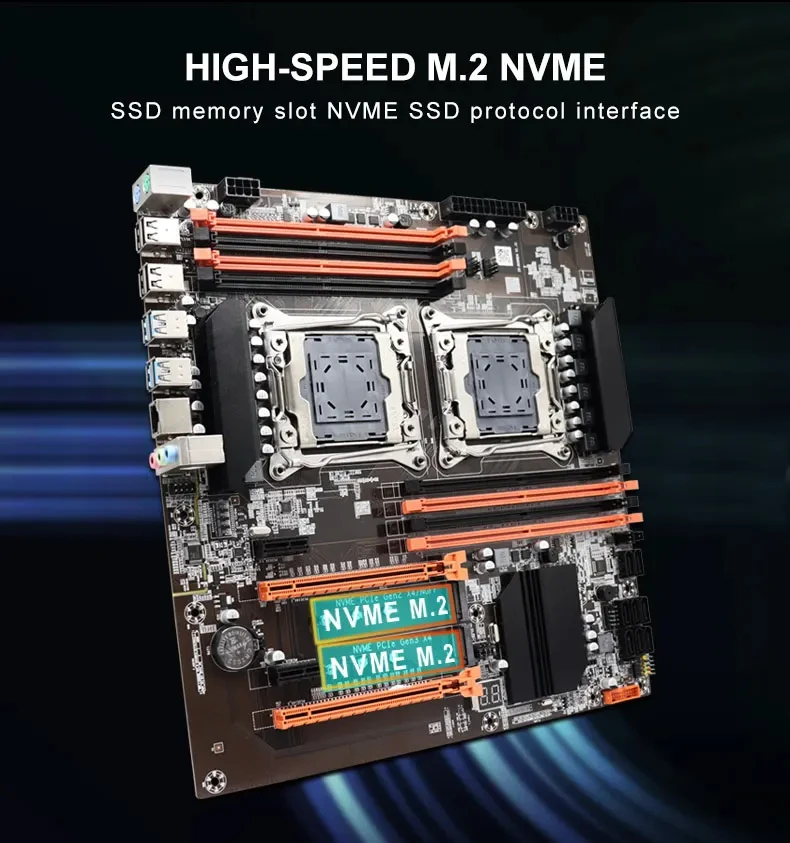

1×M.2 PCIe 3.0×4 Slot (NVMe Support)
1×M.2 SATA/PCIe Dual-Mode Slot
Graphics Support:
2×PCIe 3.0×16 Slots (AMD CrossFire Ready)
2×PCIe 2.0×1 Slots
Networking:
Realtek RTL8111H Gigabit LAN (PXE Boot Support)
Audio: Realtek ALC662 6-Channel High-Fidelity Sound

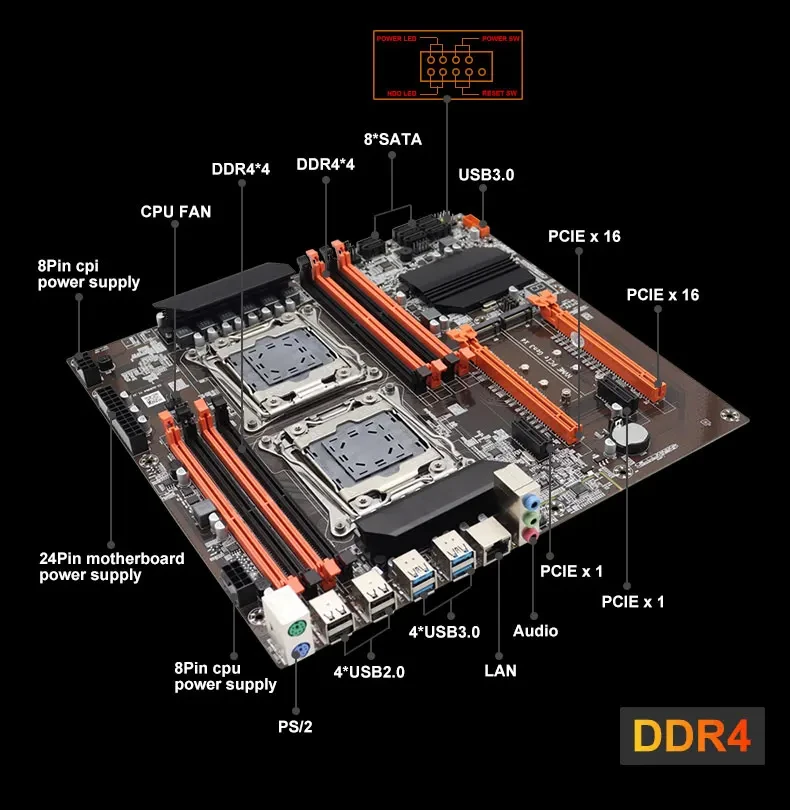

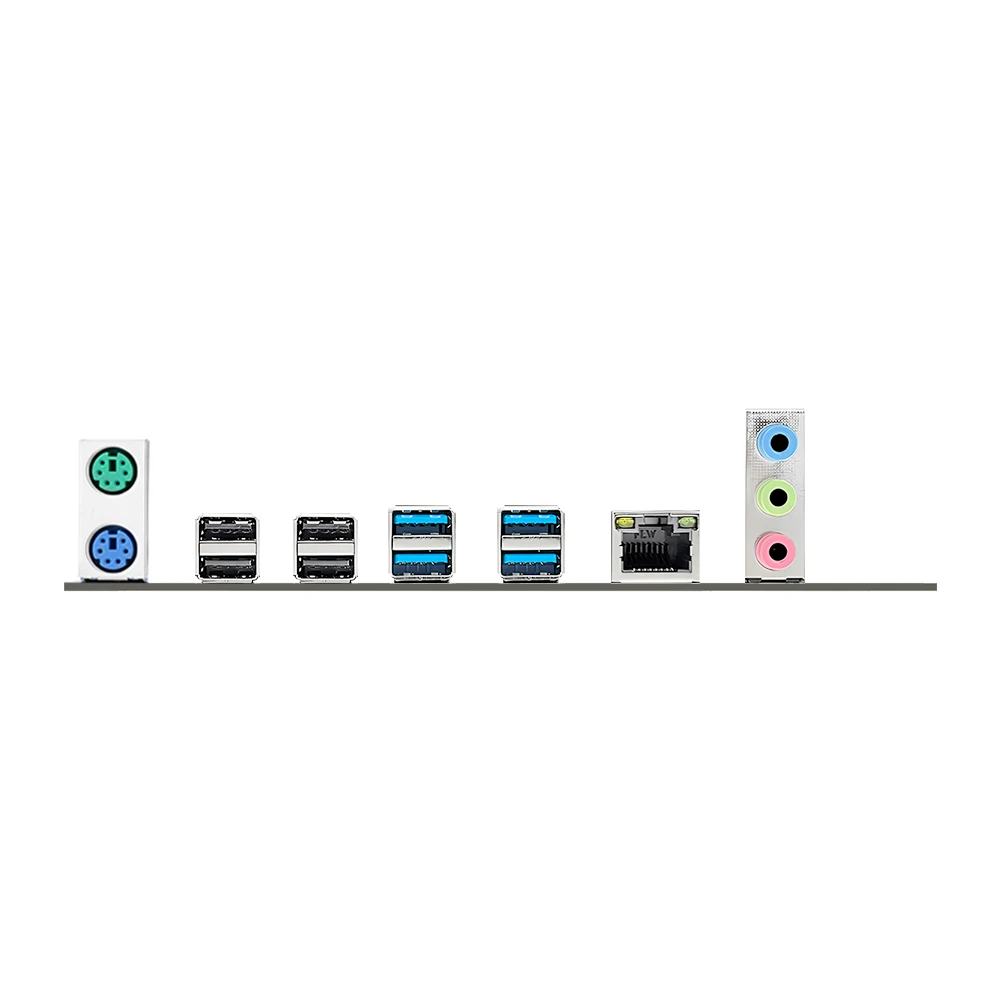

I/O Ports:
4×USB 3.0 + 4×USB 2.0
1×PS/2 Combo Port
1×COM Serial Port
1×F_AUDIO Header
Power Connectors: 24pin + 2×8pin ATX

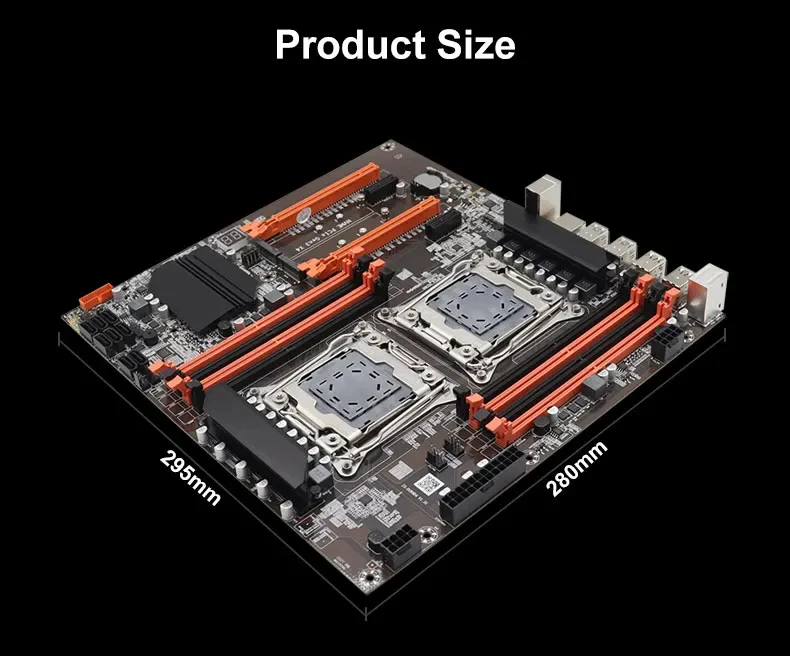

Dimensions: 290×280mm (ATX Form Factor)
Notatka:
(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can’t, we don’t recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.
(4) Install the memory. All RAM needs to be installed in outermost two slots (orange and black slots) first. The two innermost slots on the motherboard cannot be used separately. The memory needs to be inserted into the same color slots；If you are using only one CPU, install the memory in the outermost slot next to the CPU.
(5) For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°)This is normal. The actual temperature can be tested with a body thermometer.
# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
20 reviews for MOUGOl X99 Dual CPU Gaming Motherboard Set lntel Xeon E5 2680 V4&DDR4 64GB (4*16GB) LGA2011-3 M.2 NVME for Server Computer Host
Tylko zalogowani klienci, którzy kupili ten produkt, mogą napisać opinię.
| Bundle | Motherboard+CPU, Motherboard+CPU+RAM, Motherboards |
|---|---|
| Substancja chemiczna budząca duże obawy | Nic |
| RAID Supported | Tak |
| Processor compatibility | Intel Xeon E Series |
| Ports | PCI-Express X1 |
| Usage Scenario | Gaming,Audio & Video,Household,Office,Video Production,Server |
| Onboard Connectors & Header | 24-pin Main Power Connector,CPU Fan Connector(s),Chassis(SYS) Fan Connector(s),8-pin +12V Power Connector |
| Back I/O Ports | 1x RJ45,PS/2 Combo,3 x Audio Jacks,4x USB 3.2/3.1 Gen 2,4 x USB 2.0 |
| Support USB Type | USB 2.0,USB 3.0 |
| Max LAN Speed | 1000Mbps |
| Onboard LAN | 1x RJ45 |
| Audio Channels | 5.1 |
| SATA RAID | 0 |
| Supports M.2 SSD | 2280,22110 |
| Number of M.2 | 2 |
| Liczba portów SATA | 8 |
| Storage Interface Type | SATA 3,M.2 (NVMe),M.2 (SATA) |
| Number of PCI | 2 |
| Number of PCIe x 1 | 2 |
| Number of PCIe x 4 | 1 |
| Number of PCIe x 16 | 1 |
| Crossfire | crossfire |
| PCI - E standards | PCI-E 3.0 |
| Number Of Memory Slots | 8 |
| Support Memory Type | DDR4 |
| Memory channel | Four |
| Package | Tak |
| Maximum Ram Capacity | 256GB |
| Chipset Manufacturer | Intel |
| Bateria w zestawie | NIE |
| With CPU | NIE |
| Chipset | C612 |
| Aplikacja | Komputer stacjonarny, serwer |
| Socket Type | LGA 2011-3 |
| Nazwa marki | MOUGOL |
| Special Features | Cooling Armor |
| Pochodzenie | Chiny kontynentalne |
A***r (zweryfikowany) –
I haven’t got it fully connected one of the problem is they did not send a wiring diagram on how to wire up the motherboard i know where all the main wiring goes to but the small ones were the usbs the speakers power switch power led and so on.
AliExpress Shopper (zweryfikowany) –
Excellent product! Fast shipping and exactly as described. Great customer service, very responsive and helpful.
AliExpress Shopper (zweryfikowany) –
Excellent product! Fast shipping and exactly as described. Great customer service, very responsive and helpful.
AliExpress Shopper (zweryfikowany) –
This is an awesome motherboard , i am doing ai research and using it for neural network training , the ability to scale to over 80 threads on a dual cpu box is awesome ; There are some limitations on the pciex bus for speeds , i get some bus errors on my rtx 3060 but not a show stopper . I slammed one of these for two weeks with no hangs or crashes and then i had a bad dimm , but zero issues with the motherboard . At this price you can buy one just to run memtest on used dimms to make sure they are fault free .
AliExpress Shopper (zweryfikowany) –
Bought with cpus and ram, everything works great, i already have services running on my server. The cpus are exactly as described, not sure the ram is ecc but it works great. Cheap setup with good hardware. Thank you.
AliExpress Shopper (zweryfikowany) –
This time the delivery is faster and the MP itself is slightly better than before. that one had a problem with the audio connector – when the plug doesn’t go all the way in, the speakers constantly make an unpleasant hum. So far launched, testing, seems everything is fine.
the price during the sale was pleasant because there hasn’t been much demand for them for a long time, but the price tag at all sellers has significantly increased to 3000 and more, while I managed to purchase from this one before 2000.
M***t (zweryfikowany) –
Excellent board been fun to mess around with
J***z (zweryfikowany) –
Running perfectly
H***s (zweryfikowany) –
Motherboard tested with 2 2680v4 processors and works well. Simple motherboard but with good construction. For those who want to set up a bi-processed system, I recommend it for its cost-effectiveness. The only downside is that it doesn’t come with TPM.
O***o (zweryfikowany) –
Carefully crafted board. Passive cooling of the VRM zone. All necessary basic ports and interfaces are present. packed in the original factory box and bag, so there is a risk of damage during transportation. Mine arrived without any damage. There is no battery, and this is usually understood.
a***r (zweryfikowany) –
Excellent value. Motherboard, cpu and ram are all going strong after a month of use. Bios adds rebar support, which was an unexpected bonus. Excellent for a home server, and perfect when paired with unraid. I felt like it was a bit of a risk due to not having experience with the brand, but everything worked out perfectly.
AliExpress Shopper (zweryfikowany) –
Item arrived quickly and was exactly as described. Great seller! Excellent communication and fast shipping. Highly recommended
j***n (zweryfikowany) –
The board arrived well packaged, but the box suffered some dents that did not affect the board at all. The board is functioning perfectly, really very good.
AliExpress Shopper (zweryfikowany) –
I tried to turn it on and it’s not working, it gives code 53, 67, or 79.
L***M (zweryfikowany) –
Shipping in very short time, I am writing a first review after testing it for a short period. CPU <30 degrees with light load, with only two fans. Installed Linux and naturally with 64GB of RAM it runs smoothly. Recommended.
M***h (zweryfikowany) –
AliExpress Shopper (zweryfikowany) –
The product quality exceeded my expectations shipping was incredibly fast, and the item arrived well-packaged
AliExpress Shopper (zweryfikowany) –
Works great with 2 xeon e5-2680v4 installed on windows 11
AliExpress Shopper (zweryfikowany) –
Great for home servers, virtual machines, and general sandbox projects. I picked up two e5 2695 v4 cpus for a total of $32 for a decent budget system. High core counts and threads. I plan on running plex, as well as a couple of virtual machines to host game servers. I might explore small time llms for fun.
U***r (zweryfikowany) –
No instructions and board stuck on error code 79 which means corrupted bios. So i don’t know how they tested it to be working if the bios is corrupted. It passes cpu and ram test. But error code 79 on bios check.
