TOOLTOP ET693C 256*192 Thermal Imaging Camera 512*384 Super IR Thermal Imager 1080P Visible Fusion Electrical & Industrial Test
Pierwotna cena wynosiła: 213,86 $.196,36 $Aktualna cena wynosi: 196,36 $.
- Bateria w zestawie: Tak
- Substancja chemiczna budząca duże obawy: Nic
- Thermal pixels: 256*192
- Minimum temperature: -20 ℃
- Maximum temperature: 550 ℃
- Nazwa marki: TOOLTOP
- Pochodzenie: Chiny kontynentalne
- Sensor Resolution: 256*192
- SUPER IR: 512*384
- Screen size: 2.8-inch
- Frame rate: 25 Hz
- NETD: 50mK@25℃
- Field of view: 42°x56°
- Temperature measurement range: -20℃~550℃
- Temperature compensation: Support distance compensation within 5 meters
- Color palette: 9 Kinds
- Language: English, French, Spanish, Portuguese,German, Polish, Russian, Arabic, Japanese, Korean and Chinese
- Interface: USB Type-C
- Laser pointer: Wsparcie
- Visible light Resolution: 1080P
- Battery: 2600mAh lithium battery
- Image storage mode: JPG
- Video format: MP4
- Pojemność: 8G built-in memory, actual usable storage 6.19G
- Operating temperature: -10℃~+60℃
- Storage temperature: -40℃~+85℃
Notatka:
The recommended distance for visible light fusion（outline fusion ,overlay fusion） effect is 1m-5m. Please do not use it too close as it will exceed the range of Offset adjustment
In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. Usually, there is a pause of about 1-2 seconds, which is caused by the thermal imaging detector calibration . This is a normal phenomenon, please don’t worry
Cechy:
256*192 infrared thermal camera + 1080P Visible light Camera 2 in 1
Super IR image technology enhancement, improves image details, and enhances resolution to 512×384
PC software supports real-time imaging transmission and storage data analysis
Laser positioning indication function can quickly locate and detect targets
Supports photo and video recording
Built-in 2600mAhlithium battery and 8G memory. Support 11 kinds language display.
Supports visible light fusion, single infrared or single visible light and other imaging modes, 9 color palettes
Dane techniczne:
Model: ET693C
Sensor Resolution : 256*192
SUPER IR: 512×384
Screen size: 2.8 inch
Working band :8~14um
Pixel size :12um
Frame rate : 25 Hz
NETD : 50mK@25℃
Field of view :42°x56°
Lenses :3.2mm F1.1
Temperature measurement range :-20℃~550℃
Temperature measurement accuracy:±2℃ or ±2% of reading, whichever is greater
Temperature compensation: Support distance compensation within 5 meters
Color palette: iron, White hot, Black hot, Rainbow, Red hot, High contrast, Lava, Arctic, Coldest
Visible light Resolution: 1080P
Visible light Field of view: 55°x83°
Image mode: Outline fusion, overlay fusion, picture-in-picture, single infrared ,single visible light
Fusion mode working distance: about 1m~5m
Fusion adjustment: 0~100%
Offset adjustment: Adjust the fusion offset between thermal and visible images
Language: English, French, Spanish, Portuguese, German, Polish, Russian, Arabic, Japanese, Korean and Chinese
Interface: USB Type-C
Laser pointer: Support
LED: Support
Enlarger lens: Optional support
Battery: 2600mAh lithium battery
Working hours: A fully charged battery can be used for approximately 4 hours
Image storage mode: JPG
Video format: MP4
Capacity: 8G built-in memory, actual usable storage 6.19G, can store more than20,000 pictures
Operating temperature:-10℃~+60℃
Storage temperature:-40℃~+85℃
Package List:
1 x Thermal Camera
1 x English user manual
1 x Type-C data cable
1 x Packing Box
1 x Lanyard
| Kolor | ET693C |
|---|---|
| Bateria w zestawie | Tak |
| Substancja chemiczna budząca duże obawy | Nic |
| Thermal pixels | 256*192 |
| Minimum temperature | -20 ℃ |
| Maximum temperature | 550 ℃ |
| Nazwa marki | TOOLTOP |
| Pochodzenie | Chiny kontynentalne |
| Sensor Resolution | 256*192 |
| SUPER IR | 512*384 |
| Screen size | 2.8-inch |
| Frame rate | 25 Hz |
| NETD | 50mK@25℃ |
| Field of view | 42°x56° |
| Temperature measurement range | -20℃~550℃ |
| Temperature compensation | Support distance compensation within 5 meters |
| Color palette | 9 Kinds |
| Language | English, French, Spanish, Portuguese,German, Polish, Russian, Arabic, Japanese, Korean and Chinese |
| Interface | USB Type-C |
| Laser pointer | Wsparcie |
| Visible light Resolution | 1080P |
| Bateria | 2600mAh lithium battery |
| Image storage mode | JPG |
| Video format | MP4 |
| Pojemność | 8G built-in memory, actual usable storage 6.19G |
| Operating temperature | -10℃~+60℃ |
| Storage temperature | -40℃~+85℃ |
20 reviews for TOOLTOP ET693C 256*192 Thermal Imaging Camera 512*384 Super IR Thermal Imager 1080P Visible Fusion Electrical & Industrial Test
Tylko zalogowani klienci, którzy kupili ten produkt, mogą napisać opinię.

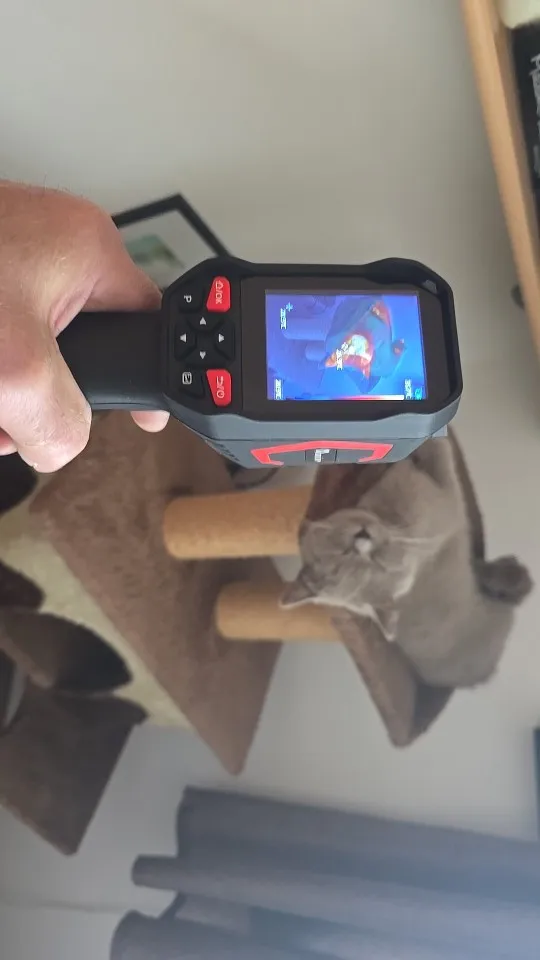

I have no experience working with thermal imagers. But the picture overlay function is very useful. The resolution for household improvisation is completely sufficient. I hope it will help me find the leak in the heating system.
