- Substancja chemiczna budząca duże obawy: Nic
- Zoom type: Digital zoom
- Zoom: 4X
- Lens Quantity: Single Lens
- AI Functions: Motion Detection
- Color Night Vision: NIE
- Operating Temperature: -10°-60°
- IP Rating: Inny
- Power Mode: Mains Electricity
- Scene: Wnętrz
- Megapixels: 5 MP
- TF Card: Nic
- Power Supply: Normal
- Internal Storage: Nic
- Instalacja: Embedded,Normal
- Kolor: czarny
- jest_dostosowany: NIE
- Audio Output: Nic
- Minimum Illumination(Lux): 0.001
- Viewing Angle : 170°
- Video Compression Format: H.264,H.265
- IR Distance(m): not support
- Dimensions (L x W x D)(mm): Diameter 21MM
- Power Supply(V): DC12V
- Power Consumption(W): 1.5W
- Supported Mobile Systems: Android,iOS
- Sensor Brand: Omnivision
- Sensor: CMOS
- Numer modelu: HQ-X06-W
- Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
- Lens (mm): 1.6mm
- Łączność: WIFI(2.4GHz)
- High Definition: 5.0 Megapixels
- Styl: Mini Camera
- Nazwa marki: HQCAM
- Źródło zasilania: Normal
- Shell Material: Metal
- Pochodzenie: Chiny kontynentalne
- Optical Zoom: Nic
- Alarm Type: FTP Photo,Email Photo
- Smart home platform: Inny
- Mobile app: hieasy
- shell material: Metal Material
Schematic diagram of power supply connection for the camera
The correct measurement method for door holes
Camera size detail drawing
Supports on vif protocol as well as Hik vision protocol, and can be connected to NVR
· Built-in HI3516C 1T computing power NPU, built-in AI algorithm large model;
· Support wired and wireless connections; Wireless connection support Wi-Fi 6, more stable transmission;
· Come with WiFi hotspot, no network can also monitor; APP support Bluetooth network, WiFi connection is more convenient;
· Intelligent detection of light, see faces at night;
· Built-in WEB 2.0 page, support Edge, Chrome, Safari, Firefox and other non-IE kernel browsers;
· Support 512G TF card; Support intelligent video/ordinary video, save full automatic coverage;
· 5MP HD resolution, support dual stream output;
· New APP page, easy to use, support APP alarm push;
· Support sharing function, the maximum share of the APP is 16 people;
· Built-in humanoid and car shape detection function; Expand the application scenarios of electronic fence, cross-border detection, departure detection, and passenger flow statistics;
· Support humanoid tracking, automatic return after tracking (optional);
· Support linkage sound and light alarm; Alarm sound support custom recording and text to voice (optional);
· Support alarm output, can link red and blue lights and other alarms (optional);
· Support ONVIF protocol and access to third-party NVR;
· Support screen occlusion to protect the privacy area;
· Support OSD character overlay function, support network timing;
· Support audio input and output, two-way intercom, audio and video synchronization;
|
Product parameter description |
|
|
Day and night mode |
Black light full color (Requires a black light lens), intelligent dual light, infrared mode (Optional), intelligent light face but exposure |
|
Image adjustment |
Support automatic white balance, support digital width dynamic, support backlight compensation, brightness contrast color and other parameters adjustable; |
|
Privacy block |
The private occlusion area is supported |
|
acoustic image |
Support mirror image |
|
OSD |
Support OSD settings and support OSD drag |
|
Intelligent application |
|
|
Electronic fence |
Support the detection of human shape / vehicle shape, and the equipment shall conduct the alarm after entering the warning area; |
|
Transboundary detection |
Support the detection of human shape, support the detection of A-> B, B-> A, A <-> B direction; |
|
Deportation investigation |
Support setting the detection area, the equipment will alarm after the personnel leave for a certain time, and the alarm stops after returning; |
|
passenger flow statistics |
Support the detection of entering and leaving number statistics, can stack OSD to the picture in real time; daily data can be checked; |
|
Human tracking |
Support the humanoid tracking function, automatic tracking after personnel detection; |
|
Voice alarm |
Support linkage voice broadcast, voice content can be customized recording; |
|
IO report to the police |
Support, can linkage red and blue light alarm; (Optional) |
|
Video recorder linkage |
Support linkage video recorder large screen, local voice, AI video, push and other functions |
|
video frequency |
|
|
compress |
H.264 ,H.265 |
|
resolution ratio |
Main code stream: 5MP (2880 * 1616) / 4MP (2560 * 1440) / 3MP (2304 * 1296) / 2MP (1920 * 1080) / 1MP (1280 * 720) |
|
Sub-stream: 448P (800 * 448) / 360P (640 * 360) / CIF (352 * 288) |
|
|
memory |
Support 512 GTF card storage, support NVR added storage; |
|
network |
|
|
Ethernet |
RJ-45 10M / 100M Adaptive |
|
protocol |
ONVIF ,P2P ,CGI ,HTTP ,TCP/IP ,IPv4 ,RTSP ,UDP ,NTP ,DHCP ,DNS ,IP Filter |
|
WI FI |
WIFI-6,2.4G band, 802.11 b / g / n |
|
BLE |
Support Bluetooth distribution network |
|
access protocol |
ONVIF Agreement / private protocol / CGI |
|
client |
Mobile phone client: , computer client: VMS, NVR, centralized management |
|
audio frequency |
|
|
audio frequency |
G.711U,G711A |
|
Audio input |
Support (Recommended-36DB MIC) |
|
Audio output |
Support, built-in power amplifier (recommended 8 Ω 2W) |
|
General specification |
|
|
rozmiar |
18 mm |
|
work environment |
-30℃ ~ +60℃ |
|
source |
|
Supports area alarm, employee absence detection, car parking space detection, and motion detection
Support personnel quantity statistics (including entry and exit personnel statistics) The lower right corner of the photo shows the number of people entering and leaving the statistics. The green triangles in the picture are the set areas, and you can freely set the areas in the Settings
Supports human shape detection and vehicle detection
Support off-duty (employee position detection) detection. When no one is detected in the area, an alarm will be triggered Supports boundary crossing detection. When a person or vehicle is detected to have crossed the warning line, an alarm will be triggered The self-held electronic fence detection system will trigger an alarm when it detects someone or a vehicle entering or leaving the alert area
3 reviews for Wifi 5MP Door Eye Hole 6X Digital Zoom 1.6mm Wide Angle Lens CCTV Network Mini Peephole POE Door IP Camera P2P SDK Audio SD Card
Tylko zalogowani klienci, którzy kupili ten produkt, mogą napisać opinię.
| Rozmiar czujnika | 48V POE version, DC12V version |
|---|---|
| Substancja chemiczna budząca duże obawy | Nic |
| Zoom type | Digital zoom |
| Zoom | 4X |
| Lens Quantity | Single Lens |
| AI Functions | Motion Detection |
| Color Night Vision | NIE |
| Operating Temperature | -10°-60° |
| IP Rating | Inny |
| Power Mode | Mains Electricity |
| Scene | Wnętrz |
| Megapixels | 5 MP |
| TF Card | Nic |
| Power Supply | Normal |
| Internal Storage | Nic |
| Instalacja | Embedded,Normal |
| Kolor | czarny |
| jest_dostosowany | NIE |
| Audio Output | Nic |
| Minimum Illumination(Lux) | 0.001 |
| Viewing Angle | 170° |
| Video Compression Format | H.264,H.265 |
| IR Distance(m) | not support |
| Dimensions (L x W x D)(mm) | Diameter 21MM |
| Power Supply(V) | DC12V |
| Power Consumption(W) | 1.5W |
| Supported Mobile Systems | Android,iOS |
| Sensor Brand | Omnivision |
| Sensor | CMOS |
| Numer modelu | HQ-X06-W |
| Supported Operating Systems | Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003 |
| Lens (mm) | 1.6mm |
| Łączność | WIFI(2.4GHz) |
| High Definition | 5.0 Megapixels |
| Styl | Mini Camera |
| Nazwa marki | HQCAM |
| Źródło zasilania | Normal |
| shell material | Metal Material |
| Pochodzenie | Chiny kontynentalne |
| Optical Zoom | Nic |
| Alarm Type | FTP Photo,Email Photo |
| Smart home platform | Inny |
| Mobile app | hieasy |
| Typ wtyczki | EU Plug |
It got quite hot during operation.
Opened it, the duty diodes went out, there is no obvious visually noticeable problem.
The current consumption at startup is 30mA, after 13 seconds it stabilizes around 140mA, as if it's at least trying to boot up. Repair is not feasible, just throw it away, money down the drain.

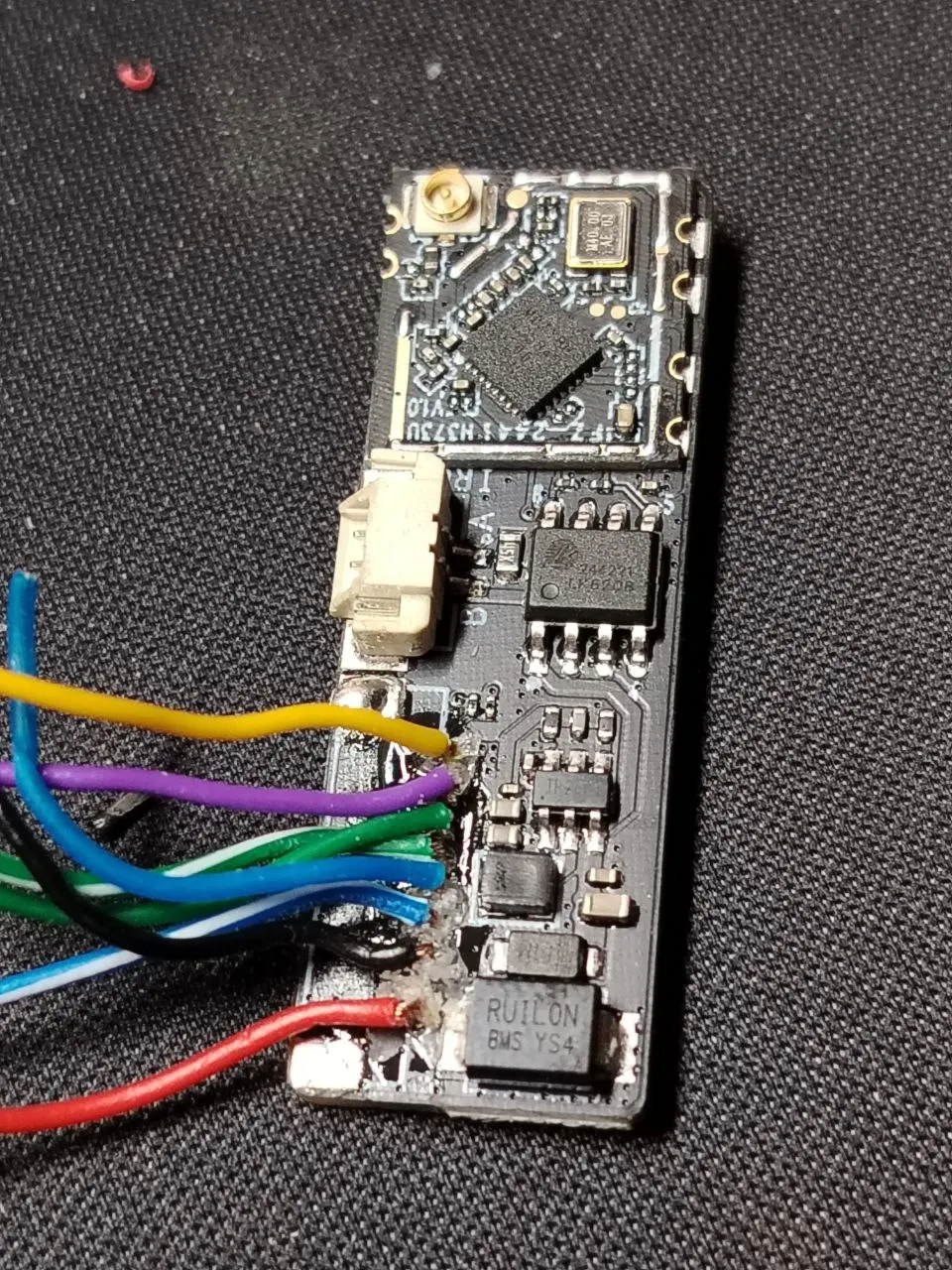

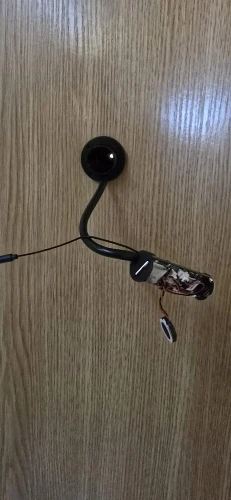

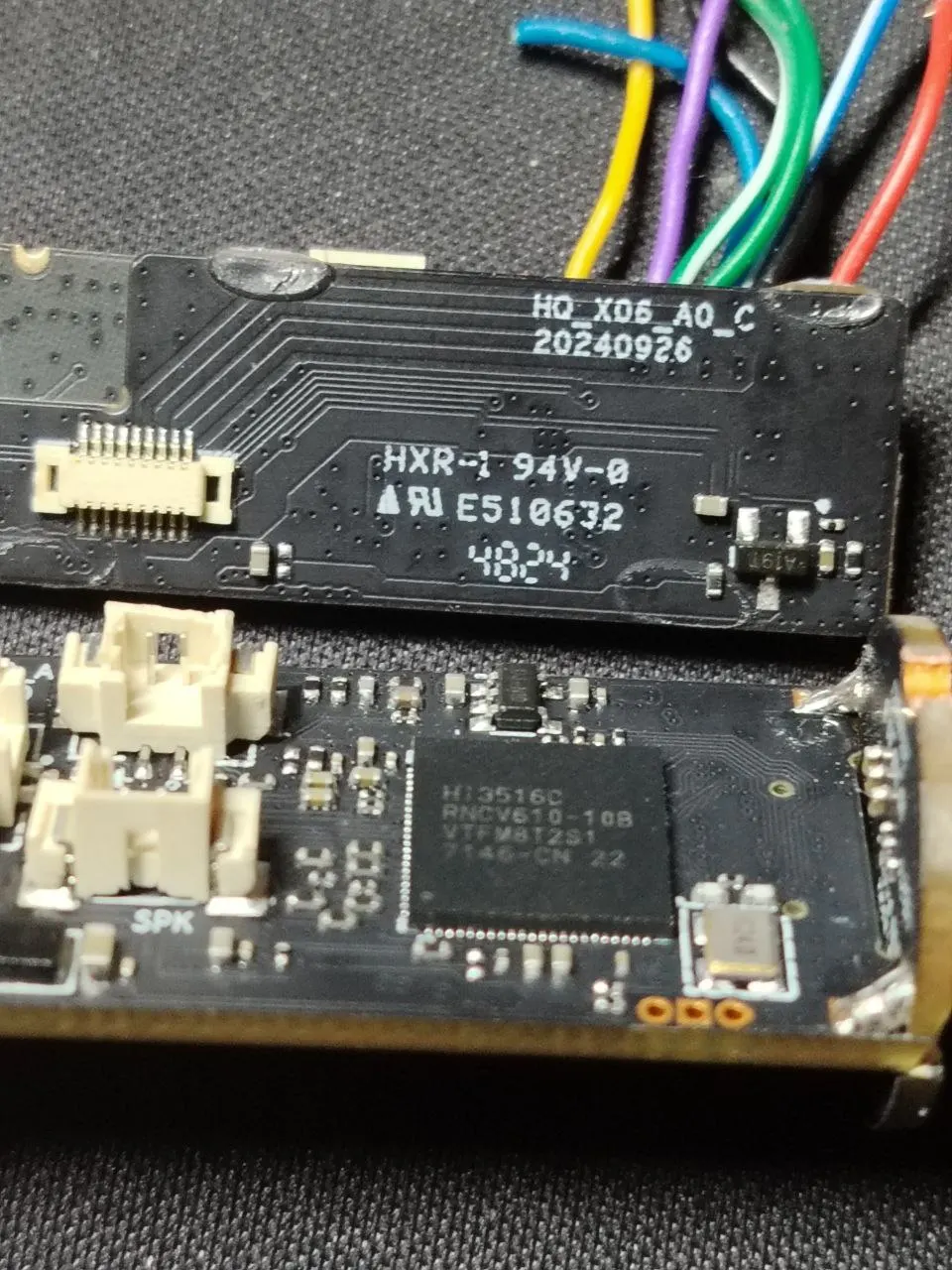

The quality of the board assembly is also not satisfactory, especially the glue here and there, I took a photo, maybe someone will be interested. In the photo, I simply disassembled it and cut the wire; I didn't mess with anything or tear anything off - it's assembled like that.
