- High-concerned chemical: None
- RAID Supported: Yes
- Processor compatibility: Intel Xeon E Series
- Ports: USB 3.0
- Usage Scenario: Audio & Video,Household,Office,Video Production,Industrial Computer,Workstation,Server,Mini PC,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute
- Back I/O Ports: 1x RJ45,2x RJ45
- Support USB Type: USB 2.0,USB 3.0
- Max LAN Speed: 2500Mbps
- Onboard LAN: 1x RJ45,2x RJ45,3x RJ45
- Audio Channels: 2.1
- SATA RAID: 0,1,5,10
- Supports M.2 SSD: 2280,2260
- Number of M.2: 2
- Number of SATA Ports: 10
- Storage Interface Type: SATA,M.2 (NVMe)
- Number of PCI: 0
- Number of PCIe x 1: 0
- Number of PCIe x 4: 0
- Number of PCIe x 8: 0
- Number of PCIe x 16: 1
- PCI – E standards: PCI-E 3.0
- Number Of Memory Slots: 1
- Support Memory Type: DDR4
- Quality Certification: ce,ROHS,FCC
- Memory channel: Double
- Form Factor: CeB
- Package: Yes
- Maximum Ram Capacity: 128 GB
- Chipset Manufacturer: Intel
- Battery Included: No
- With CPU: Yes
- Chipset: Intel Others
- Application: Server,Workstation,Industrial Computer
- Socket Type: LGA 2011-3
- Brand Name: wafu
- Special Features: None
- Origin: Mainland China
Please note that importantly: In this product link, there are 3 parts. The motherboard part is the X99 motherboard(C612 Chip), which includes 2 options RAM and 6 options CPU. Please purchase carefully when placing an order. If you have any questions, please consult us and we will provide assistance

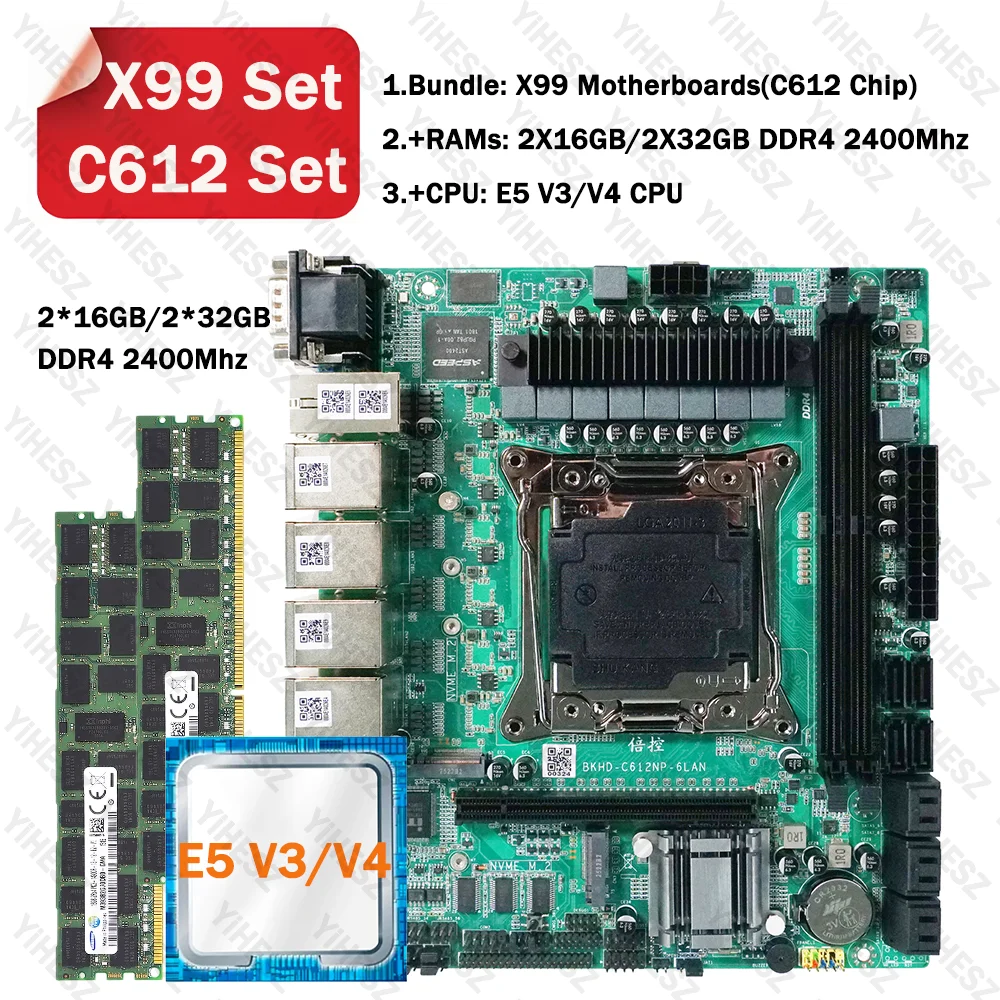

Your order consists of three parts

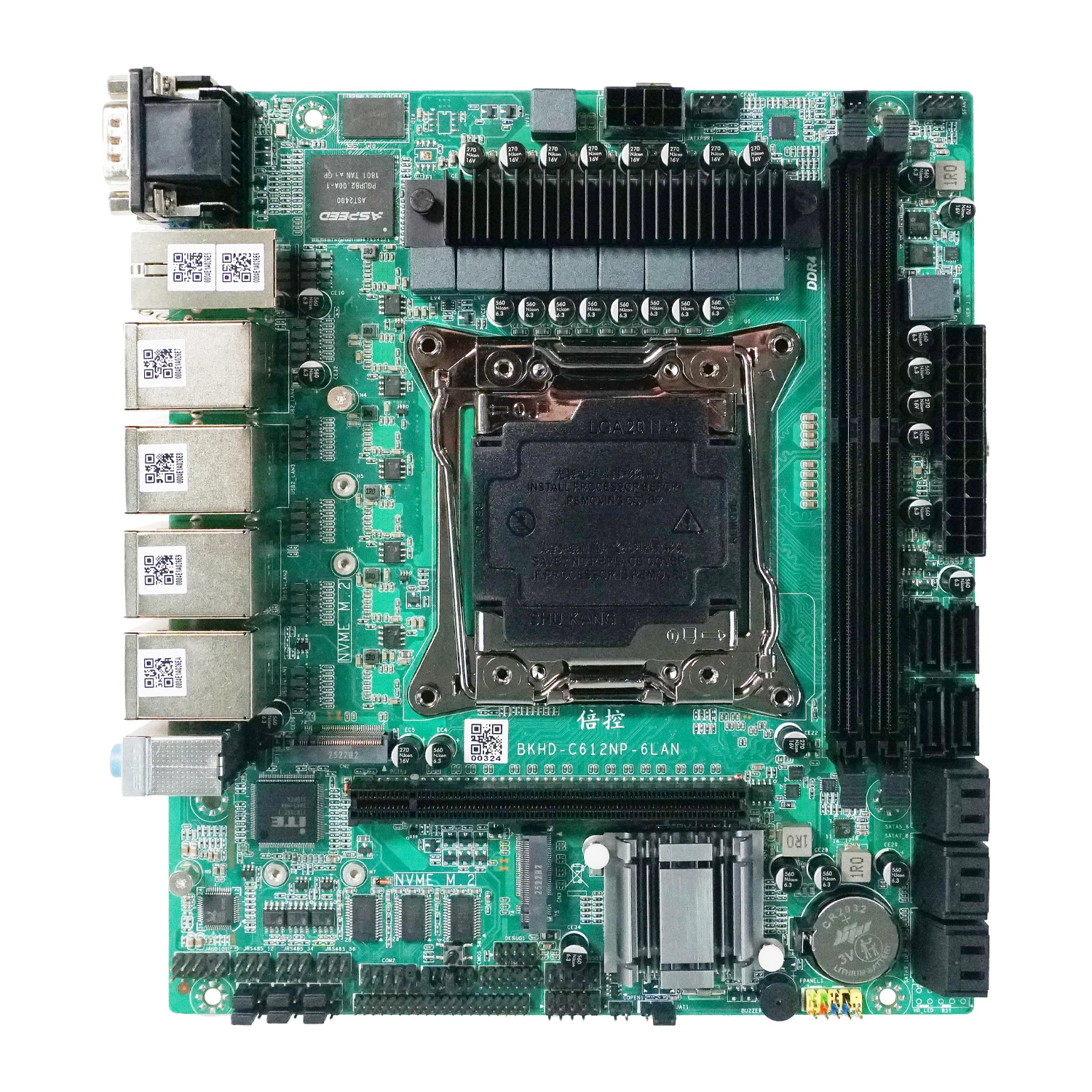

1. Motherboard: X99 motherboard（C612 Chip）
2. RAMs：2X16GB DDR4 2400Mhz/2X32GB DDR4 2400Mhz
3. CPU: E5 2650V4/E5 2680V4/E5 2686V4/E5 2697AV4/E5 2696V4/E5 2699V4
Feature:
Support LGA2011 XEON series CPUs
Supports dual channel 2400MHz DDR4 ECC memory, up to 128GB, and single slot up to 64GB
Display supports VGA
Supports 6 2.5Gbps networks
Supports 2 M.2 interfaces (only NVME)
Supports 12 USB interfaces
Supports 1 PCIE X16 slot
Supports 10 SATA 3.0 interfaces
Built in 6 RS232 and RS485 serial ports
Support wide temperature range of -10~60 degrees Celsius for operation;
Built in clear CMOS button for faster troubleshooting and problem-solving;
6-layer PCB design for more stable performance
Specification

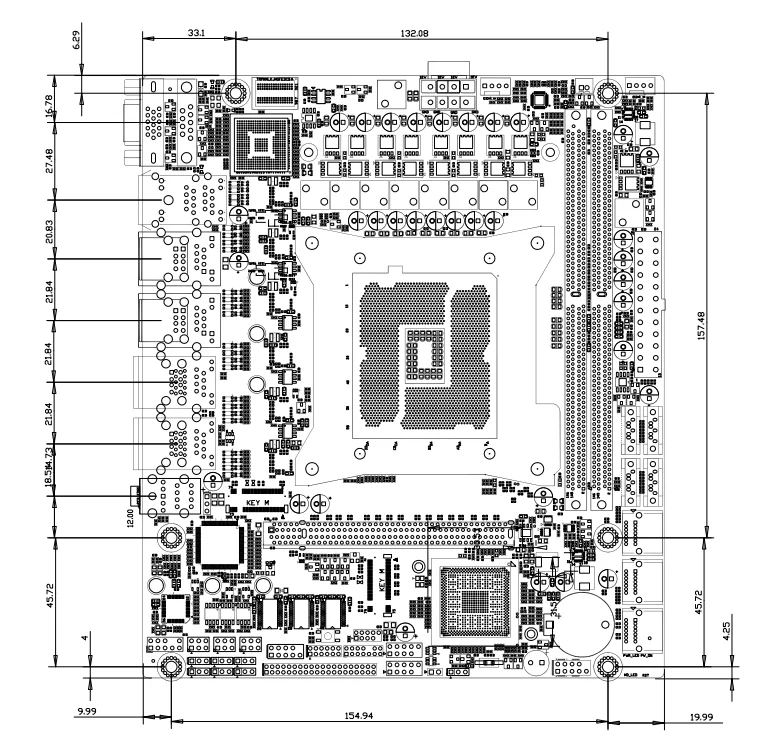

Motherboard size: 213.5 x 185.08 mm
CPU: Supports LGA2011 XEON series CPUs
Memory: Single root memory supports up to 64GB
Expansion slot: 1 x PCIE X16 slot; 2 x M.2 SSD

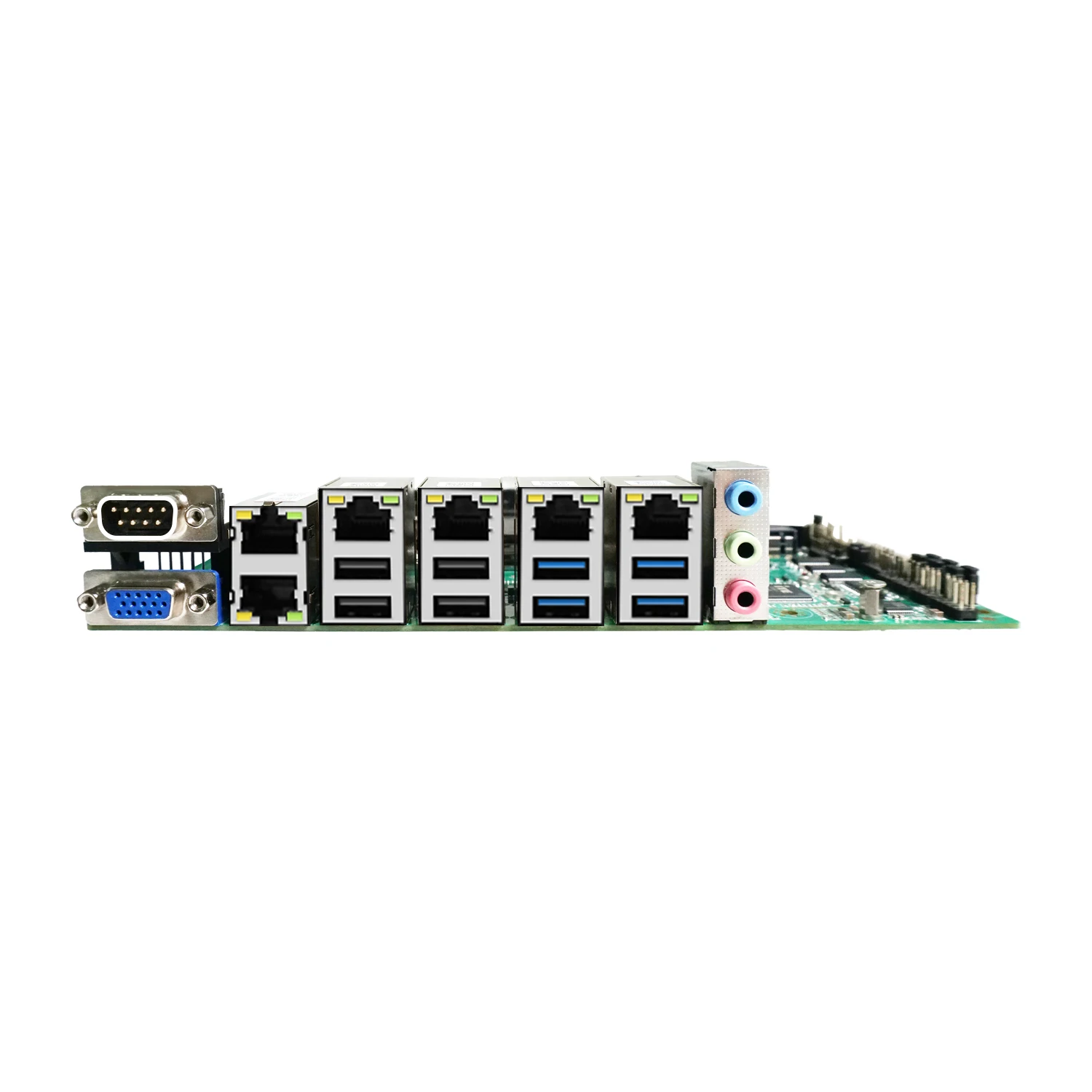

Backplane interface: 1 x VGA display interface
1 x DB9 COM interface
4 x USB3.0
4 x USB2.0
6 x RJ45 interfaces
3 x audio interfaces (Line Out/MIC In/Line In)

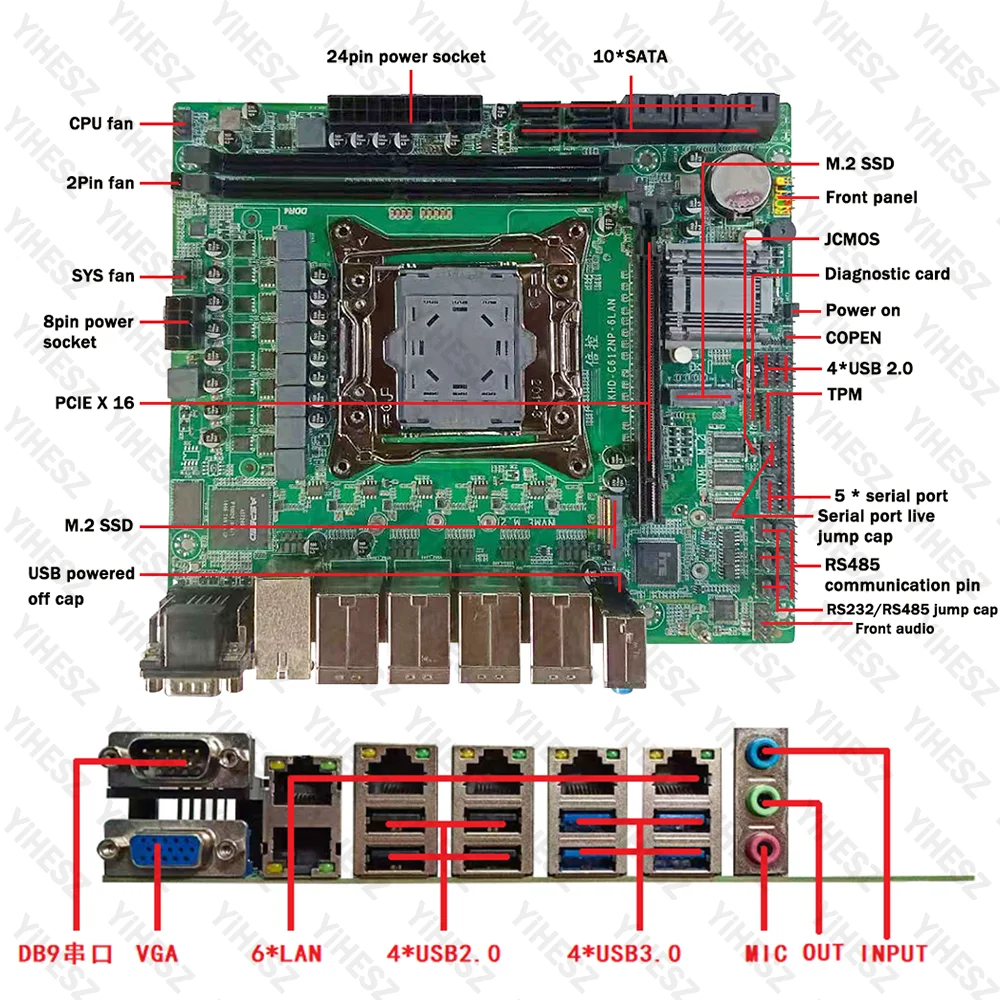

Built in interface10 x SATA interface
1 x 9-Pin Front Panel Switch Pin (FPANEL)
1 x 4Pin CPU cooling fan (CFAN1)
1 x 4Pin System Cooling Fan (SFAN1)
1 x 2Pin System Cooling Fan (SFAN1)
5 x built-in COM interfaces
2 x FUSB front-end interfaces (can be converted to 4 USB 2.0 interfaces)
1 x 9Pin built-in audio interface (F_AUDIO)
1 x TPM interface
1 x 8pin ATX interface
1 x 24 pin ATX interface
1 x 2Pin Case Open Pin
Displaysupports VGA display
Network6 Intel I226V 2.5G network cards
AudioRealtek ALC897, supports Line Out&Line In&INPUT
I/O chipITE IT8786E-I
Power supply24Pin+8Pin ATX power supply
Operating SystemWindows 10/Windows 11/Linux
NOTE:
1: CPU and Memory Module is used, condition good
2: There may have some little physical scratches on the surface of the CPUand Memory, this is pretty normal.
3: All CPU and Memory are strictly tested by our store
4: Random sending of RAM particles, possibly from Hynix, Micron, Samsung
Buying instructions:
1. Due to manual measurement, please allow a difference of 1-3mm.
2. Due to differences in display and lighting, there may be slight differences in images and products. Thank you for your understanding.
3. For tax issues, some countries need to bear their own taxes to ensure whether their country needs customs clearance and has the ability to do so
4. The battery in the motherboard photo will be removed before shipment
5. Please carefully determine the product combination you need,I can only send the products according to the options you ordered
6.This product is a new product. If you need more information, please contact us
Only logged in customers who have purchased this product may leave a review.
| Delivery from | China Mainland |
|---|---|
| High-concerned chemical | None |
| RAID Supported | Yes |
| Processor compatibility | Intel Xeon E Series |
| Ports | USB 3.0 |
| Usage Scenario | Audio & Video,Household,Office,Video Production,Industrial Computer,Workstation,Server,Mini PC,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute |
| Back I/O Ports | 1x RJ45,2x RJ45 |
| Support USB Type | USB 2.0,USB 3.0 |
| Max LAN Speed | 2500Mbps |
| Onboard LAN | 1x RJ45,2x RJ45,3x RJ45 |
| Audio Channels | 2.1 |
| SATA RAID | 0,1,5,10 |
| Supports M.2 SSD | 2280,2260 |
| Number of M.2 | 2 |
| Number of SATA Ports | 10 |
| Storage Interface Type | SATA,M.2 (NVMe) |
| Number of PCI | 0 |
| Number of PCIe x 1 | 0 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 8 | 0 |
| Number of PCIe x 16 | 1 |
| PCI - E standards | PCI-E 3.0 |
| Number Of Memory Slots | 1 |
| Support Memory Type | DDR4 |
| Quality Certification | ce,ROHS,FCC |
| Memory channel | Double |
| Form Factor | CeB |
| Package | Yes |
| Maximum Ram Capacity | 128 GB |
| Chipset Manufacturer | Intel |
| Battery Included | No |
| With CPU | Yes |
| Chipset | Intel Others |
| Application | Server,Workstation,Industrial Computer |
| Socket Type | LGA 2011-3 |
| Brand Name | wafu |
| Special Features | None |
| Origin | Mainland China |
| Bundle | Motherboards |
| +RAMs | 2X16GB DDR4 2400Mhz, 2X32GB DDR4 2400Mhz |
| +CPU | E5 2650V4, E5 2680V4, E5 2686V4, E5 2696V4, E5 2697AV4, E5 2699V4 |
