- High-concerned chemical: None
- Function: Fire Resistant
- Material: PC

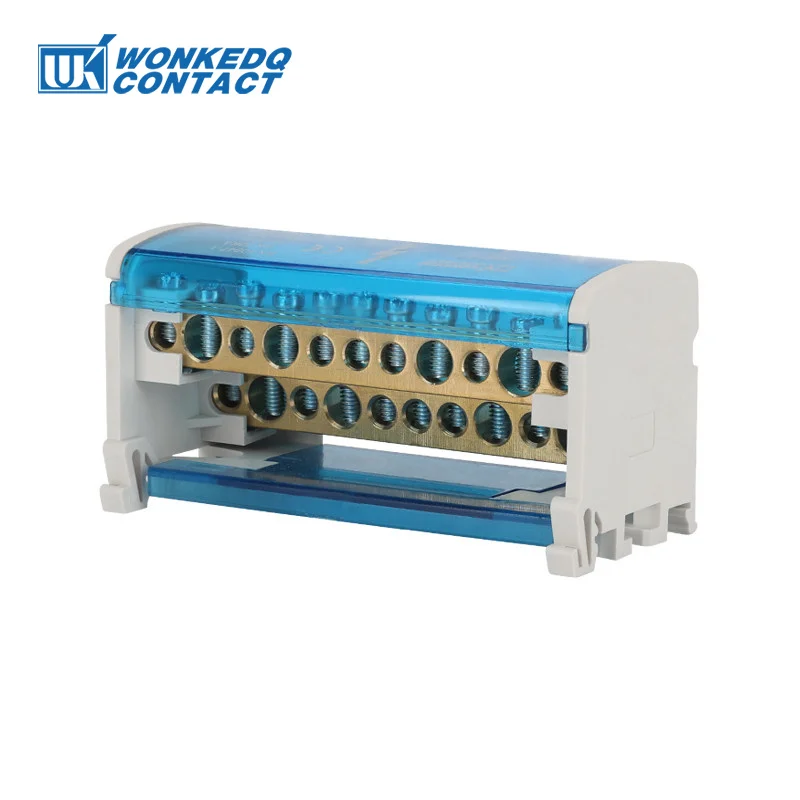

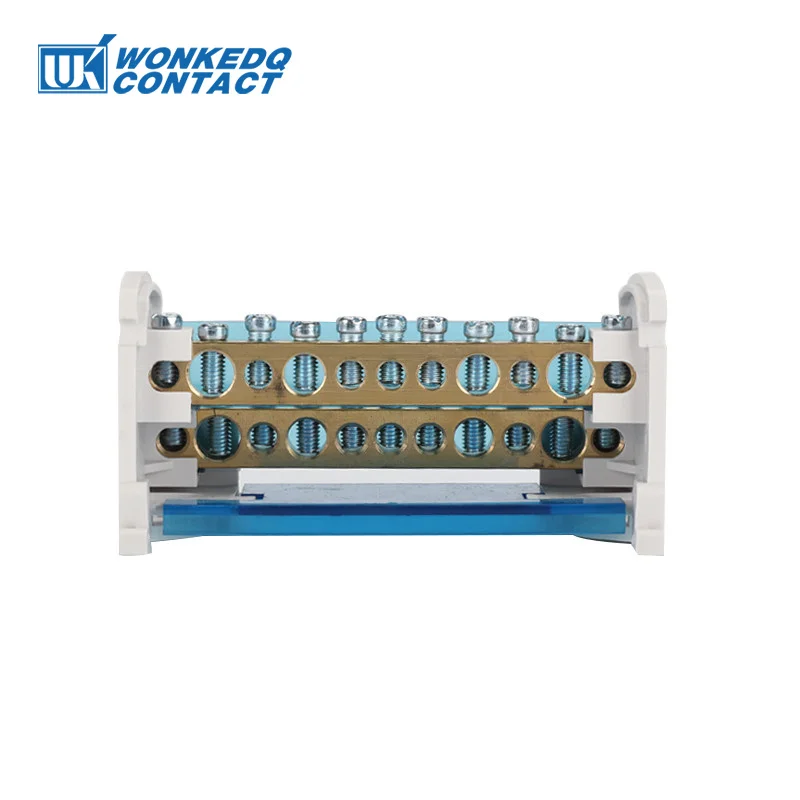

- Model Number: WKH207/WKH211/WKH215/WKH407/WKH411/WKH415
- Brand Name: WONKEDQ
- Origin: Mainland China
- Usage: Electrical Wire
- Apply: Distribution Cabinet
- Connection way: Screw
1.DESCRIPTION
| UKK80A | 690V/80A | Input: 1 x 16mm² |
| |
| UKK125A | 690V/125A | Input: 1 x 16mm² |
| |

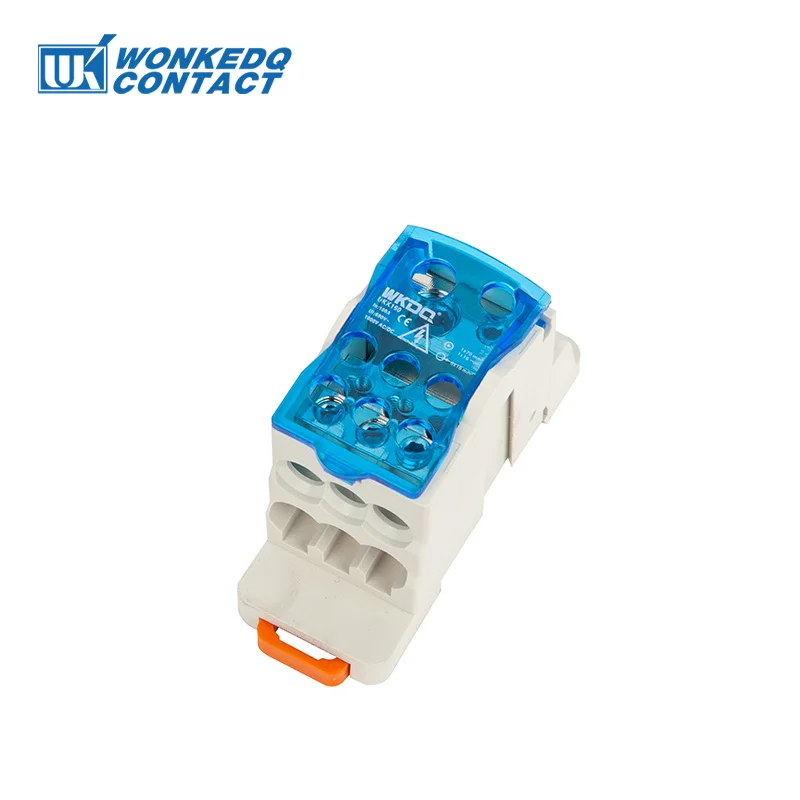

| UKK160A | 690V/160A | Input: 1 x 70mm² 1 x 16mm² |
| |

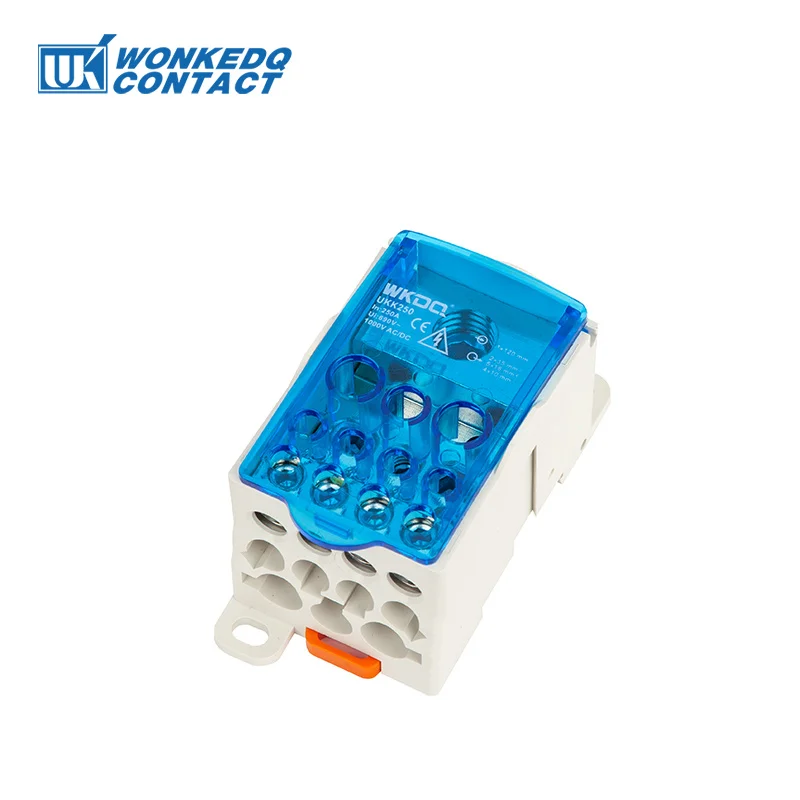

| UKK250A | 690V/250A | Input: 1 x 120mm² Output: 2 x 35mm² 4 x 10mm² |
| |

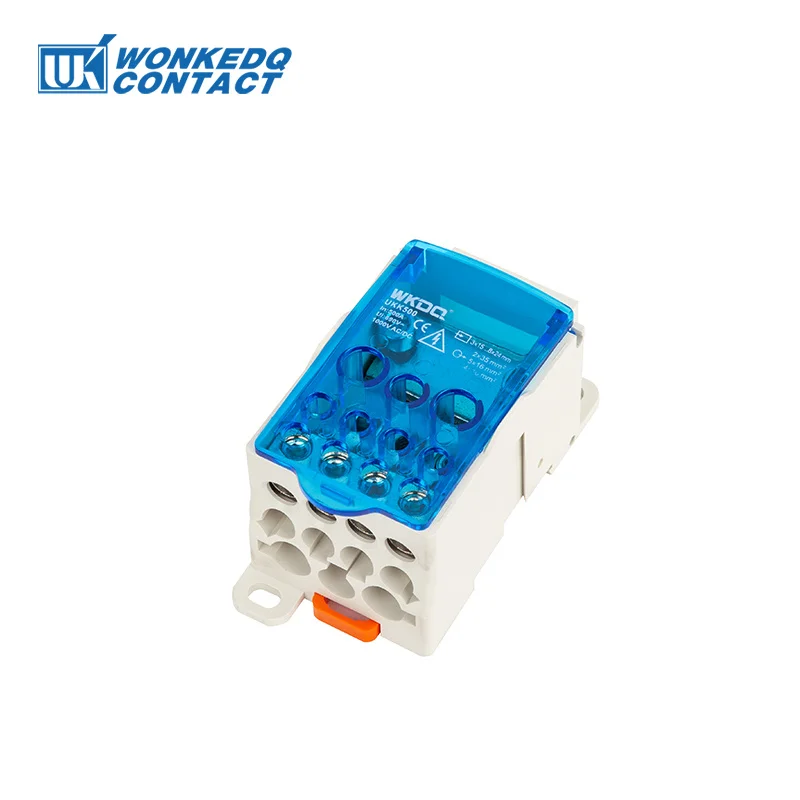

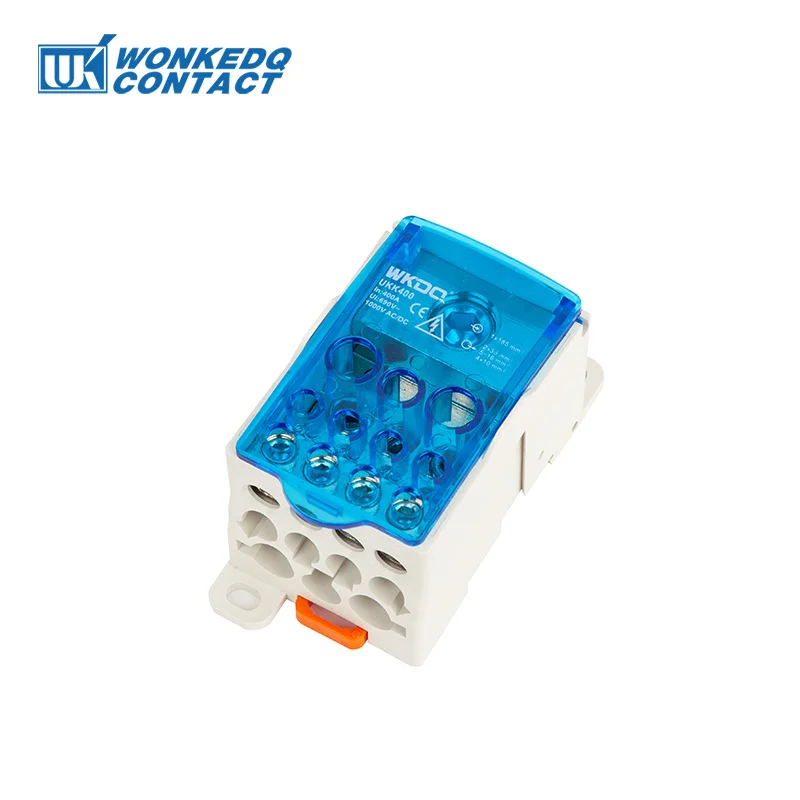

| UKK400A | 690V/400A | Input: 1 x 185mm² 4 x 10mm² 5 x 16mm² |
| |
| UKK500A | 690V/500A | Input: 3 x 15mm² 8 x 24mm² |
| |

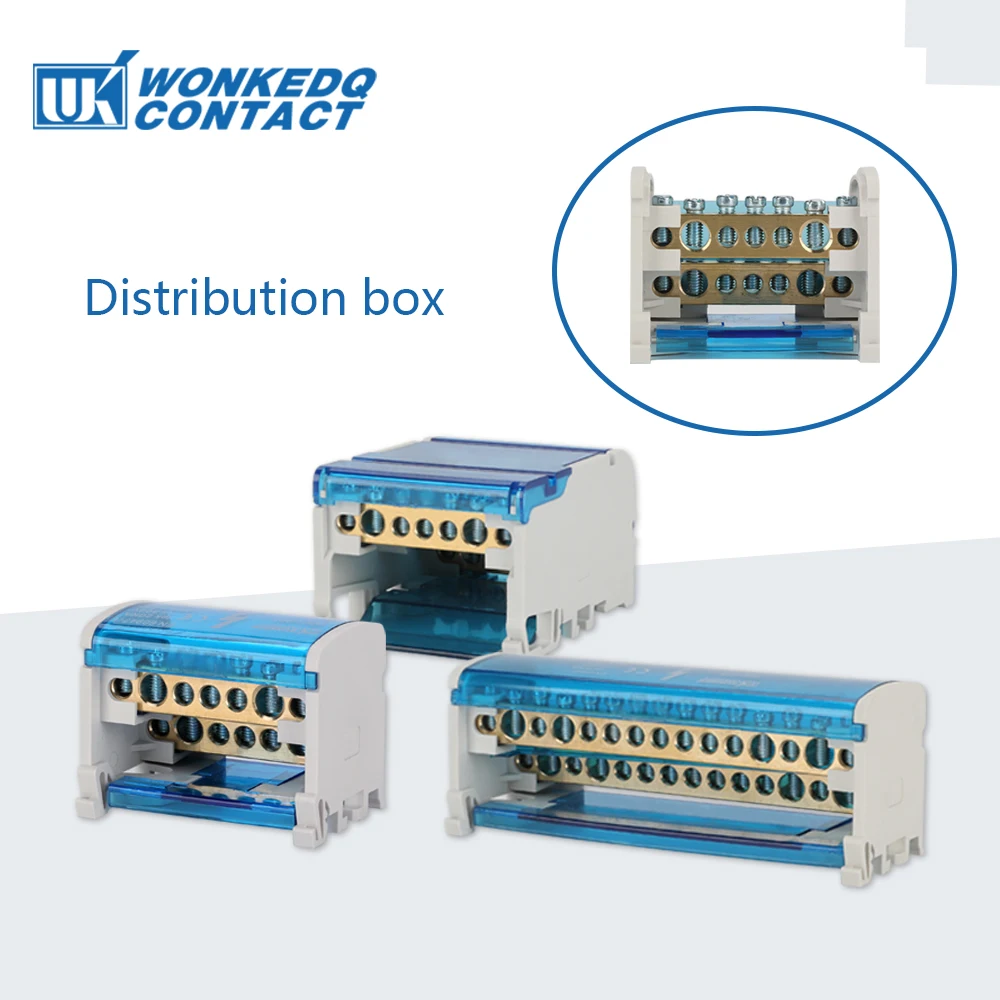

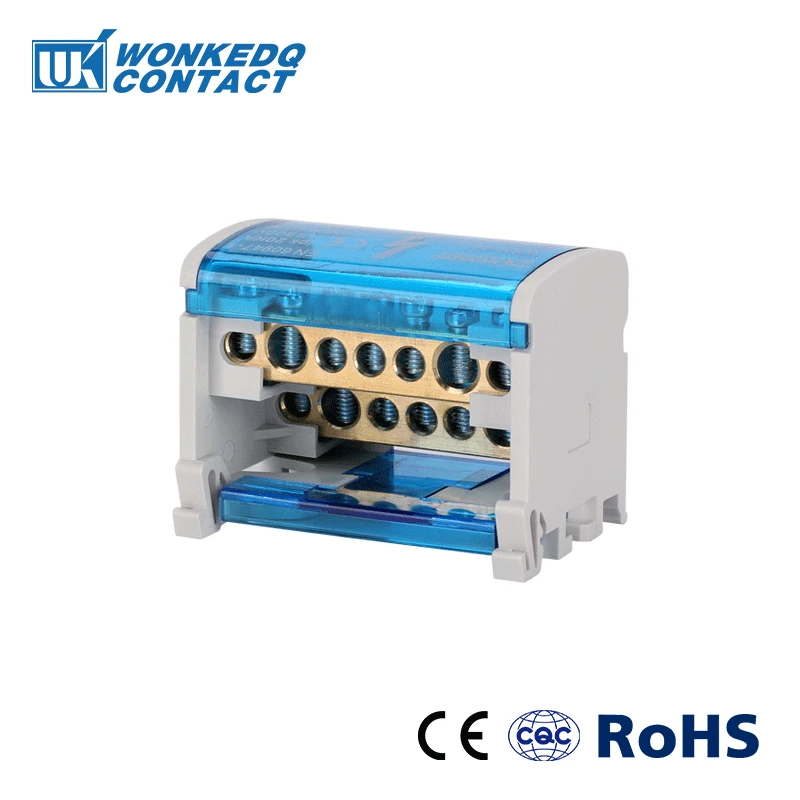

| WKH207 | 500V/125A | Hole Qty: 2 x 7 |
| |
| WKH211 | 500V/125A | Hole Qty: 2 x 11 |
| |

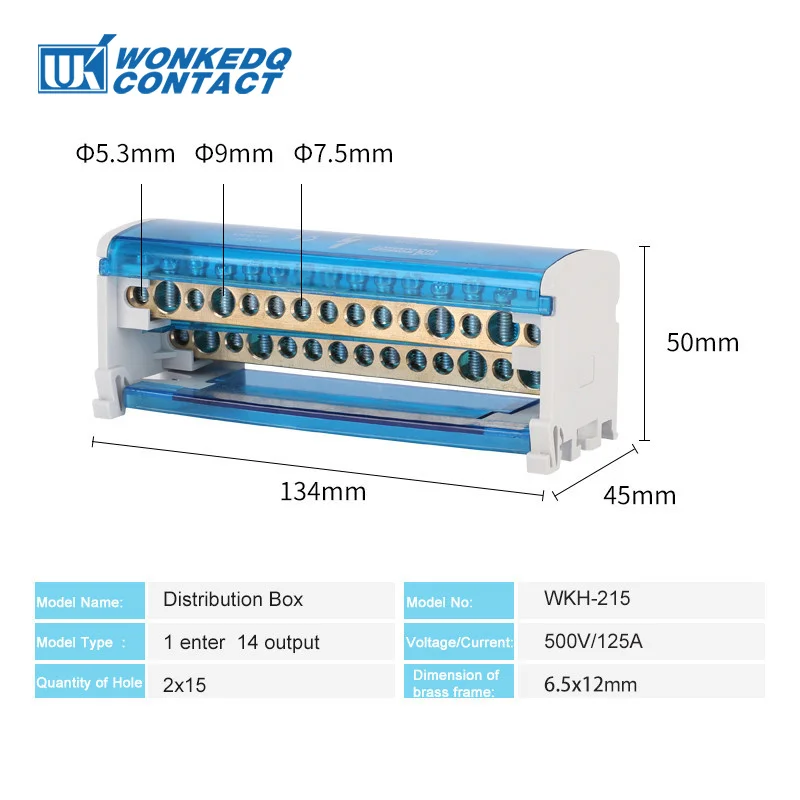

| WKH215 | 500V/125A | Hole Qty: 2 x 15 |
| |

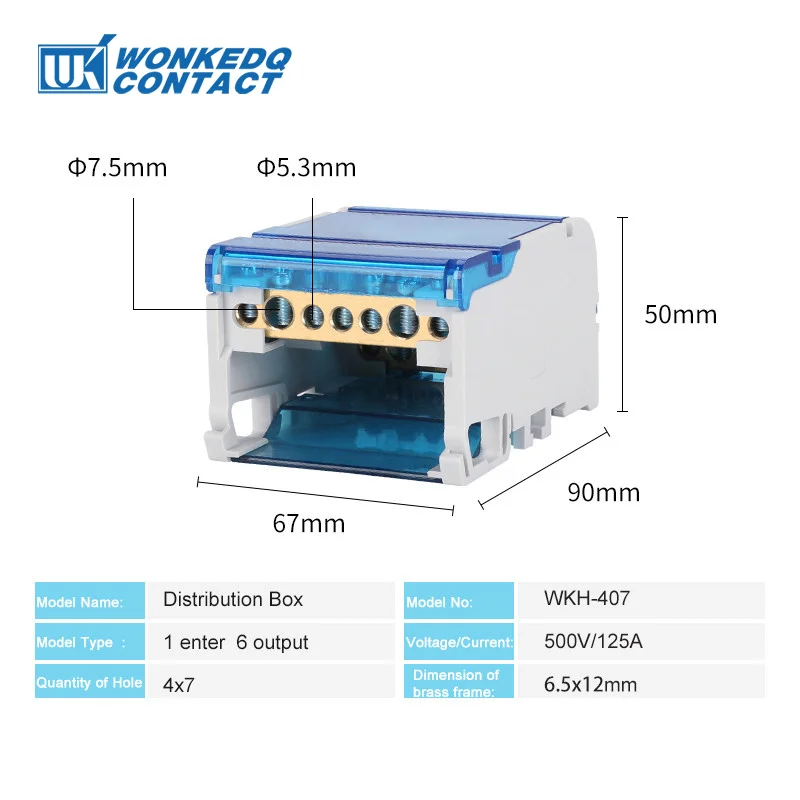

| WKH407 | 500V/125A | Hole Qty: 4 x 7 |
| |

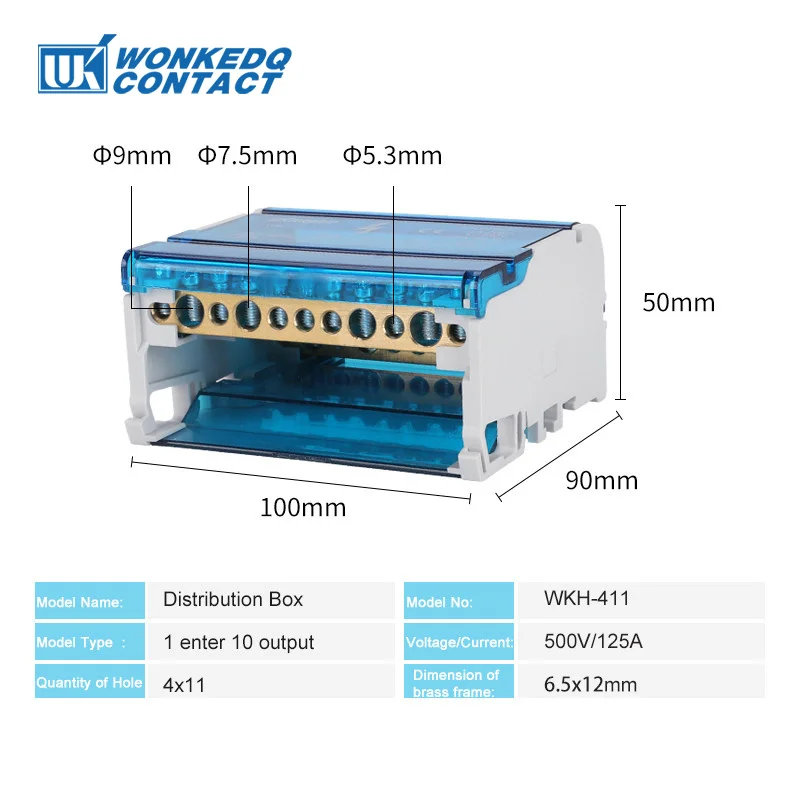

| WKH411 | 500V/125A | Hole Qty: 4 x 11 |
| |

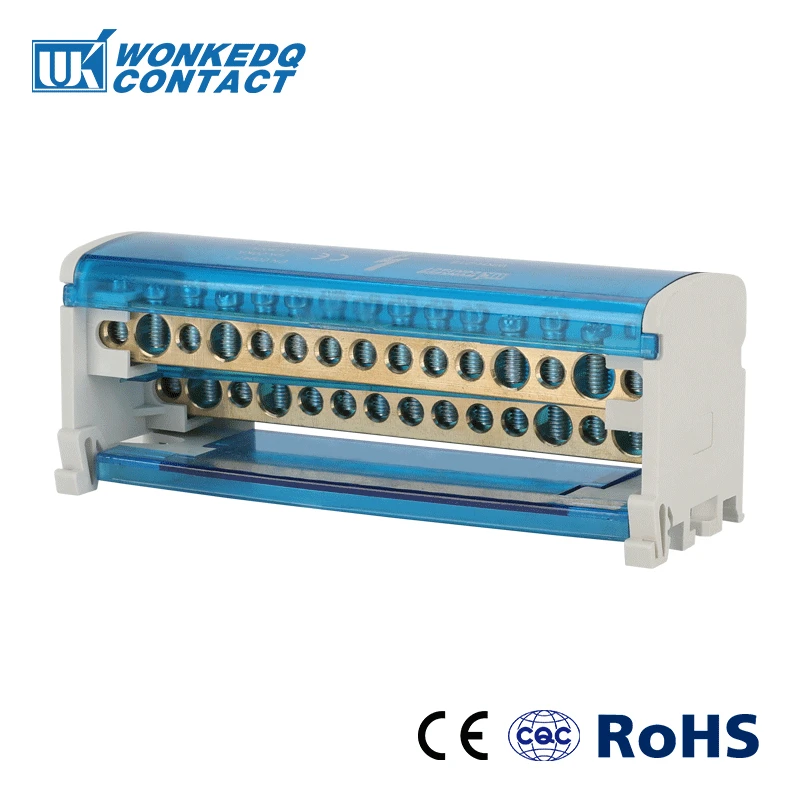

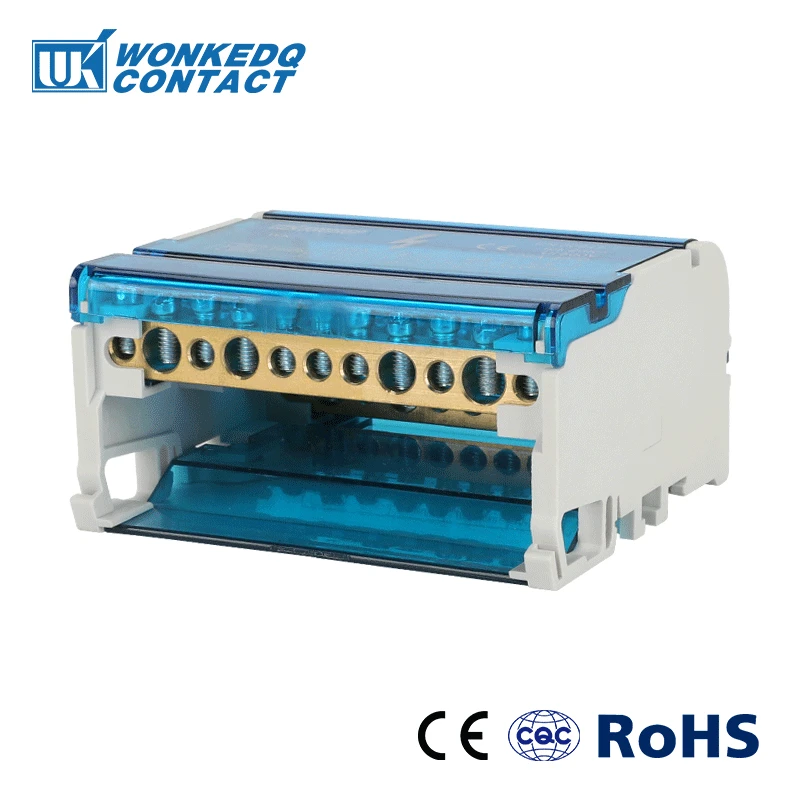

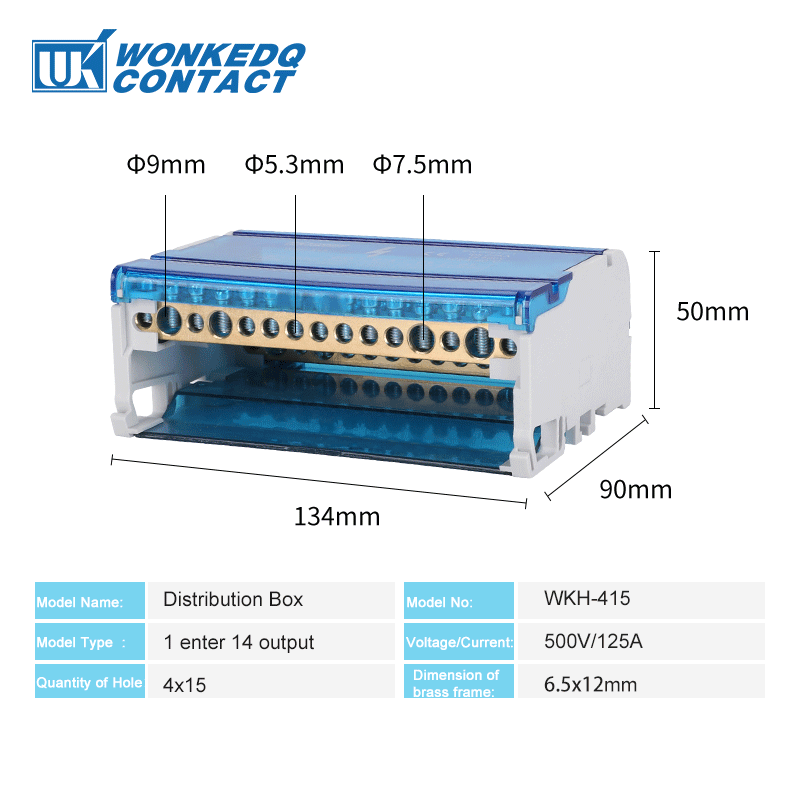

| WKH415 | 500V/125A | Hole Qty: 4 x 15 |
|

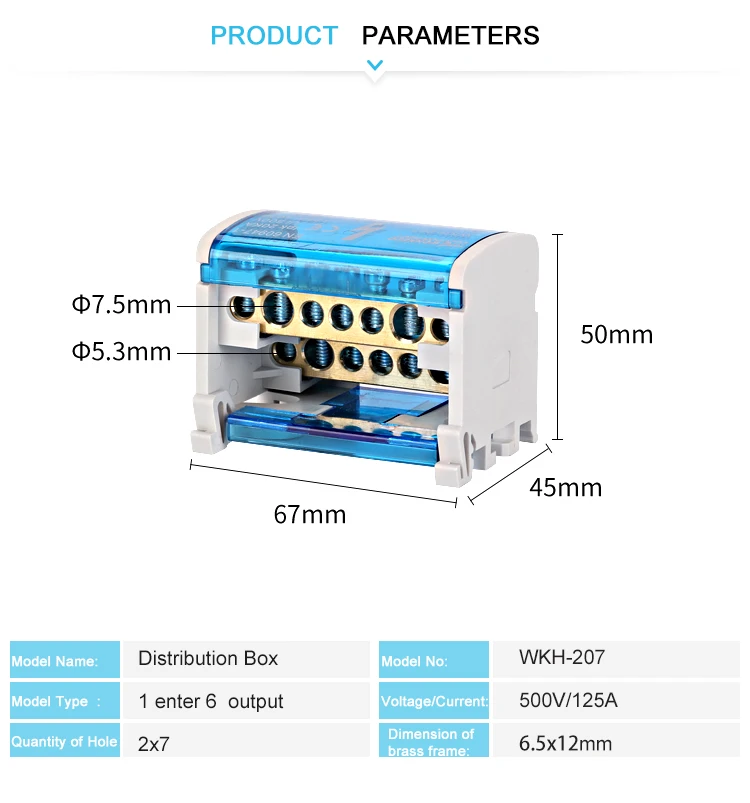

2. TECHNICAL PARAMETERS
|
Model No. |
WKH 207 |
|
Color |
Blue and Gray |
|
Length/Height/Wide (mm) |
67/50/45 |
|
Connection method |
Screw connection |
|
Material |
Flame resistant Nylon PA66, brass conductor |
|
Rated Voltage/Current |
500V/125A |
|
Quantity of Hole |
2X7 |
|
Dimension for Brass Conductor |
6.5*12mm |
|
Mounting Type |

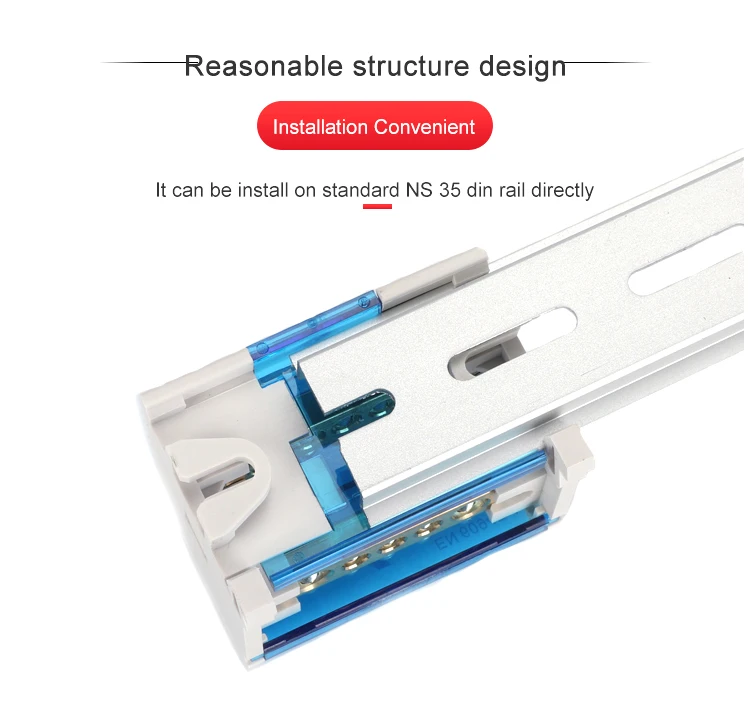

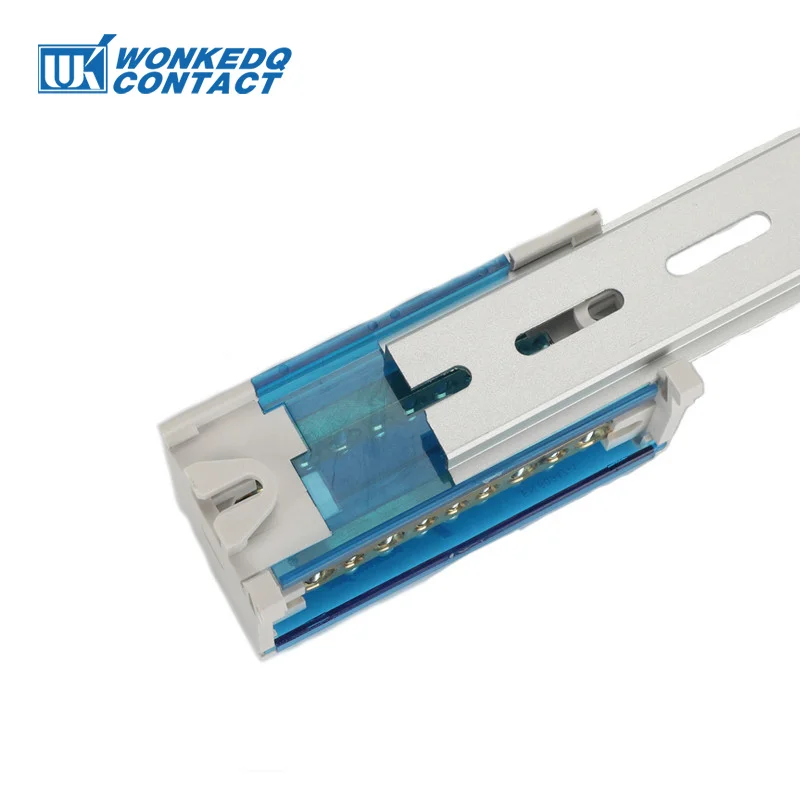

DIN Rail NS 35 |
|
Standard |
IEC 60947-7-1 |
|
LOGO |
WonkeDQ, LOGO can be customized |
|
Certification |
CE/RoHS/CQC/ISO 9001 |
Only logged in customers who have purchased this product may leave a review.
| Color | WKH207, WKH211, WKH215, WKH407, WKH411, WKH415 |
|---|---|
| High-concerned chemical | None |
| Function | Fire Resistant |
| Material | PC |
| Model Number | WKH207/WKH211/WKH215/WKH407/WKH411/WKH415 |
| Brand Name | WONKEDQ |
| Origin | Mainland China |
| Usage | Electrical Wire |
| Apply | Distribution Cabinet |
| Connection way | Screw |
