EPOMAKER HE68 Lite 65% ANSI US Layout Tray-Mounted Wired Hall Effect Magnetic Mechanical Keyboard DKS SOCD RGB Backlight

EPOMAKER HE68 Lite 65% ANSI US Layout Tray-Mounted Wired Hall Effect Magnetic Mechanical Keyboard DKS SOCD RGB Backlight

The HE68 Lite combines Hall Effect switches with 0.01mm adjustable actuation and 5-layer sound dampening, delivering ultra-precise, creamy keystrokes for competitive gaming.

-Compact 65% 68-key Layout

-Gaming Keyboard with Hall Effect Switch（0 Dead Zone）

-8K Polling & 128Khz Scan Rate (0.125ms Ultra-Low Latency)

-Shine-through PBT keycaps with 2-layer A-RGB backlight

-DKS & SOCD Available

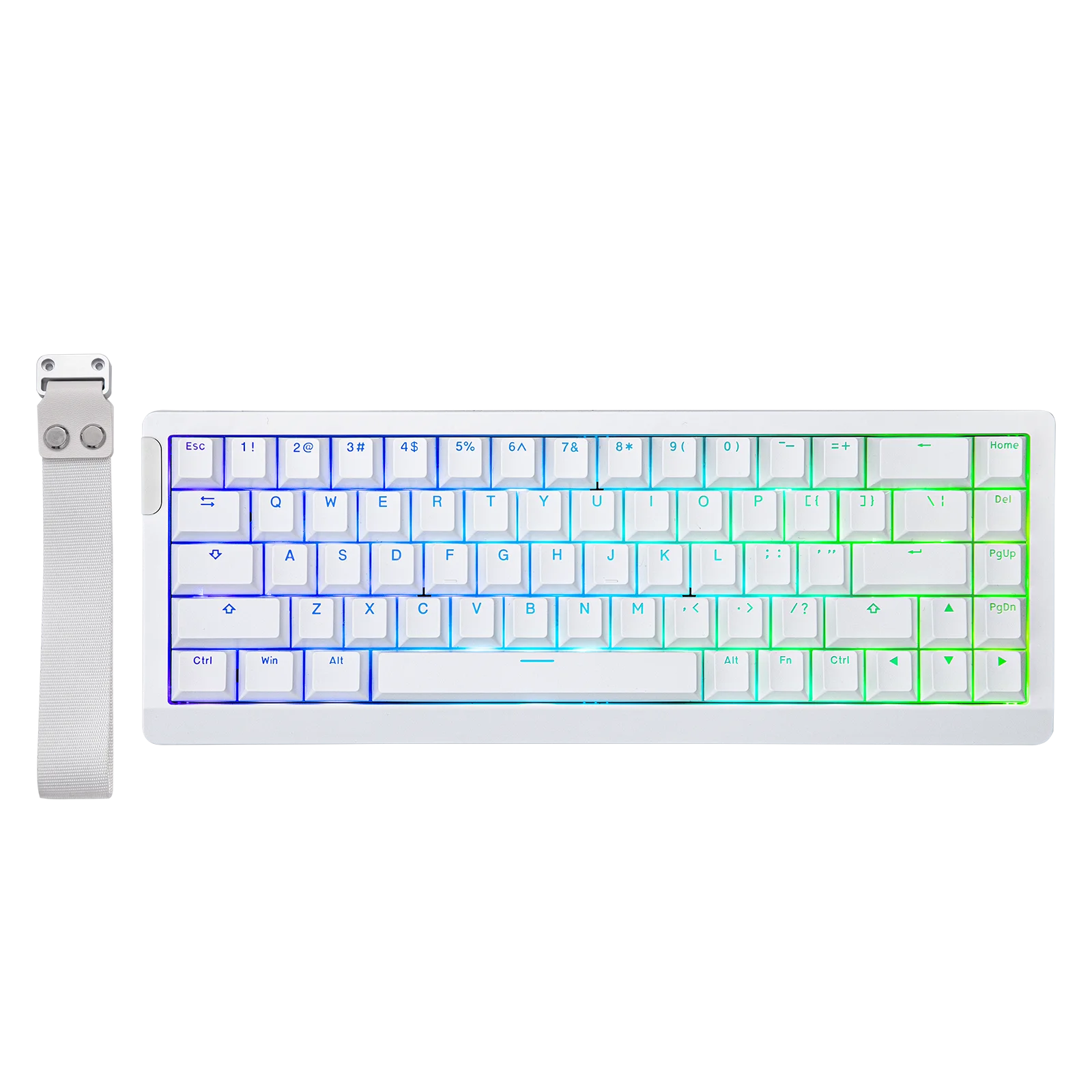

Shine-Through Backlight with Special A-RGB

Dominate the virtual battlefield with the upgraded HE68 Lite gaming keyboard of shine-through PBT keycap and unique A-RGB backlight. No more fumbling in the dark during those crucial late-night raids, these greasy-resistant keycaps are bright and clear even in low-light conditions. Unlike traditional RGB where you need to choose between captivating backlight or dynamic effect where only triggered keys light up as visual confirmation, the upgraded A-RGB combines both with a 2-layer light system. Feel the thrill of victory illuminated beneath your fingertips, with A-RGB HE68 Lite for enhanced accuracy and immersion.

8,000Hz Polling and 128,000 Scan Rate

Level up your gaming performance with smoother, more precise control, with the HE68 Lite magnetic gaming keyboard. Experience near-instantaneous key registration of 8khz polling rate, translating your commands into on-screen actions with unparalleled speed in 0.125 millisecond. Outmaneuver opponents and execute complex strategies flawlessly, with the super high 128khz per-key scan rate where even rapid-fire sequences are accurately captured.

0.01mm Adjustable Fast Trigger with 0 Dead Zone

Unlock your gaming potential with the responsive HE68 Lite gaming keyboard that feels like an extension of your thoughts. Fine-tune your gameplay with per 0.01mm adjustable RT travel, as you customize the exact point your keypress registers or stops. Adjust dead zone as needed to even zero with Mac/WIN compatible EPOMAKER software, for near-instantaneous actuation and lightning-fast reactions in those clutch gaming moments.

Snap Key (SOCD) & Macros

Experience the revolution of Snap Key (SOCD), as our HE68 Lite prioritizes your latest key press of opposite directions, ensuring every movement is executed in time without your character freezing on the spot. Unleash devastating combos faster by recording and binding macros in EPOMAKER Software for both Mac and PC and achieve zero-miss with the anti-ghosting feature for instant execution.

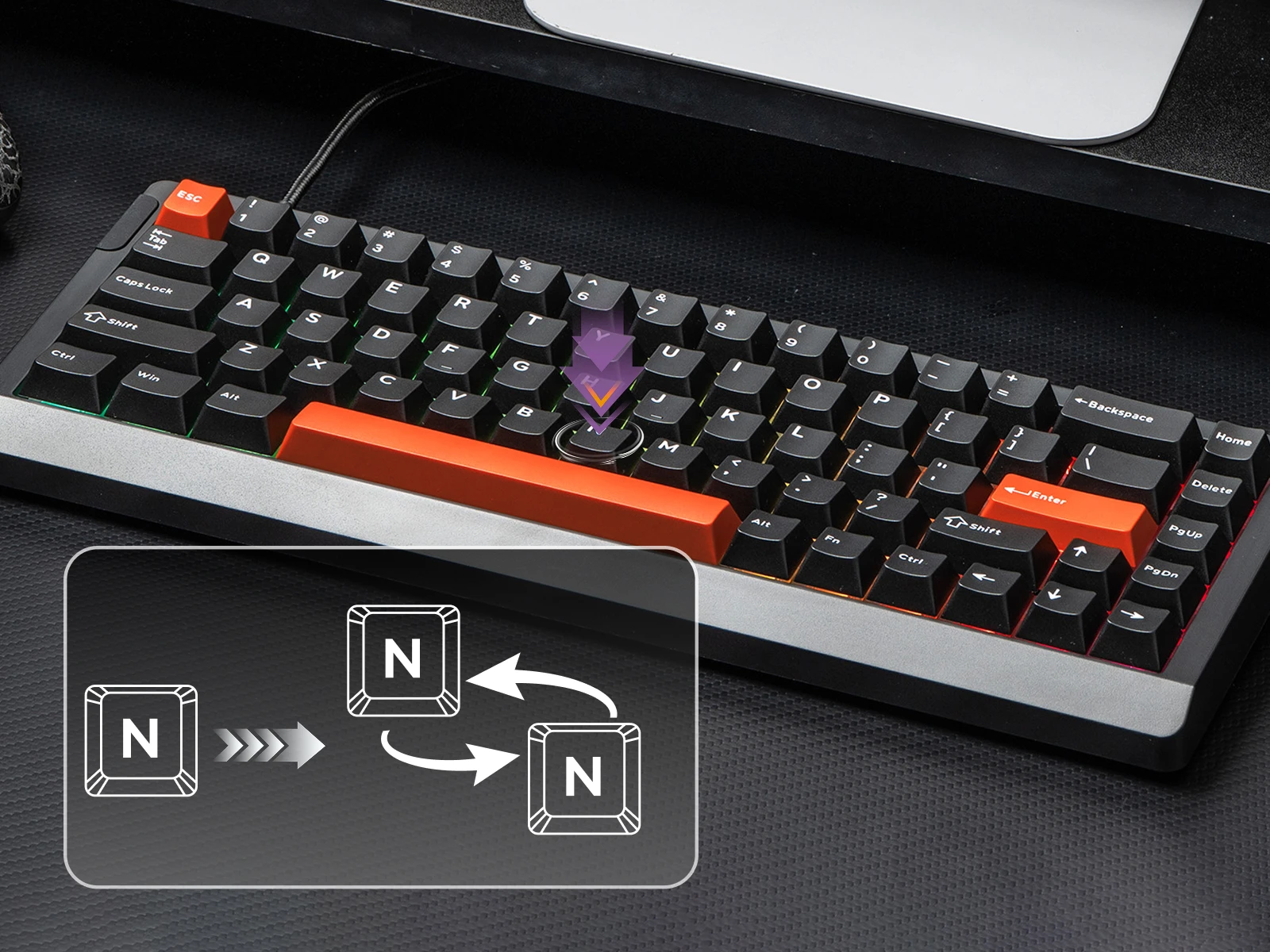

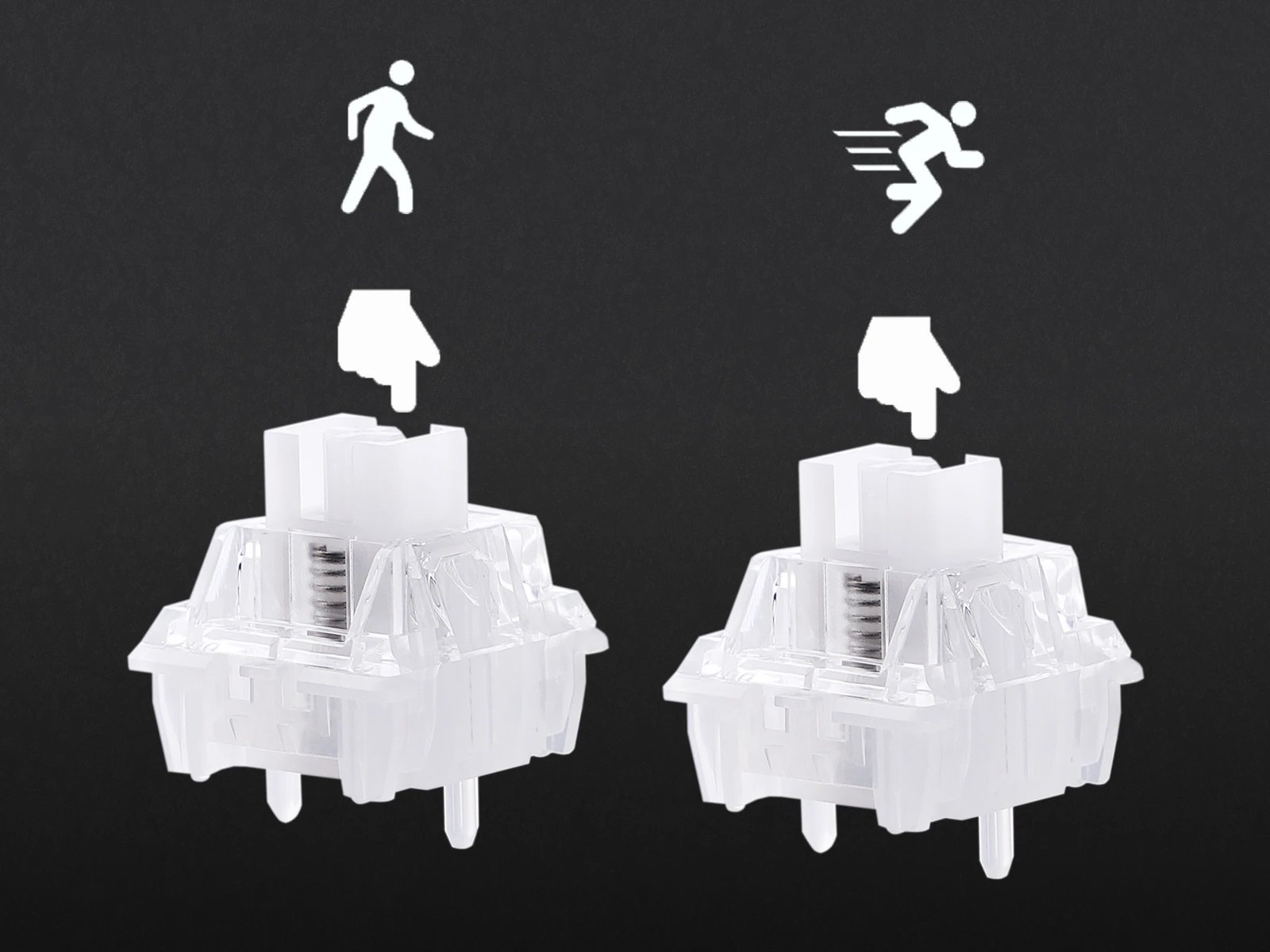

Dynamic Keystroke (DKS) & MT (Mod Tap)

Rejoice in the astonishing accuracy and speed of HE68 Lite, for formidable actions in FPS, MOBA, Rhythm, and leisure games. Each keystroke is buttery smooth and consistent, with factory-lubed magnetic linear switch, with swift delivery of action from fingertip to screen; while DKS and MT function enables true analog input, as one stroke delivers up to 4 actions for common actions and key combos.

Compact 65% Keyboard for Mac and WIN

Game wherever you want across all your favorite platforms, with the portable HE68 Lite keyboard of versatile compatibility. Weighs a mere 0.6kg with handy strap, this 68-key gaming keyboard features Mac-and-PC compatible software and onboard memory for layout, macros, and trigger range. With detachable USB port, HE68 Lite is ready for plug-and-play right out of the box, offering equal reliability and consistency across Windows, Mac, and Android devices.

Sound-Dampened Creamy Keyboard

Experience the symphony of smooth, satisfying thocky thuds of the 5-layer sound-dampened HE68 Lite, for ultra smooth keystrokes accompanied by crystal-clear feedback without the distracting clatter of non-dampened keyboards. Crafted with 5-layer inner acoustic design consists of PRO Sandwich Foam, IXPE Switch Pad, PET Sound-Enhancement Pad, Switch Socket Pad, and Bottom Foam, each command flows seamlessly with unparalleled responsiveness, and rich creamy sound.

Specifications:

Brand: EPOMAKER

Model: HE68 Lite

Version: HE68 Lite Magnetic Keyboard, Wired Gaming Keyboard.

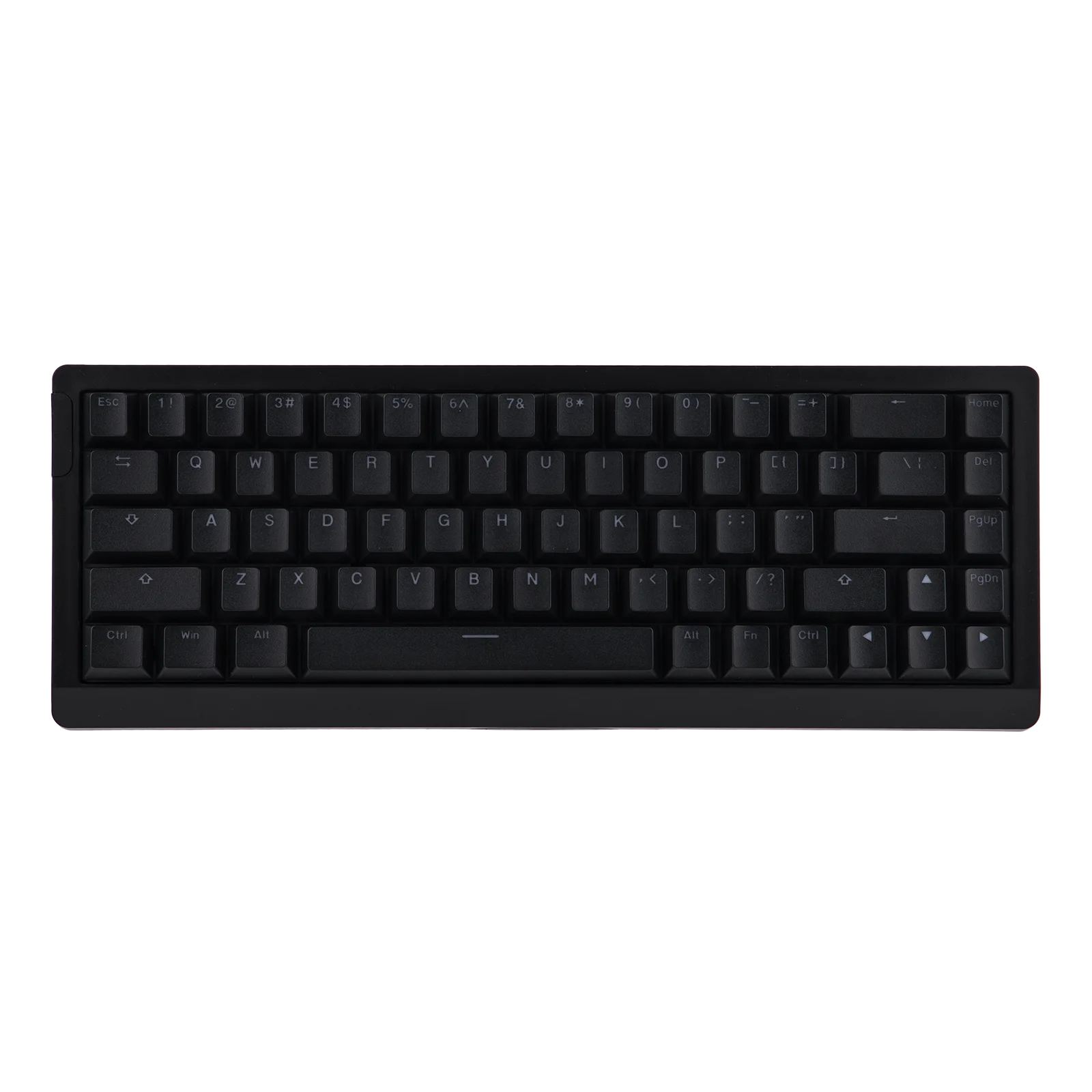

Layout: 65% ANSI US Layout

Number of Keys: 68 keys

Battery: No Battery

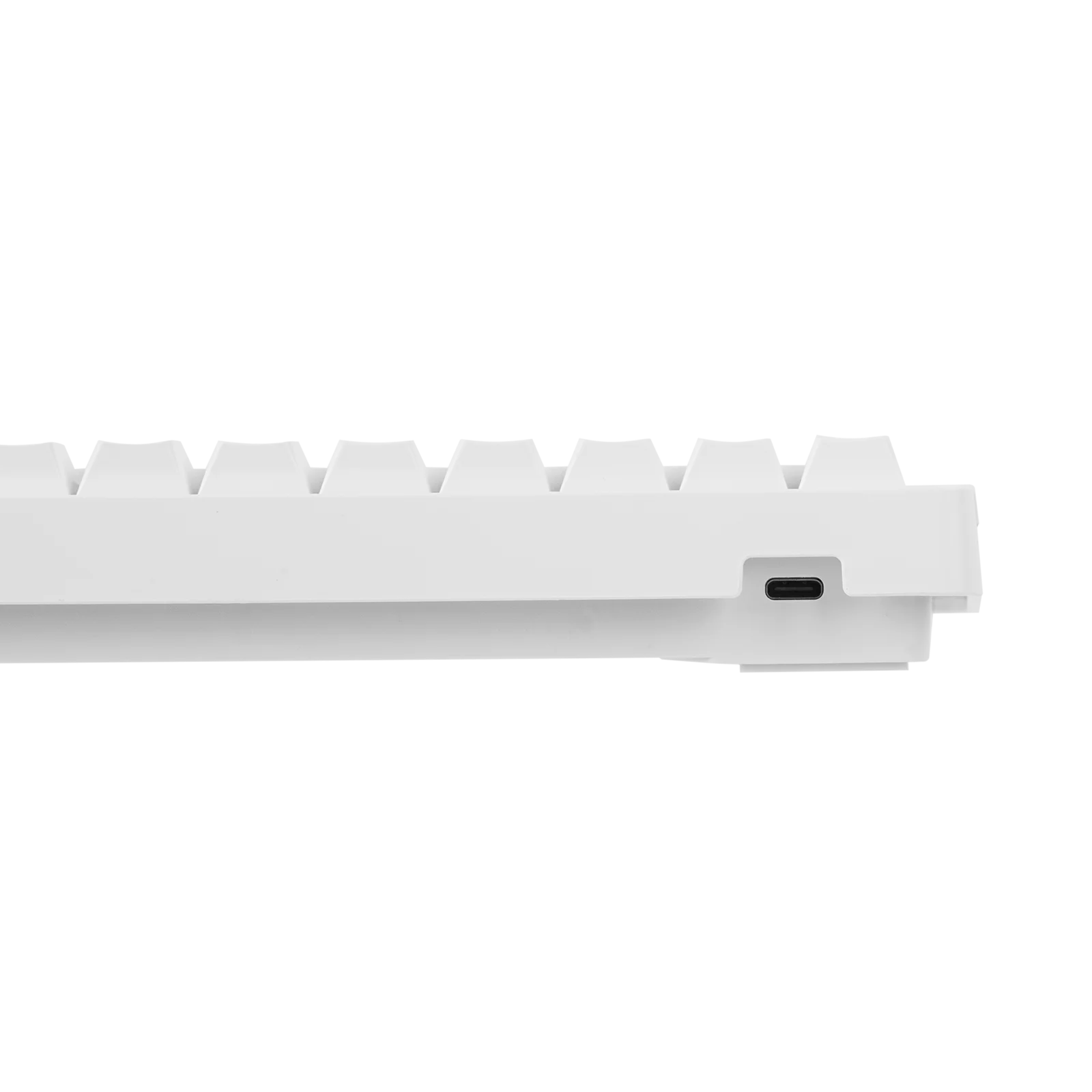

Connectivity: Cable Wired (USB A to USB C)

Compatibility: Mac/WIN/Android

Switch Between Mac and WIN: No physical switch, and HE68 Lite automatically switch to the correct OS mode.

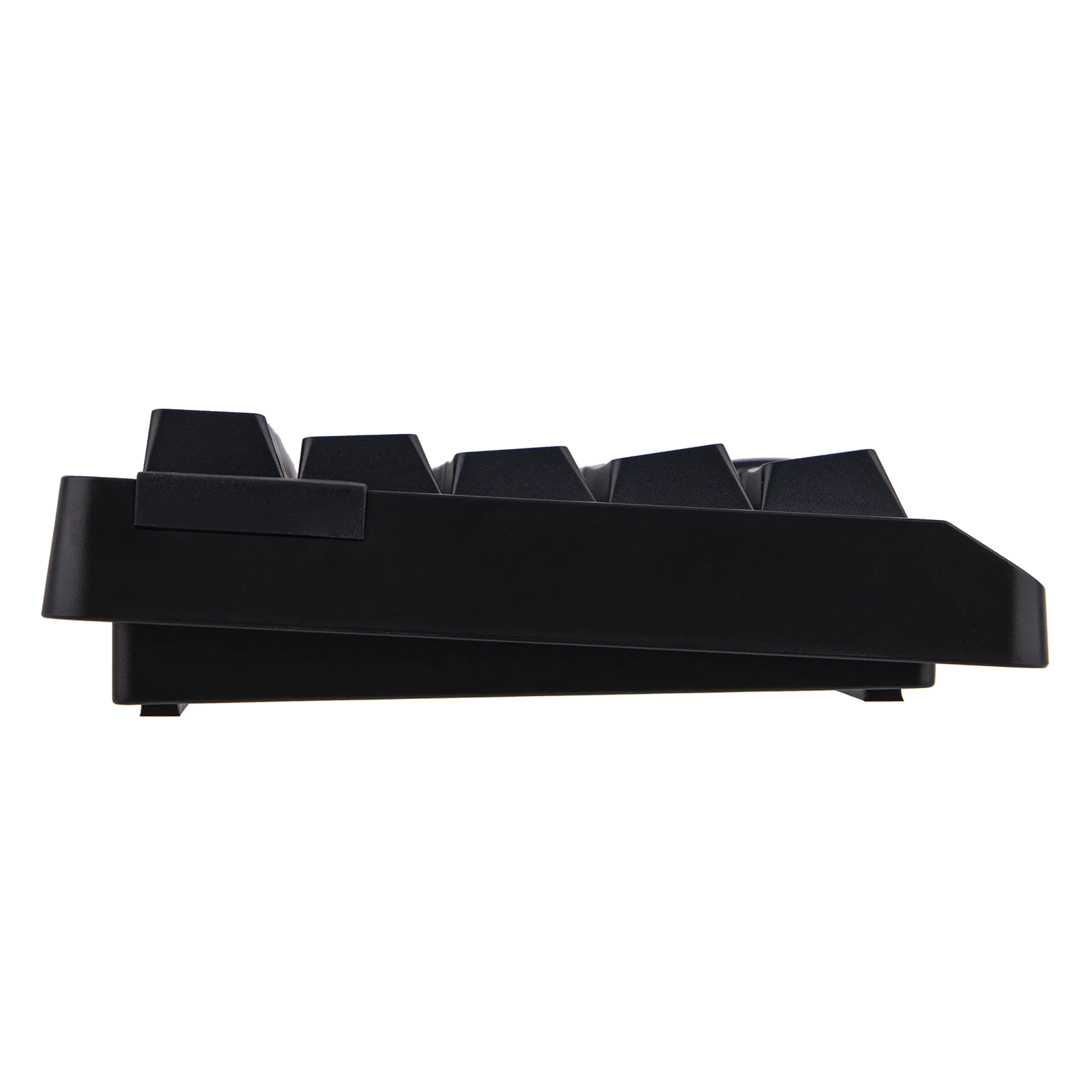

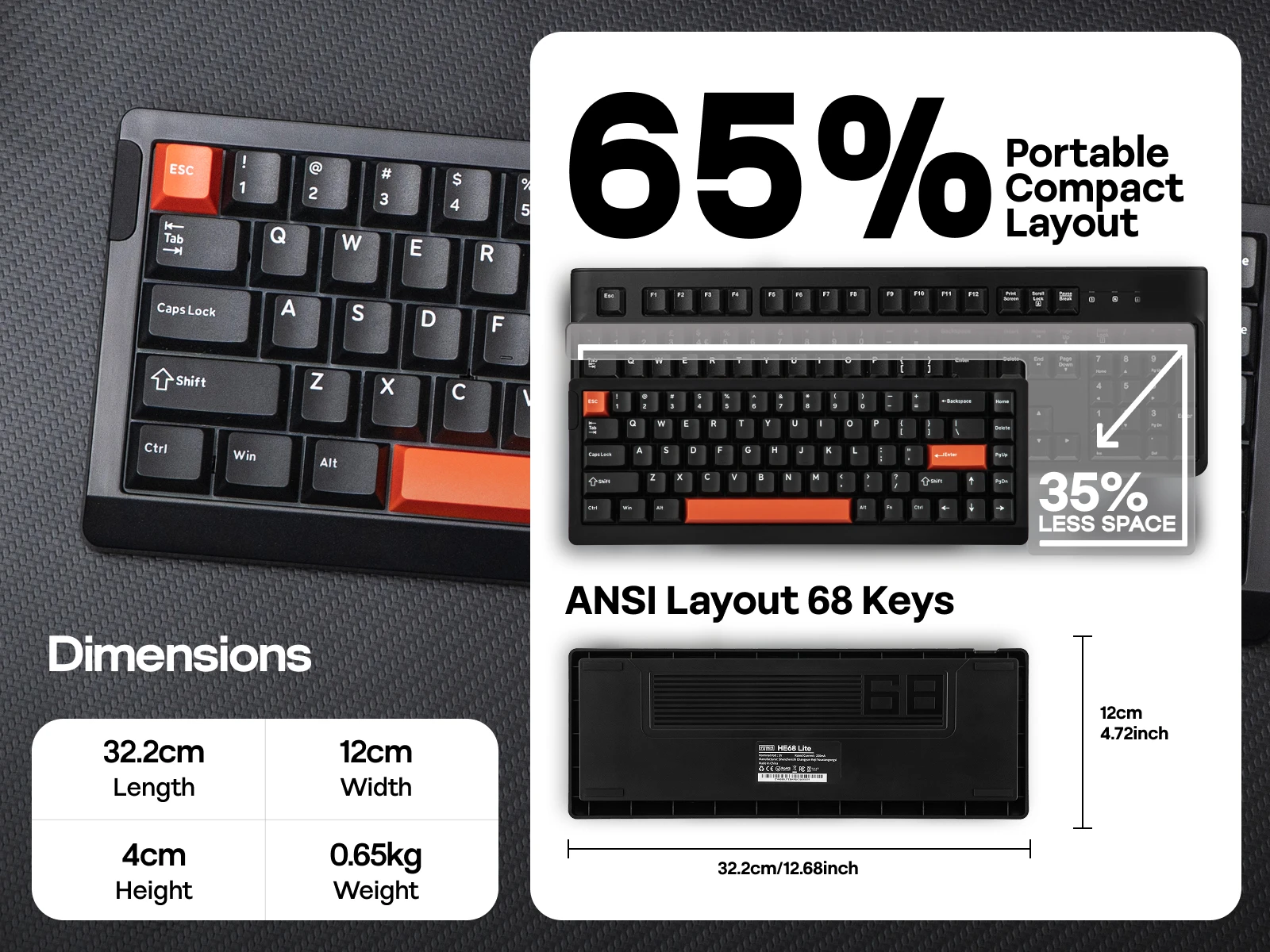

Keyboard Dimensions: 32.2cm in Length, 12cm in Width, 4cm in Height.

Keyboard Weight: 0.65kg

Case Material: ABS Plastic

Plate Material: PC Plate

Flex-Cut: No Flex-Cut

Stabilizers: Plate-Mount Stabilizer

Mounting Structure: Tray-Mount

PCB Thickness: 1.6mm

Sound Dampening: PRO Sandwich Foam, IXPE Switch Pad, PET Sound-Enhancement Pad, Switch Socket Pad, Bottom Foam

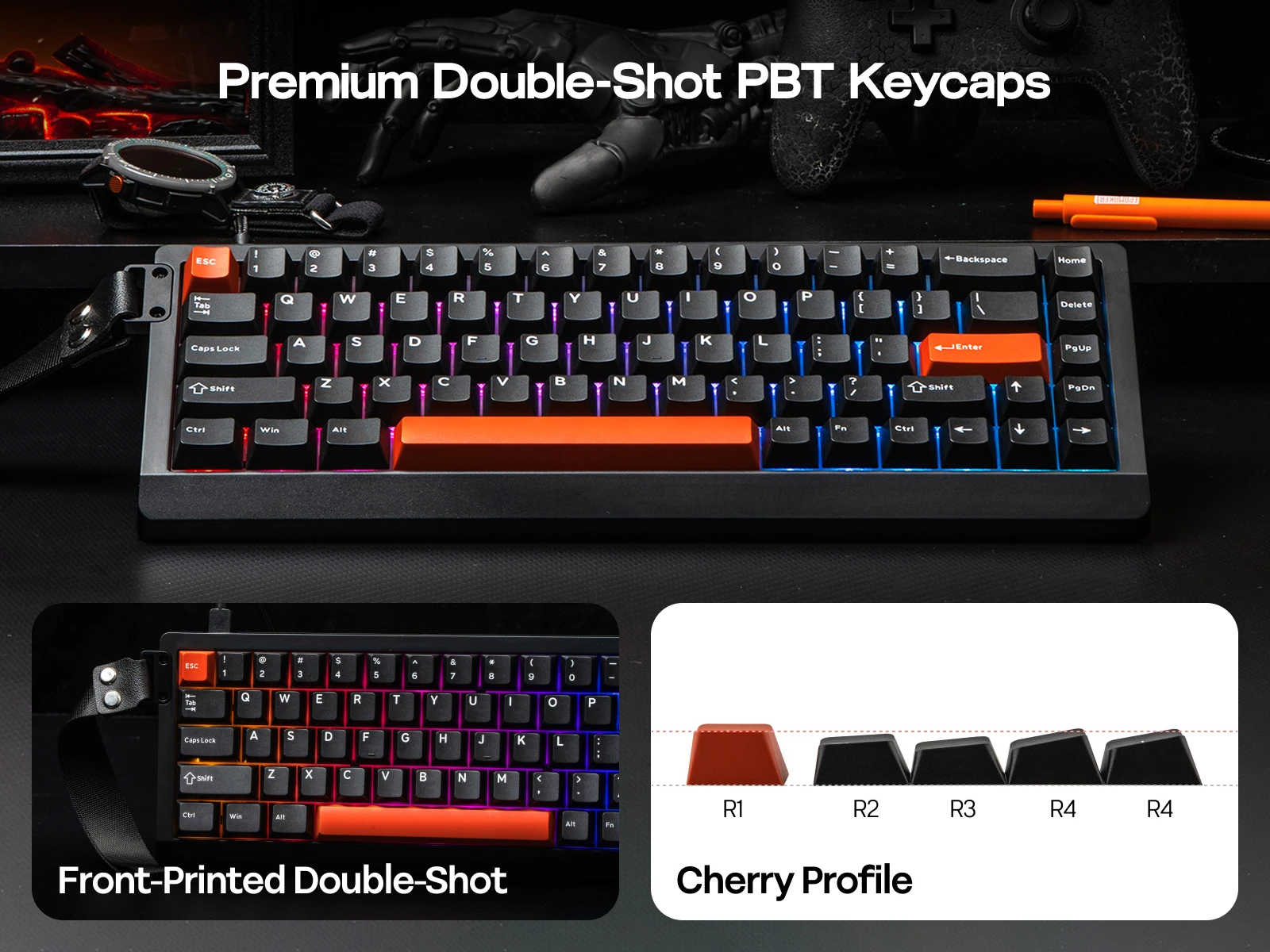

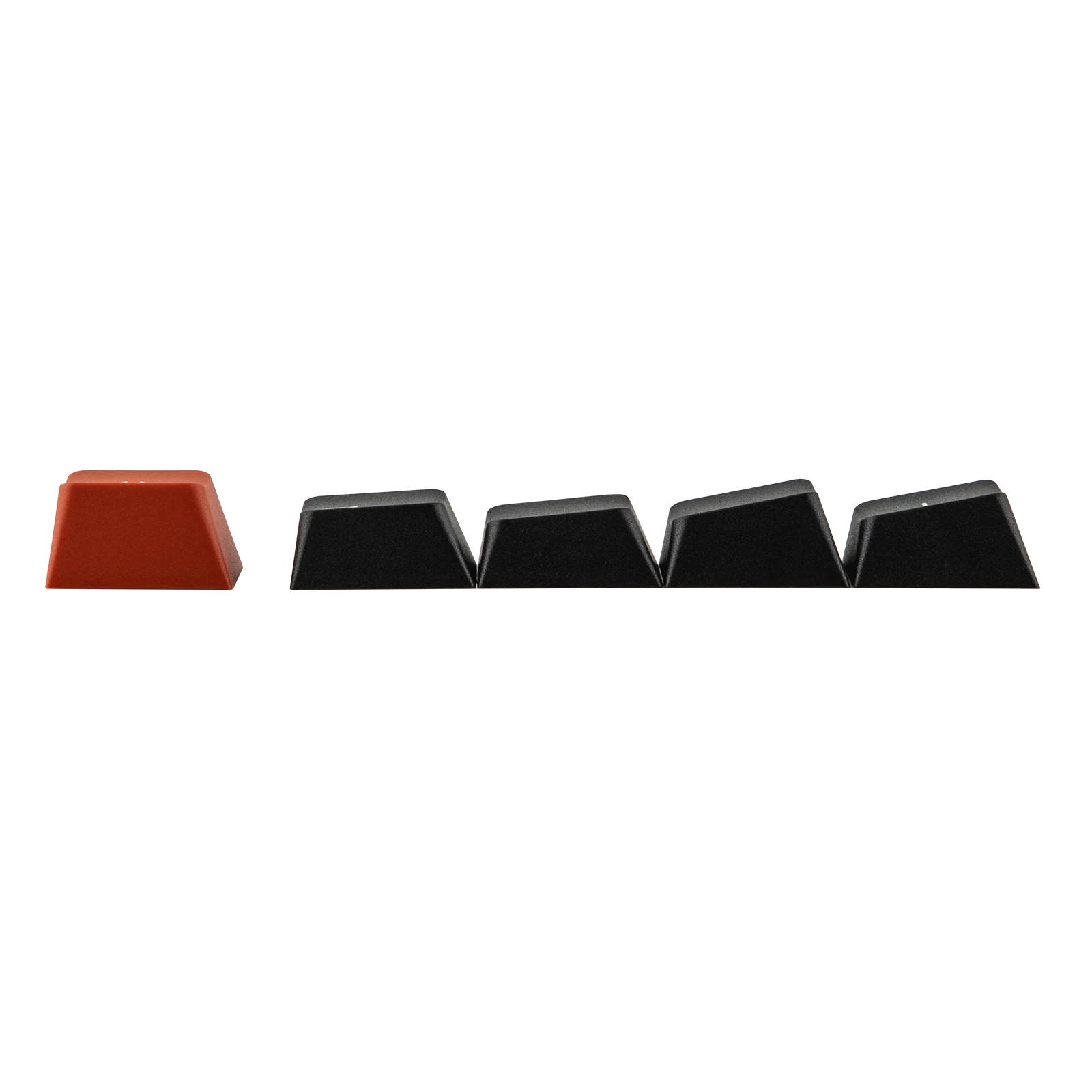

Keycaps Profile: Cherry Profile

Keycaps Material: PBT Plastic

Keycaps Manufacturing Technique: Double-Shot

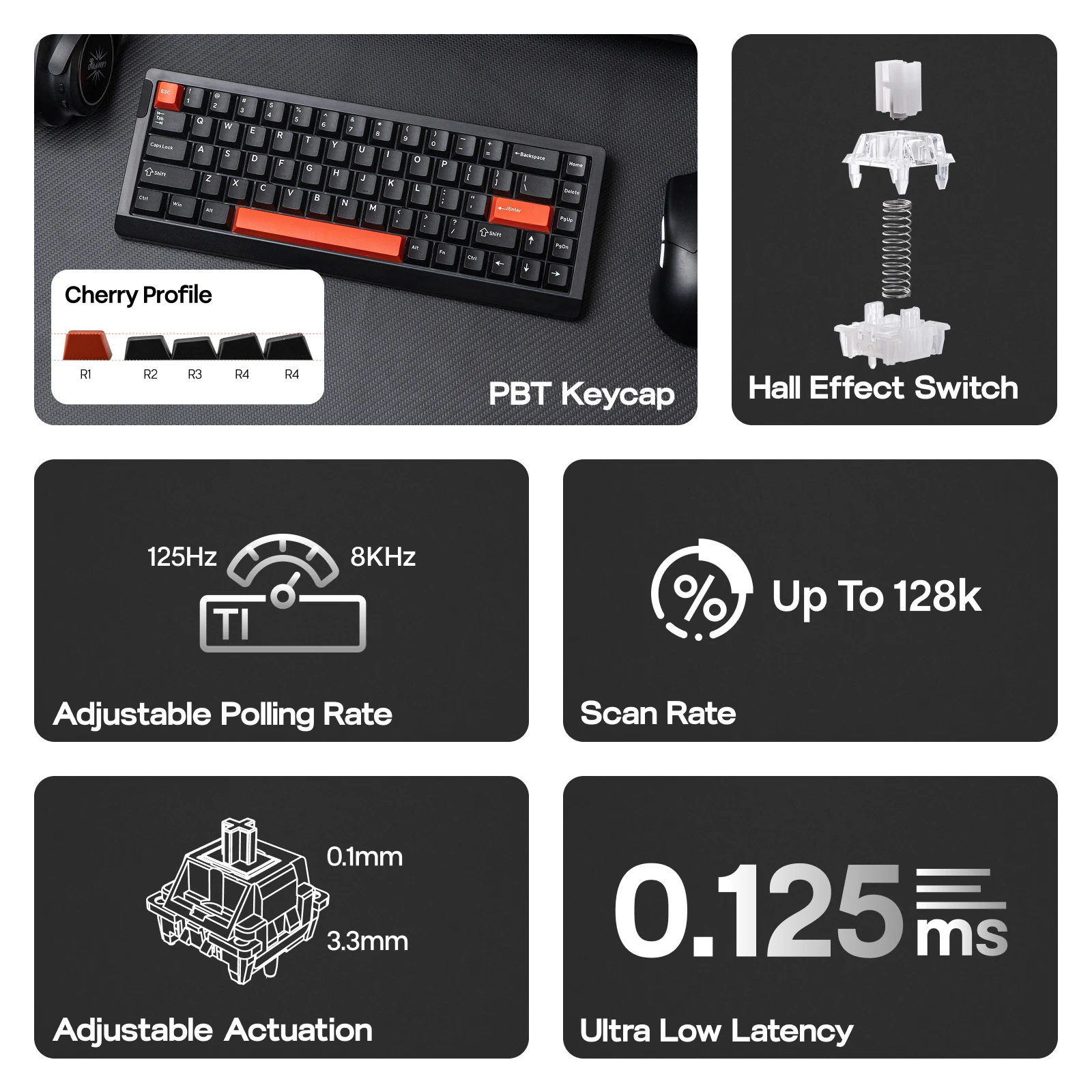

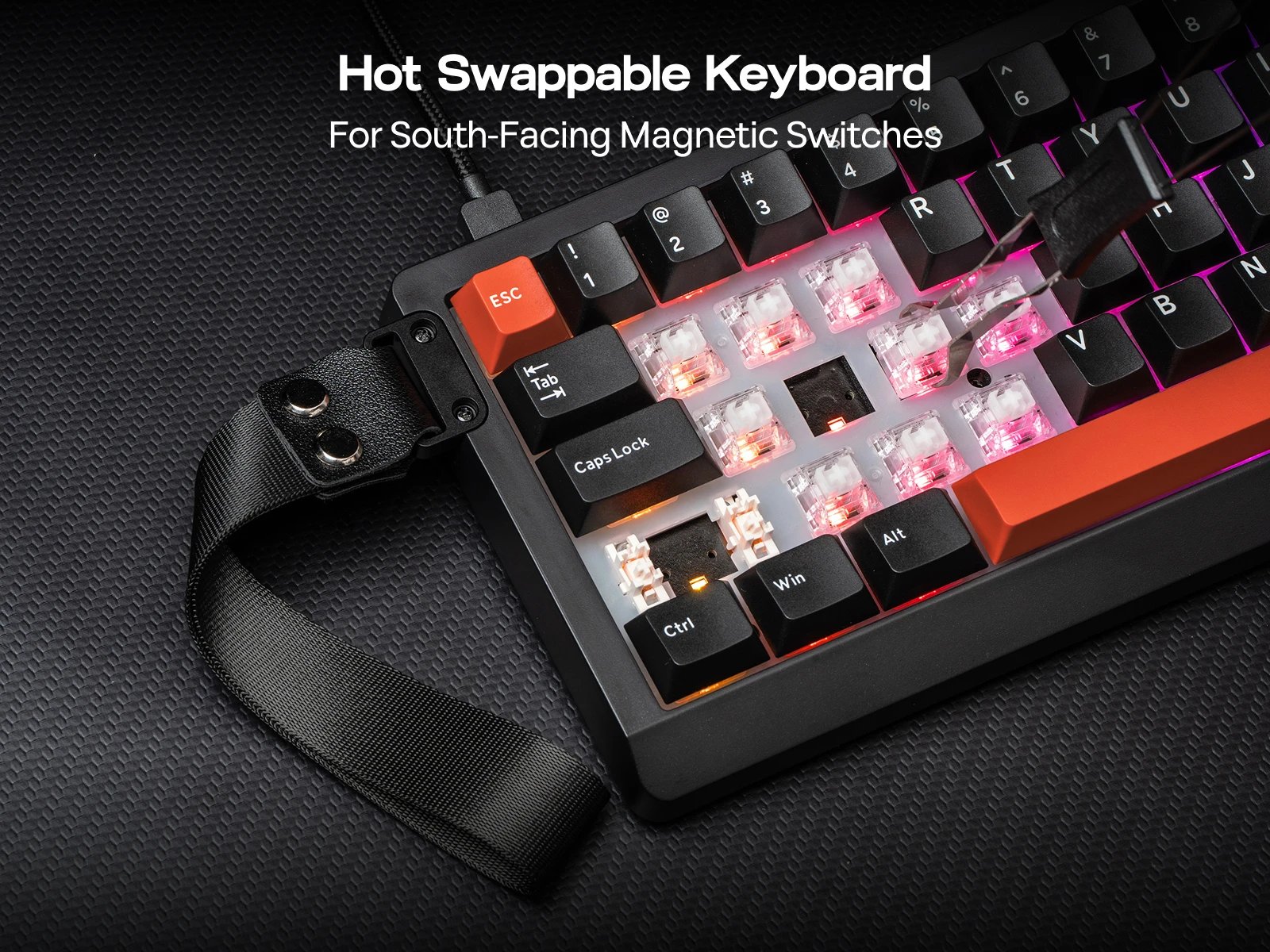

Switch: Hall Effect Switch

RGB: A-RGB Technic, South-facing, per-key RGB

Polling Rate: 8000Hz

Scan Rate: 128Khz

Latency: 0.125ms

Adjustable Travel: 0.1mm to 3.4mm, per 0.01mm

SOCD (Snap Key): Yes, the HE68 Lite Keyboard supports SOCD.

DKS & MT: Yes, the HE68 Lite Keyboard supports dynamic keystroke and mod tap function.

Dead-Zone: HE68 Lite keyboard supports zero dead-zones, and the dead zone is adjustable between 0 to 1mm in the software.

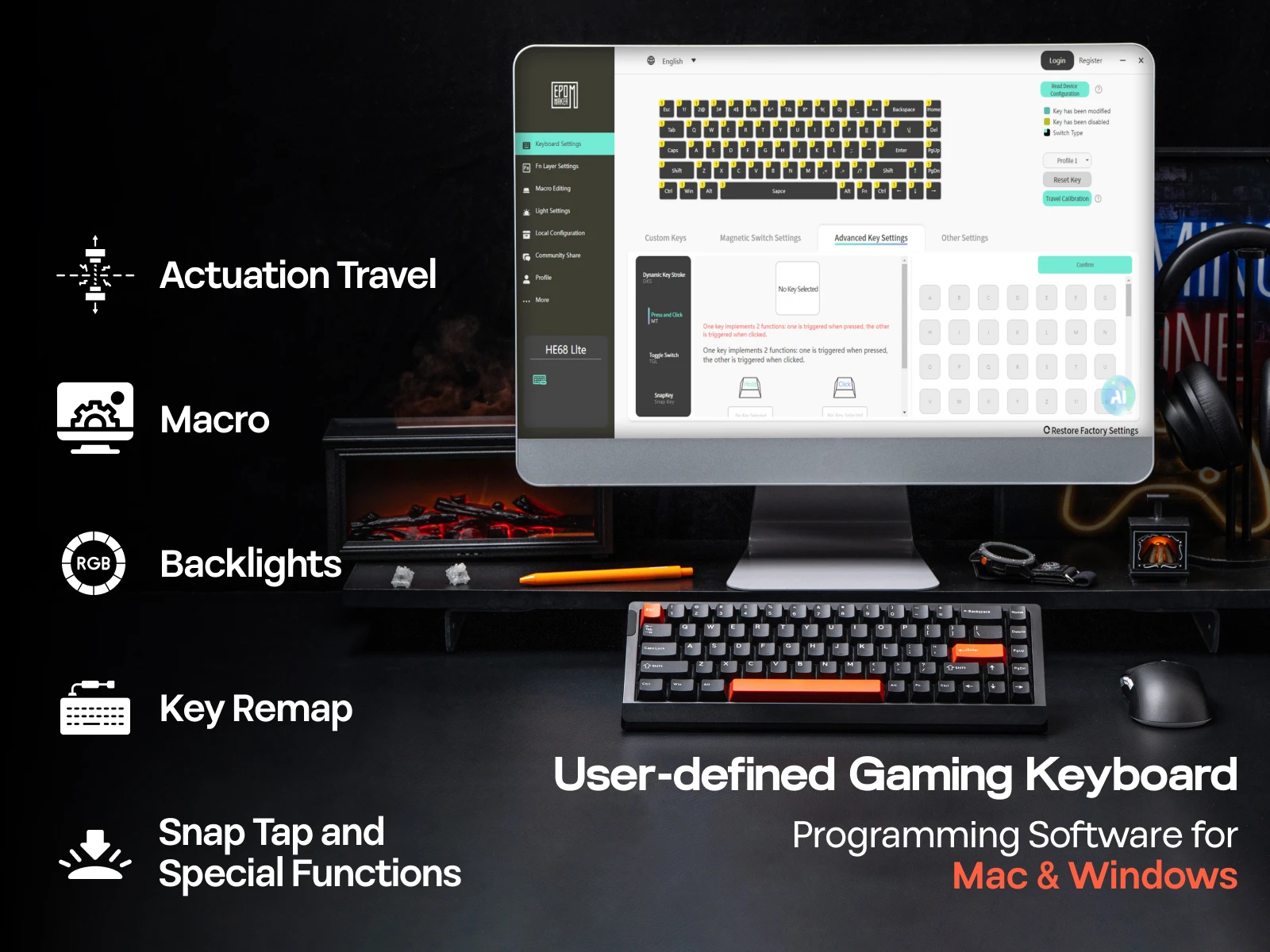

Programmable: Yes, the HE68 Lite keyboard comes with software for Windows and Mac.

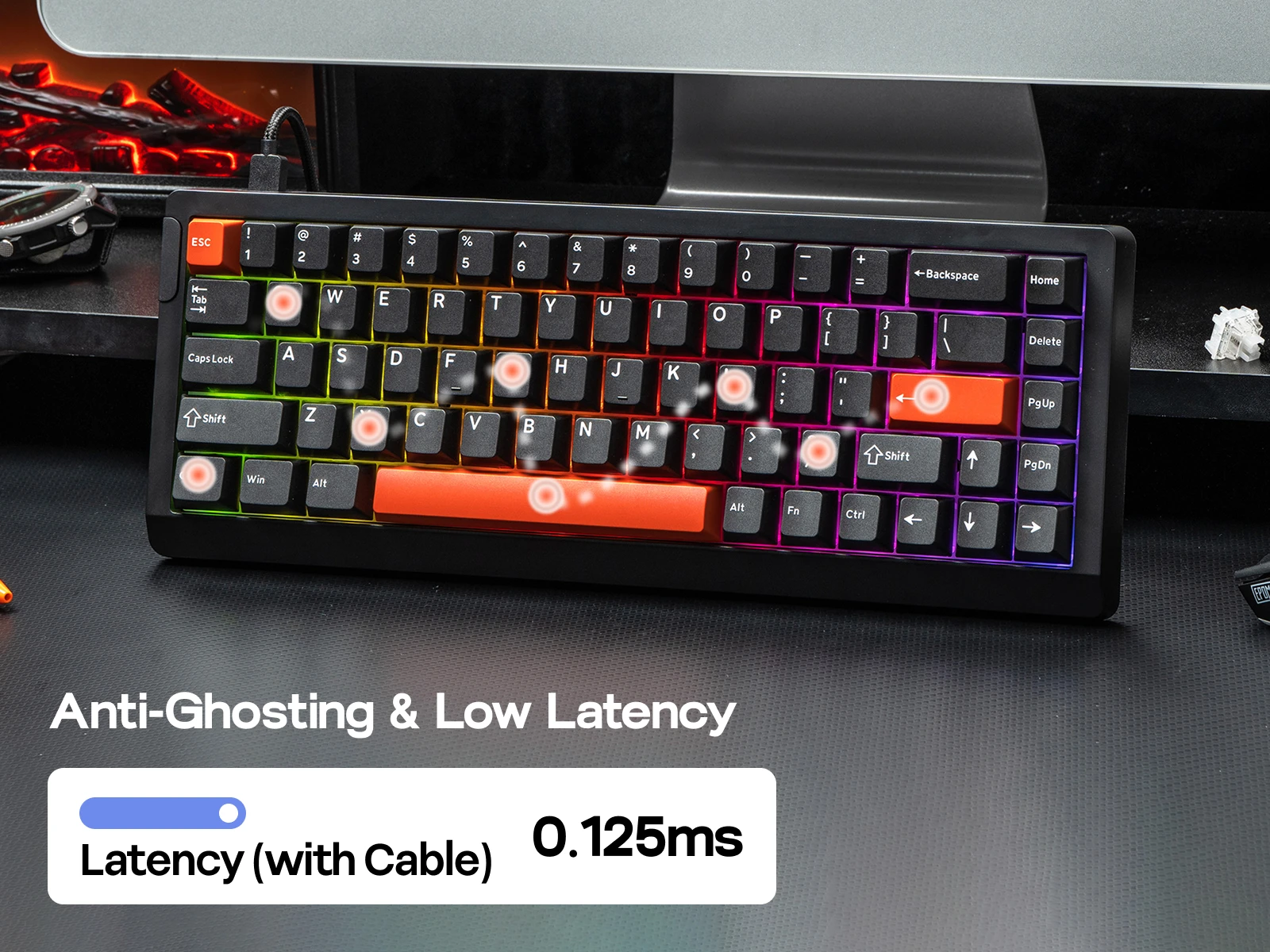

Anti-Ghosting: Yes, the HE68 Lite keyboard supports N-Key Rollover.

Specifications for Epomaker Clear Mag Switch:

Switch Type: Magnetic Hall Effect Switch

Initial Force: 25gf Min

Trigger Force: 37±5gf

Bottom-out Force: 45gf Max

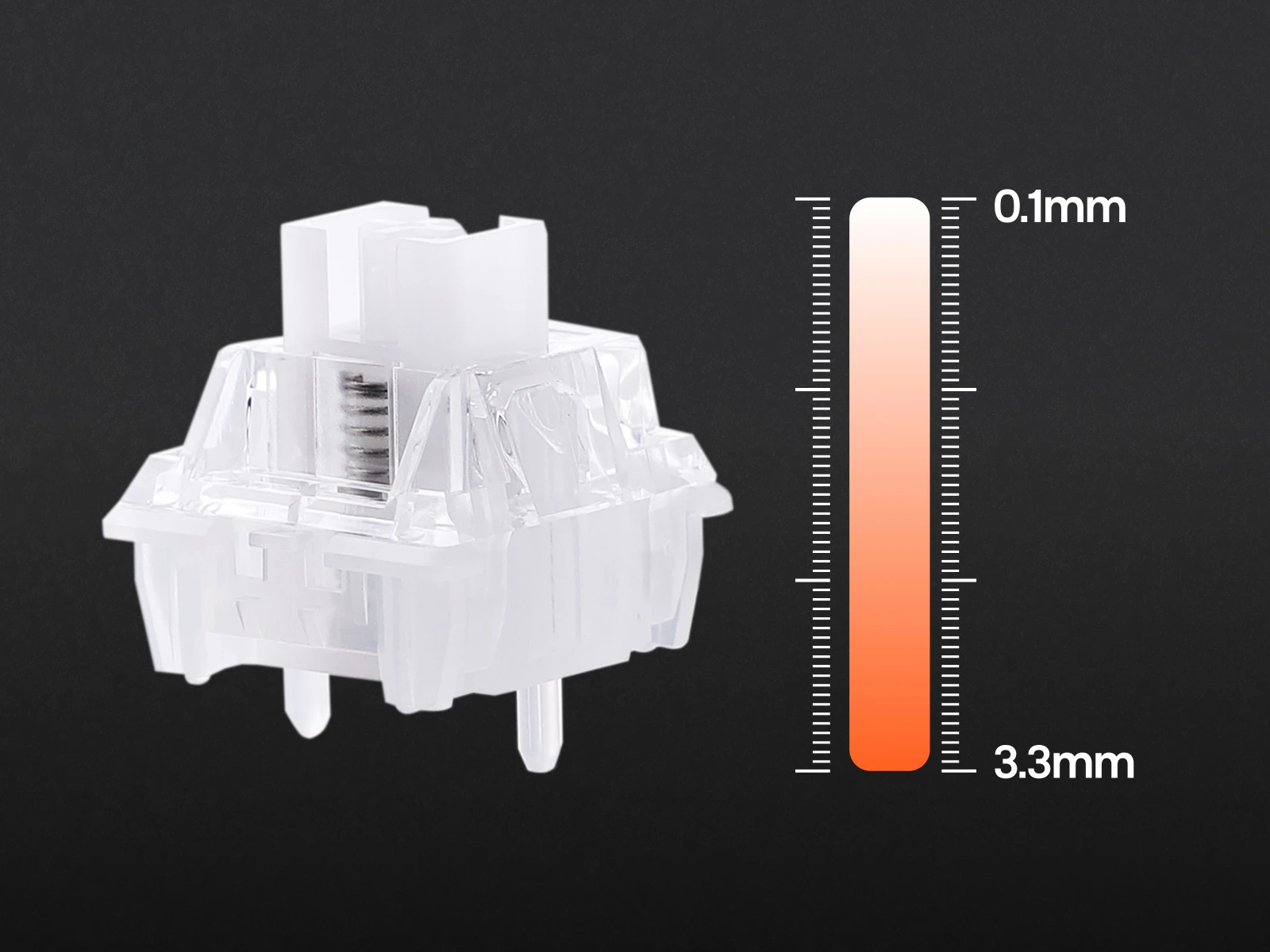

Trigger Travel: Adjustable in EPOMAKER Software from 0.1mm to 3.4mm, per 0.01mm

Total Travel: 3.4±0.1mm

Initial Magnetic Flux (if PCB is 1.6mm thick): 90±10Gs

End Magnetic Flux (if PCB is 1.6mm thick): 550±50Gs

Material of Top Cover: Transparent PC

Material of Bottom Base: Green PA

Material of Stem: Green POM

Lubed or Not: Lubed in Factory

Spring Length: 18mm

Life spans: 1,000,000,000

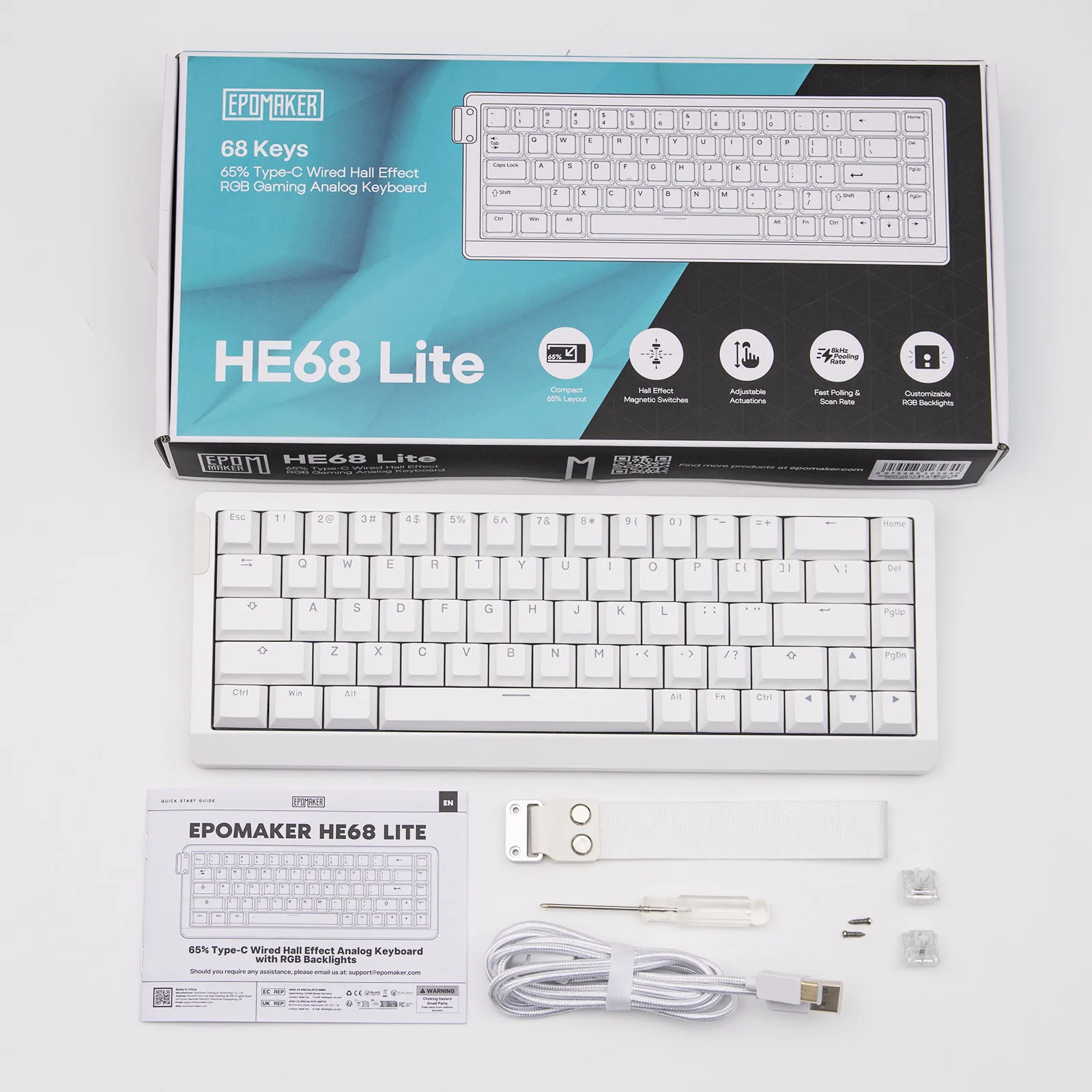

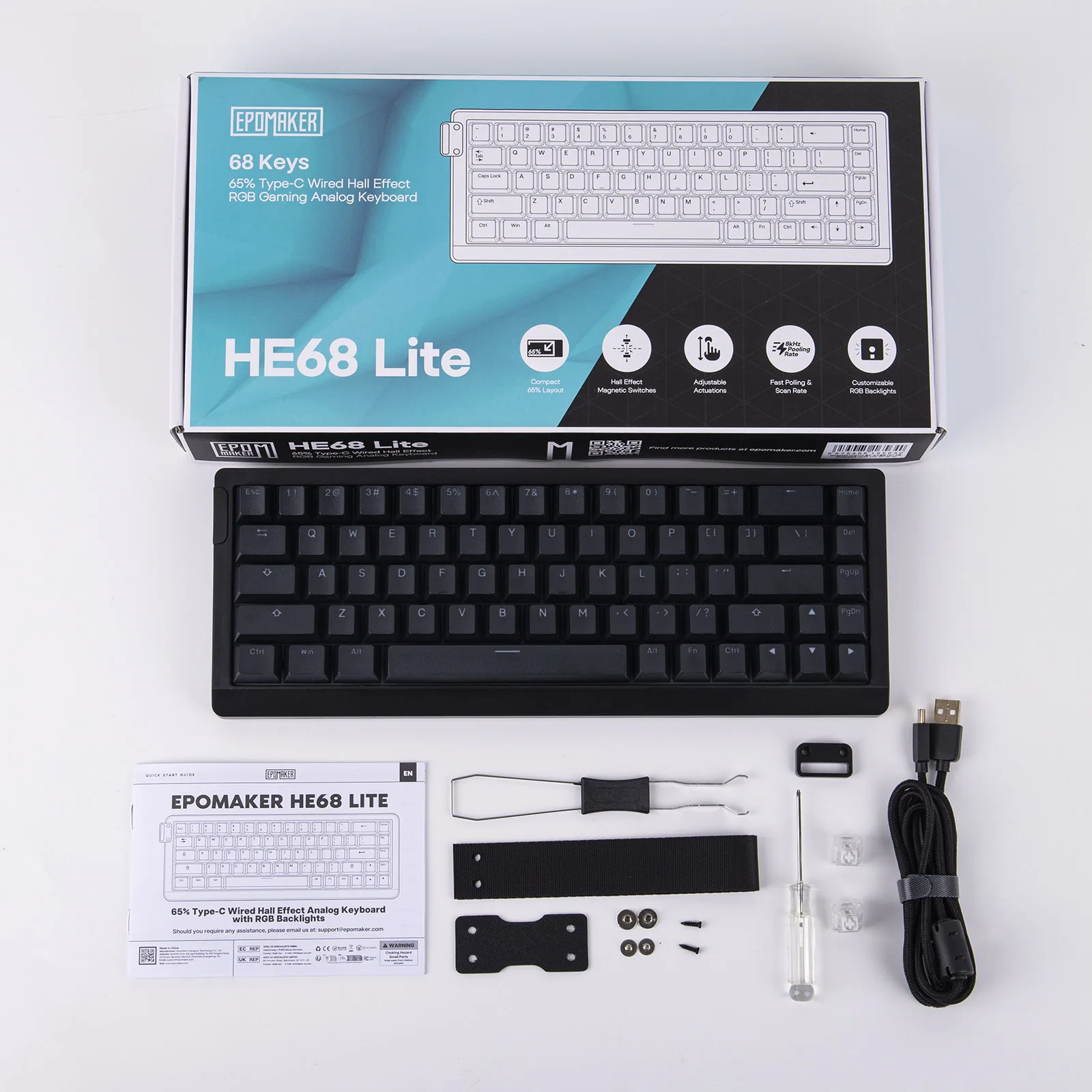

Package Content:

1* HE68 Lite Hall Effect Gaming Keyboard

1* USB A-to-C Cable

1* Pack of Screws and Extra Switches

1* Pack of Hand strap, strap’s accessories and a screwdriver

1* 2-in-1 Keycap-and-Switch puller

1* Multilingual Manual in English, German, Spanish, French, Italian, Korean, Japanese and Chinese
