Folding Bench, Sheet Metal Bending Machine, Manual Sheet Metal Bending Tool, 135° Bending Machine, Pivoting Bending Machine

Description

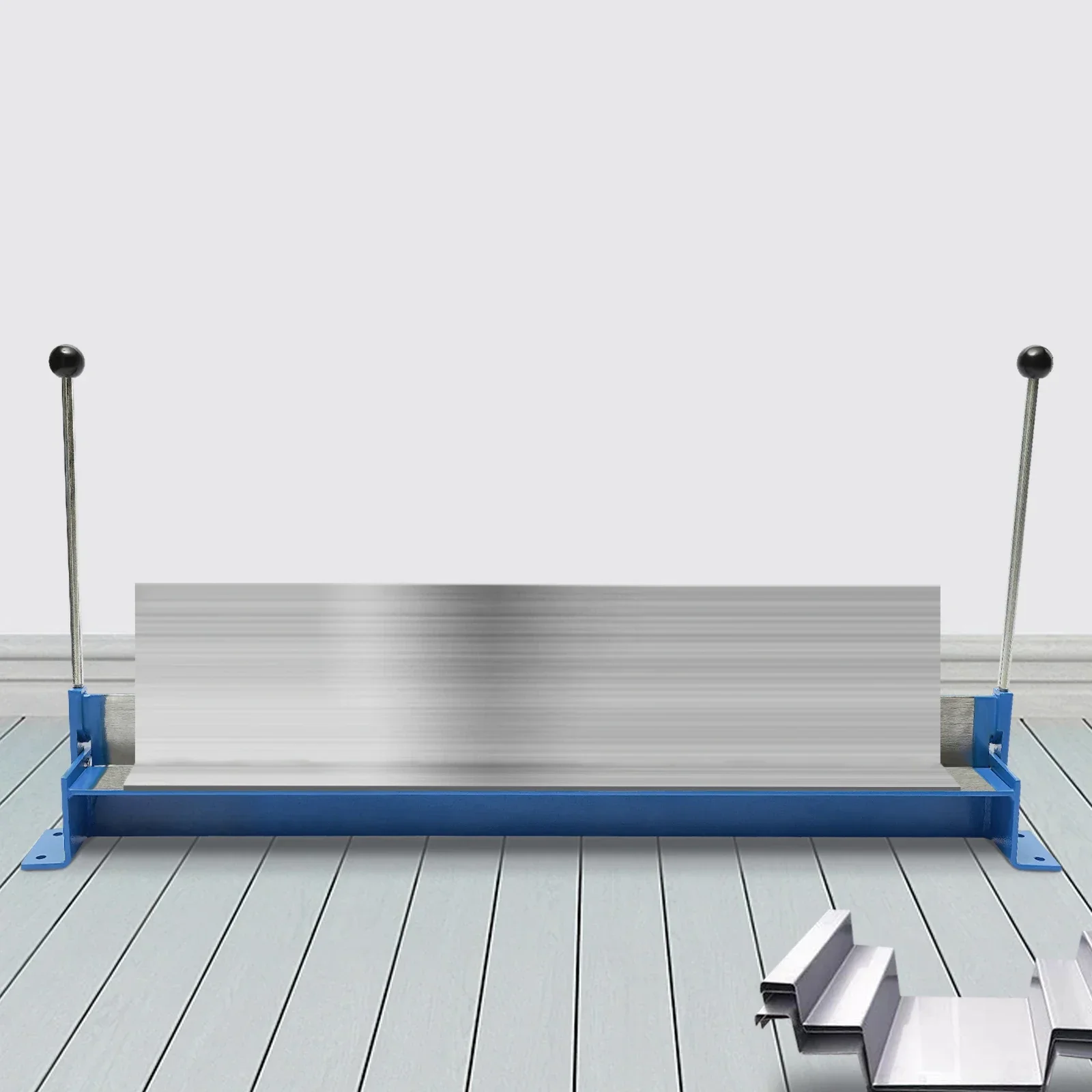

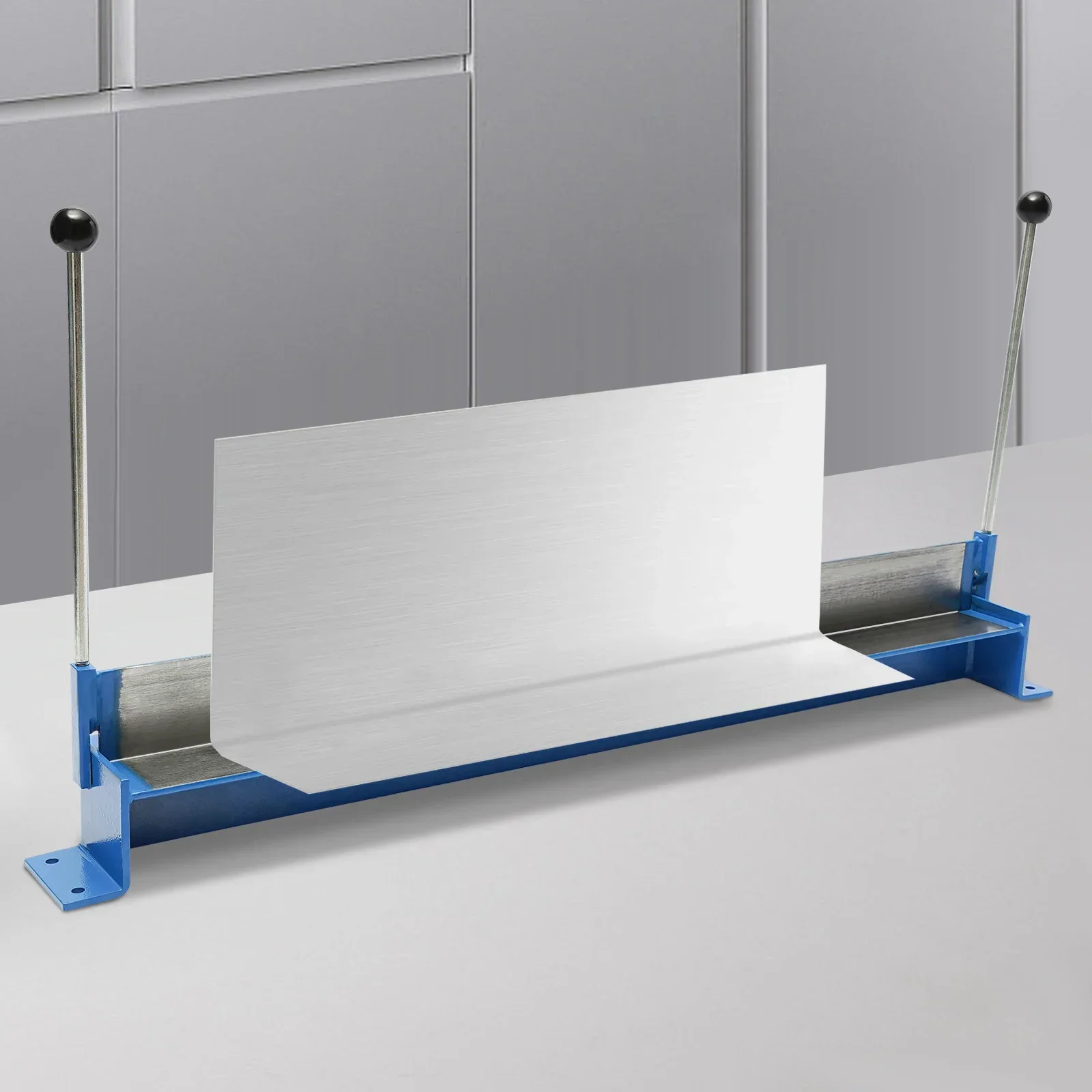

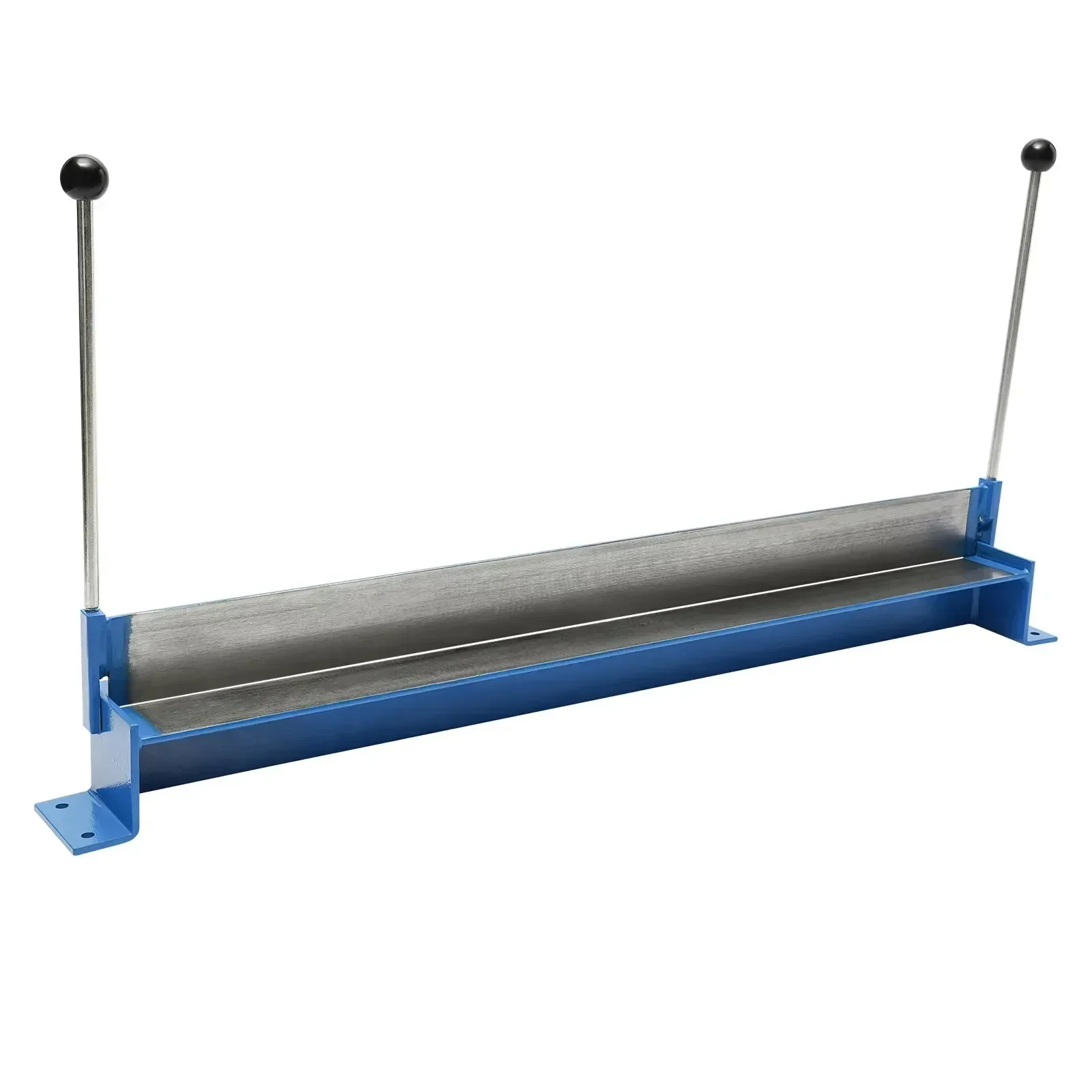

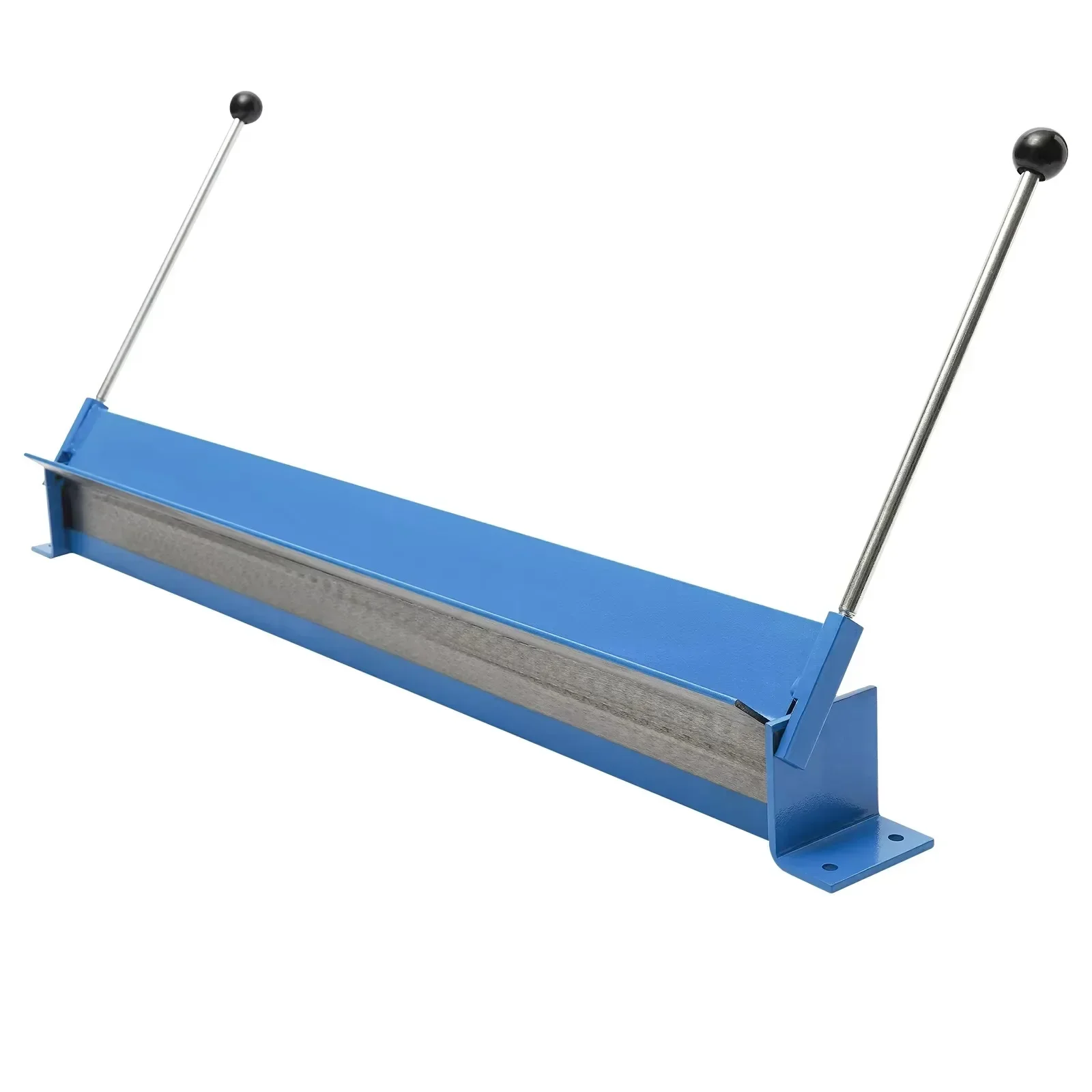

This sheet metal brake is able to bend a variety of materials efficiently. 45# steel makes it sturdy, and its painted, corrosion-resistant finish makes it not only professionally productive, but also durable. Its large bending angle and 36.61 inch bending width allow you to handle most types of workpieces and achieve the desired bending results.

Details

TWO C CLAMPS They are used to firmly fix the workpiece on the sheet metal brake like plates, improving the quality and efficiency of bending.

PRE-DRILLED HOLES They allow you to mount the machine on a workbench and fix it for more stable bending.

Application:

It can be used to bend carbon steel, copper plate, aluminum plate, soft aluminum and other various sheets into a desired shape at a set angle.

Specifications

Colour: blue.

Material: 45# steel.

Bending angle: 0-135°.

Operating mode: Manual

Mounting type: 3/8 inch screw mounting.

Surface treatment: paint spraying

Assembly Required: Yes

Maximum bending width: 930 mm/36.61 inches.

Workpiece thickness: 1.2 mm/0.05 inch (carbon steel), 1.5 mm/0.06 inch (copper plate, aluminium plate).

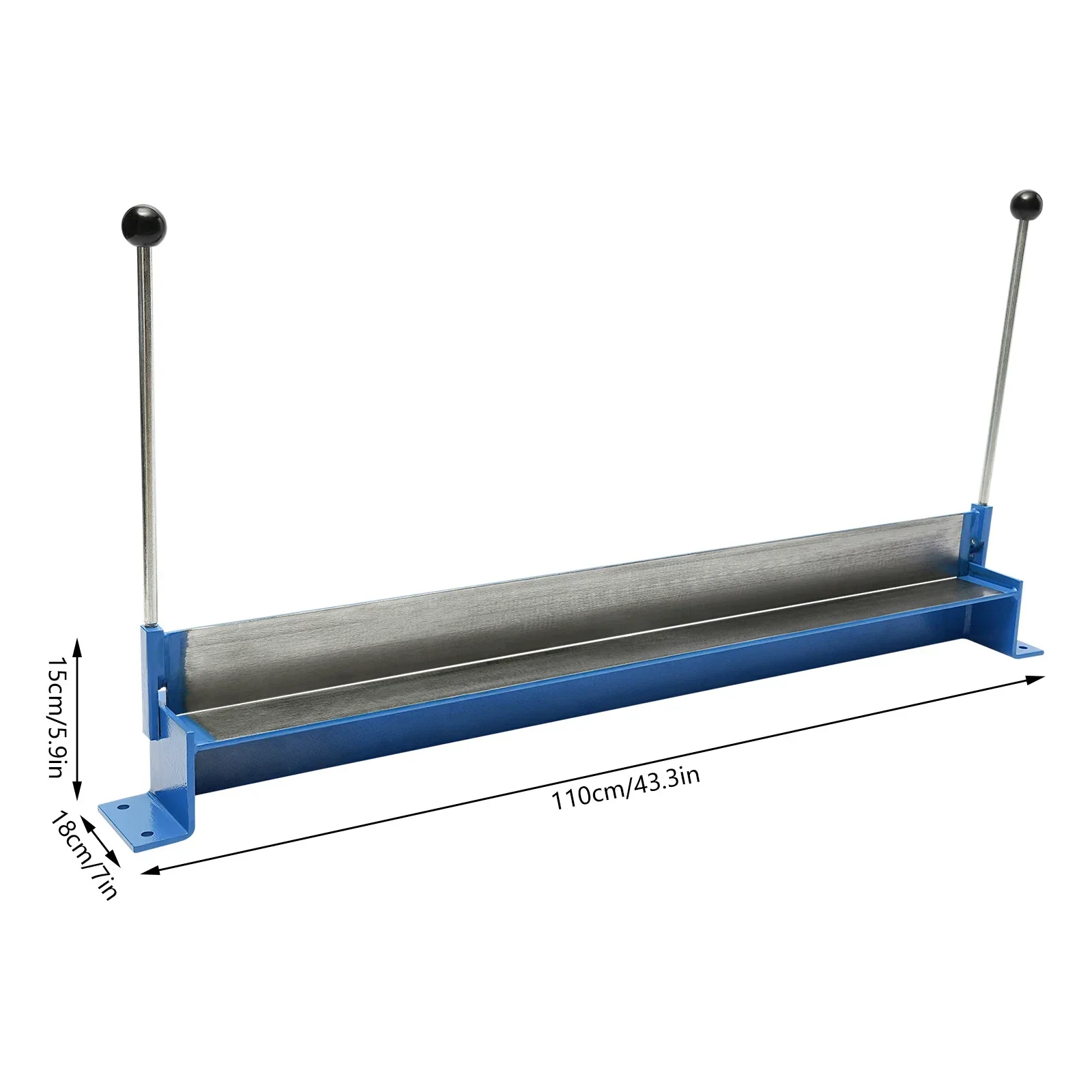

Product size: 110*18*15cm/43.3*7*5.9inch

Package size: 108*22*21cm/42.5*8.7*8.3inch

Gross weight: 16.8 kg/37 lbs.

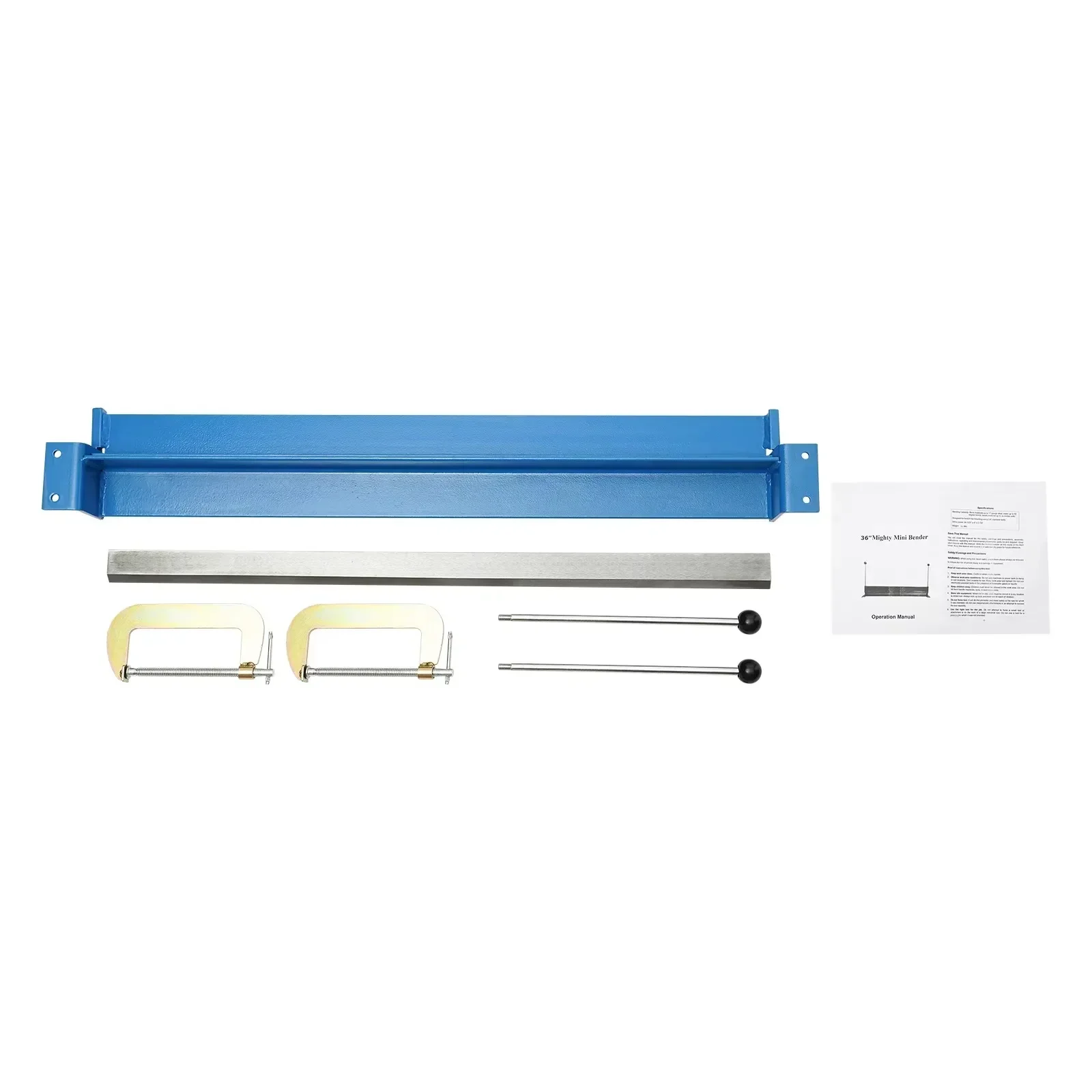

Package includes:

1 x sheet brake.

1 x English manual.

All necessary parts for installation

Notes:

1. Please check the size carefully before ordering.

2. Please read the instructions carefully and pay special attention to the safety instructions inside.

3. Please allow slight colour difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind this before ordering.
