Gaming Motherboard Set SOYO X99 C612chip with Intel Xeon E5 2680 V4 CPU DDR4 8G*1 2133MHz RAM Computer components Mainboard TPM2

High-concerned chemical: None
RAID Supported: Yes
Processor compatibility: Intel Xeon E Series
Ports: Ethernet
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,Design,Video Production,Server,Scientific Computing
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),USB 3.0 Connector,8-pin +12V Power Connector
Back I/O Ports: 2x USB 3.2/3.1 Gen 1,4 x USB 2.0,PS/2
Support USB Type: USB 2.0,USB 3.2 Gen2
Max LAN Speed: 1000Mbps
Onboard LAN: 1x RJ45
Supports M.2 SSD: 2280,22110
Number of M.2: 2
Number of SATA Ports: 4
Storage Interface Type: SATA 3,M.2 (NVMe),M.2 (SATA)
Number of PCI: 2
Number of PCIe x 1: 1
Number of PCIe x 16: 1
PCI – E standards: PCI-E 3.0
Number Of Memory Slots: 4
Support Memory Type: DDR4
Memory channel: Four
Package: Yes
Maximum Ram Capacity: 128 GB
Form Factor: Micro-ATX
Chipset Manufacturer: Intel
Battery Included: No
With CPU: Yes
Chipset: Intel X99
Application: Desktop
Socket Type: LGA 2011-3
Brand Name: SOYO
Special Features: None
Origin: Mainland China

● Differences between packages

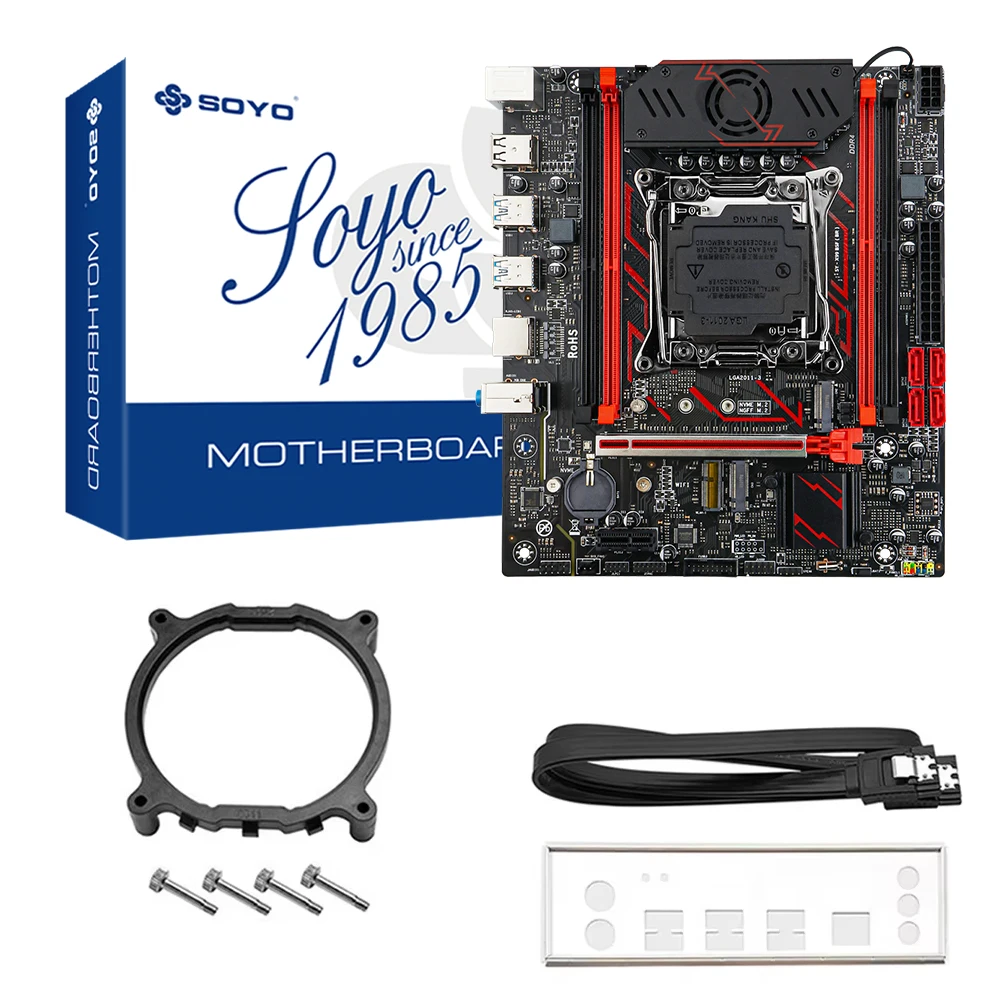

•Motherboards: 1*SY-X99 D4 motherboard

•Motherboard+CPU: 1*SY-X99 D4+1*E5 2680 V4 CPU

•Motherboard+CPU+RAM: SY-X99 D4+E5 2680 V4 CPU*1+DDR4 8G*1

Note:
(1) Please allow 1-3mm differs due to manual measurement.
(2) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(3) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).

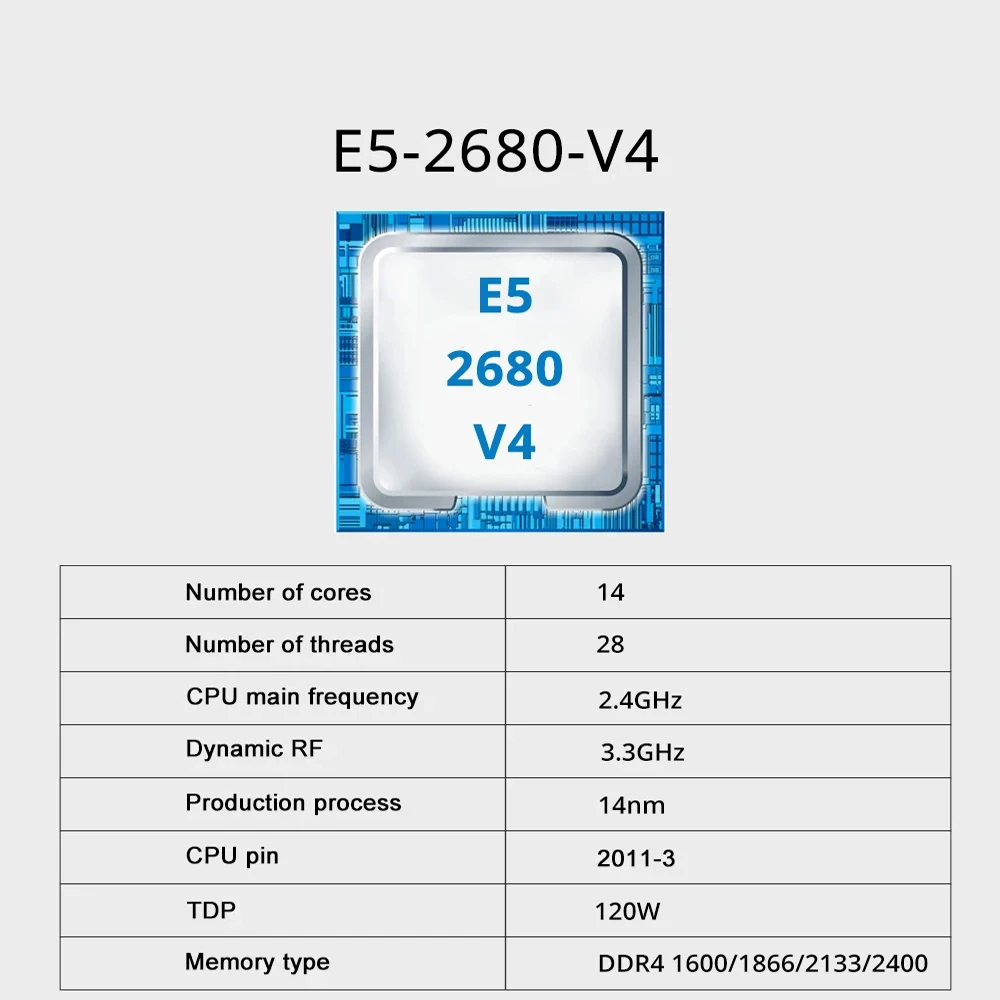

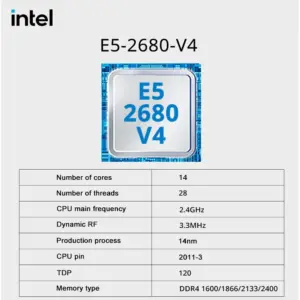

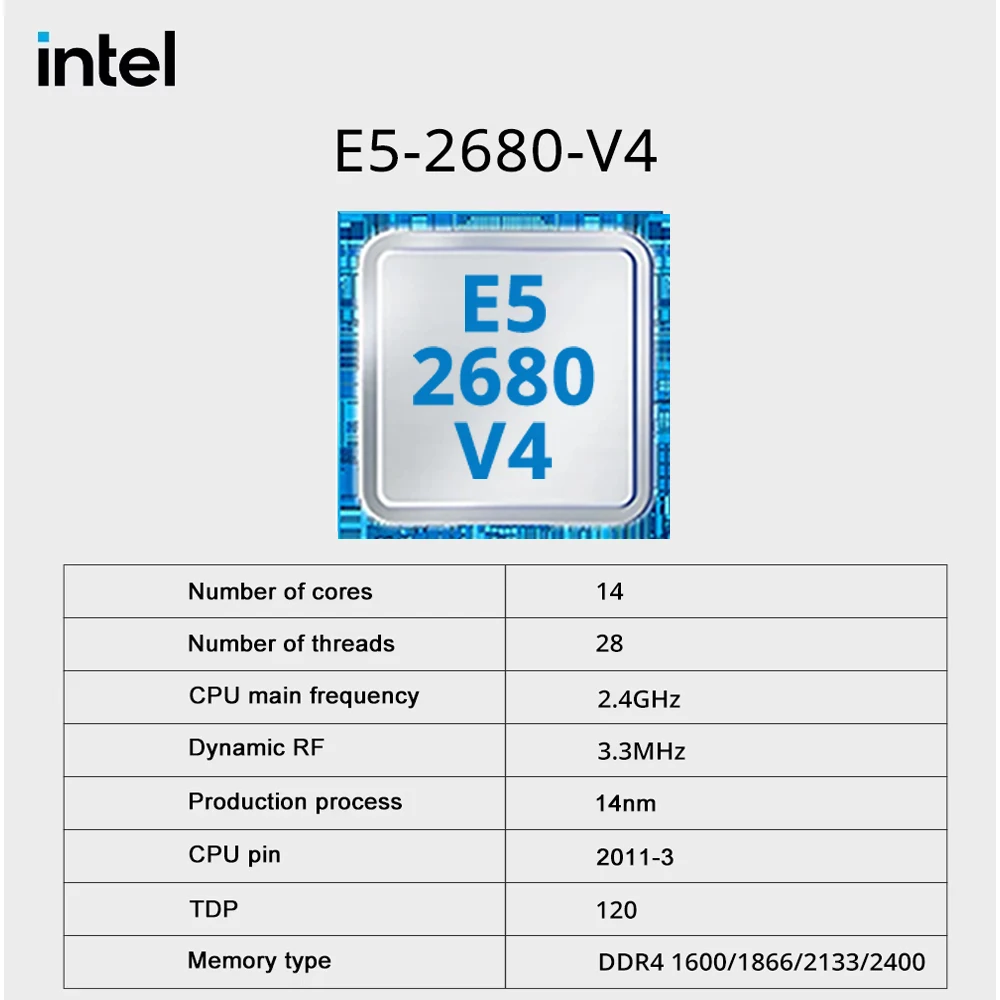

• Powerful Intel Xeon E5 CPU :Equipped with an Intel Xeon E5 2680 v4 CPU, this SOYO X99 gaming motherboard set ensures high performance and stability for serious gaming and modeling tasks.

• High-speed DDR4 ECC RAM :The onboard DDR4 ECC RAM with a speed of 2133MHz provides fast data transfer and smooth operation, enhancing your computing experience.

• M.2 NVMe Storage Interface :Featuring a M.2 NVMe storage interface, this motherboard set offers high-speed storage access, significantly improving the speed of your PC.

• Double Channel RAM Configuration :The dual-channel RAM configuration allows for faster data transfer and improved system stability, making it ideal for heavy-duty computing tasks.

• Robust Quality Certification :With a ROHS quality certification, this motherboard set meets high standards of safety and reliability, giving you peace of mind.

• Versatile Usage Scenarios :Whether you’re into serious gaming, 3-D modeling, or server applications, this SOYO X99 motherboard set has got you covered.

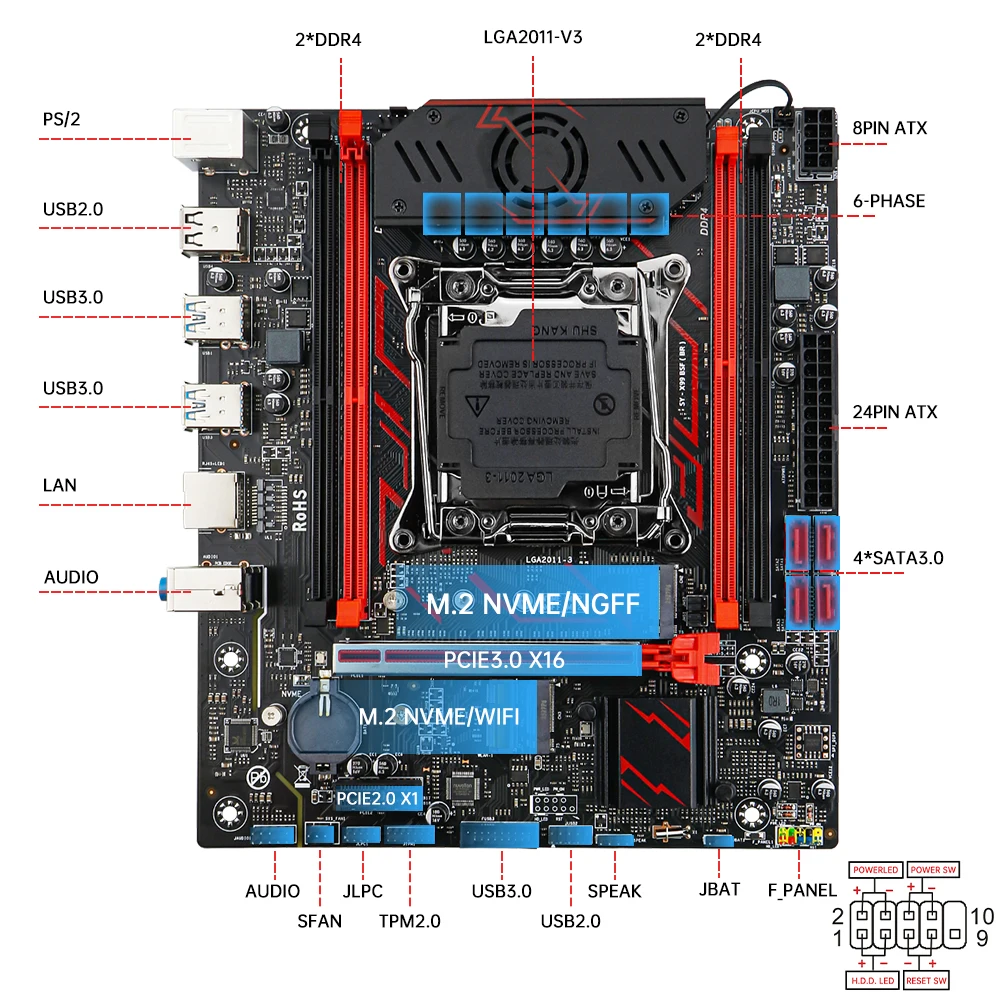

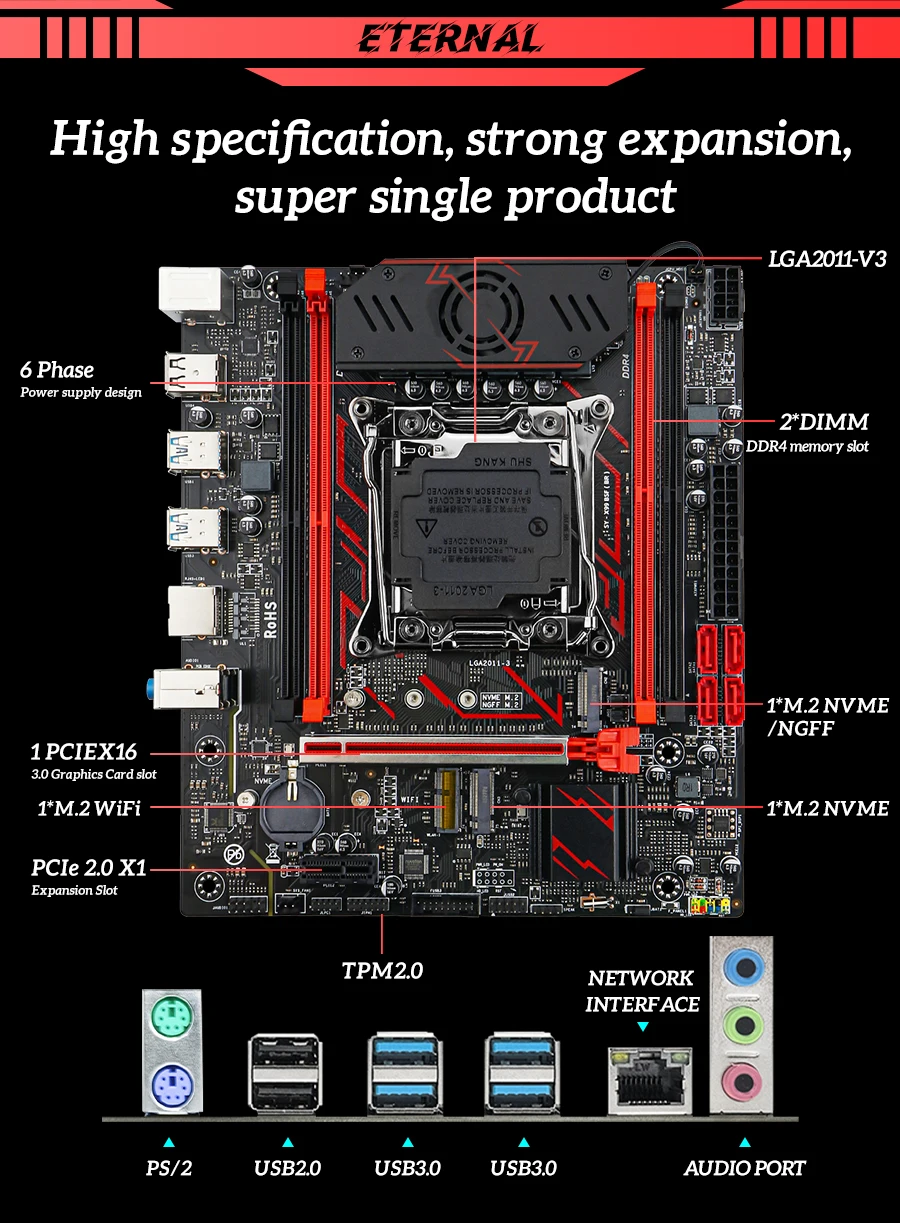

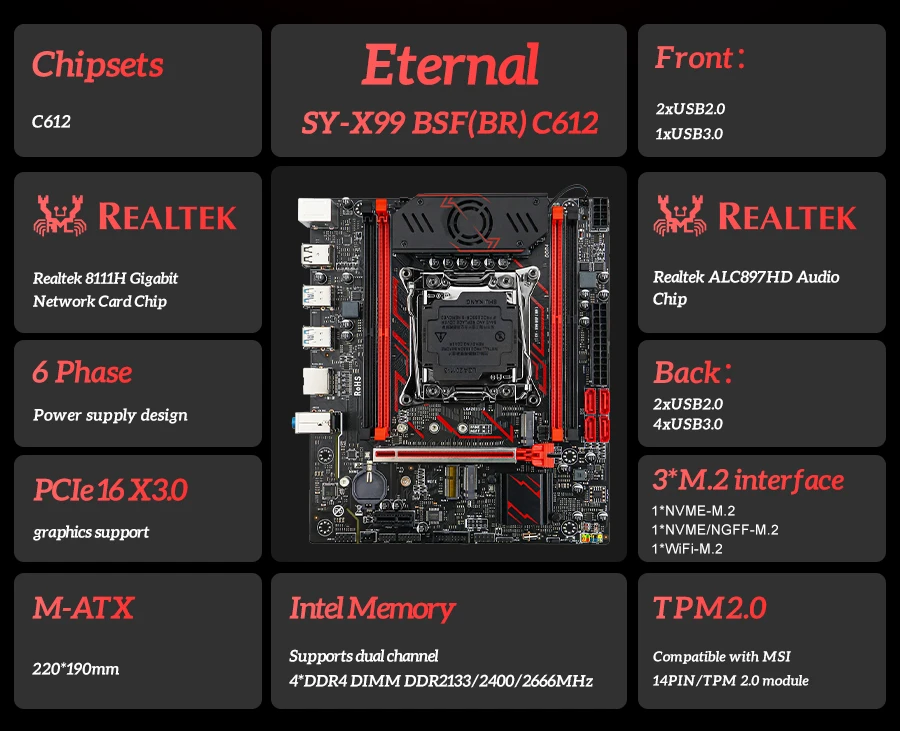

> > > motherboard chip: Intel C612

> > > CPU Intel Xeon E5 LGA 2011-3 processorOptional: E5266v3, E5 2680 V3, E5 2673V3, E5 2696V3, etc.

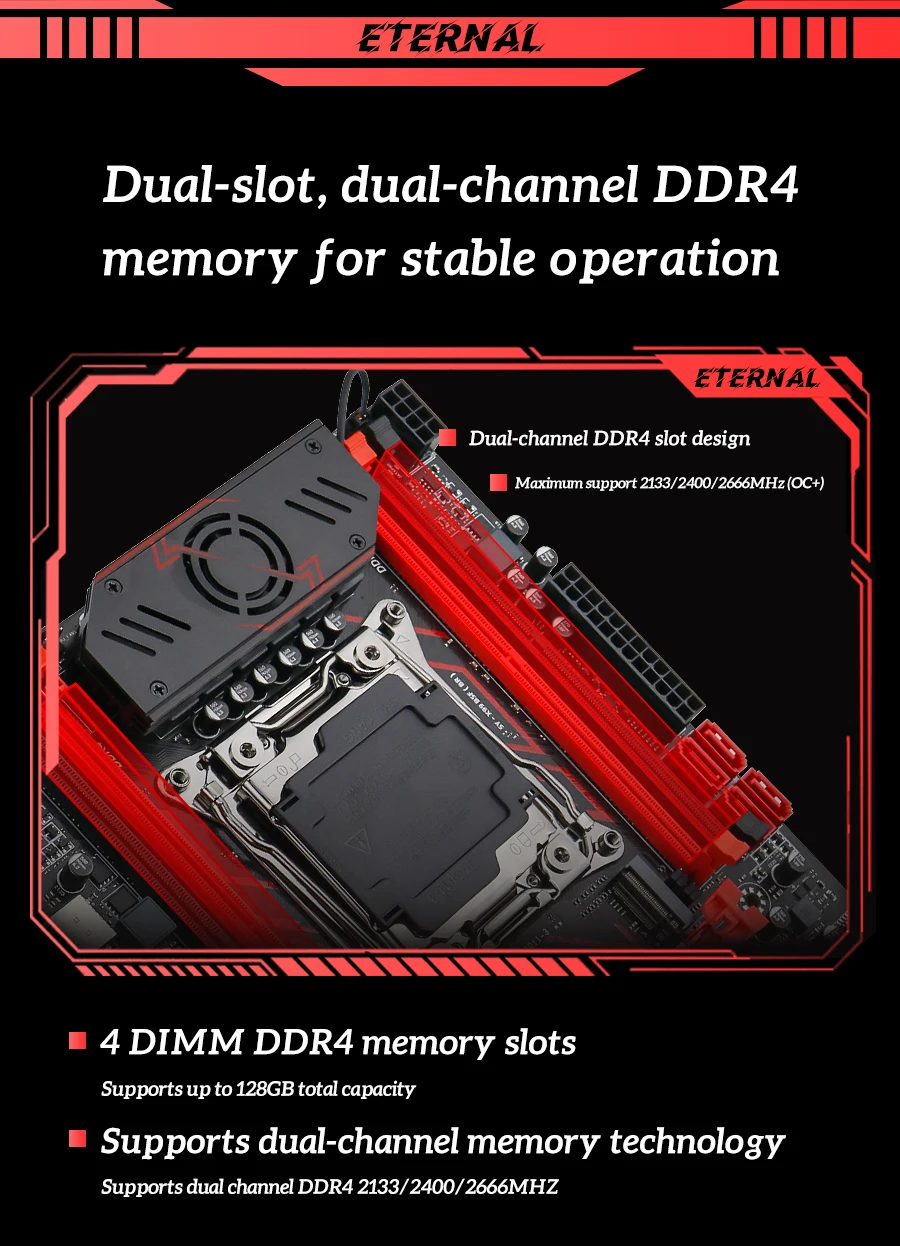

> > > Memory: 4 * DDR 4 DIMM, dual channel, with black slot as the main channel and red slot as the auxiliary channel; 2133/2400/2666MHZ, single slot maximum support 32G.

> > > Save the 1* M.2 slots (NGFF/NVME toggle) and 1 * M.2 slots (NVMe only); 4*SATA 3.0 interface

> > > Network 1 * RJ45 interface

> > > NIC chip: Realtek Gigabit NIC chip.

> > > PCIE slot: 1 * PCIe X16 slot; 1*PCIE X1 slot

> > > audio: 1 * line out; 1*MIC In； 1*Line In； 1*F_Audio built-in pin

> > > Audio chip: Realtek HD audio chip.

> > > PS/2: 1 * PS/2 interface

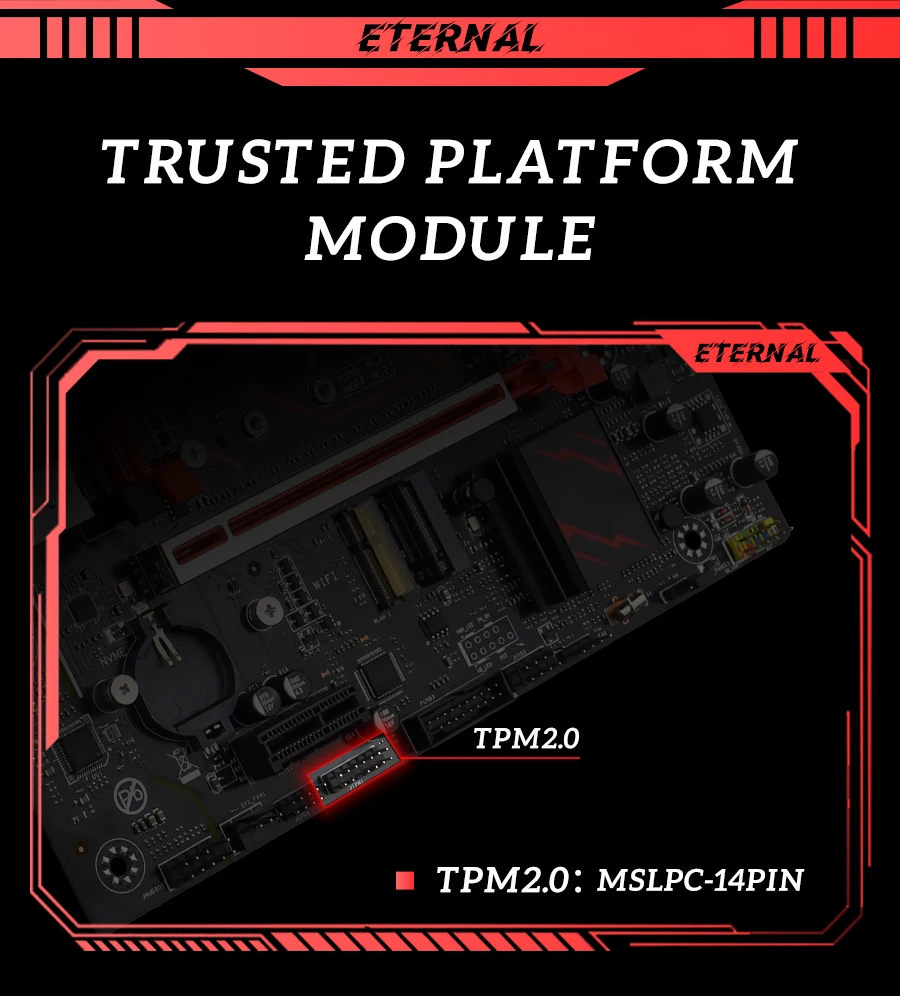

> > > TPM: 1 * external TPM

> > > wifi: 1 * pcie wifi slot

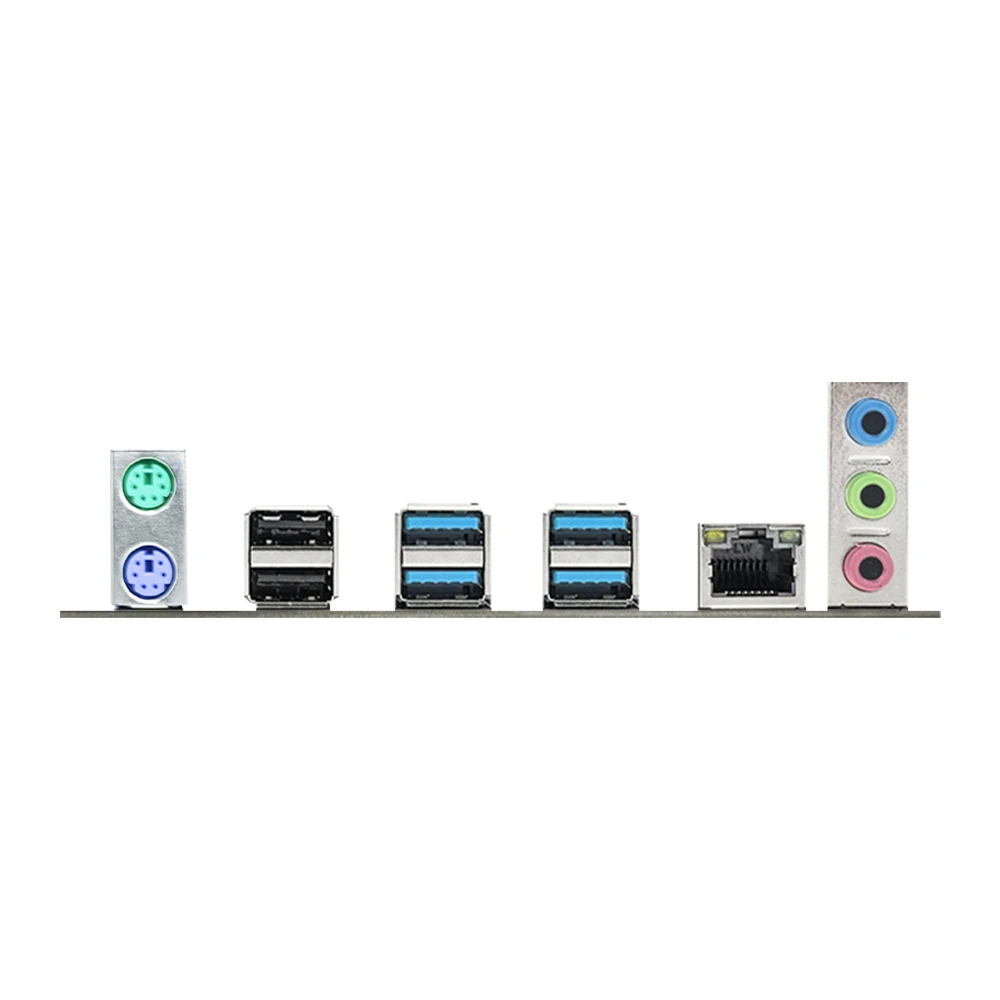

> > > USB interface: IO interface: 2*USB2.0 interface; 4*USB3.0 interface

> > > Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be extended); 1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

> > > function pin: 1 * f panel face pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan

> > > power input: 24Pin+8Pin ATX power socket.

Bundle	Motherboard+CPU, Motherboard+CPU+RAM, Motherboards
High-concerned chemical	None
RAID Supported	Yes
Processor compatibility	Intel Xeon E Series
Ports	Ethernet
Usage Scenario	Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,Design,Video Production,Server,Scientific Computing
Onboard Connectors & Header	24-pin Main Power Connector,CPU Fan Connector(s),USB 3.0 Connector,8-pin +12V Power Connector
Back I/O Ports	2x USB 3.2/3.1 Gen 1,4 x USB 2.0,PS/2
Support USB Type	USB 2.0,USB 3.2 Gen2
Max LAN Speed	1000Mbps
Onboard LAN	1x RJ45
Supports M.2 SSD	2280,22110
Number of M.2	2
Number of SATA Ports	4
Storage Interface Type	SATA 3,M.2 (NVMe),M.2 (SATA)
Number of PCI	2
Number of PCIe x 1	1
Number of PCIe x 16	1
PCI - E standards	PCI-E 3.0
Number Of Memory Slots	4
Support Memory Type	DDR4
Memory channel	Four
Package	Yes
Maximum Ram Capacity	128 GB
Form Factor	Micro-ATX
Chipset Manufacturer	Intel
Battery Included	No
With CPU	Yes
Chipset	Intel X99
Application	Desktop
Socket Type	LGA 2011-3
Brand Name	SOYO
Special Features	None
Origin	Mainland China
