- High-concerned chemical: None
- Material: Stainless steel
- Type: Other
- Origin: Mainland China
- place of origin: Shandong, China
- Raw Material: Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalks
- pellet diameter (mm): 2.5 – 10
- output (kg/h): 60 – 120 kg/h
- brand name: Chengda Machine
- voltage: 380V
- dimension(l*w*h): 76*42*71CM
- motor power (kw): 7.5HP
- warranty: 1 Year
- key selling points: Easy to Operate
- weight (kg): 110 KG
- machinery test report: Provided
- video outgoing-inspection: Provided
- core components: Gear, Engine
- Color: Customer Need
- Function: press sawdust into wood pellet
- Ideal moisture: 8%-20% according to different material
- Pellet size: 2.5-10mm
- Spare parts: roller and die
- Condition: New
- Applicable Industries: Food & Beverage Factory, Farms, Home Use
- Warranty of core components: 1 Year
- Power (kW): 7.5HP
- Marketing Type: Hot Product 2023
Home use pellet mill pelletizer Product Description
If the below model can not meet your demand, feel free to Email me .
I will suggest you other model.!!!
Trust me, there will be one model and patten can meet your demand.,we trust you will like our quality !!!

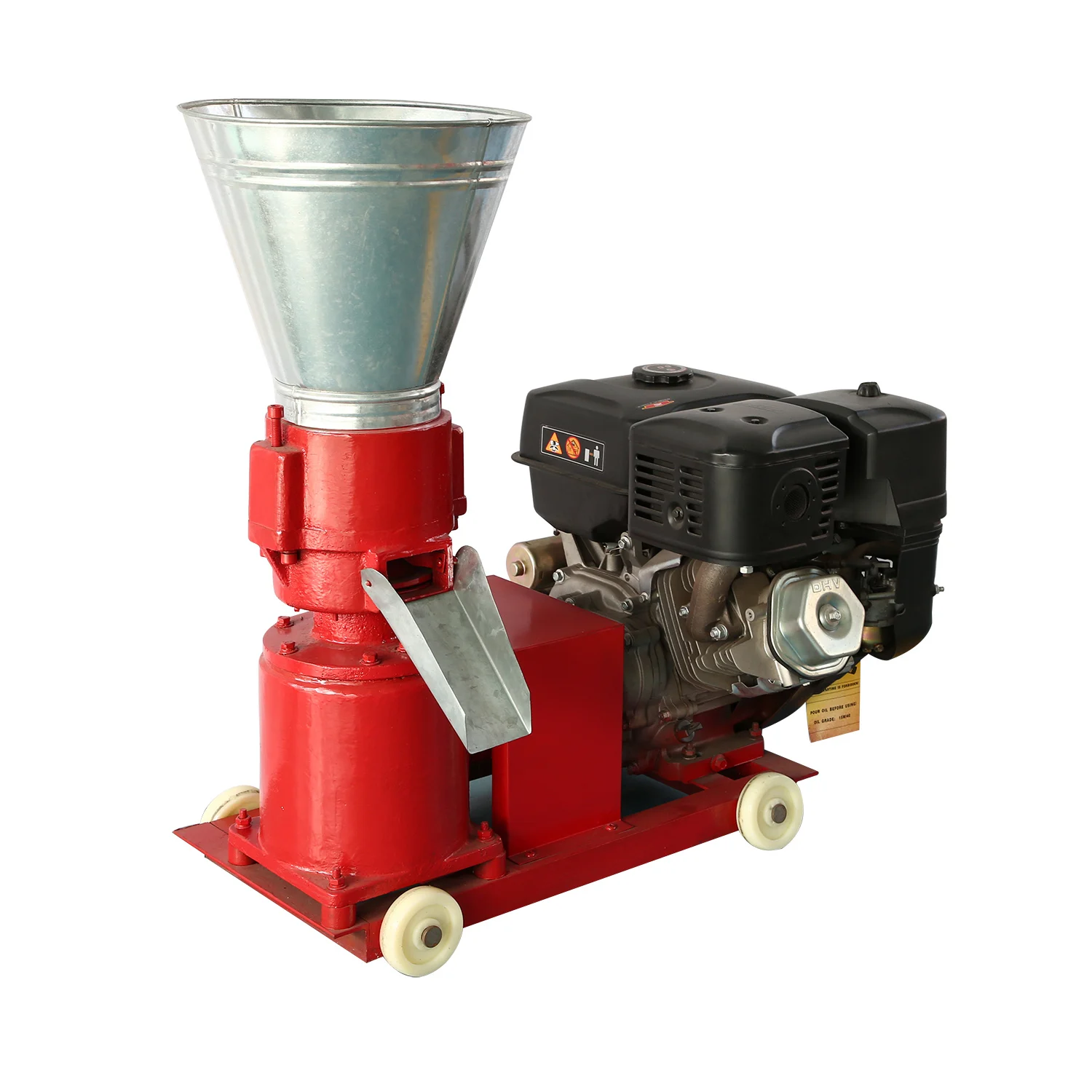

Home use pellet mill wood pelletizer Flat Die Pellet Machine
Our flat die pellet machines are devided into two series, the KL series pellet mills and the MKL series pellet mills.
KL series pellet mills can both press feed pellets and wood sawdust pellets, but it’s better to make animal feed pellets.
This machine can be use for Soybeans, corn, rice, wheat, and all kinds of food crops to make animal feed.
MKL series pellet mills have the special design for making wood pellets.
Small Wood Pellet Press Machine specially designed for mass industrial production of wood pellets.
The raw materials are easy to obtain, like groundnut shell, sawdust, paddy straw, wheat straw, palm husk, rice husks, etc and forestry wastes.
The final pellets can be used for industrial boilers and large power plants as well as home heating.
|
Model
|
Power
|
Die Diameter
|
Die Hole Specification
|
Saw Dust Capacity
|
Feed Capacity
|
|
KL120C
|
3 kw
|
120 mm
|
2.5-10 mm
|
40-60 kg/h
|
60-100 kg/h
|
|
KL150C
|
4 kw
|
150 mm
|
2.5-10 mm
|
50-90 kg/h
|
90-120 kg/h
|
|
KL150B
|
4 kw
|
150MM
|
2.5-10MM
|
50-90KG/H
|
90-120KG/H
|
|
KL150A
|
7.5HP
gasoline engine
|
150MM
|
2.5-10MM
|
50.-90KG/H
|
90-120KG/H
|
|
KL150A
|
8
gasoline engine
|
150MM
|
2.5-10MM
|
50-90KG/H
|
90-120KG/H
|
|
KL150A
|
13
gasoline engine
|
150MM
|
2.5-10MM
|
50-90KG/H
|
90-120KG/H
|
|
KL150P
|
PTO
|
150MM
|
2.5-10MM
|
50-90KG/H
|
90-120KG/H
|
|
KL200C
|
7.5 kw
|
200 mm
|
2.5-10 mm
|
110-140 kg/h
|
200-300 kg/h
|
|
KL230C
|
11 kw
|
230 mm
|
2.5-10 mm
|
150- 190 kg/h
|
300-400 kg/h
|
|
KL260C
|
15 kw
|
260 mm
|
2.5-10 mm
|
220-280 kg/h
|
400-600 kg/h
|
|
KL300C
|
22 kw
|
300 mm
|
2.5-10 mm
|
300-360 kg/h
|
600-800 kg/h
|
|
KL360C
|
22 kw
|
360 mm
|
2.5-10 mm
|
300-380 kg/h
|
700-900 kg/h
|
|
KL400C
|
30 kw
|
400 mm
|
2.5-10 mm
|
400-550 kg/h
|
900-1100 kg/h
|
Tips:
In the production of pellets, the pellets temperature will reach 70 鈩�, if you need a pellet cooler, you can also contact me.
we trust in “win-win situation”
we accept refund money in case of bad quality.!!!
Mold hole diameter remarks order
Product color self-remarks
If you have other questions just sent inquiry to me .
We support OEM
2.If the amount of your order reaches a certain limit, we will provide you with free air tickets, accommodation, welcome to the spot inspection. (specific amount please contact me)
3.If quality problems occur within a year, except for wear-out parts, we will send you accessories.

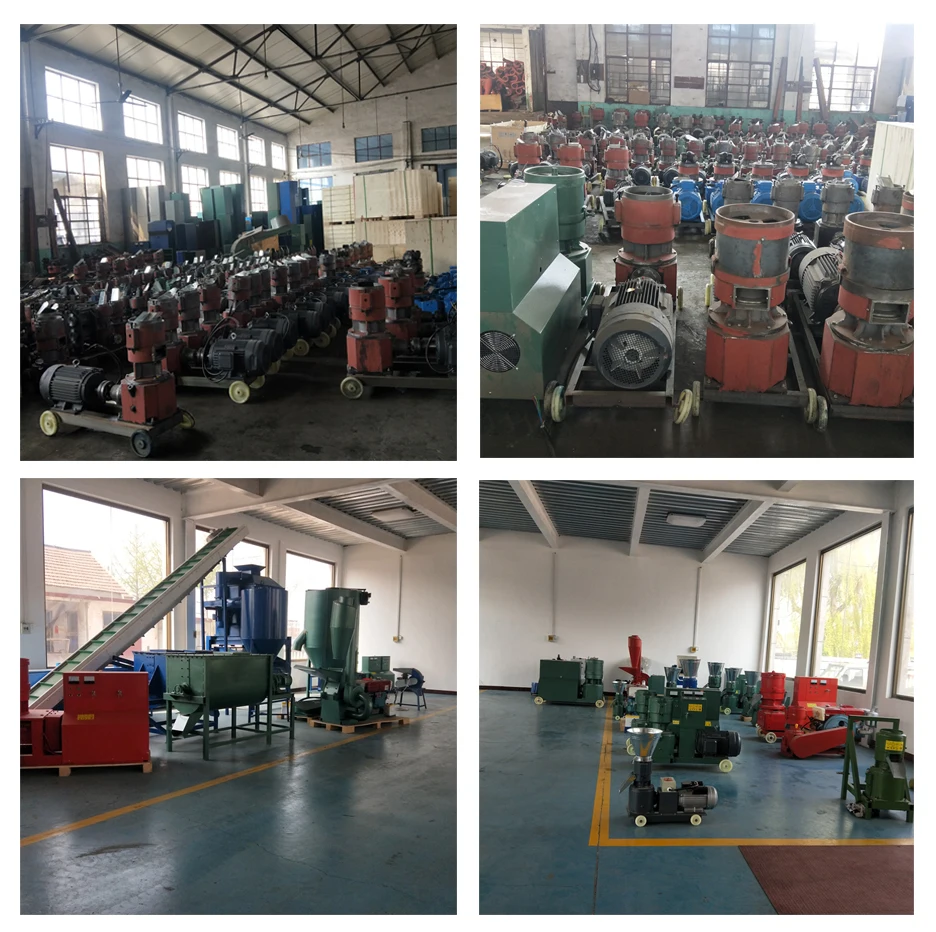

1.Laizhou chengda machinery co.,lt was found in 1992 years, The export year is 15 years, with rich experience and no worries.mainly produce the flat die feed pellet mill and wood pellet mill.all the product 90% are export to EU ,USA, AFRICA, and so on.At the same time , we provide the product for more than 50 trading company in China.
2.Located in Laizhou Bay, near Qingdao Port, convenient shipping, fast loading speed, give you the best service experience.
3.Support a variety of payment methods, shopping easy and worry-free, 24 hours after-sales online, with the most professional point of view, starting from customer needs, recommend the best products and services for you.
|
Packaging
|
|
|
|
Size
|
76(L) * 43 (W) * 71(D)
|
|
|
Weight
|
140 kg
|
|
|
Packaging Details
|
.Depending on the size of the machine, we pack it in a sturdy wooden case.
The normal package is wooden box If container is too tigher,we will use pe film for packing or pack it according to customers special request |
|
