- High-concerned chemical: None
- RAID Supported: No
- Processor compatibility: AMD Others
- Ports: M.2
- Usage Scenario: Audio & Video,Office,Video Production,others
- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector
- Back I/O Ports: 1x RJ45
- Support USB Type: USB 2.0,USB 3.0
- Onboard LAN: 1x RJ45
- Audio Channels: 5.1
- SATA RAID: 0
- Supports M.2 SSD: 2280
- Number of M.2: 1
- Number of SATA Ports: 4
- Storage Interface Type: SATA
- Number of PCI: 0
- Number of PCIe x 1: 1
- Number of PCIe x 4: 0
- Number of PCIe x 8: 0
- Number of PCIe x 16: 1
- PCI – E standards: PCI-E 3.0
- Number Of Memory Slots: 2
- Support Memory Type: DDR4
- Quality Certification: ce
- Memory channel: Double
- Package: Yes
- Maximum Ram Capacity: 64 GB
- Chipset Manufacturer: AMD
- Battery Included: No
- With CPU: No
- Chipset: AMD B450
- Application: Desktop
- Socket Type: AM4
- Brand Name: MACHINIST
- Special Features: None
- Origin: Mainland China
*Startup item shortcut key: f11;
*Support network wake-up;
*Supports automatic power-on after power outage and scheduled power-on;
*Support TPM2.0.
Package contains:
#Main products: MACHINIST B450 motherboard*1 piece;

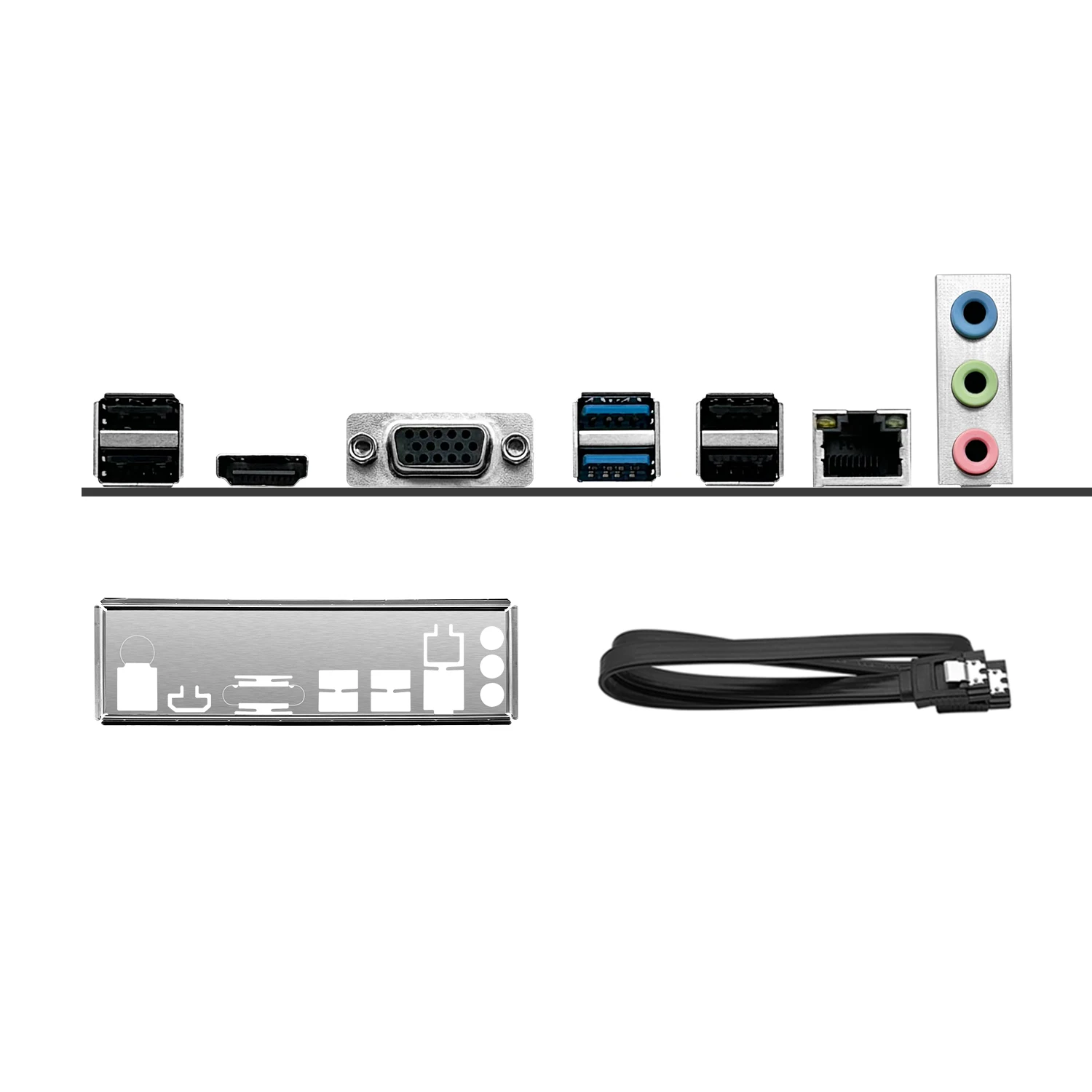

##Bonus accessories: I/O shield, SATA cable.
### They are all packaged after manual testing before sending. If there are any gifts missing, please understand!

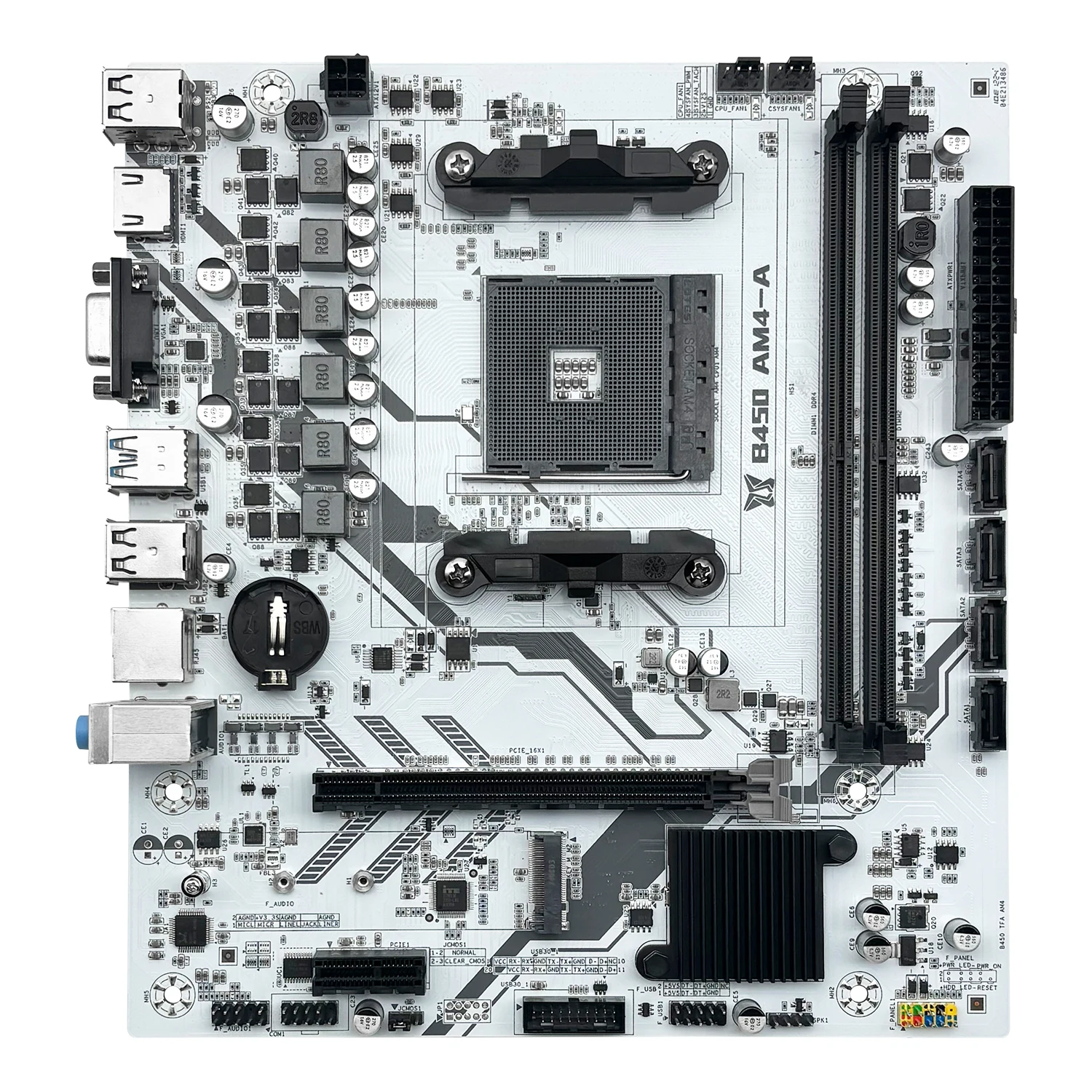

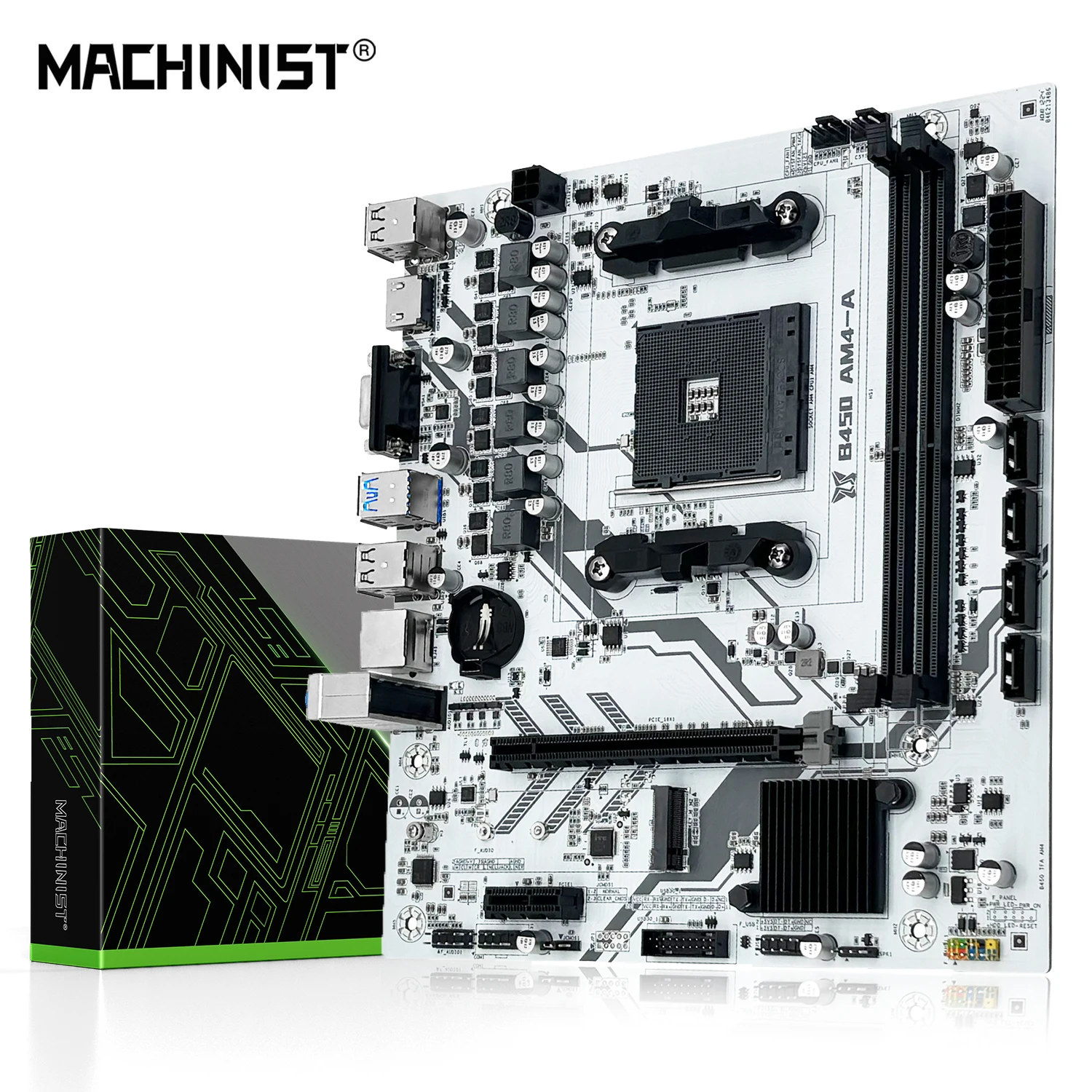

Motherboard information:
>>Brand: MACHINIST.
>>Motherboard model: B450 AM4-A.
>>Processor: Supports AMD AM4-pin series processors (supports Ryzen 1-5 generations).
>> Chipset: X470/B450 chipset.
>>Memory
Technology: Dual Channel DDR4. Support 2133/2666/3000/3200/3600MHz.
Maximum capacity 64GB (32G x 2).
Memory slot: 2*288 PIN DDR4.
Supported memory types: Fully compatible memory or AMD-specific memory sticks are required. Other desktop computers and ECC memory cannot start the motherboard.
(Note: Please use Samsung, Kingston, Sandee, Micron, Hynix and other international brands. Other brands may not be compatible.)

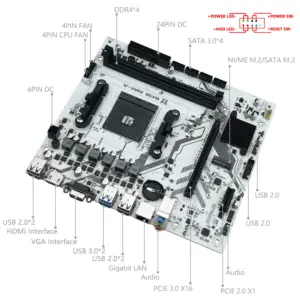

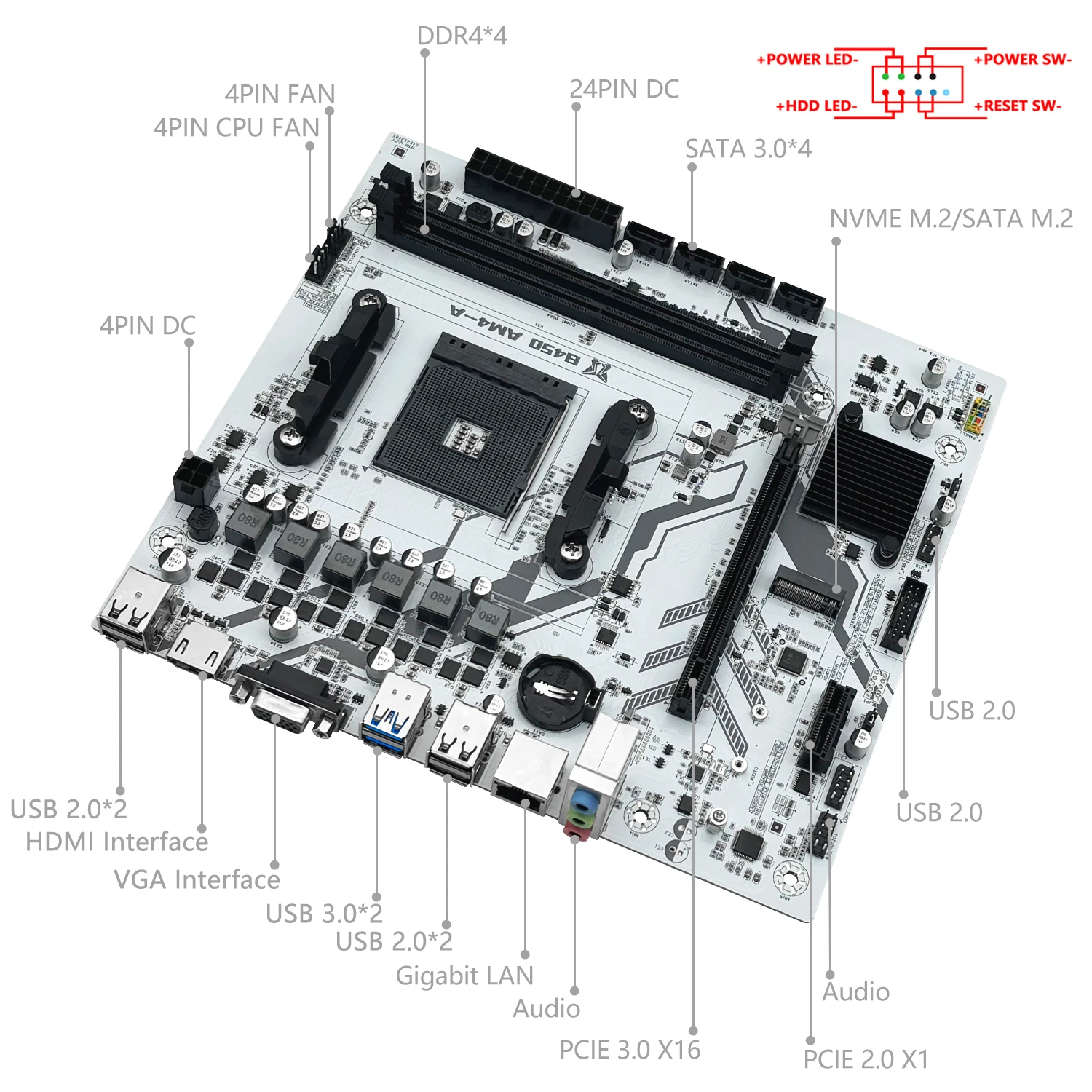

>> Rear I/O
Display interface: supports VGA & HDMI display.
USB interface: 2 USB 2.0; 2 USB3.0.
Ethernet: Gigabit network adapter port.
Audio: 1 (mic in, line out, line in).
>> Internal connector
SATA interface: 4 (SATA3.0).
M.2: 1 (NVME/SATA automatic recognition switching).
PCIe: 1 X16 3.0 PCIe and 1 X1 PCIe.

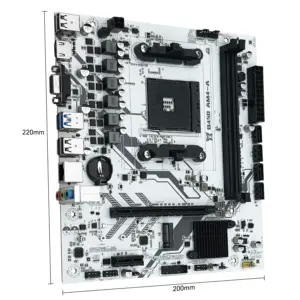

>> Dimensions

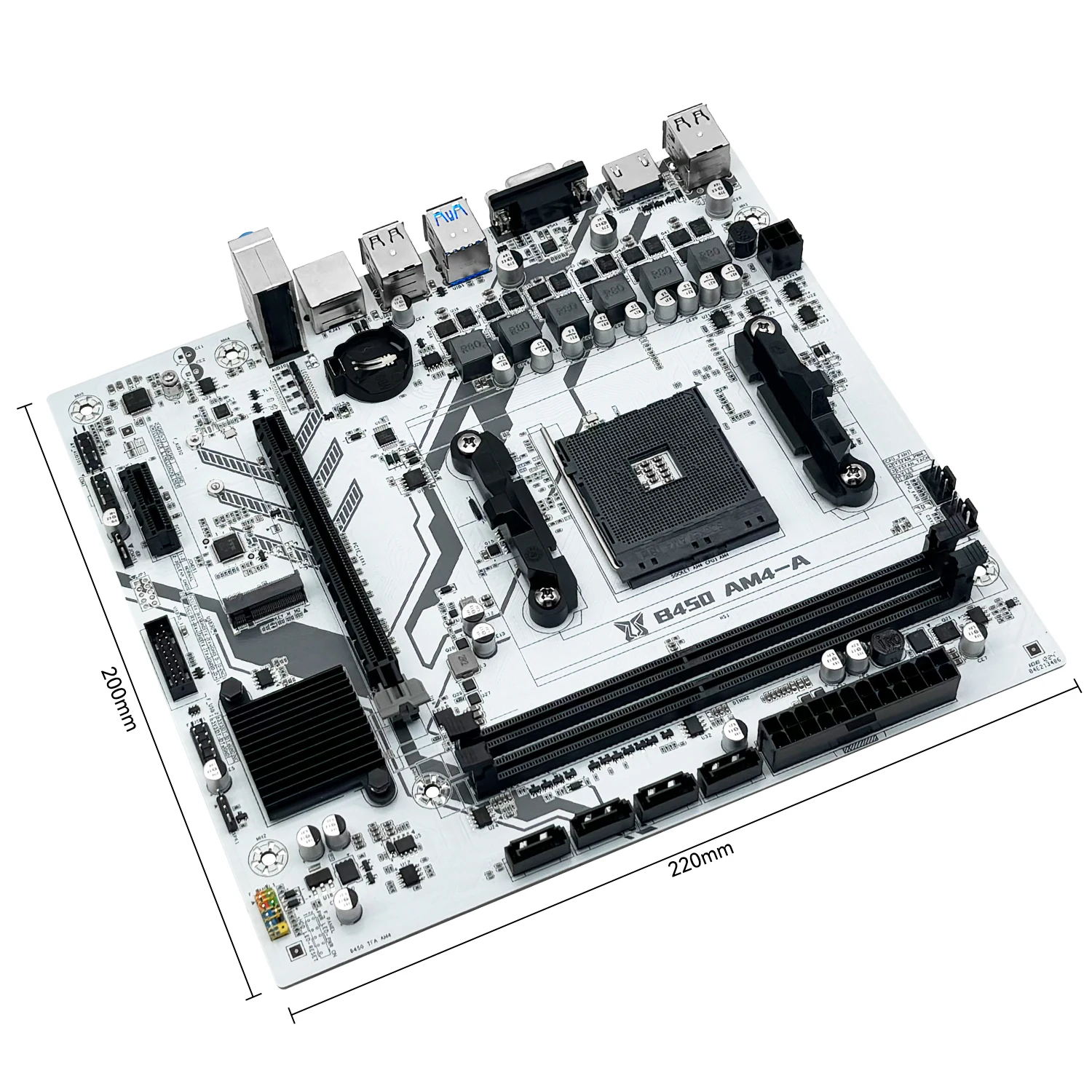

Size: 220mm*200mm.
Motherboard weight (including packaging): about 0.8 kg.
>> Regarding customs issues, please ensure that you can solve the customs clearance problem by yourself. If you cannot solve it, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. thank you for understanding.
Notice:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.
(4) The platform requires a powerful power supply. Please make sure your power supply is sufficient for this platform. (At least 500w brand power supply)
(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
20 reviews for MACHINIST B450 Motherboard AMD Processor Dual-channel DDR4 Memory AM4 Mainboard M.2 NVME (Supports Ryzen 5500 5600 5600G CPU)
Only logged in customers who have purchased this product may leave a review.
| Bundle | Motherboards |
|---|---|
| High-concerned chemical | None |
| RAID Supported | No |
| Processor compatibility | AMD Others |
| Ports | M.2 |
| Usage Scenario | Audio & Video,Office,Video Production,others |
| Onboard Connectors & Header | 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector |
| Back I/O Ports | 1x RJ45 |
| Support USB Type | USB 2.0,USB 3.0 |
| Onboard LAN | 1x RJ45 |
| Audio Channels | 5.1 |
| SATA RAID | 0 |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 1 |
| Number of SATA Ports | 4 |
| Storage Interface Type | SATA |
| Number of PCI | 0 |
| Number of PCIe x 1 | 1 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 8 | 0 |
| Number of PCIe x 16 | 1 |
| PCI - E standards | PCI-E 3.0 |
| Number Of Memory Slots | 2 |
| Support Memory Type | DDR4 |
| Quality Certification | ce |
| Memory channel | Double |
| Package | Yes |
| Maximum Ram Capacity | 64 GB |
| Chipset Manufacturer | AMD |
| Battery Included | No |
| With CPU | No |
| Chipset | AMD B450 |
| Application | Desktop |
| Socket Type | AM4 |
| Brand Name | MACHINIST |
| Special Features | None |
| Origin | Mainland China |
j***r (verified owner) –
Motherboard worked absolutely great! No problems at all and arrived good with all its extra added accessories
v***r (verified owner) –
I was a little nervous about buying a motherboard from aliexpress but i found good reviews on this model. Everything i need works on this motherboard the xmp profile for my cheap ram loaded immediately at 3200 mt/s. It also supports resizable bar for my gpu. Very happy for $45
J***a (verified owner) –
All components work 100% thought this motherboard. There was no performance lost with this motherboard board. This motherboard is the only way to make an all white pc with am4 components.
L***s (verified owner) –
The product is working perfectly, as described in the advertisement. It arrived well packaged, arrived quickly, and was sent quickly! And it’s working.
M***m (verified owner) –
Very good original device of extreme quality, I have bought several and never had any problems with them.
E***e (verified owner) –
It took 13 days to arrive but the screws for the plate were missing. I will test it in a few days.
C***n (verified owner) –
Great budget motherboard. I snagged this for under $50. This helps me keep the price of my builds competitive.
AliExpress Shopper (verified owner) –
Pretty good only thing no usbc, no rgb support and u need a adapter for case fans but other than that runs perfectly fine if u want something low profile.
3***r (verified owner) –
What can i say, insane value for $40. It came with an io shield and a sata cable. Would recommend i put it on the test bench. Also the box is compact. Bios is probably the worst part but it’s not that bad. Arrived 4 days early
i***r (verified owner) –
I have worked with this mobo many times and you cannot beat the price for budget builds. Yes, it’s bare minimum but gets the job done if you have the proper case to pair with it!
a***r (verified owner) –
Works
a***r (verified owner) –
Looks amazing, works amazing. Did not come with a cmos battery though. Came early!
V***2 (verified owner) –
Used in my pc build with a ryzen 5 3600 and r9 390x. Only has one fan port but works perfectly fine so far. Have had it for about a week or so.
AliExpress Shopper (verified owner) –
Amazing mobo so good omg so good so good it very good aesthetic
M***l (verified owner) –
It’s great for beginning because it’s hard to mess up
B***d (verified owner) –
very good quality 👌
U***r (verified owner) –
It arrived in the exact condition as described, and it works perfectly fine without any issue. Probably the most affordable white colored motherboard on the market.
F***o (verified owner) –
The protection did its job, I recommend placing something more resistant under the motherboard, very good quality of the product, I haven’t tested it yet.
AliExpress Shopper (verified owner) –
Board seems to be well-built. Now it’s time to test and see the performance. I hope it doesn’t overheat with a Ryzen 5 5600gt.
G***n (verified owner) –
This is exactly what it states to be. It is a barebones b450 motherboard, with all the features you would expect at $40 (what i paid at the time) price point. The motherboard does lack heat sinks but if you should be fine, as long as your case has sufficient airflow. I would say i was skeptical about the motherboard and if it would even work but was suprised when it booted on. If you can get this motherboard for a steal i’d say go for it, but if it’s not too much less than better known alternatives than i would suggest the better known alternatives. I’ll add a photo of the build and yes it is a matx board so it does look a little silly in this case.
