Bundle-1> Motherboards: MACHINIST X99 MD8,

Bundle-2> Motherboards+CPU: X99 MD8 + E5 2680 V4*2PCS,

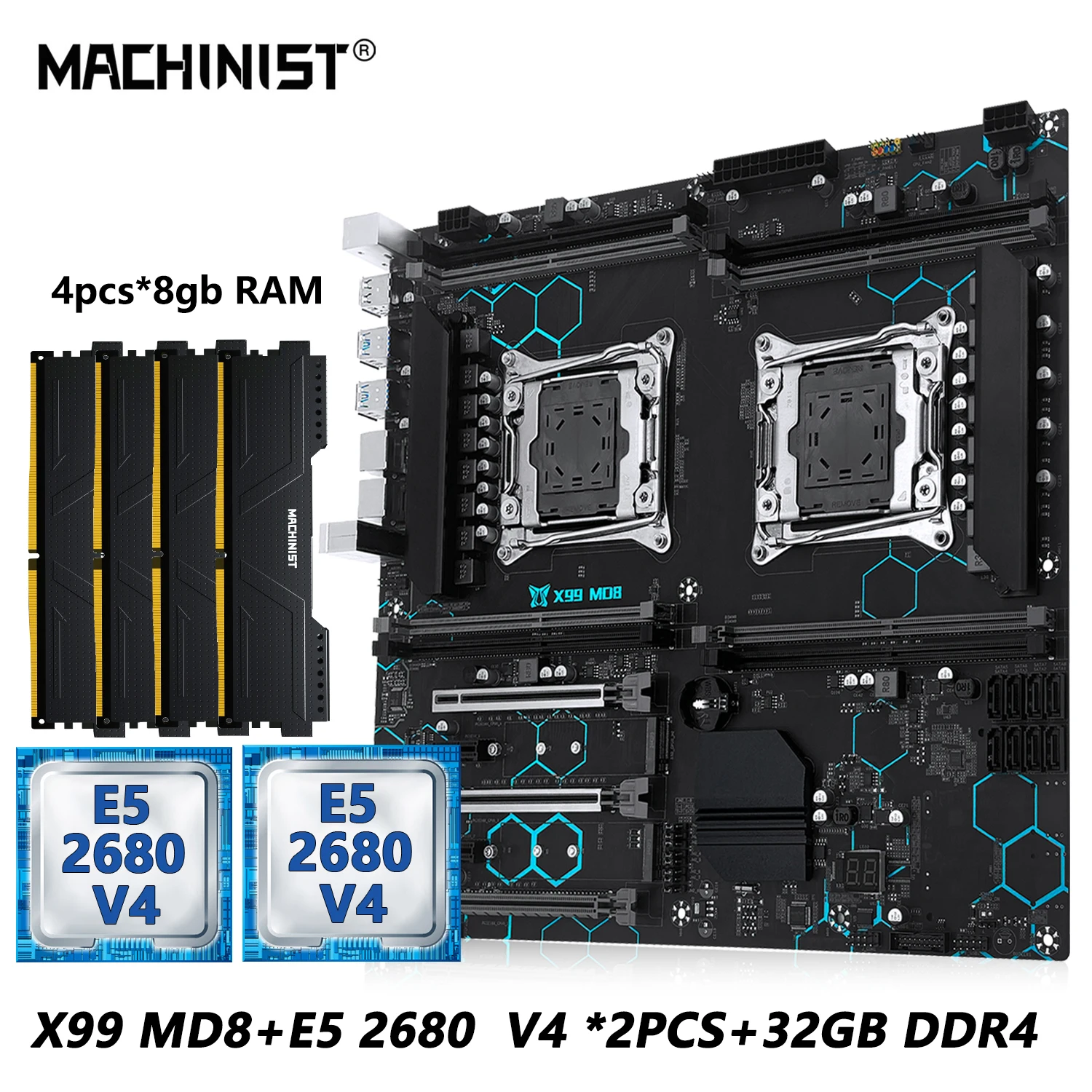

Bundle-3> Motherboards+CPU+RAM: X99 MD8 + E5 2680 V4*2PCS + DDR4 8GB RAM*4PCS,

>>The installation of the E5 V4 processor on the motherboard can only be carried out using ECC memory. Install the E5 V3 processor. Both ECC and non-ECC can be used.

>>Motherboard information:

Brand :MACHINIST.

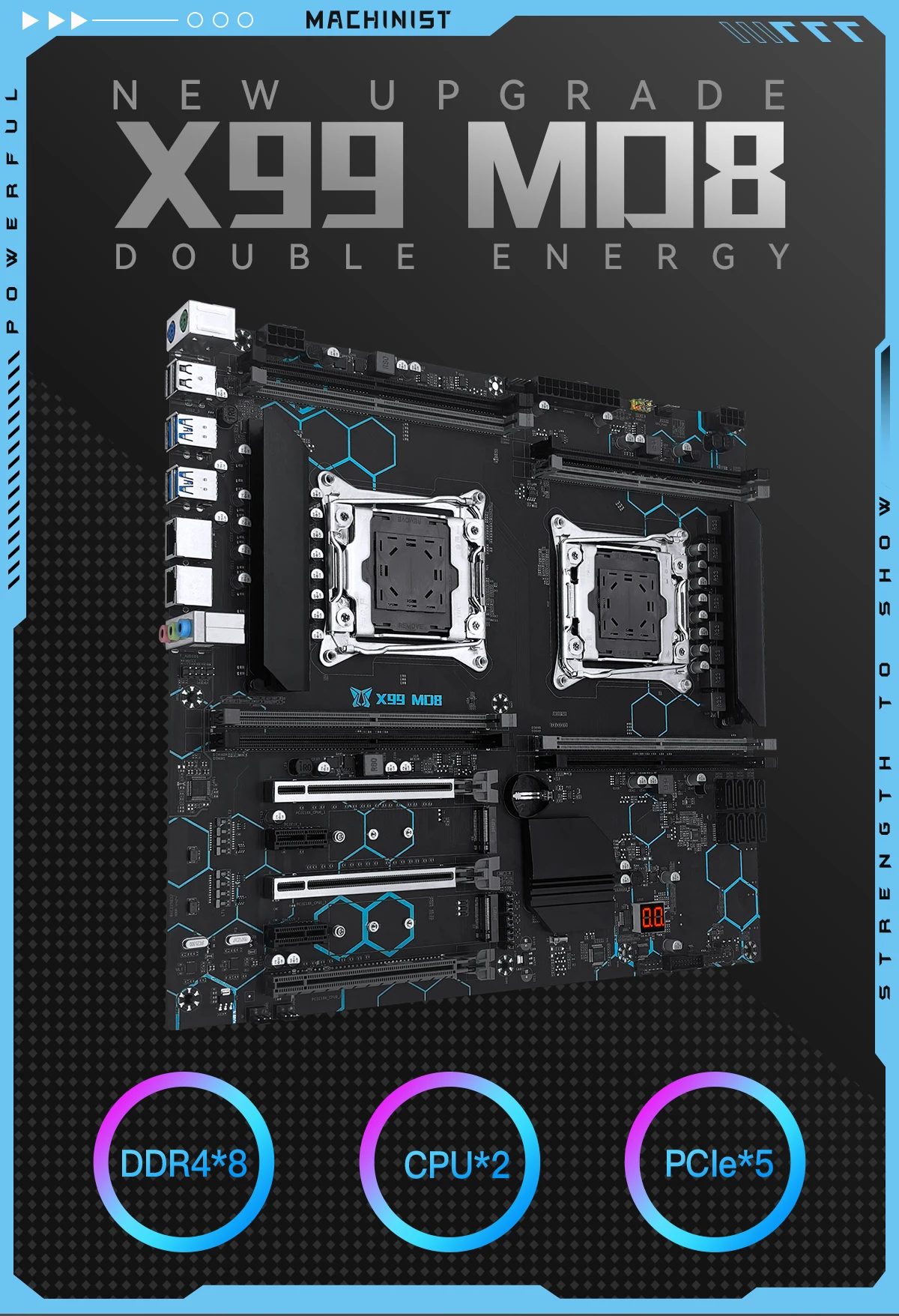

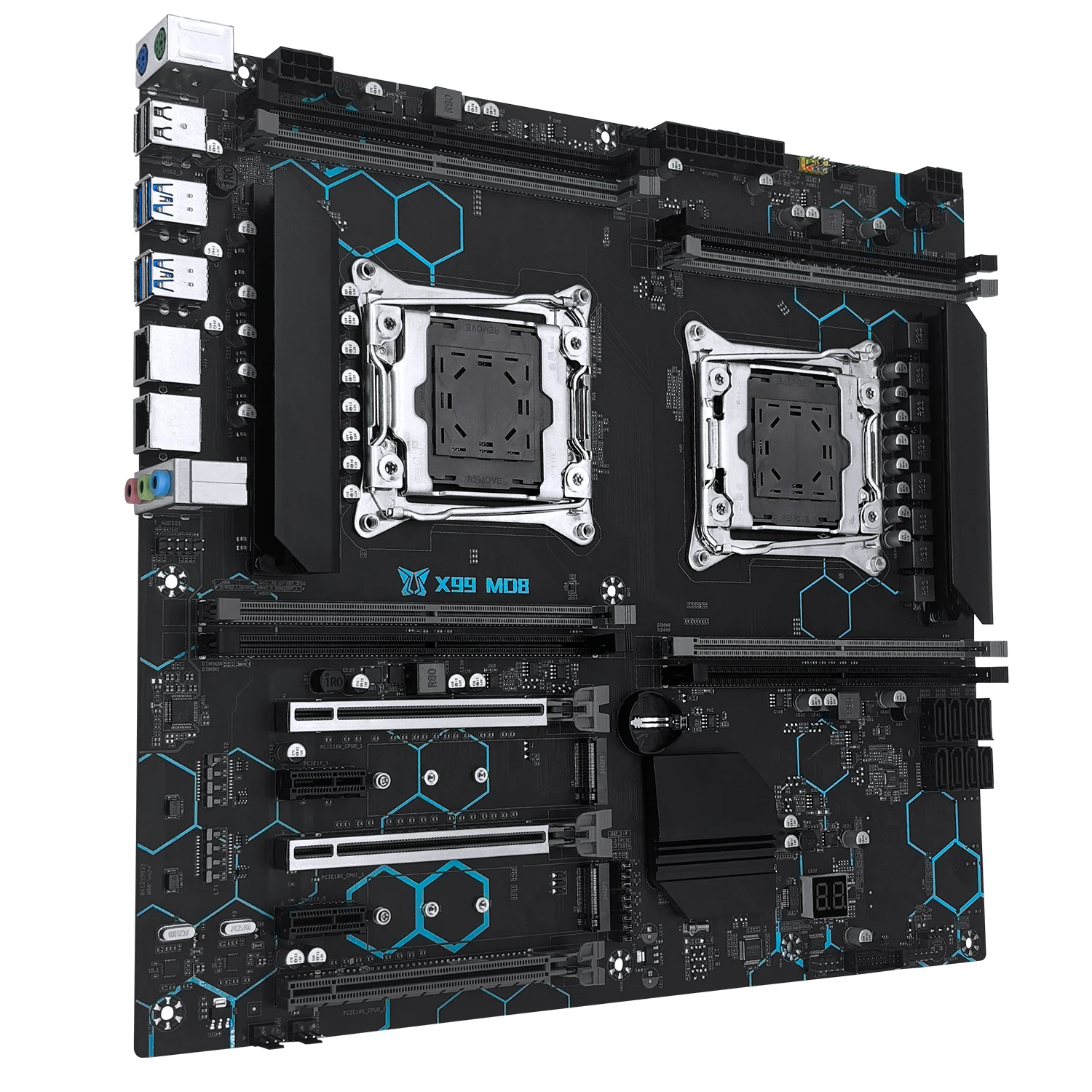

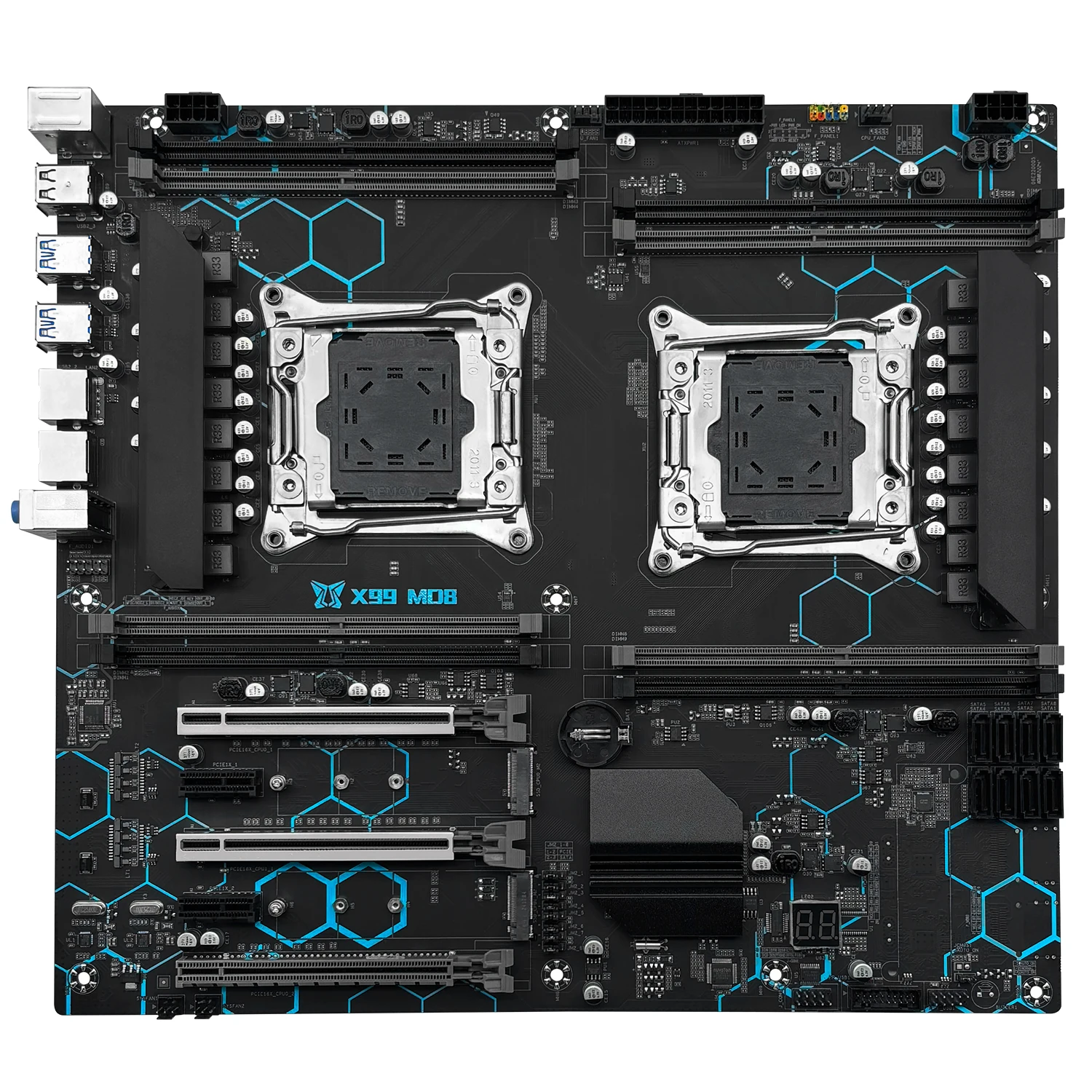

Motherboard model :X99 MD8.

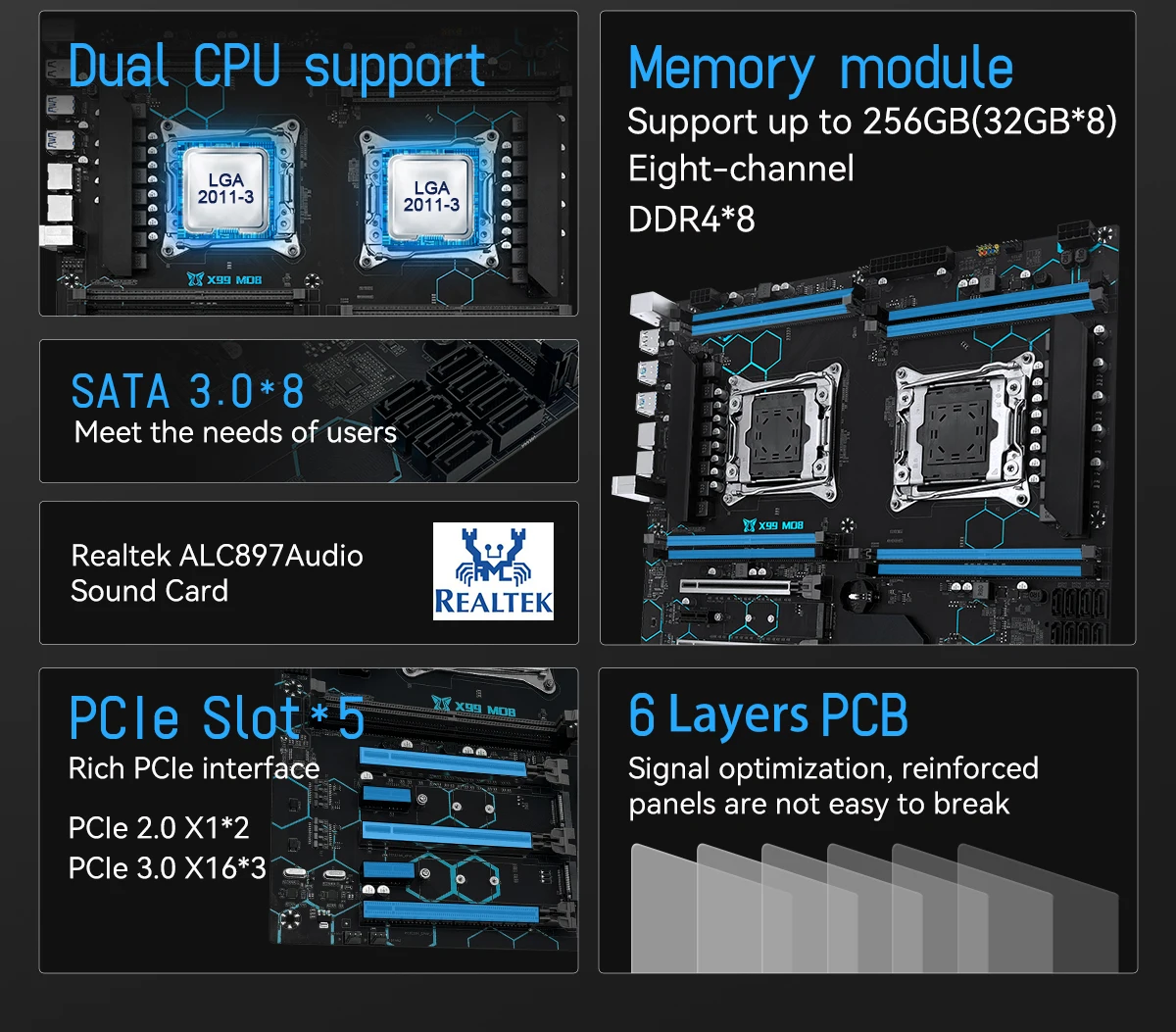

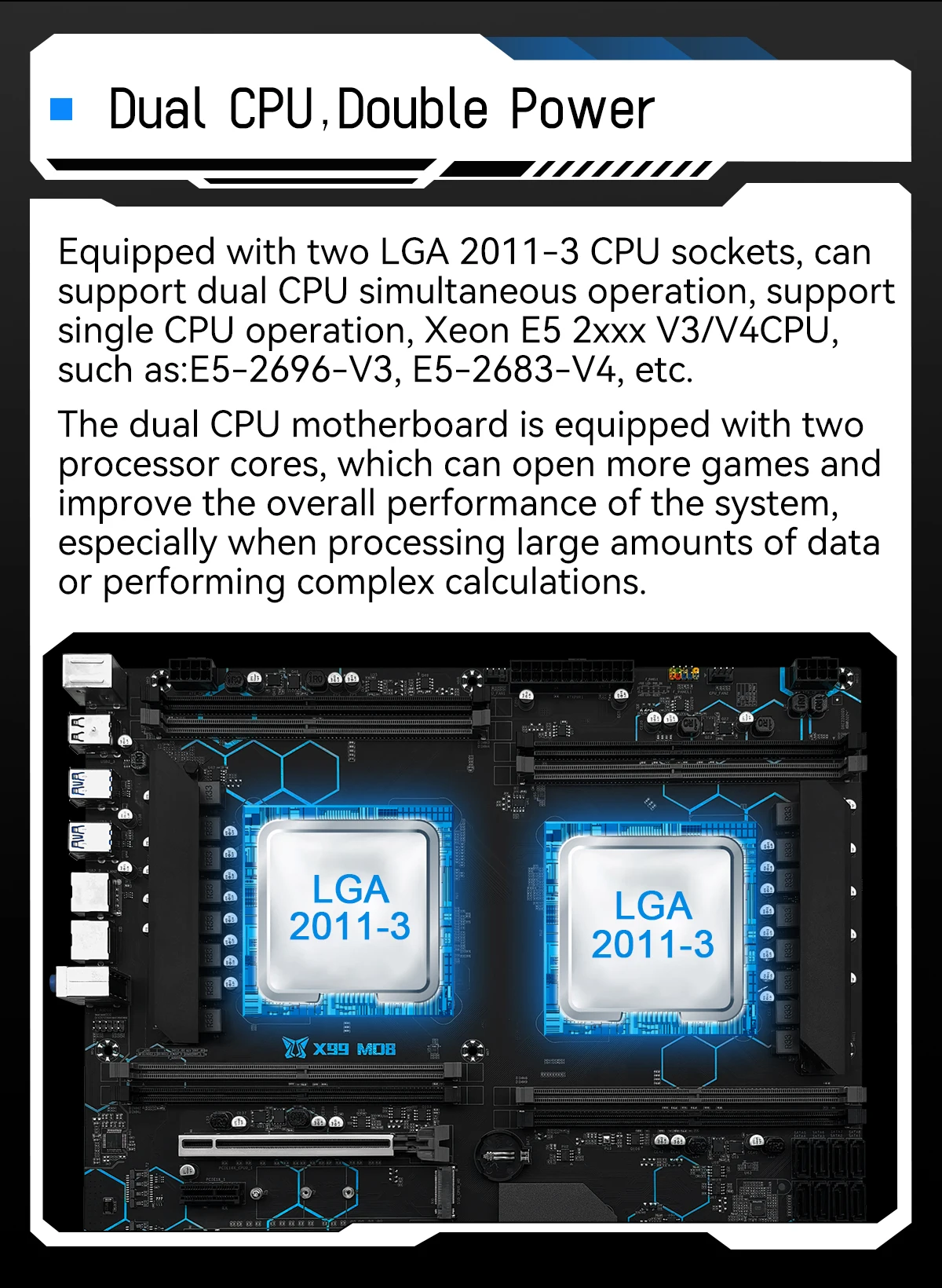

Processor: Supports LGA 2011-3 series, with dual processor interfaces.

Chipset: C612 Chipset.

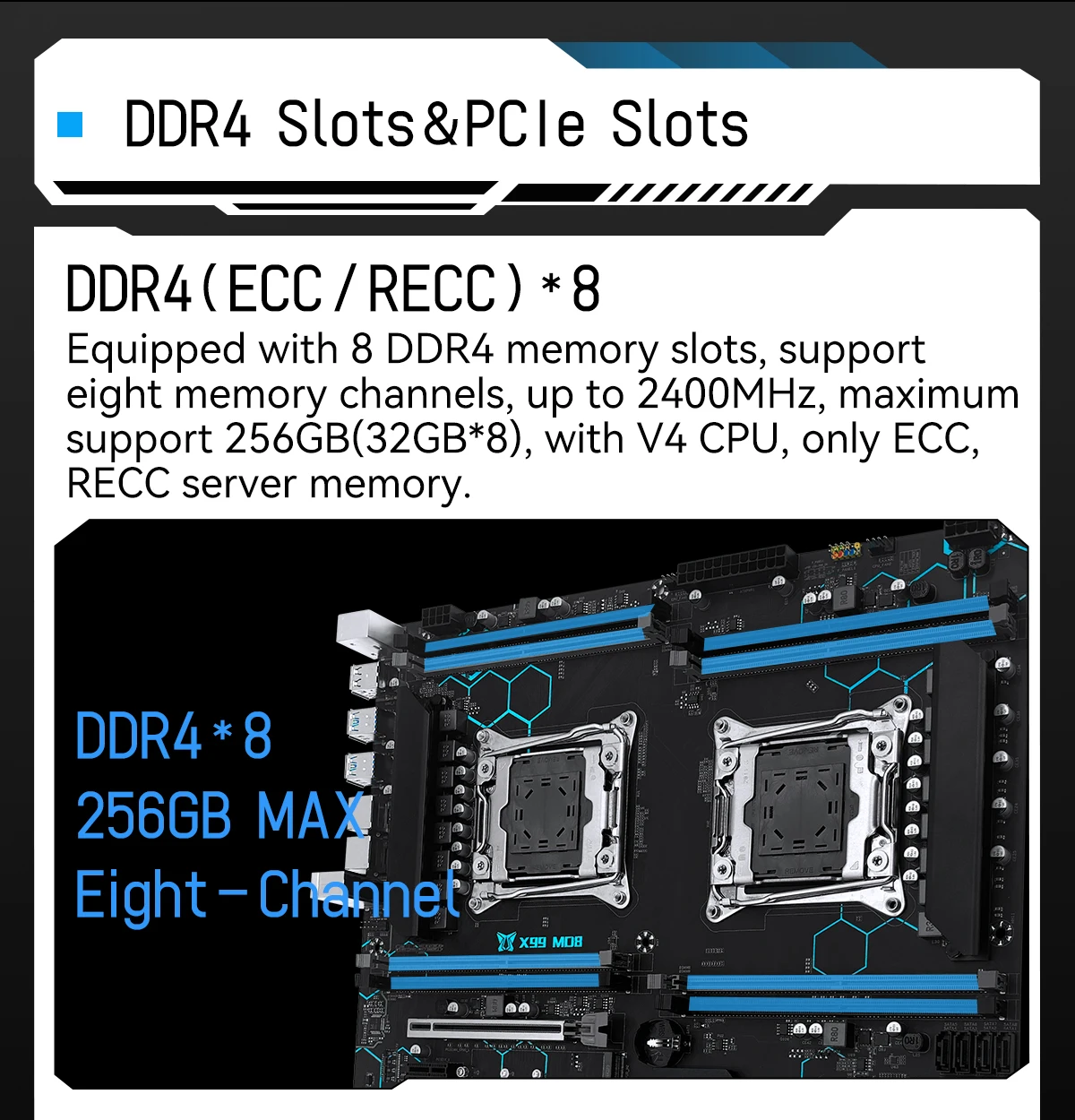

> > Memory:

Technology: Four-channel DDR4. Supports 2133/2400/2666/3000/3200 MHZ.

The maximum capacity is 256GB (32G x 8).

Memory slot :8 * 288-pin DDR4.

Note #1: Please use international brands such as Samsung, Kingston, Sandisk, and Micron. There is incompatibility among other brands.

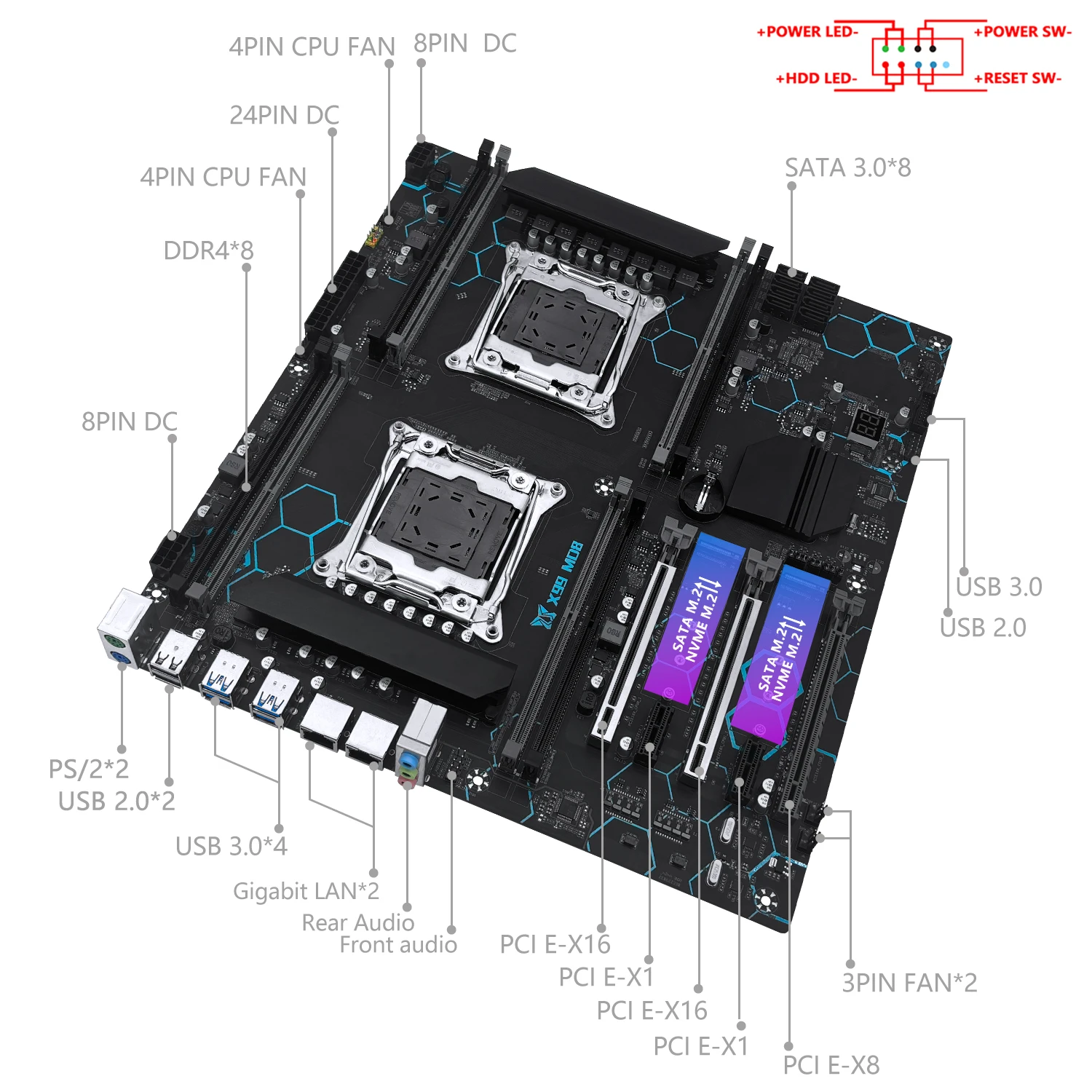

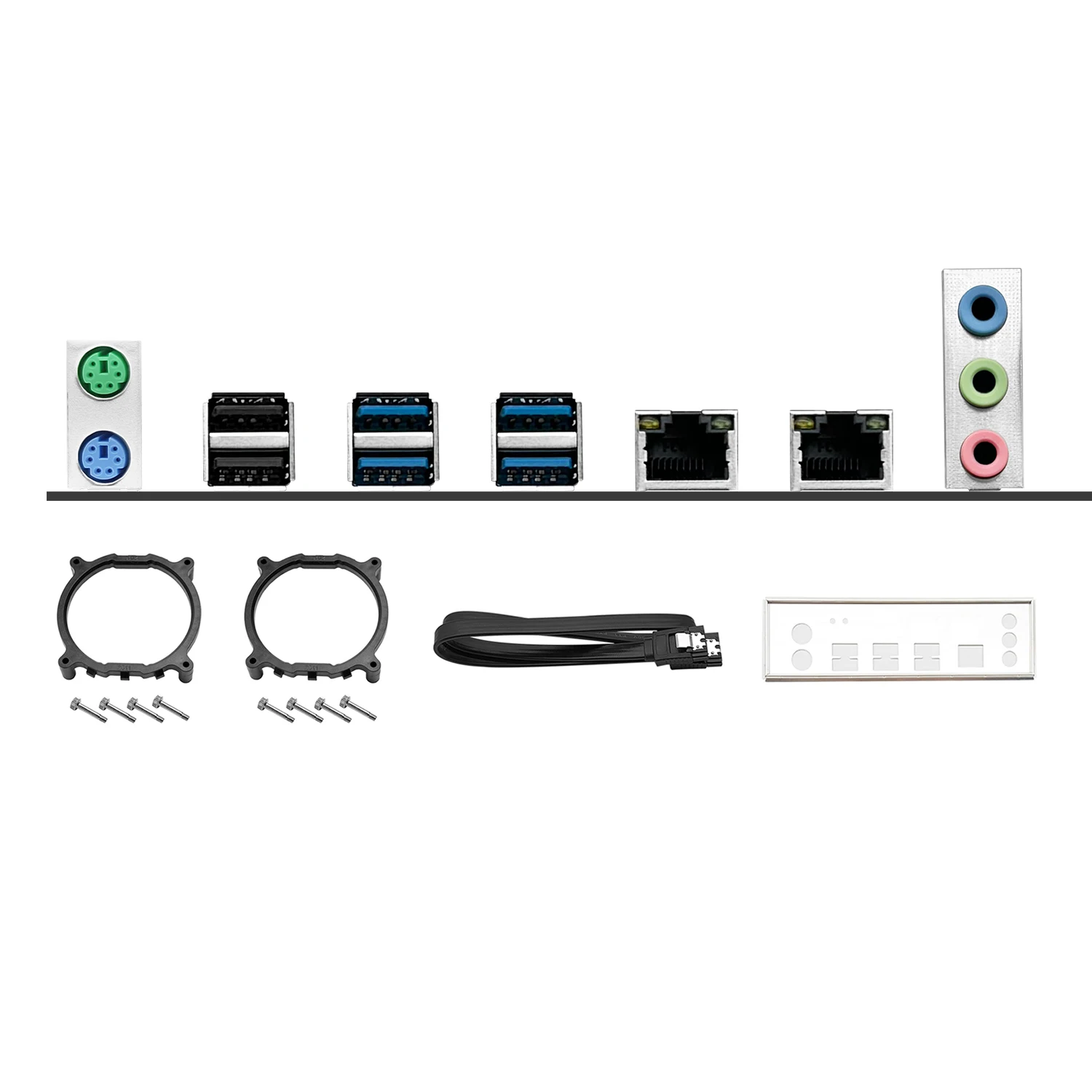

>> Post I/O:

PS/2: 1 KB interface + 1 MS interface

USB interface :6 USB2.0 ports; Two USB3.0 ports

Ethernet: 1 gigabit network card

Audio :1 (Mic-in, Line-out, Line-in).

>> Others:

PS/2: 1 KB interface + 1 MS interface

Ethernet: 2 gigabit network cards

USB interface :2 USB2.0 ports; Four USB3.0 ports

SATA interface :8 (SATA3.0)

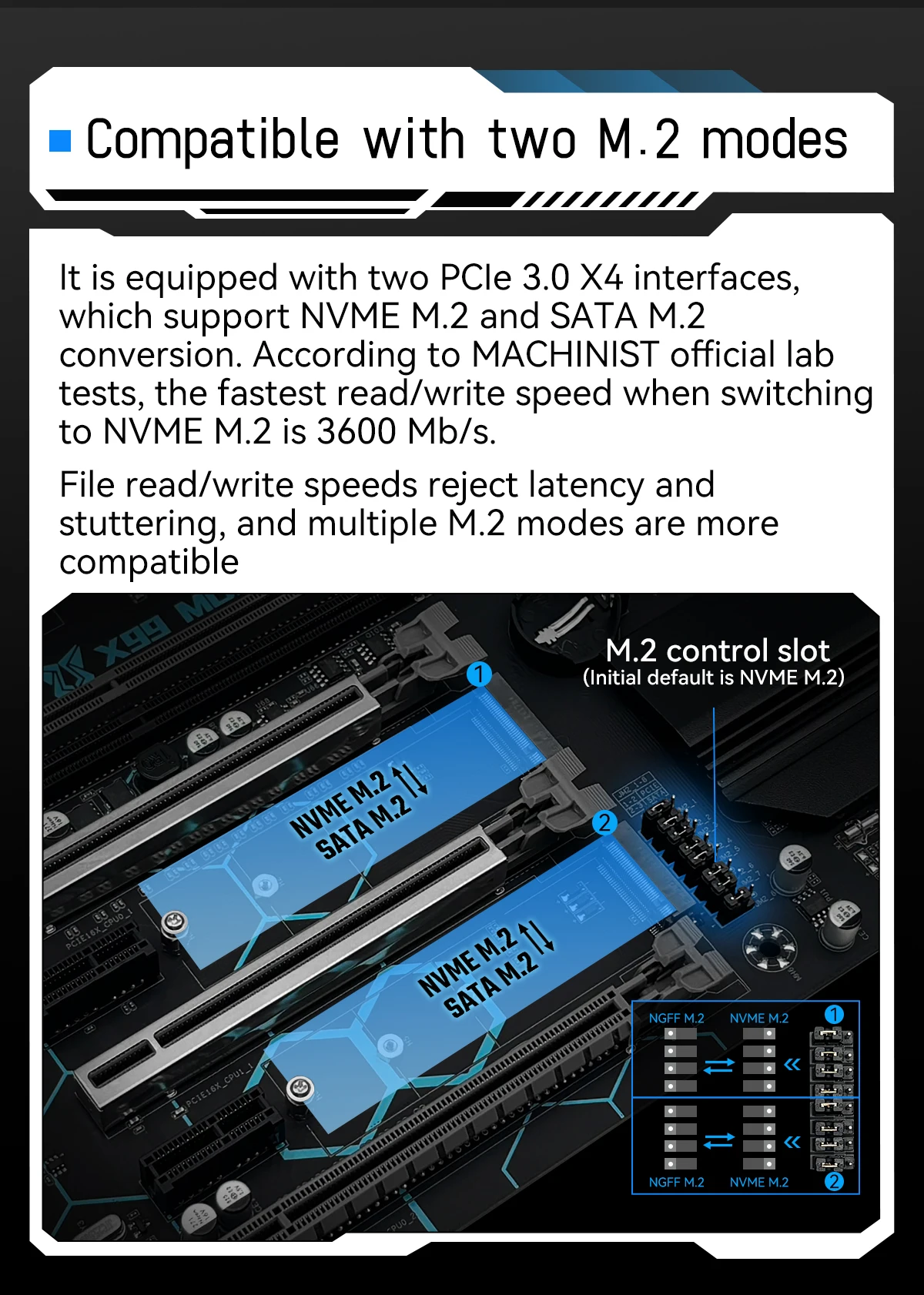

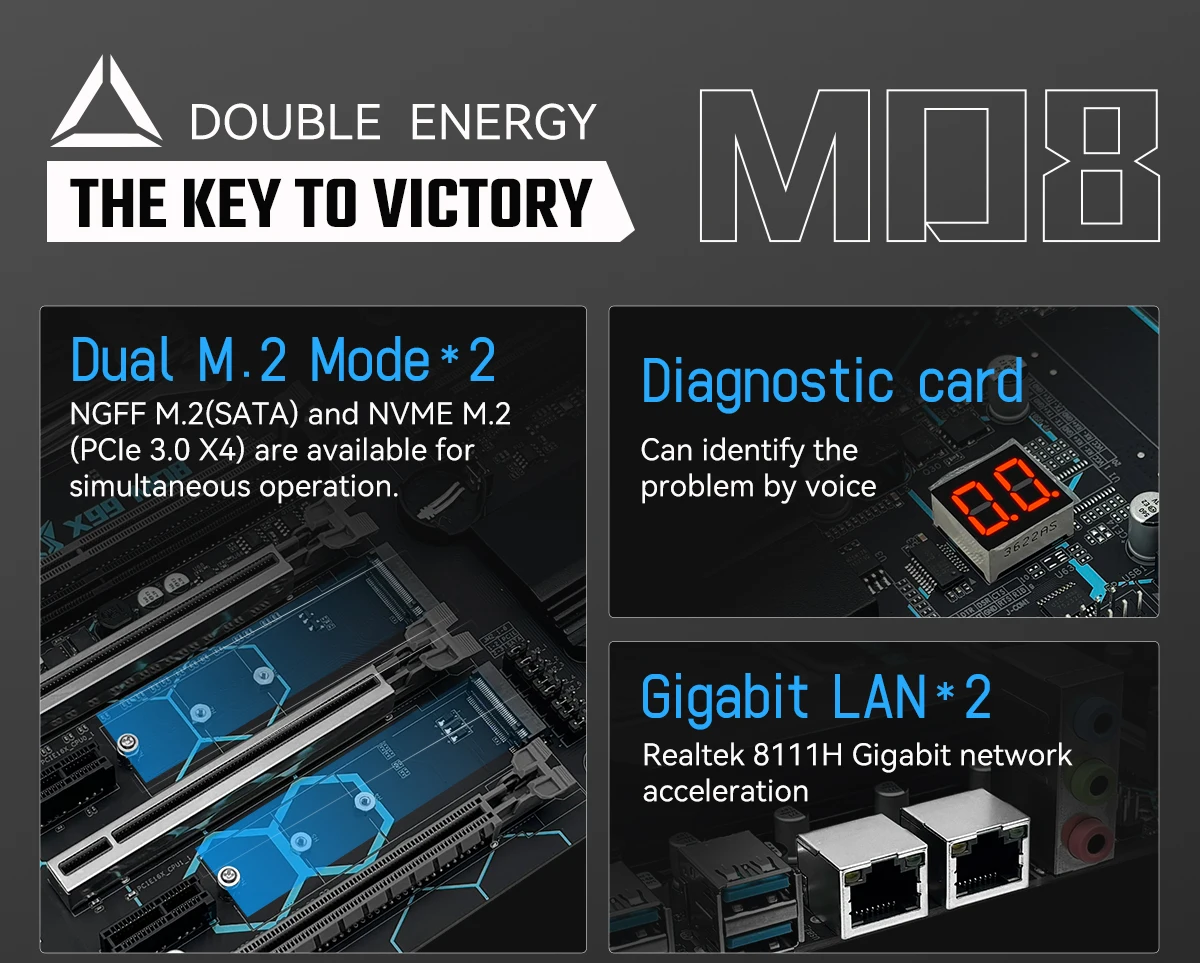

M.2 2 (nvme/sata switching)

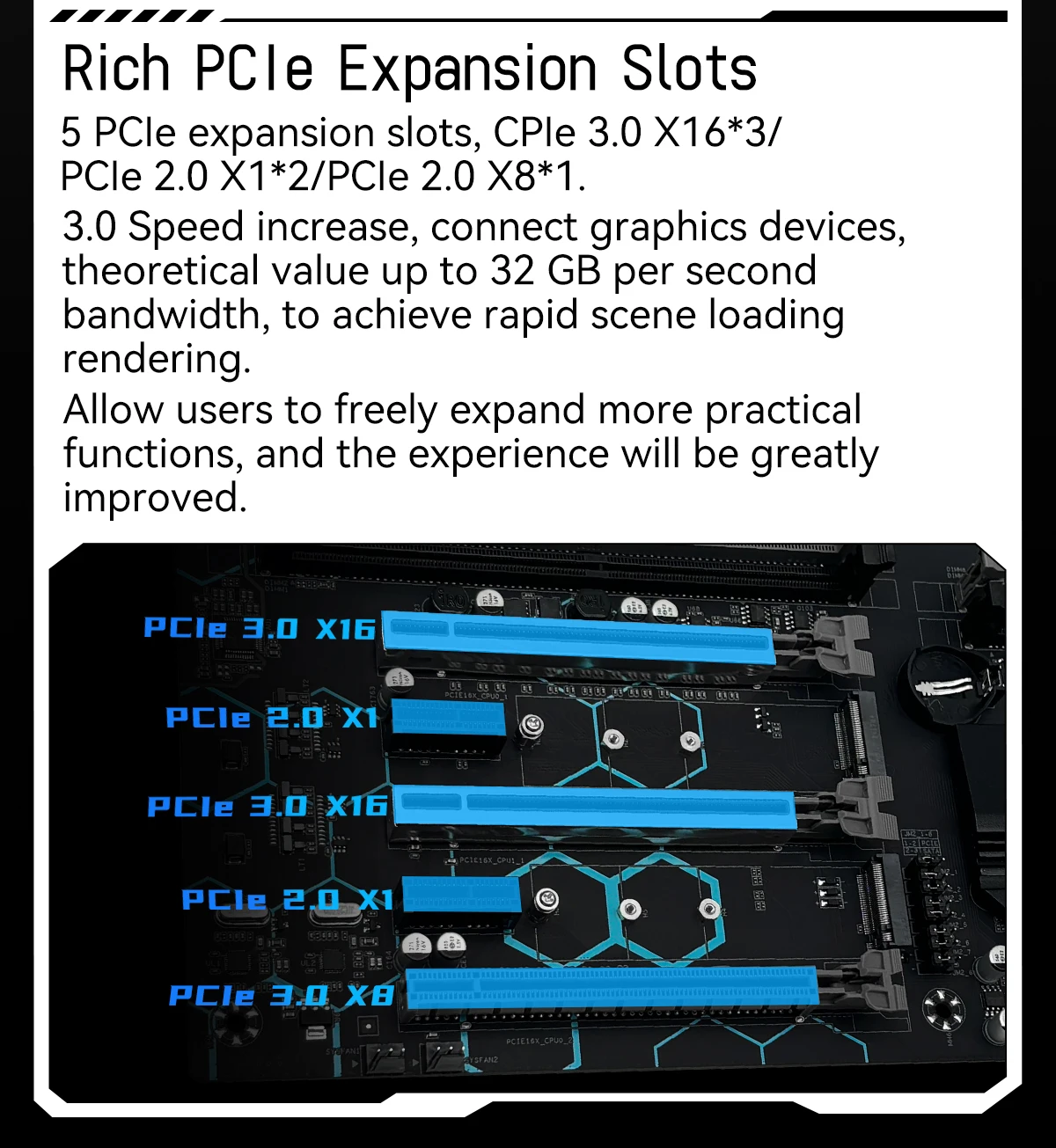

PCIe: 2 PCIe 16x, 2 PCIe 1x, 2 PCIe 8x

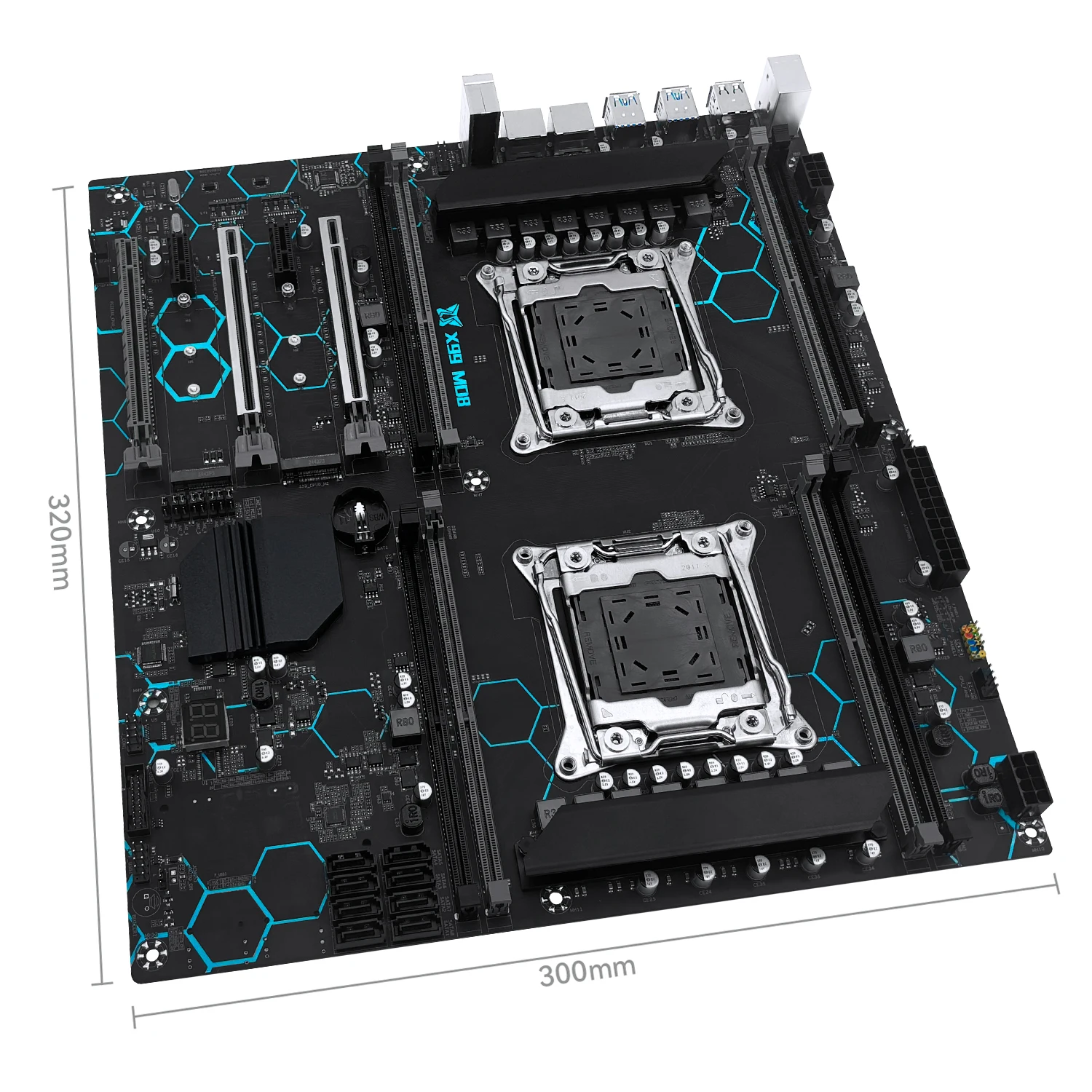

Overall dimensions :320mm * 300mm.

>>Regarding the tariff issue, please ensure that you can solve the customs clearance problem by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>> Note:

The color of the bottom plate of the tank may vary by batch, but it will not affect the use of the product. The product is constantly being optimized and upgraded.

(2) Due to manual measurement, an error of 1-3mm is allowed.

(3) Due to different displays and different lighting conditions, the picture may not show the actual color of the object. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply)

(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics department requires that the use of this battery be prohibited.
