- High-concerned chemical: None
- RAID Supported: No
- Processor compatibility: Intel Xeon E Series
- Ports: Ethernet
- Usage Scenario: Gaming,Audio & Video,Office
- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector
- Back I/O Ports: 1x RJ45,4 x USB 2.0
- Support USB Type: USB 2.0
- Onboard LAN: 1x RJ45
- Supports M.2 SSD: 2242,2280
- Number of M.2: 2
- Number of SATA Ports: 2
- Storage Interface Type: SATA 2,M.2 (NVMe),M.2 (SATA)
- Number of PCI: 2
- PCI – E standards: PCI-E 3.0
- Number Of Memory Slots: 4
- Support Memory Type: DDR3
- Memory channel: Double
- Package: Yes
- Maximum Ram Capacity: 128 GB
- Chipset Manufacturer: Intel
- Battery Included: No
- With CPU: Yes
- Chipset: h55
- Application: Desktop
- Socket Type: LGA 2011-3
- Brand Name: SOYO
- Special Features: None
- Origin: Mainland China

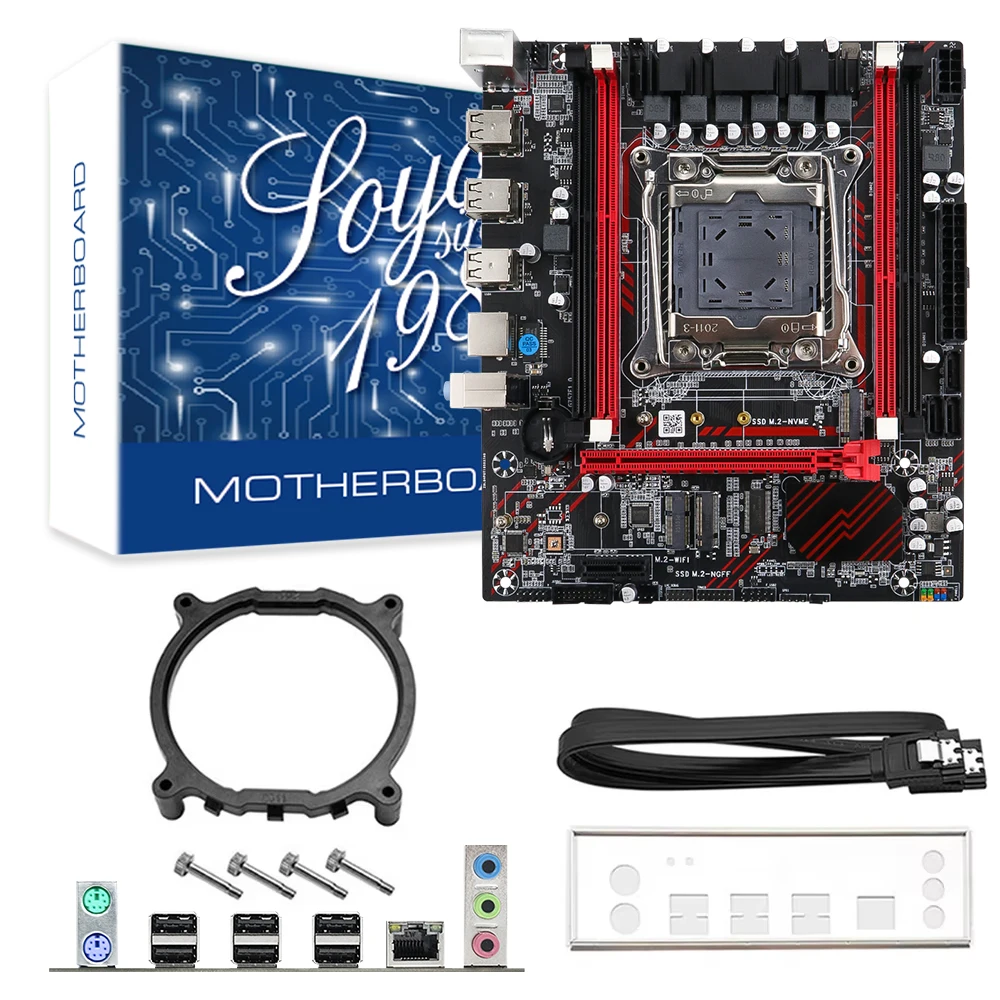

Motherboard: 1*SY-X99 D3
Motherboard+CPU: 1*SY-X99 D3+1*E5 2673 V3 CPU
Motherboard+CPU+RAM: 1*SY-X99 D3+1*E5 2673 V3 CPU+2*DDR4 16G

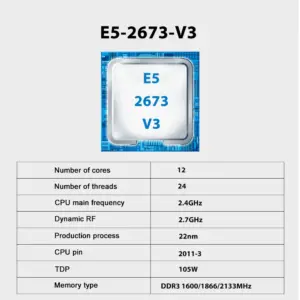

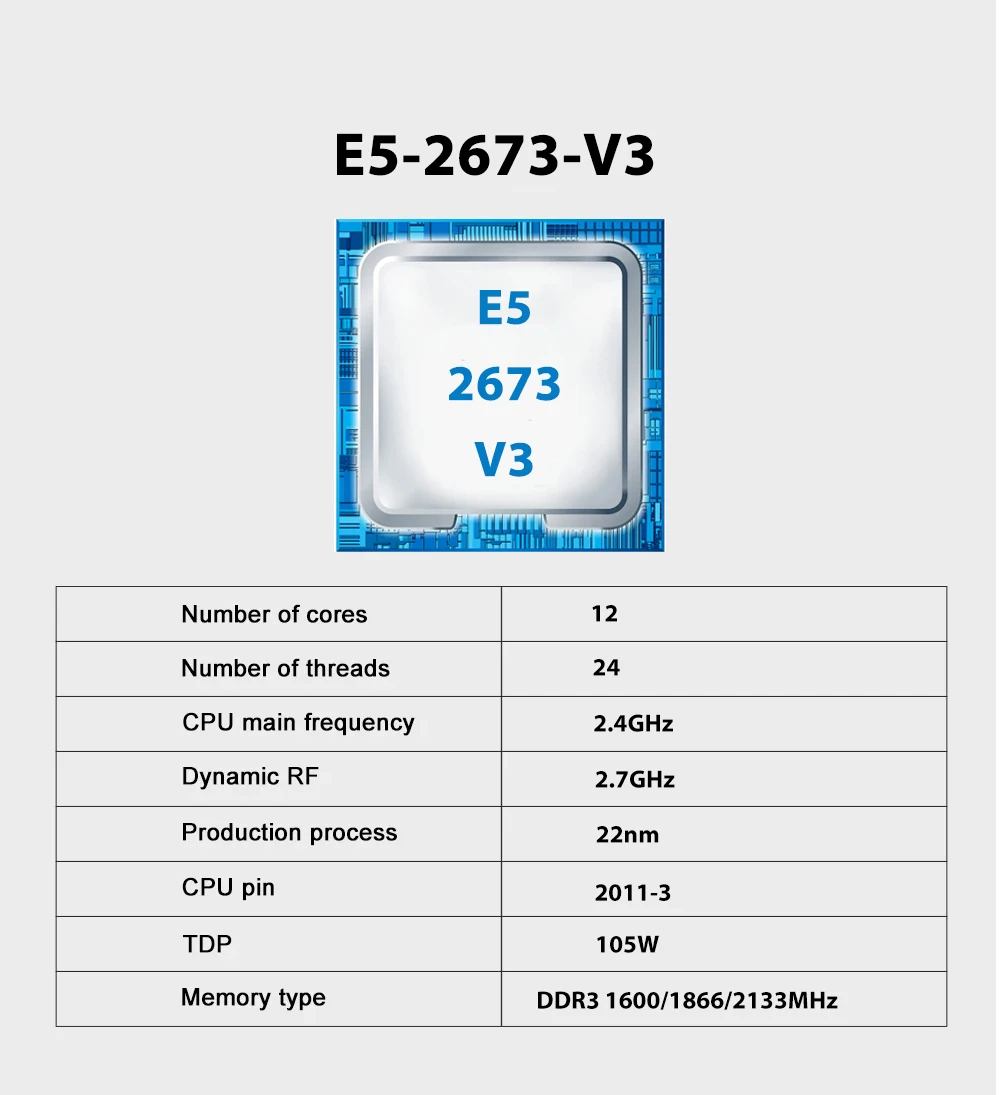

CPU:
Processor Series: Xeon E5 2673V3 (12 cores/24 threads)
Main frequency: 2.4GHz up to 2.7GHz
Socket type: LGA 2011-3
Technology: 22nm

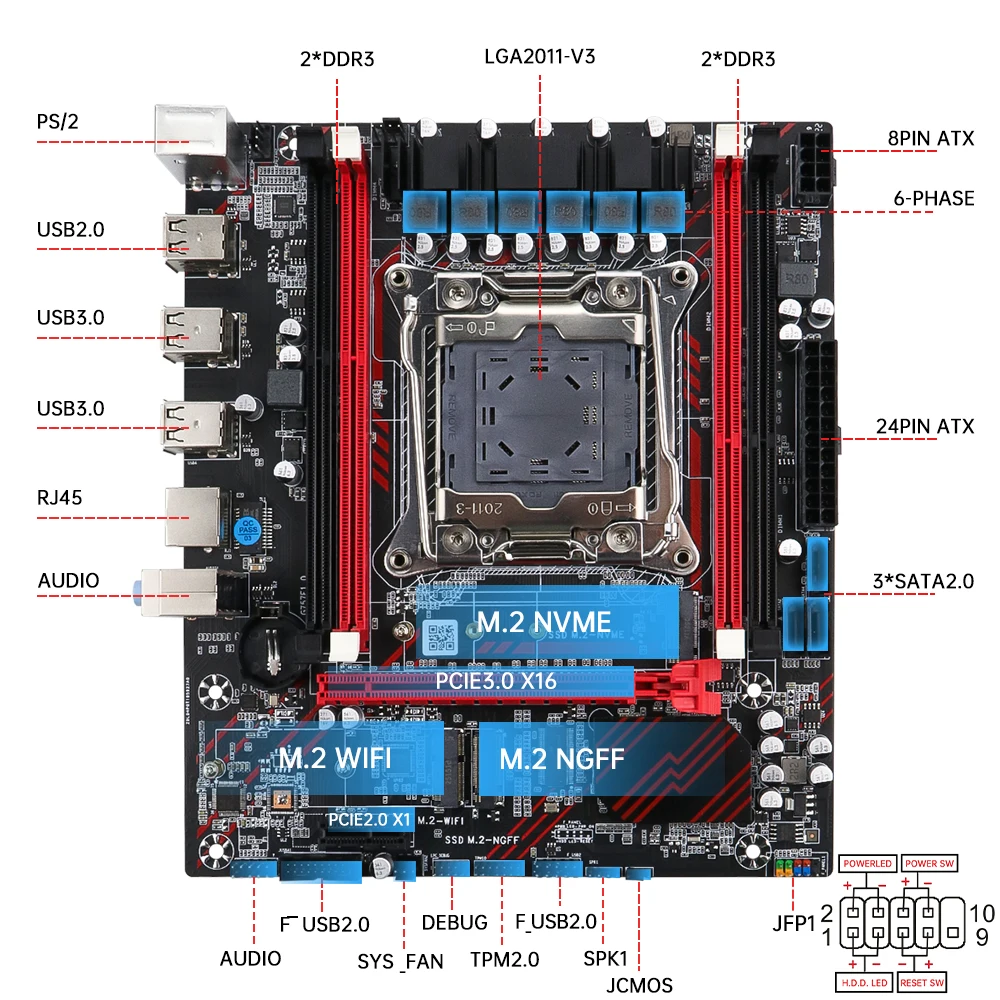

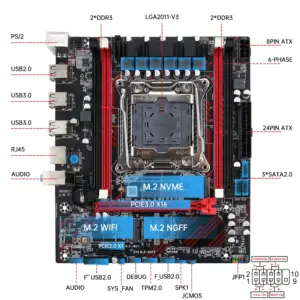

**Product Specifications**
**CPU Support**
– Intel LGA 2011 Socket
– Compatible with Intel Xeon E5 V3 Series Processors (e.g., E5-2629 V3, E5-2673 V3, E5-2676 V3, E5-2687 V3)
**Chipset**
– Intel HM55 Chipset

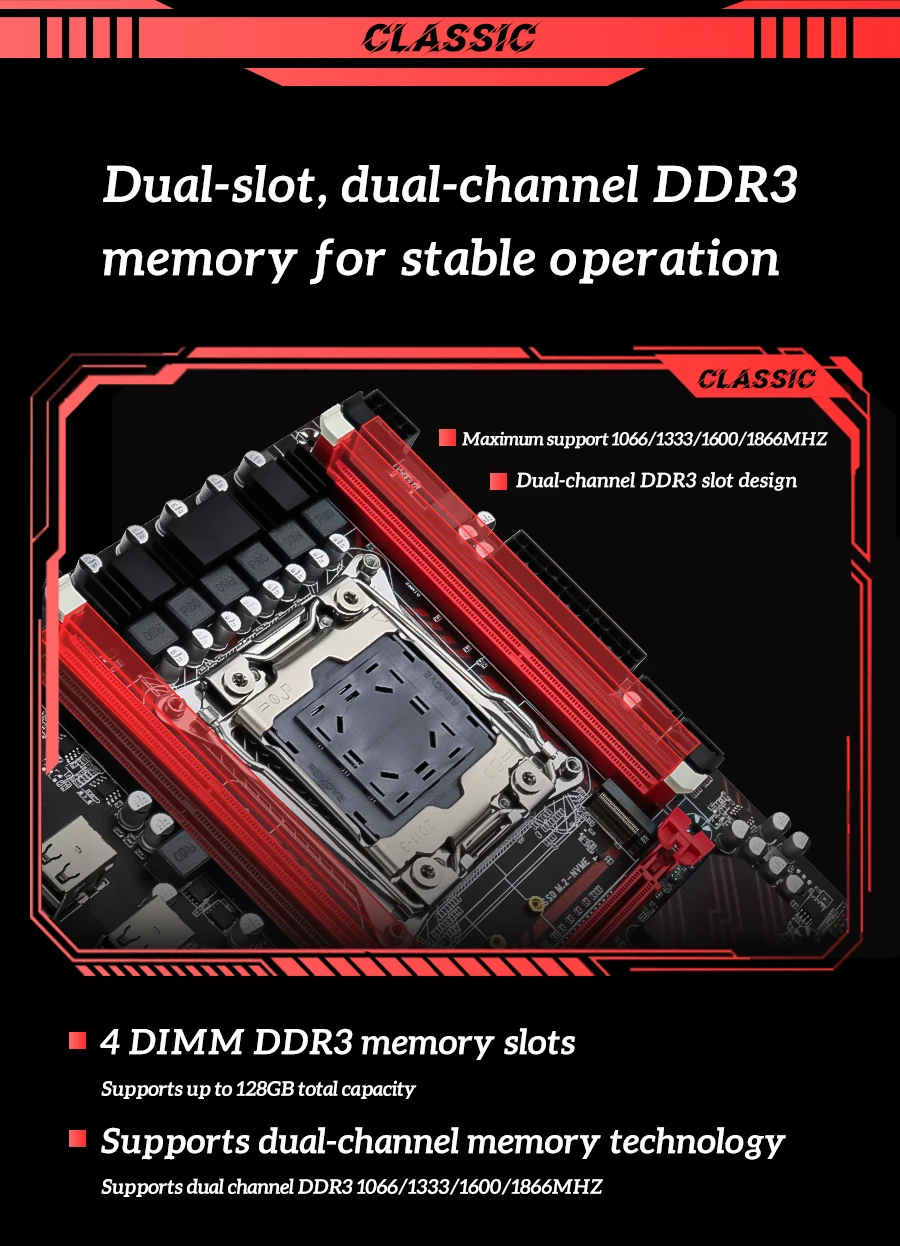

**Memory**
– 4x DDR3 DIMM Slots (Dual-Channel)
– Speed: 1066/1333/1600/1866 MHz
– Maximum Capacity: 128GB (32GB per DIMM)
– *Black slots: Primary channel; Red slots: Secondary channel*
**Storage**
– 1x M.2 NVME Slot
– 1x M.2 NGFF Slot
– 3x SATA 2.0 (3 Gb/s) Ports
**I/O Ports**

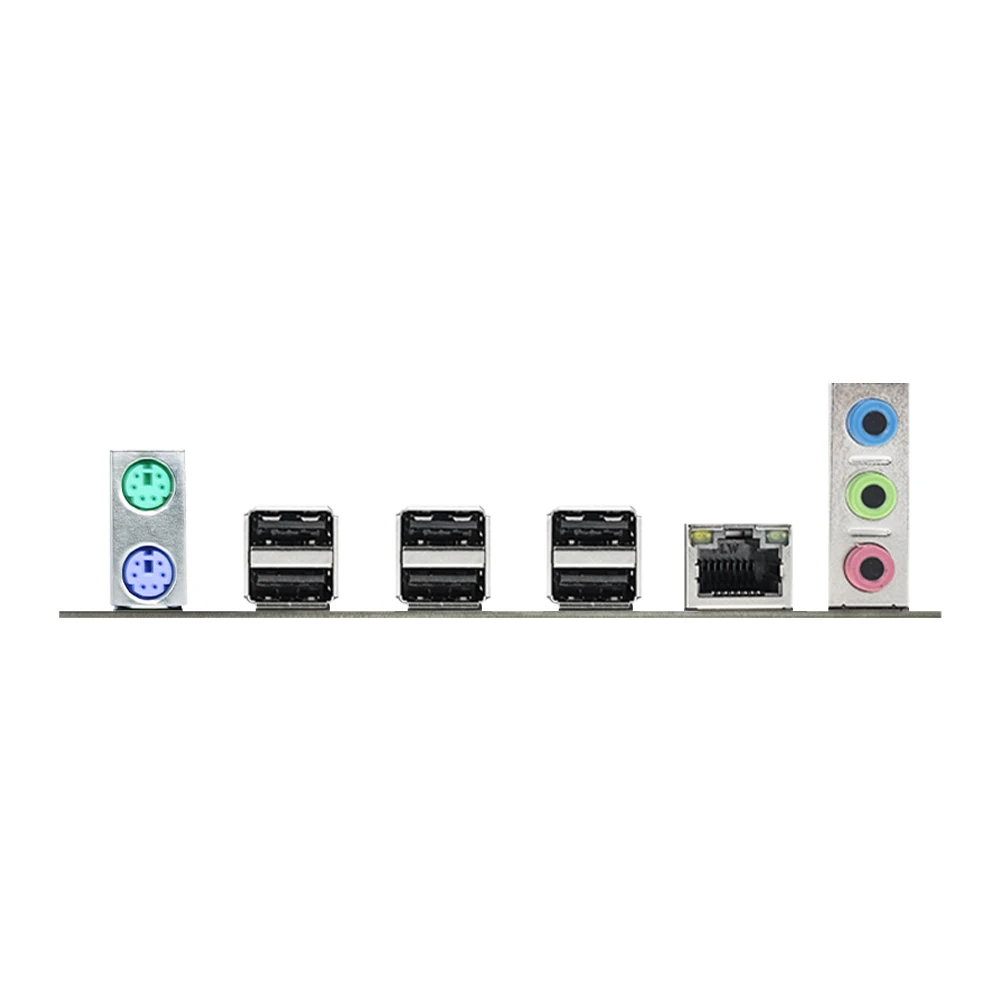

– **Rear Panel:**
– 6x USB 2.0 Ports
– 1x RJ45 Gigabit LAN Port
– 1x PS/2 Keyboard Port
– 1x PS/2 Mouse Port
– Audio Ports: Line Out, Line In, Mic In
– **Internal Headers:**
– 2x USB 2.0 Headers (Supports 4x USB 2.0 Ports)
– 1x Front Audio Header (F_AUDIO)
**Expansion Slots**
– 1x PCIe x16 Slot
– 1x PCIe x1 Slot
**Networking**
– Realtek RTL8111H Gigabit LAN
– Supports PXE Boot and Wake-on-LAN
– 1x M.2 WIFI Slot (for wireless module)
**Audio**
– Realtek HD Audio Codec (Integrated)
**Power & Cooling**
– 1x 24-Pin ATX Power Connector
– 1x 8-Pin ATX12V Power Connector
– 2x 4-Pin CPU_FAN Headers
– 1x 3-Pin SYS_FAN Header
**Additional Features**

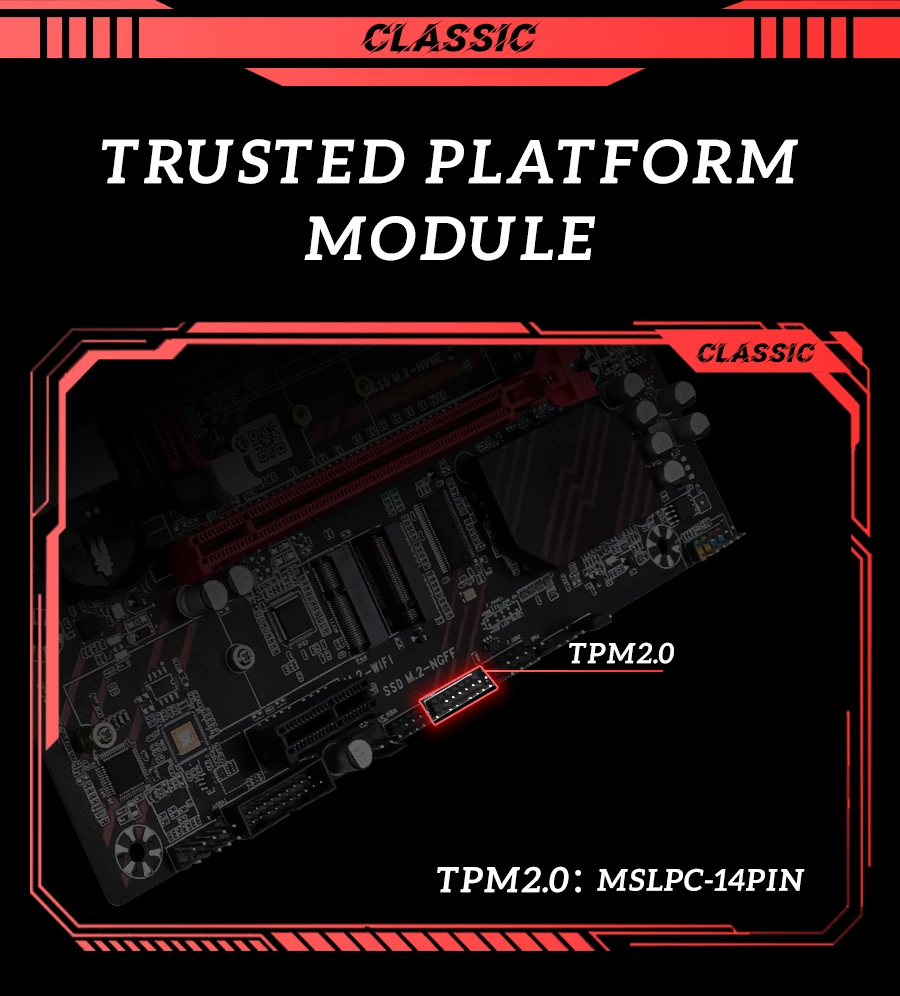

– 1x TPM Header (External Security Module)
– 1x FPANEL Header (Front Panel Controls)
– 1x 4-Pin SPEAK Header (System Speaker)
– 1x BAT Header (CMOS Battery)
– 2x 5-Pin Diagnostic Card Headers
**Form Factor**
– Micro-ATX Design (190mm x 216mm)
– 4-Layer PCB Construction
**Operating System Support**
– Windows 7/10/11
**Power Consumption**
– Idle: 50-70W
– Full Load: 180-260W

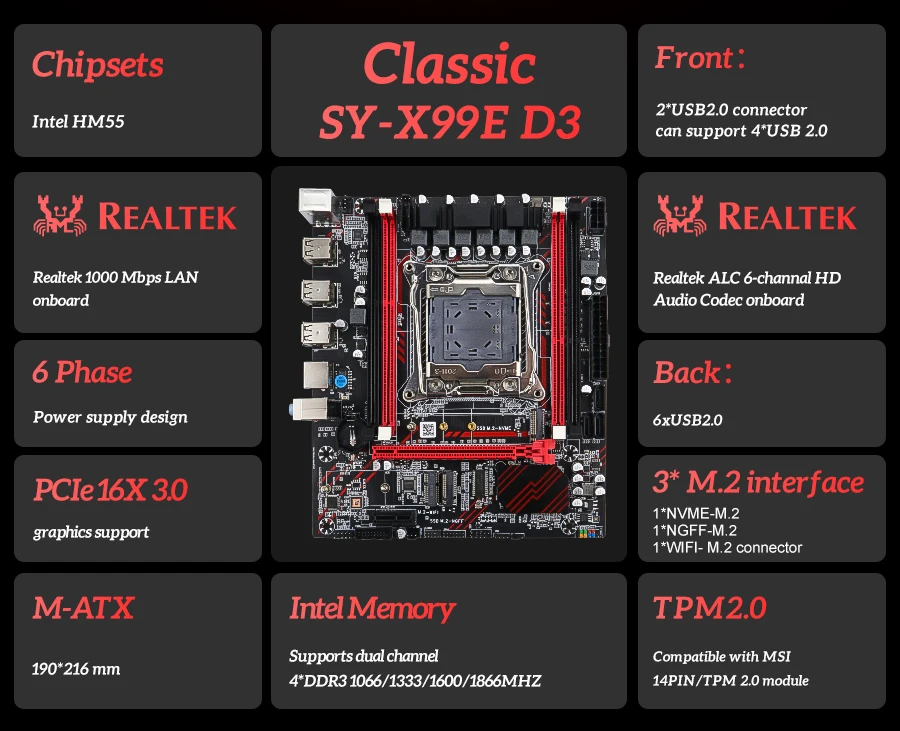

**Key Specifications**
– **Dual-Channel DDR3**: Up to 128GB capacity
– **Dual M.2 Support**: NVME + NGFF for high-speed storage
– **Legacy Connectivity**: PS/2 + 10x USB 2.0 ports (6 rear + 4 front)
– **Server-Grade**: Xeon E5 V3 CPU compatibility
– **Expandable WIFI**: Dedicated M.2 slot for wireless modules
3 reviews for SOYO X99 D3 Gaming Motherboard Set With Intel LGA2011-3 E5 2673 V3 CPU DDR3 2*16GB ECC RAM Memory M.2 NVME Computer components
Only logged in customers who have purchased this product may leave a review.
| Bundle | Motherboard+CPU, Motherboard+CPU+RAM, Motherboards |
|---|---|
| High-concerned chemical | None |
| RAID Supported | No |
| Processor compatibility | Intel Xeon E Series |
| Ports | Ethernet |
| Usage Scenario | Gaming,Audio & Video,Office |
| Onboard Connectors & Header | 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector |
| Back I/O Ports | 1x RJ45,4 x USB 2.0 |
| Support USB Type | USB 2.0 |
| Onboard LAN | 1x RJ45 |
| Supports M.2 SSD | 2242,2280 |
| Number of M.2 | 2 |
| Number of SATA Ports | 2 |
| Storage Interface Type | SATA 2,M.2 (NVMe),M.2 (SATA) |
| Number of PCI | 2 |
| PCI - E standards | PCI-E 3.0 |
| Number Of Memory Slots | 4 |
| Support Memory Type | DDR3 |
| Memory channel | Double |
| Package | Yes |
| Maximum Ram Capacity | 128 GB |
| Chipset Manufacturer | Intel |
| Battery Included | No |
| With CPU | Yes |
| Chipset | h55 |
| Application | Desktop |
| Socket Type | LGA 2011-3 |
| Brand Name | SOYO |
| Special Features | None |
| Origin | Mainland China |
J***z (verified owner) –
Excellent, recommended as it came as I requested.
M***s (verified owner) –
Mbo is working, and it is looking good. I would reccommend, but be careful with ports, they are easy to pull off from board, and it comes without post speaker(post sound is really annoying for this board). Also cpu is working very well, would recommend, but for cpu to work under full load you have to buy a decent cooler. Ram is working perfectly.
AliExpress Shopper (verified owner) –
super fast, excellent performance
