- High-concerned chemical: None
- Type: Mini
- Model Number: TOQ6-63
- is_customized: Yes
- Brand Name: TOMZN
- Is Smart Device: No
- Origin: Mainland China
- Model number: TOQ6

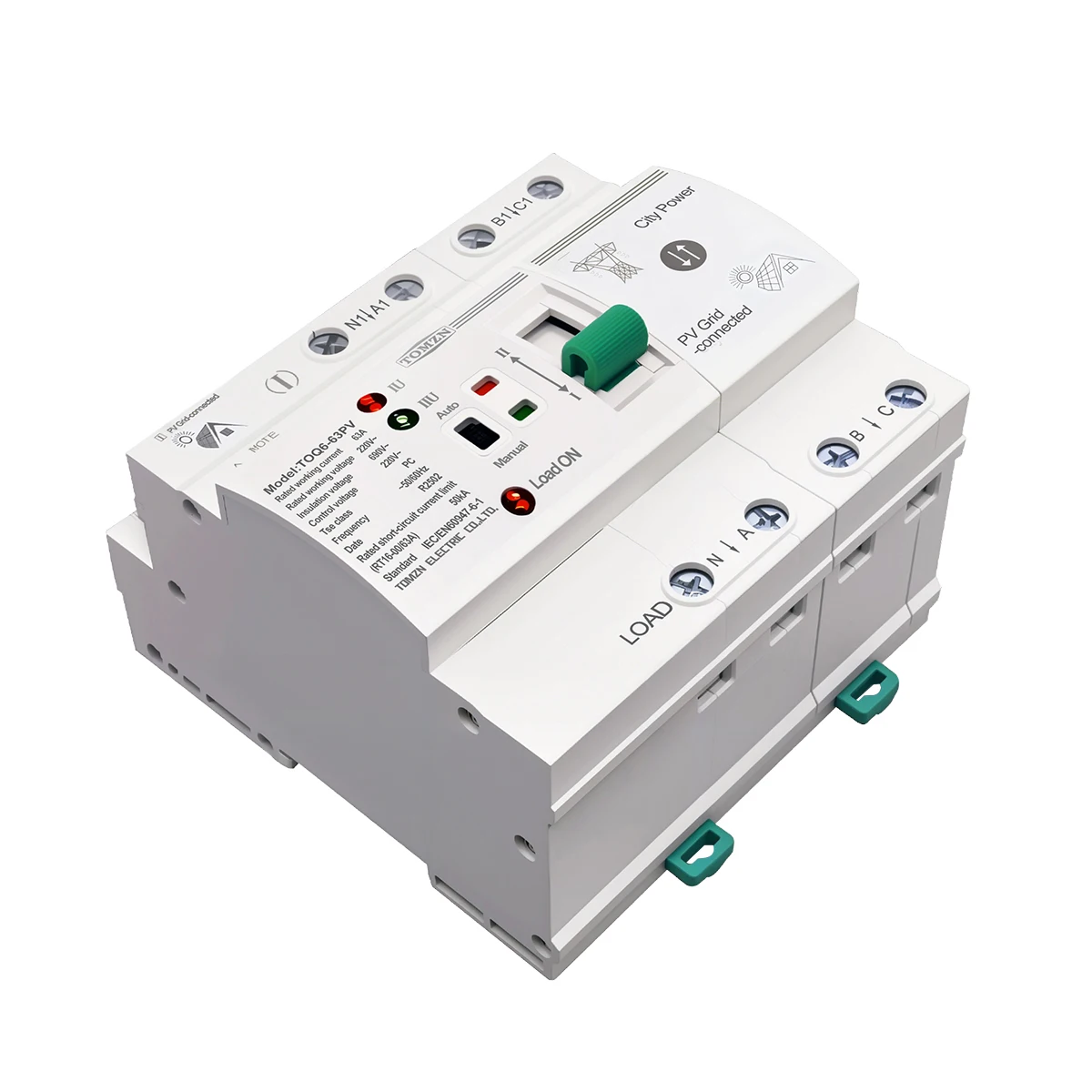

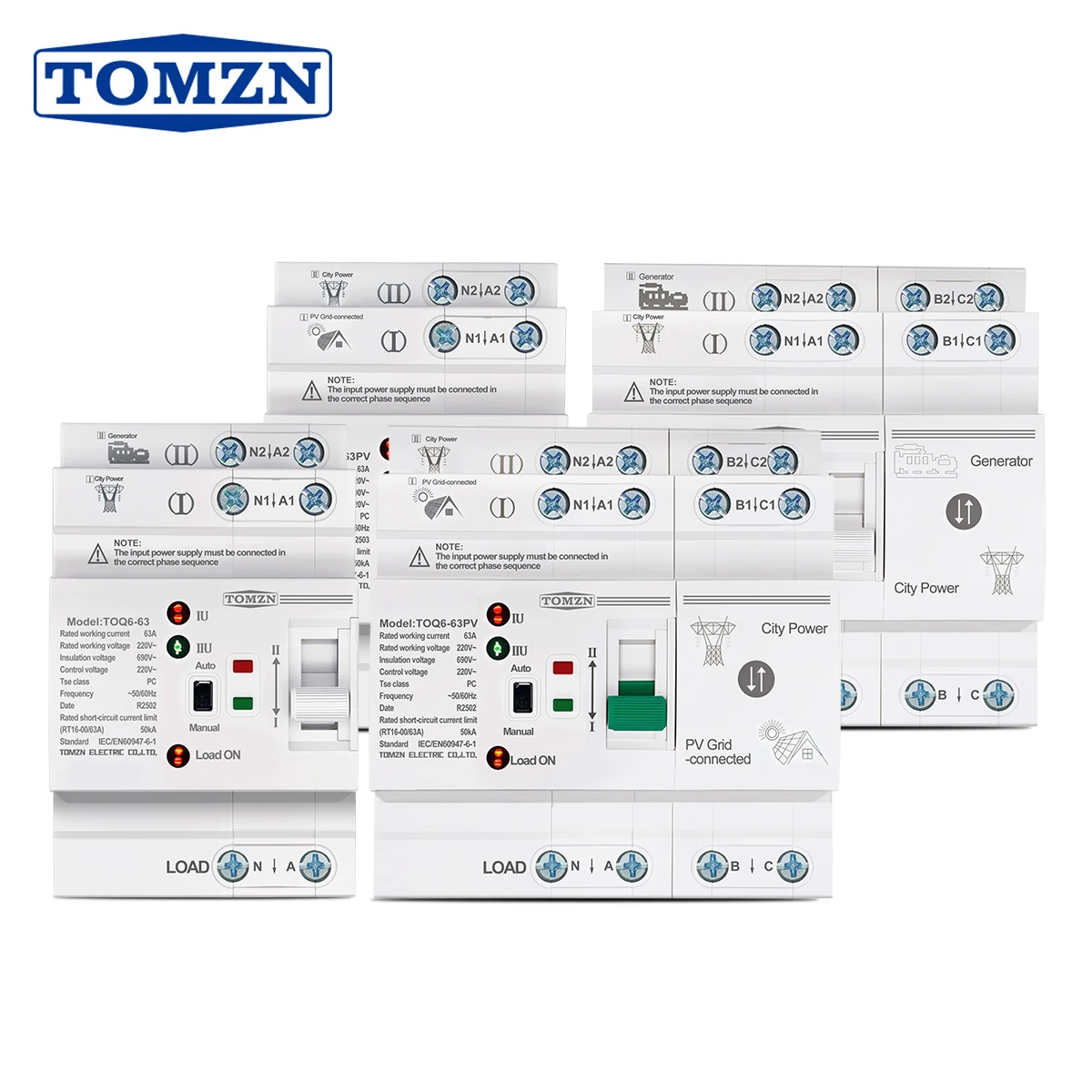

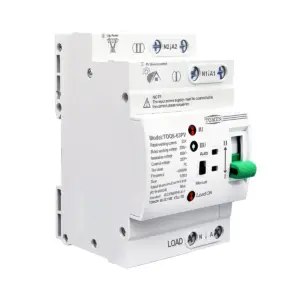

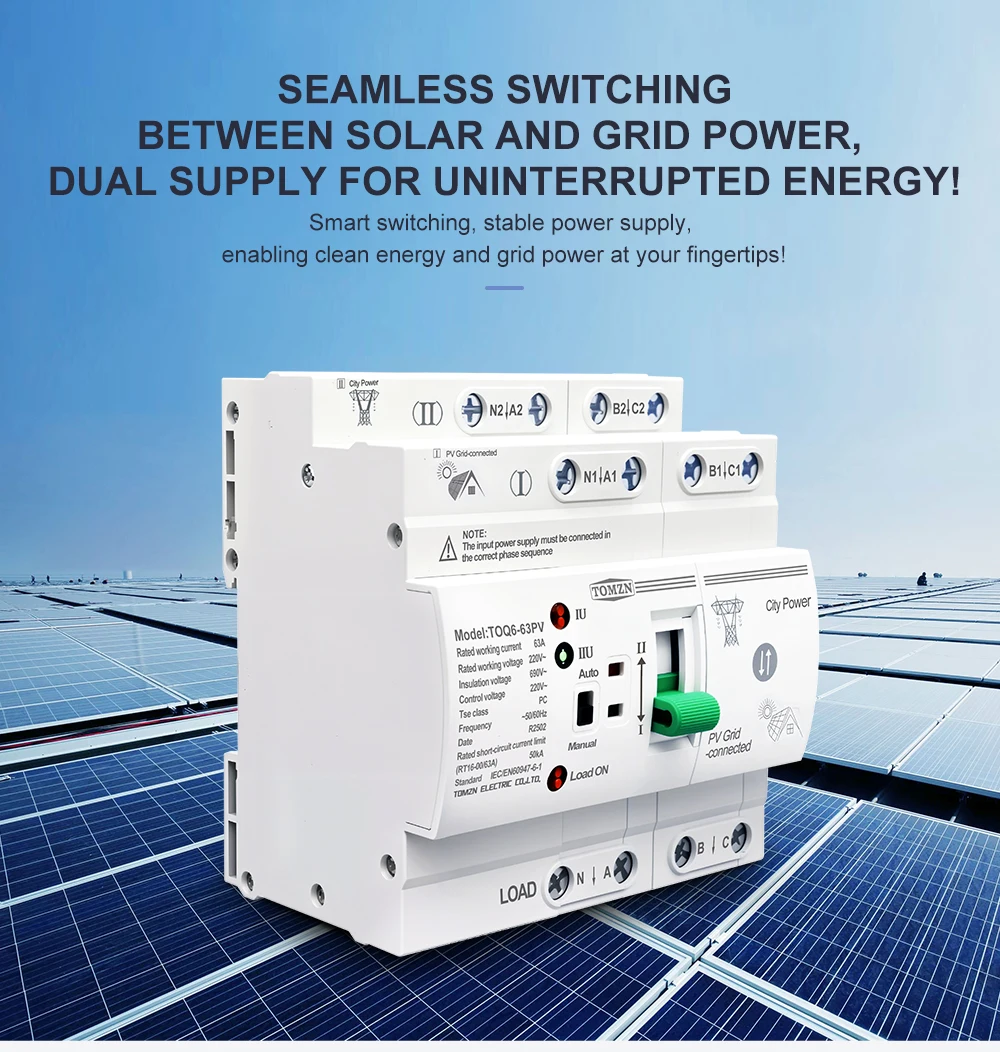

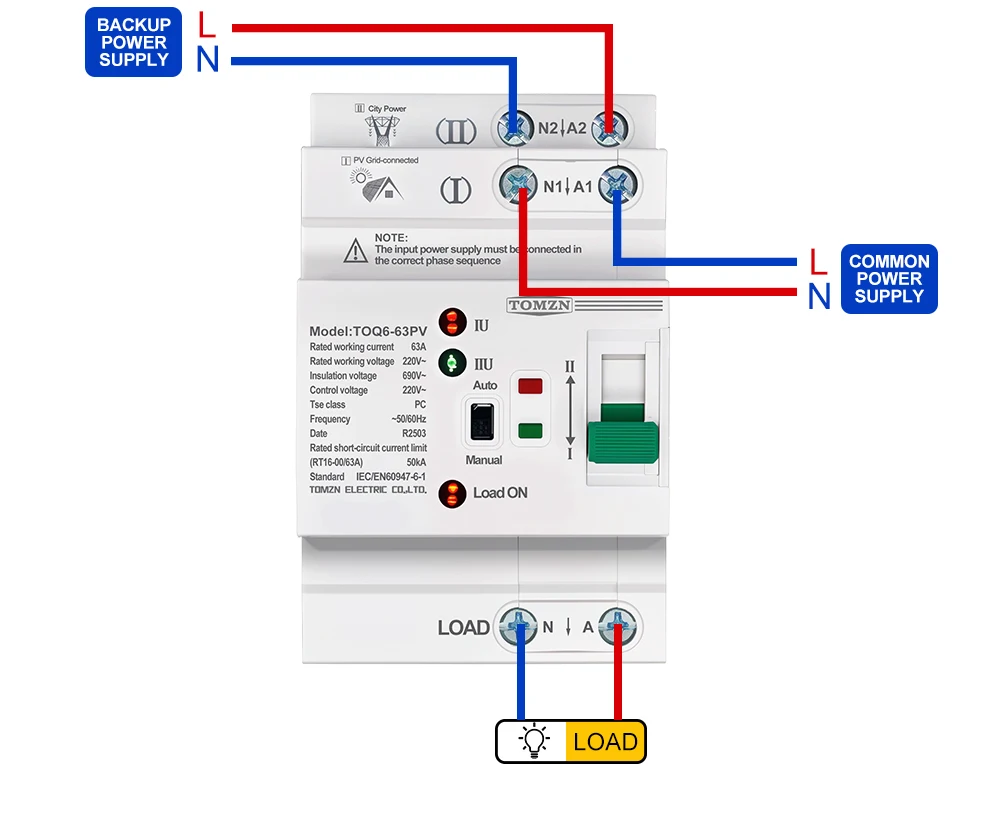

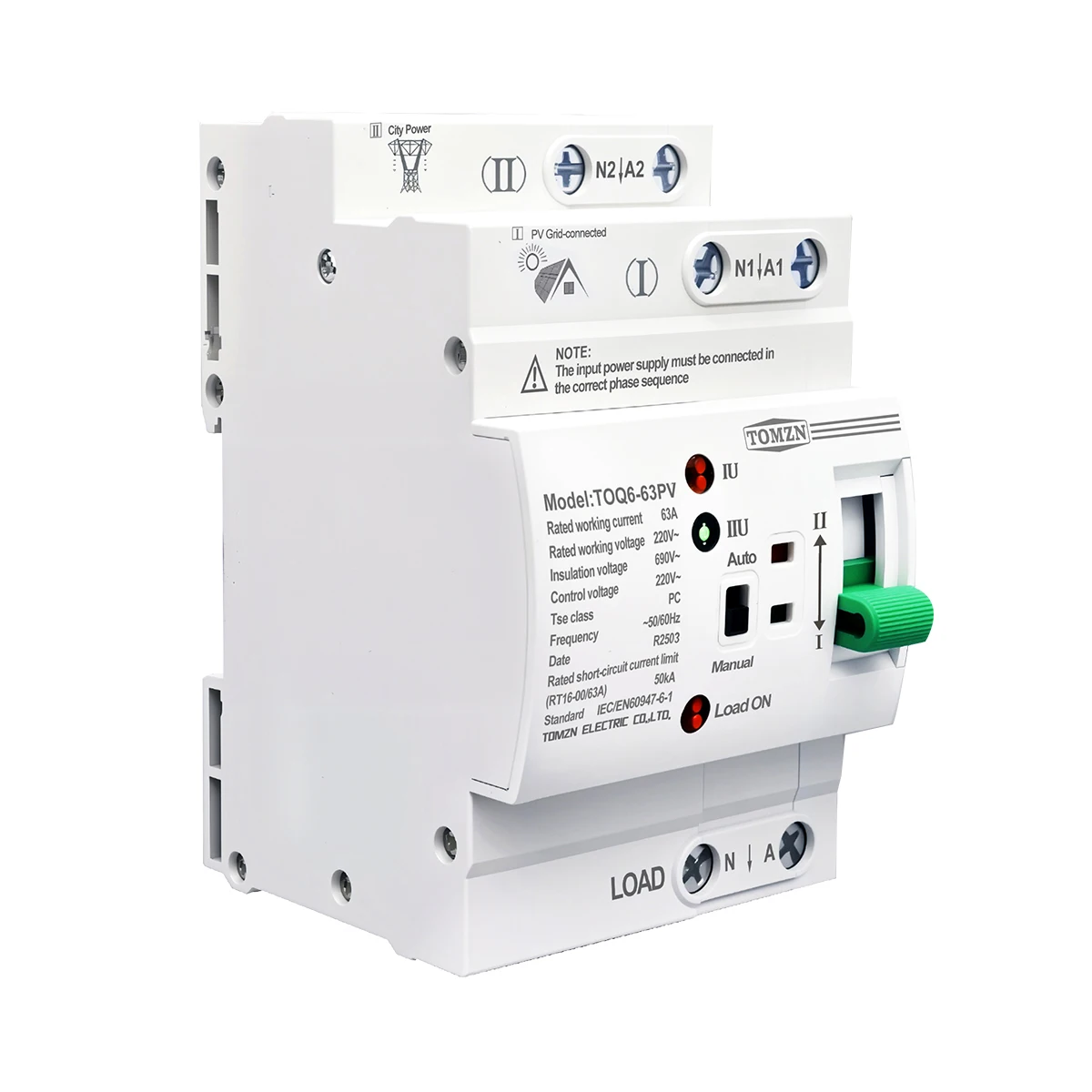

TOQ6-63/2P PV,TOQ6-63/4P PV

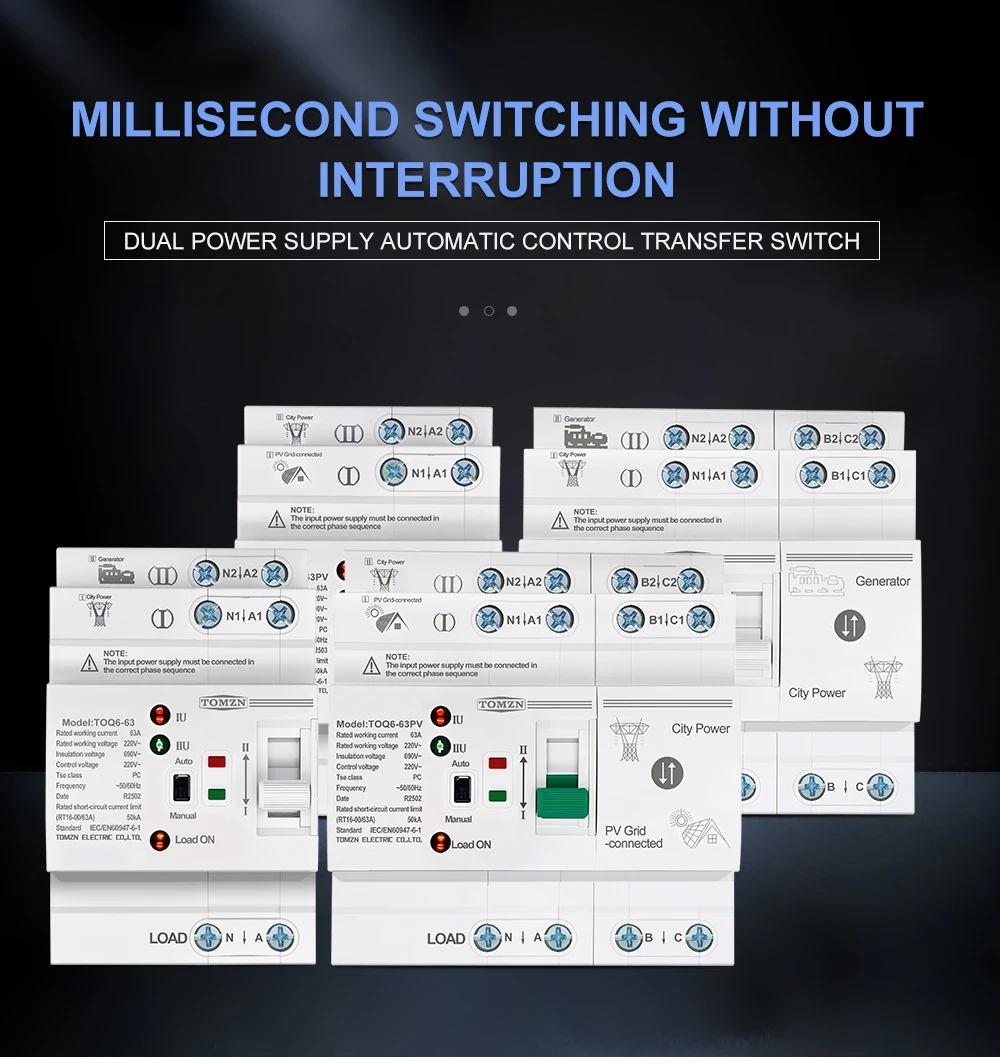

Small dual power switch. PC level, Switch less than 50ms, no Interrupt.
Only for PV system and Inverter.

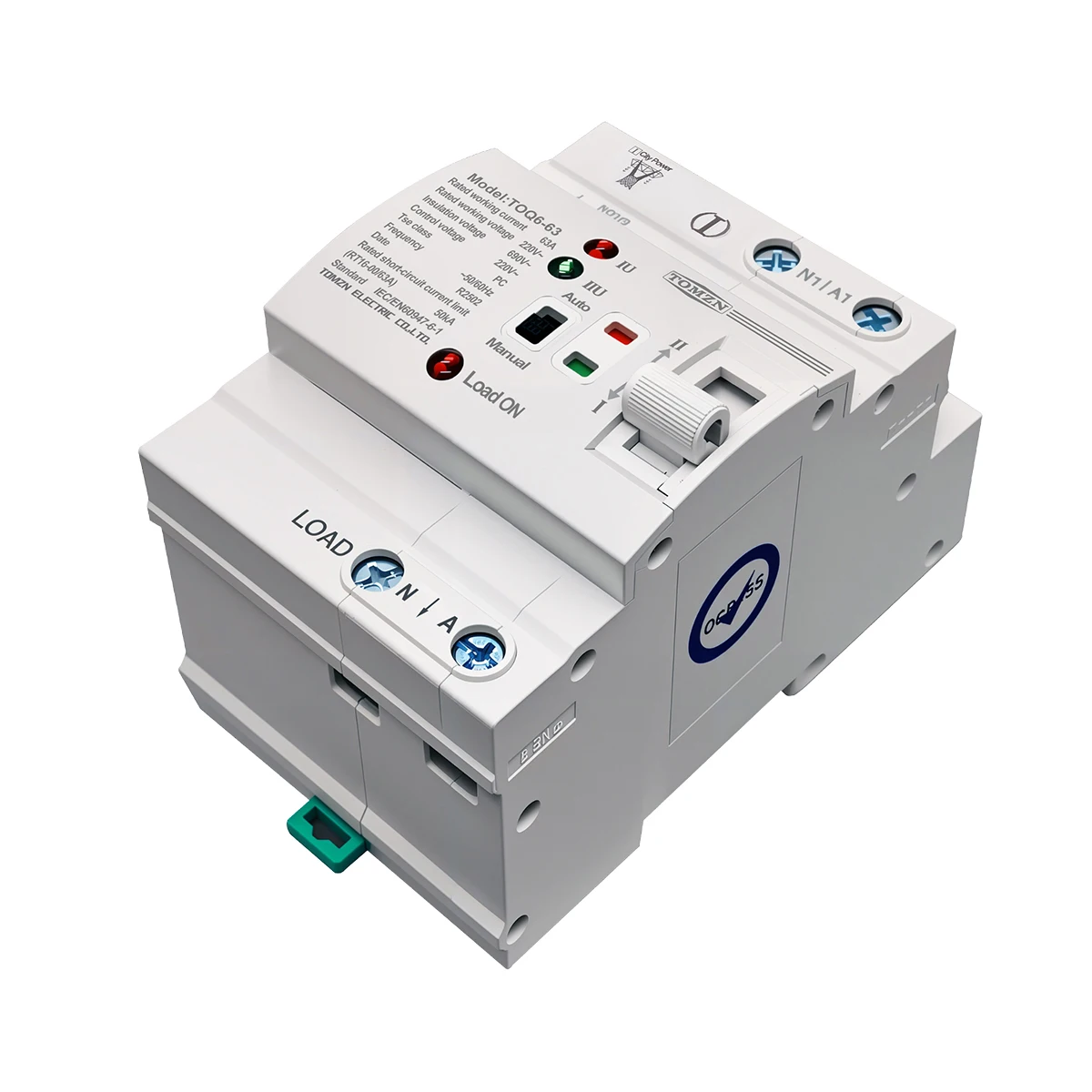

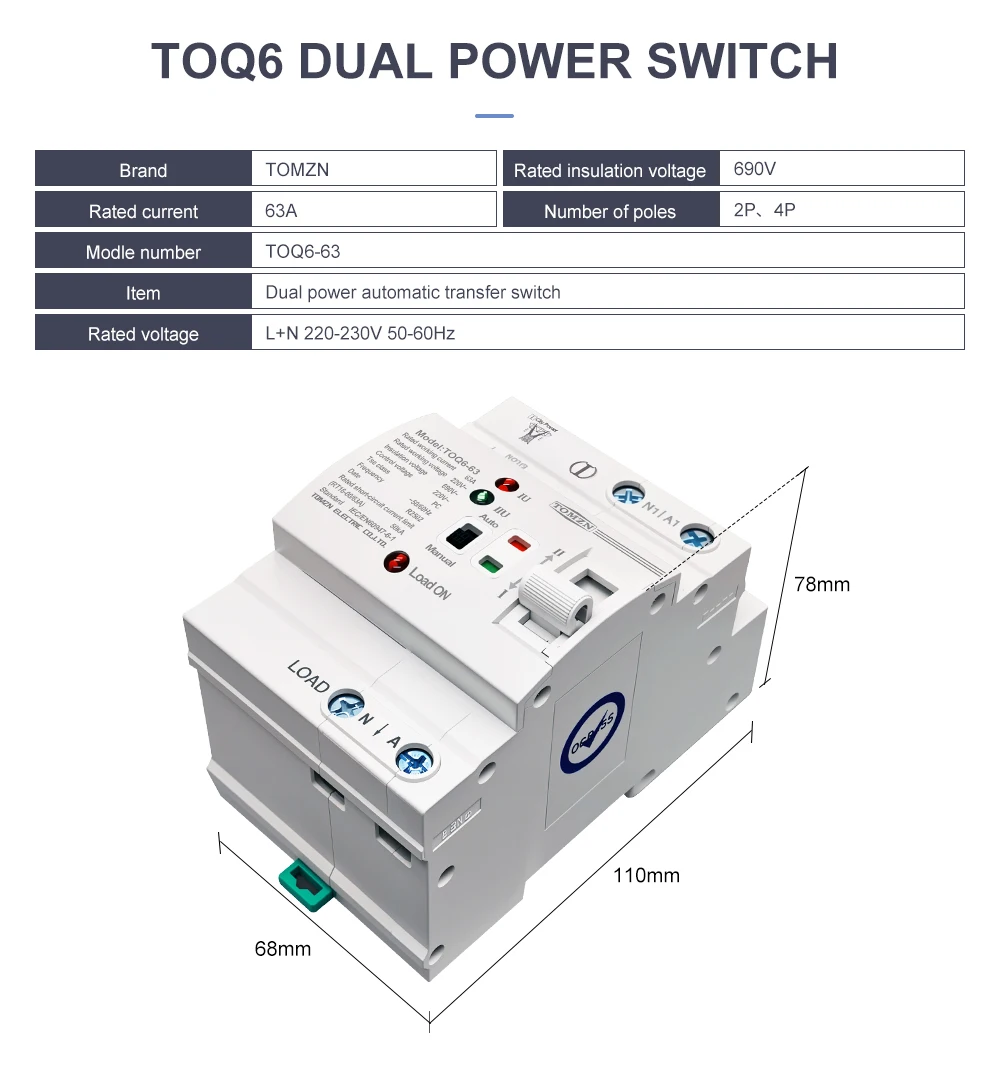

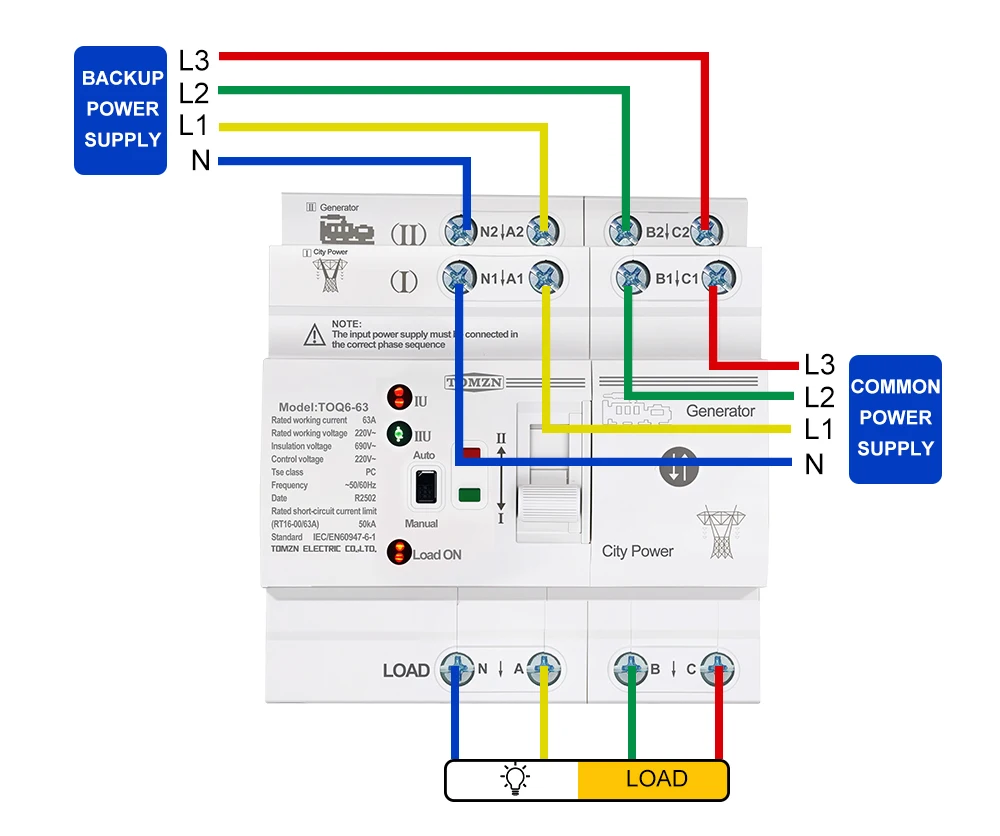

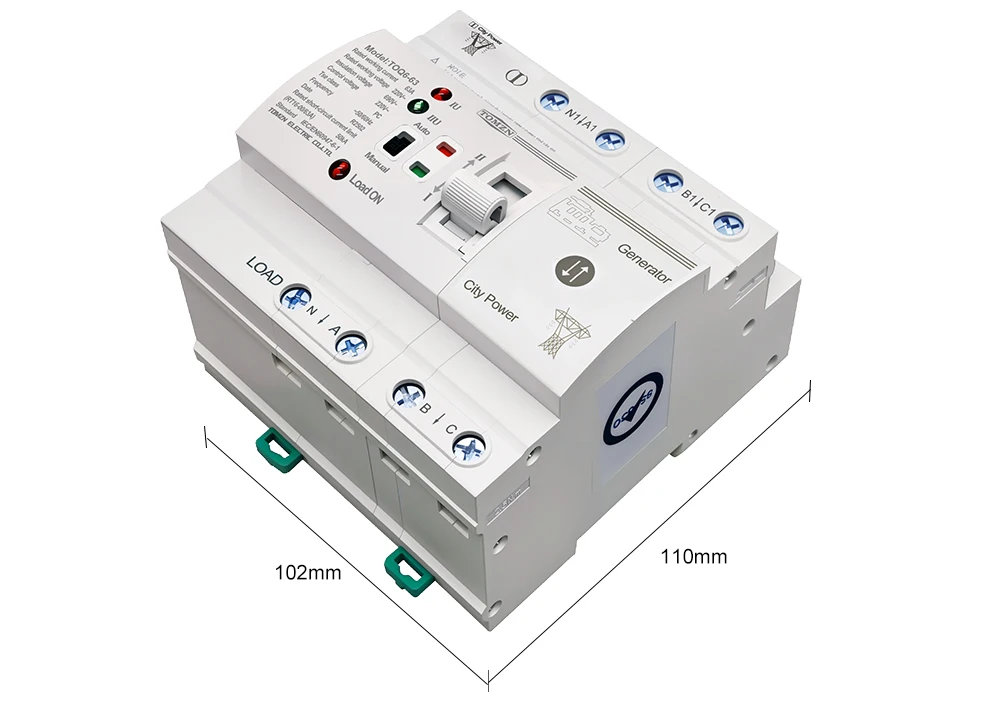

TOQ6-63/2P,TOQ6-63/4P
Dual power switch. PC level, Switch less than 50ms, no Interrupt.
Only for city power and Generator, not for PV system and Inverter.
1.Case grade:80
2.Rated insulation voltage Ui:690V
3.Rated impulse withstand voltage:8kV
4.PC class:can be switched on an loaded without generating short-circuit current
5.Rated short-circuit current Iq:50kA
6.Short circuit protection device (fuse):RT 16-00-63A
7.Rated control voltage Us:AC220V 50Hz
8.Normal working conditions: 85%Us-110%Us
9.Auxiliary circuit:AC220V 50Hz le=5A

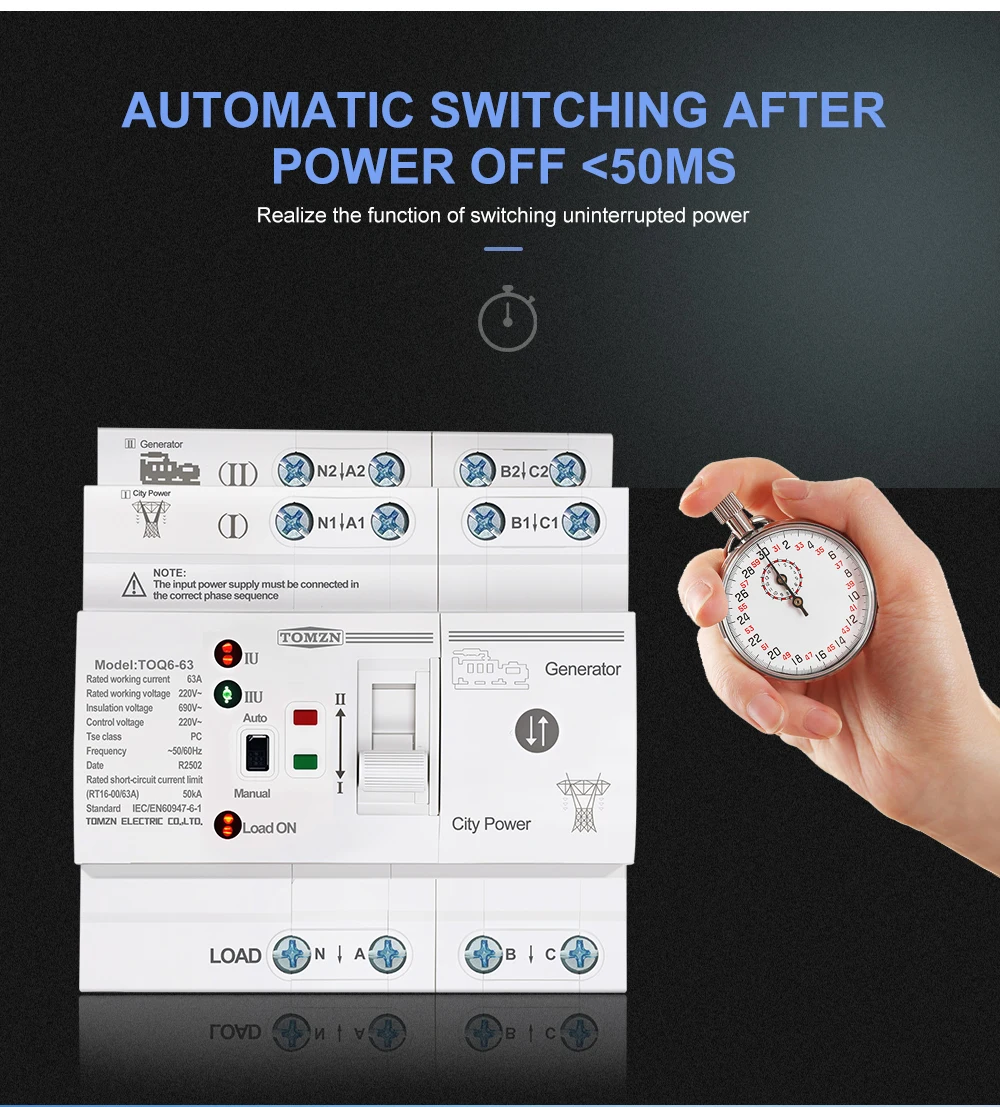

10.Contactor change-over time:<50ms
11.Operation change-over time:<50ms
12.Return change-over time:<50ms
13.Power off time:<50ms
14.Mechanical life:≥5000 Times
15.Electrical life:≥1500 Times
16.Usage category:AC-31B

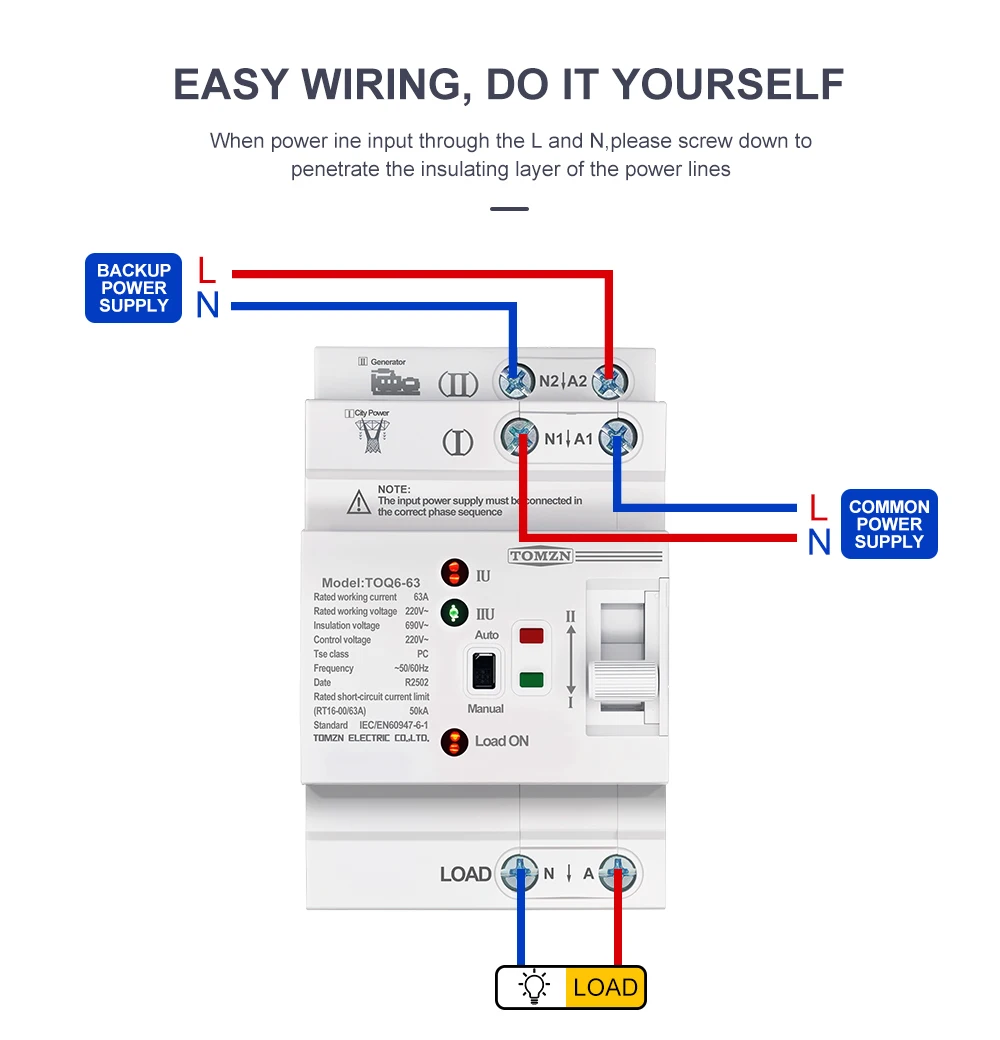

Noted: the product works with L+N 220-240V 50-60Hz
Only logged in customers who have purchased this product may leave a review.

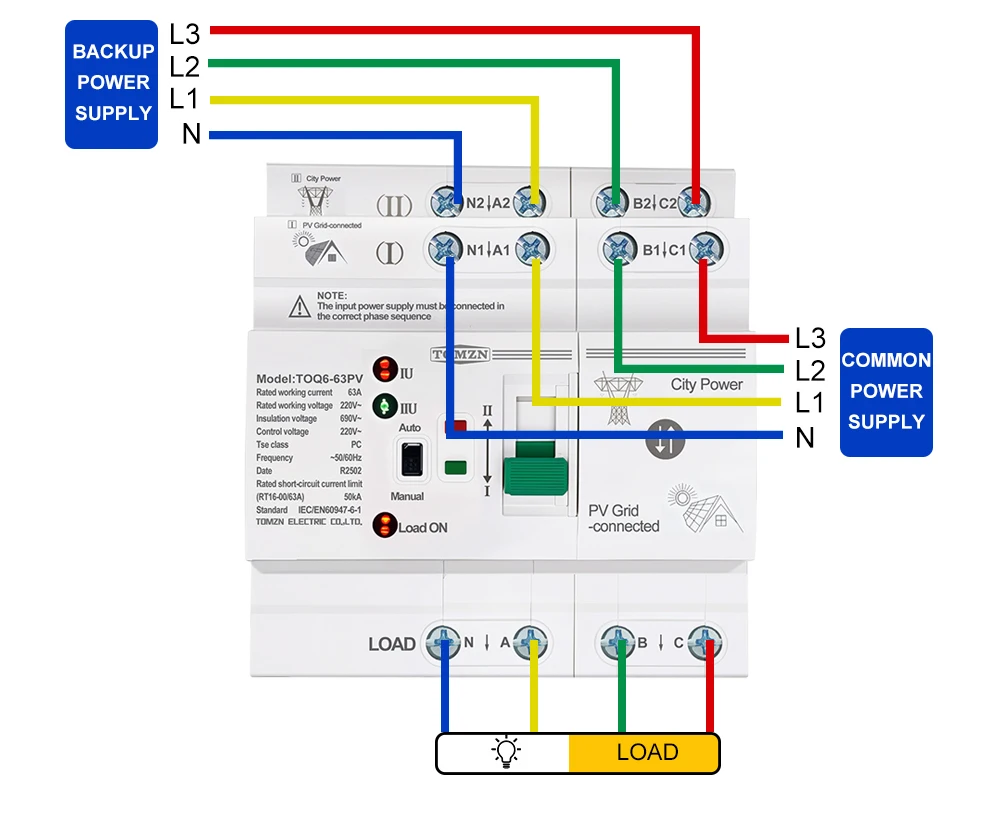

| Poles Number | 2P L N 220V-230V, 2P PV L N 220V-230V, 4P L N 220V-230V, 4P PV L N 220V-230V |
|---|---|
| High-concerned chemical | None |
| Type | Mini |
| Model number | TOQ6 |
| is_customized | Yes |
| Brand Name | TOMZN |
| Is Smart Device | No |
| Origin | Mainland China |
| Rated Current | 63A |
