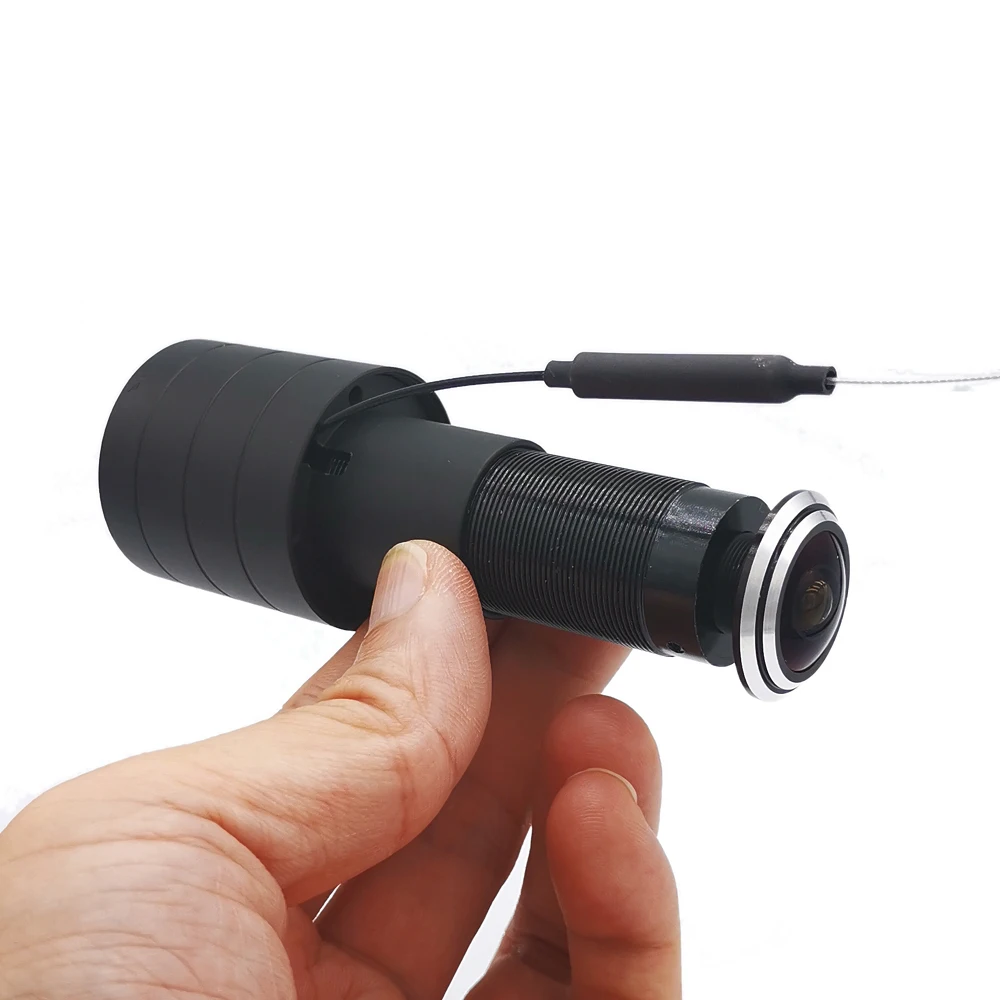

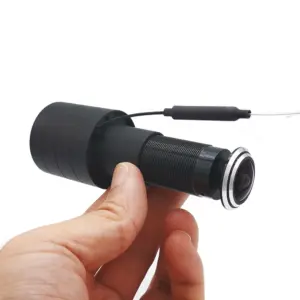

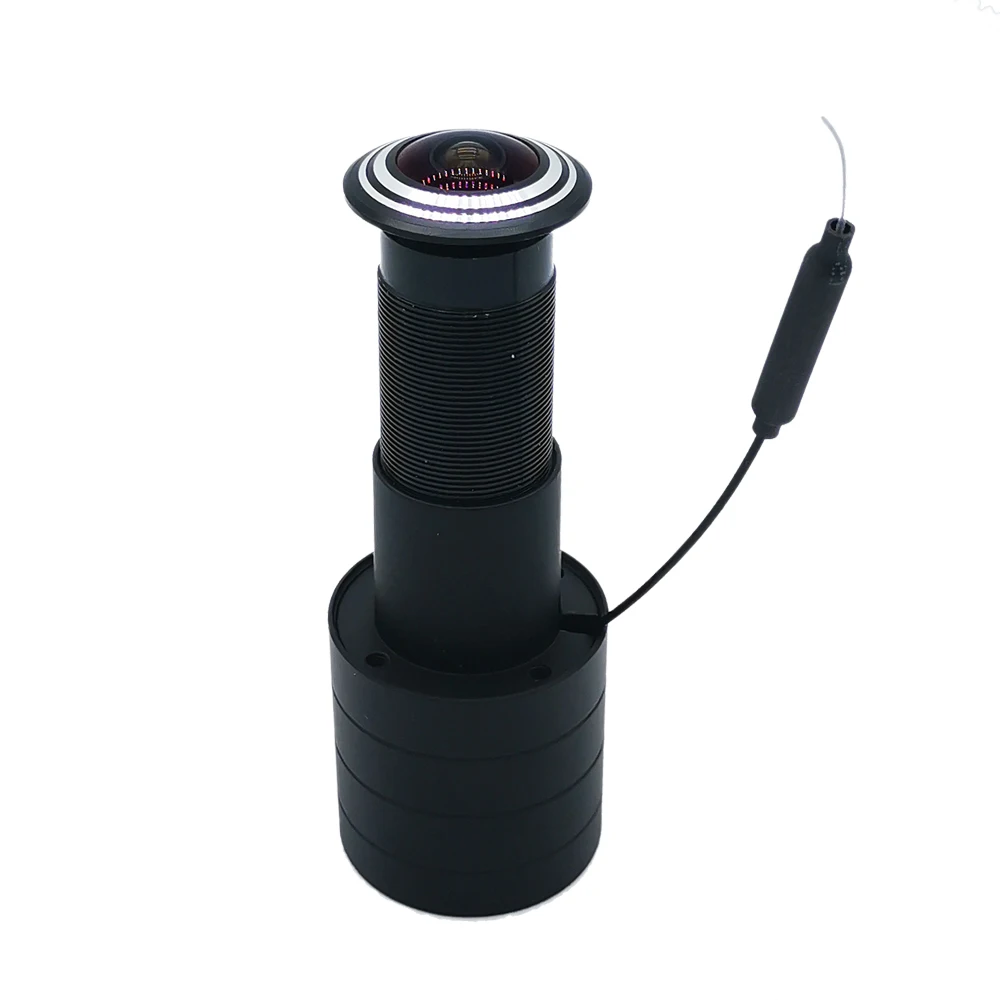

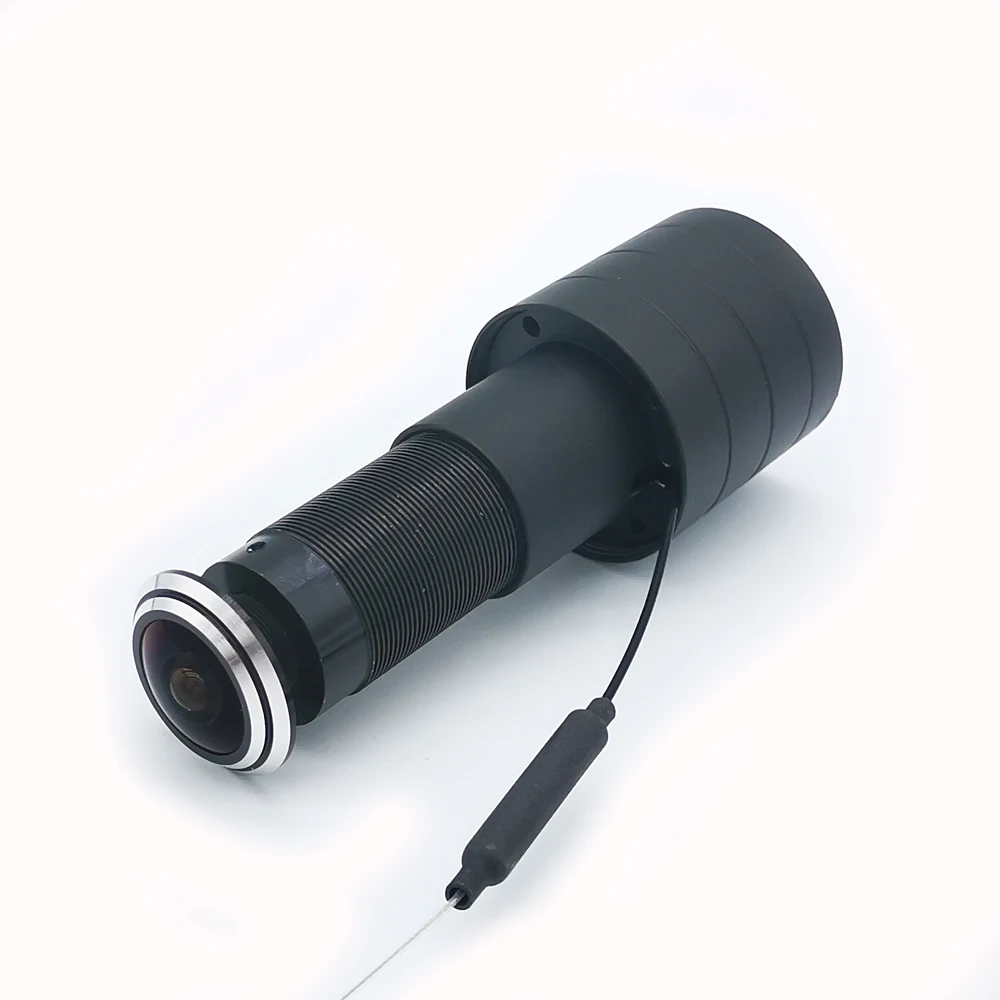

Video Doorbell 180 Degree Peephole Viewer Video Eye Door Bell Smart Home Indoor Camera Monitor Visual 1080P Tuya Viewer Wifi IP

Technical Specifications:



DSP: Embedded RTOS,ARM926EJ-S kennel DSP(AK3918E),Hardware compression,Watchdog

Sensor: 1080P 1/2.7″ CMOS,Color 0.1Lux/F1.2,BW 0.01Lux/F1.2

Compress: H.264 encoder,dual code steams(FHD,SD change)

Video size: Main stream: 1920*1080@25fps

Shutter: 1/50(1/60) S to 1/10000S

Lens: 1.8mm DFOV:185, HFOV:148, VFOV:88

Day night: Does not support

Noise reduction: 2D/3D

Voice code: G.711A,Intercom-speaking,audio and video synchronization

Voice output: 1W,8R speaker

Network: WIFI

Alarm: Motion Detection

WIFI Port: One WIFI,Max Distance 100M Reset Key: Yes

SD Card: Max 128GB (Not Inlcude)

Reliability: All ESD protect,3*24Hours 65℃ hot test(Finish product)

AI function: Motion Dectection, Customize other

APP fuction: Support the alarm message center reminder, and the screen pops up linkage; Support
capture, APP manual video recording, video playback, cloud storage, intercom, offline reminder, image flip, time watermark, etc

Commercial function: Alex, Google Assistant,

ON VIF_protocol: Yes,Onvif_protocol ,RTSP

Phone monitor: Yes

Power: Micro USB 5V



OEM/ODM: Highly Welcome





Packing List:

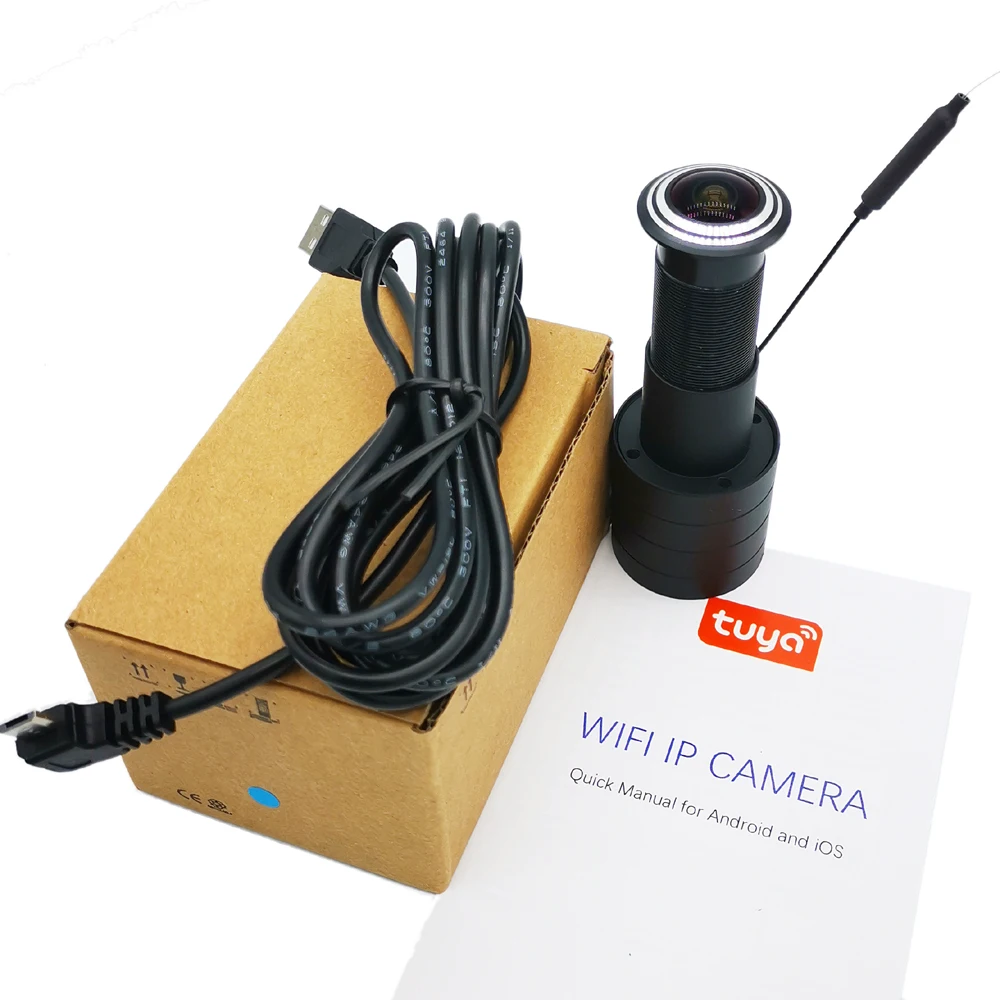

* 1 x Camera, 1 x User Manual, 1 x Charger

* Packing weight: 0.25 KG

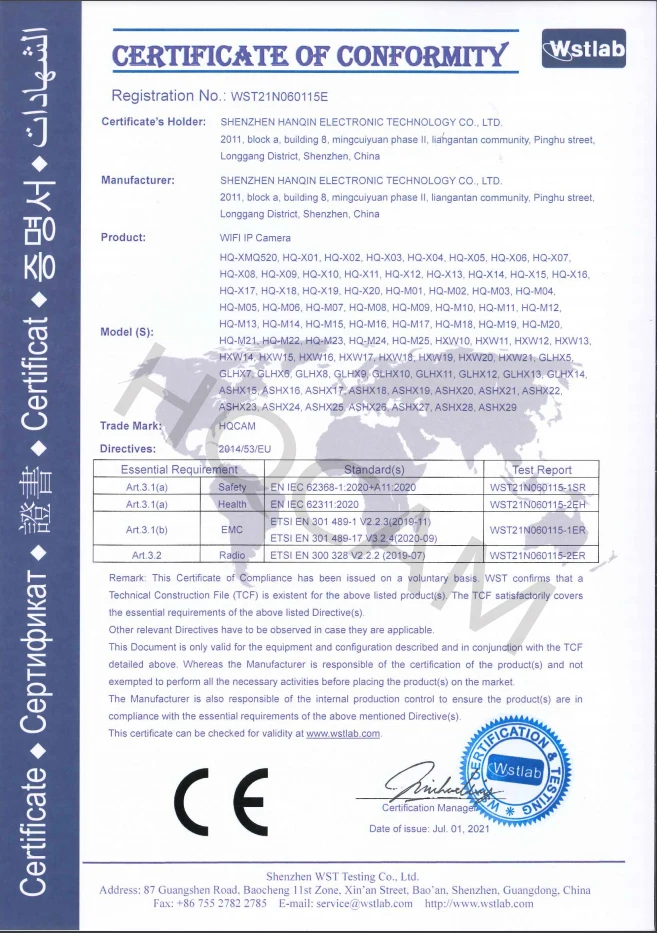

CE Certificate

RED Report-2.4G Wifi WST21N060115-2ER

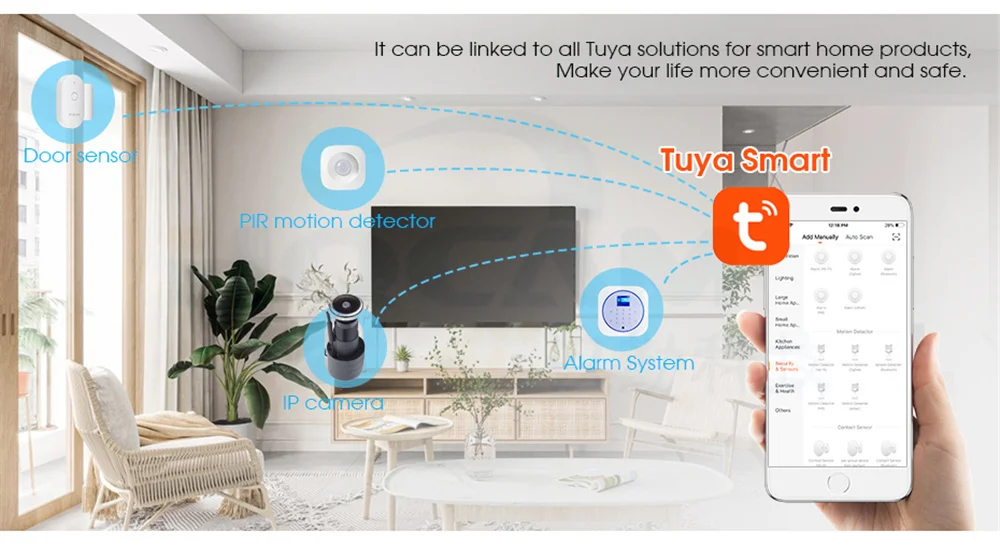

Support Tuya Smart APP. It works with other smart devices in your home that can support Tuya Smart APP.

TUYA–Work With Google and Alexa Get Your Life Smarter

With TUYA APP, no matter where you are, you can remotely access the security camera to see live streaming and stay connected.At the same time, you can also use this camera to connect Google Assistant and Alexa to enjoy the convenience of smart home. (This requires an additional charge of $3)

Support Two-way voice

Two-way voice allows you to talk to your family at all times

Sensitive Motion Detection

Algorithm Keeps You Safe On The Front Line
Precise Motion Detection Is The Camera’S Safety Hallmark.Any Slightest Movements Are Accurately Picked Up And Alert You Immediately

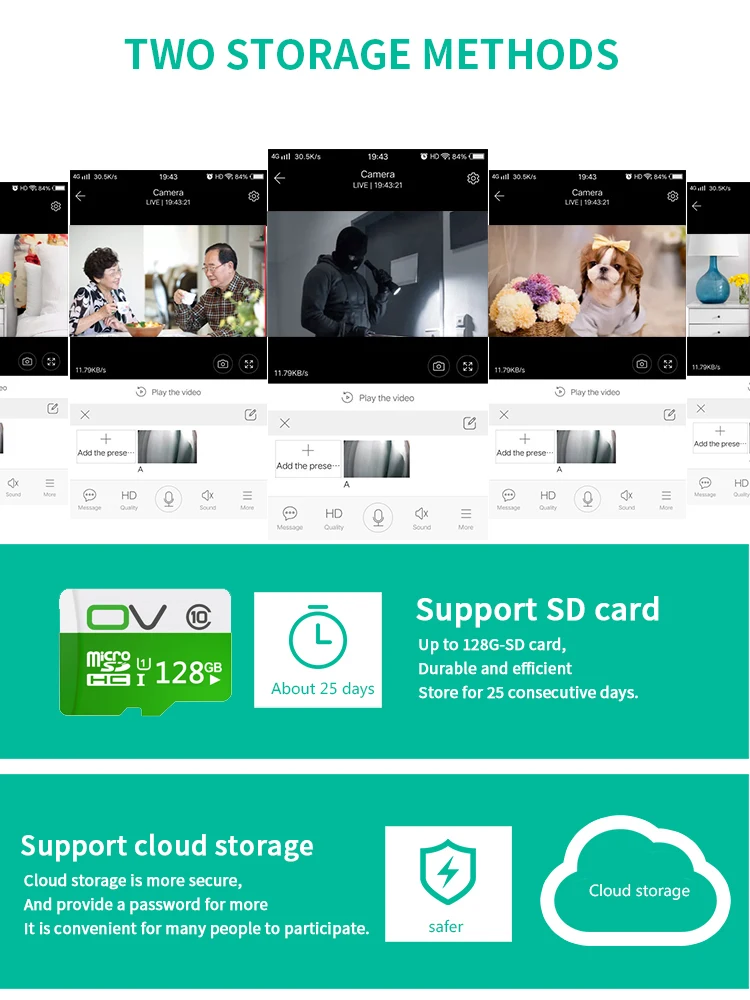

Cloud Storage

Allows you to watch saved surveillance video on different devices

Support Up to 128GB TF Card Storage

The TF card slot allows you to insert a 128GB TF card, which means you can save images and videos for later viewing. Meanwhile, the large memory allows you to record everything you want without missing a moment.

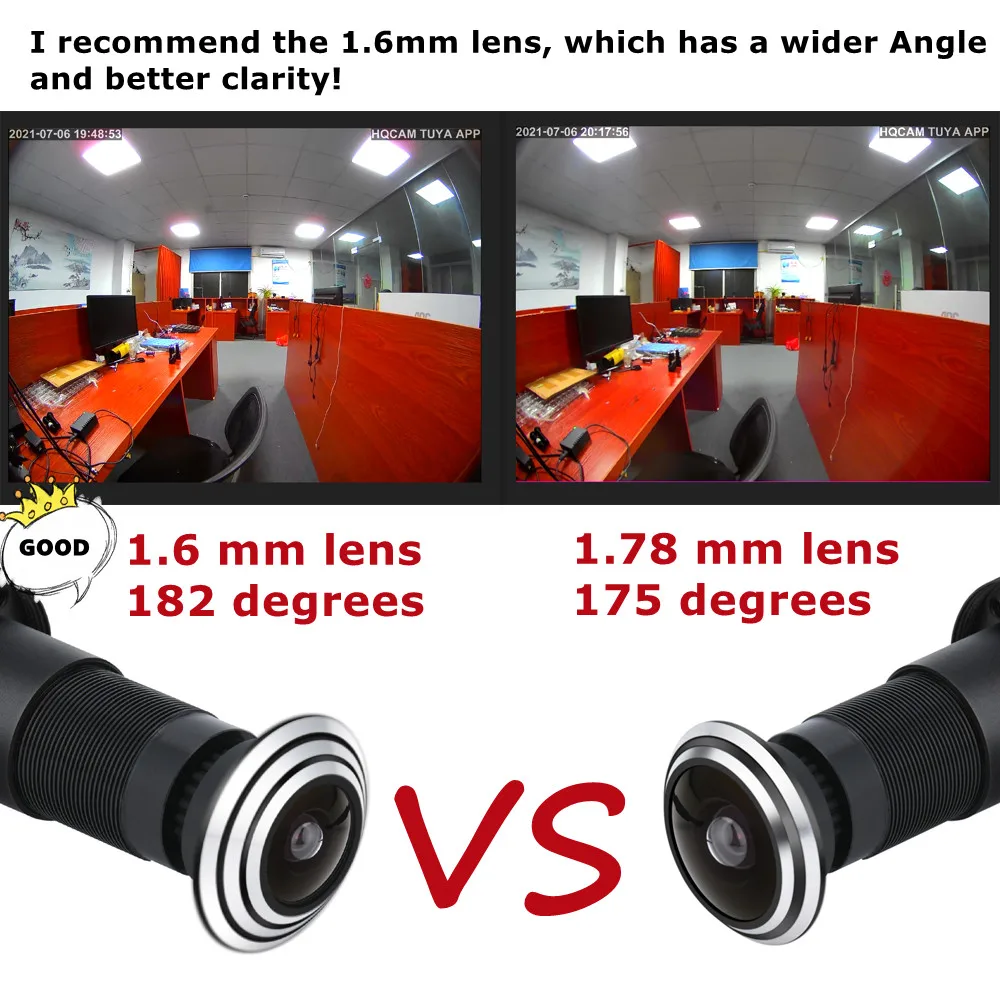

Lens Angle contrast

Compared to the old 1.78mm lens, the new 1.6mm lens has a wider Angle and is designed with five layers of glass to match the level of a high-definition 5MP lens

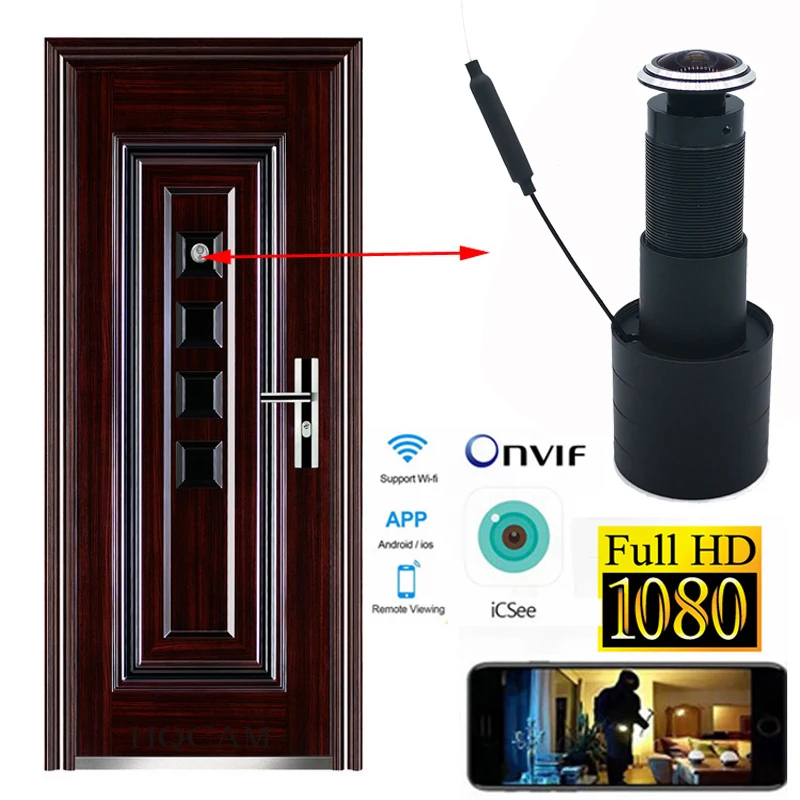

Installation diagram

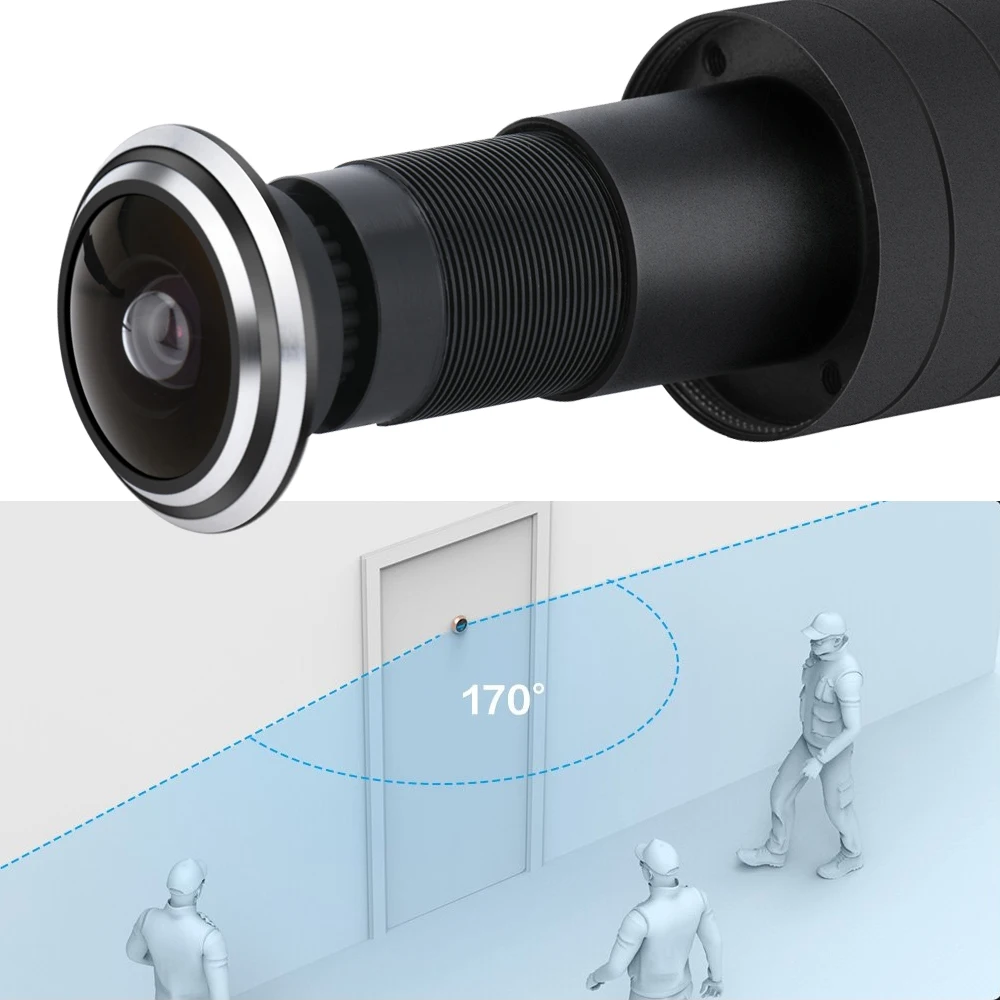

Wide-angle lens, suitable for installation in the peephole inside the door, easy to install, microphone close to the lens position, can be a good access to the sound outside the door

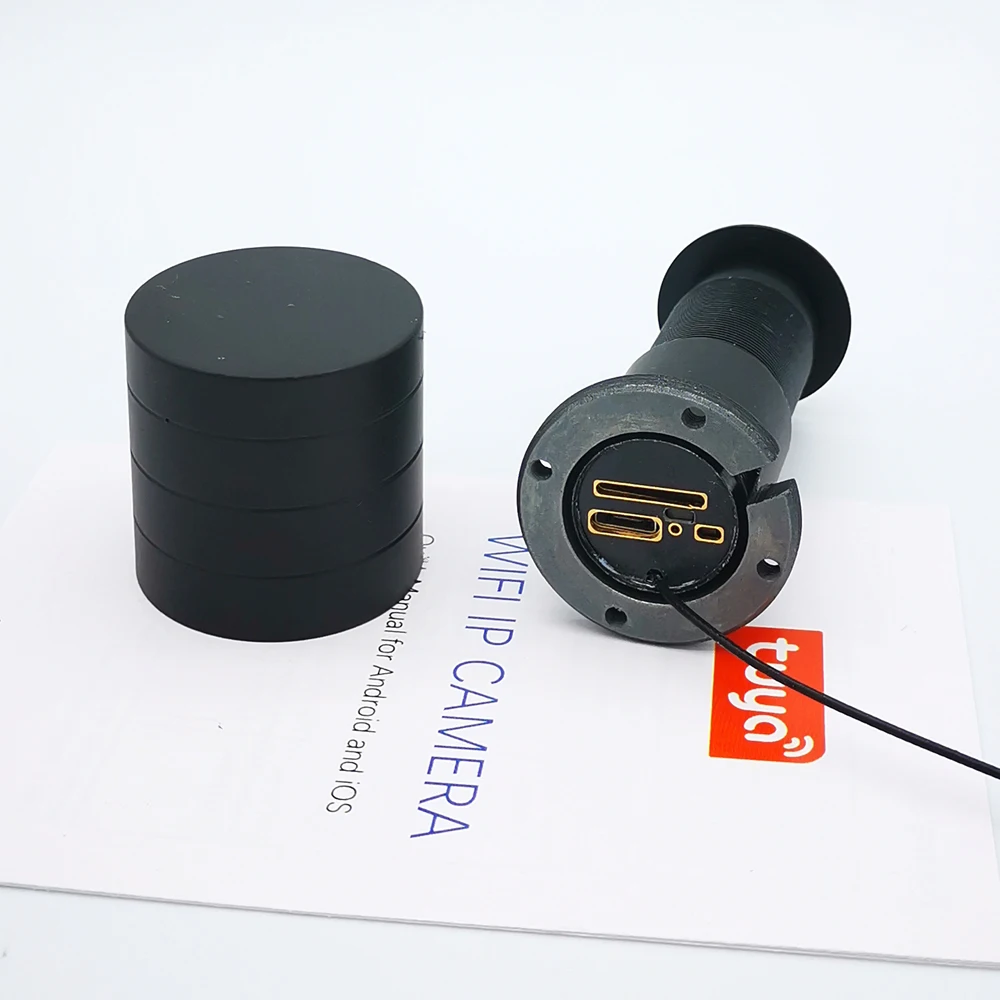

Camera size structure

Simple installation, microphone close to the lens position, can be very good access to the sound outside the door

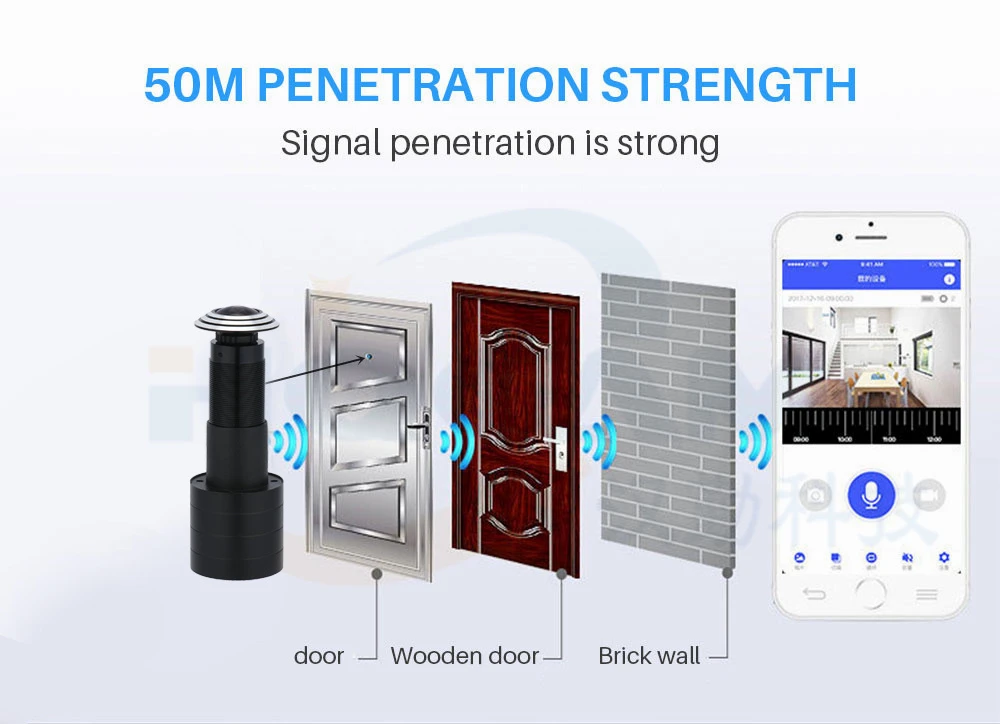

Wireless transmission stability

Transmission distance up to 50 meters (depending on the power of the router and the number of walls)

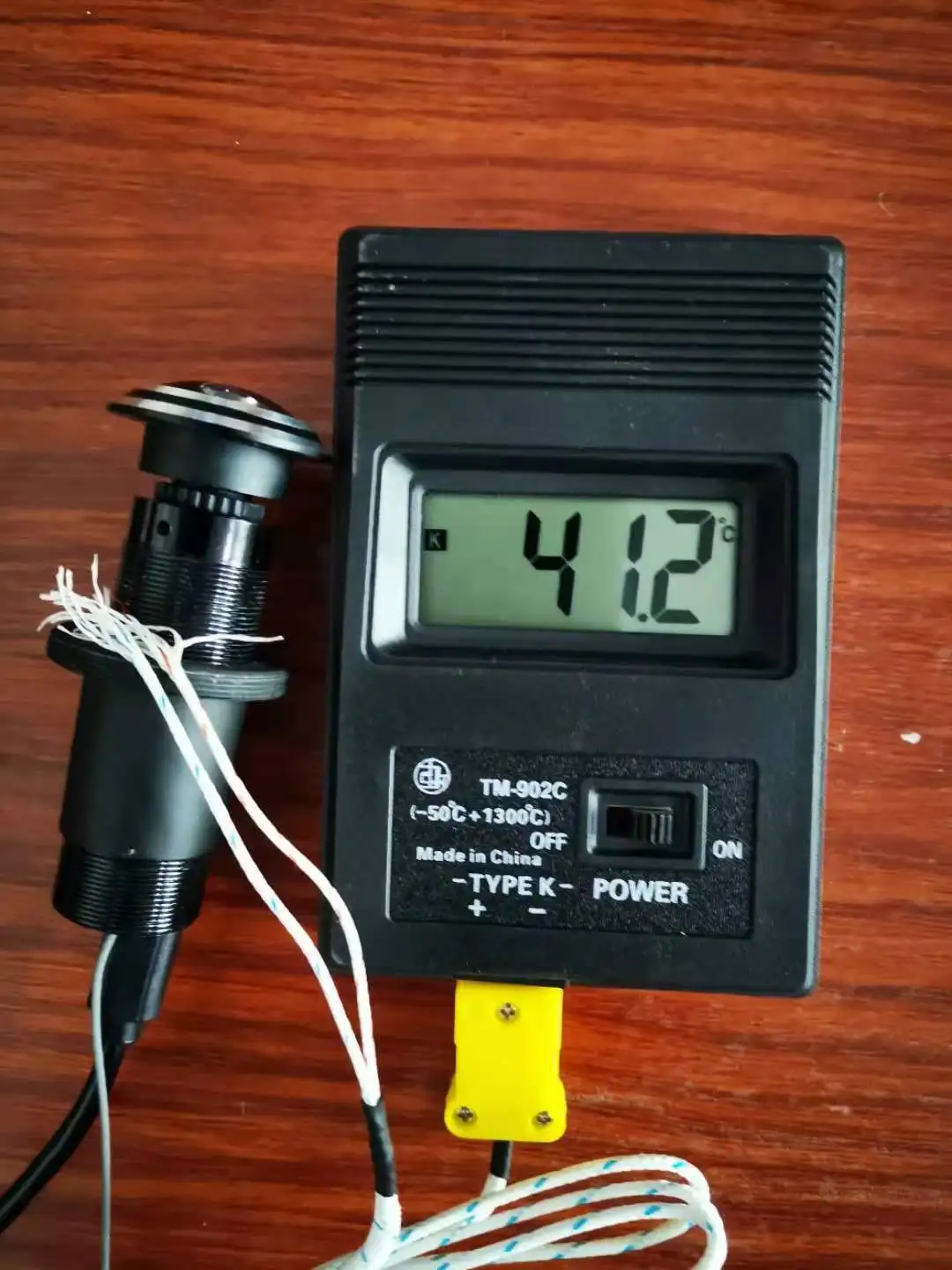

Working temperature

Tested, can work under high temperature outdoor 8 hours, we added a cooling device on PCB module, chip heat will be distributed by the shell, so the temperature of the shell will be very high, the chip’s temperature is very low, can avoid the camera restart, to avoid the camera disconnect network, avoid because of high temperature components of fault, Prolong the service life of the camera.

The shell is very hot and will not affect the work, and there will be no fire. We have passed a strict test, please rest assured that you can use it with reference to scientific data:The temperature at which objects burn is different. The temperature at which they start to burn is called “ignition point”. The ignition point of paper is 450 degrees and that of wood is about 400-470 degrees
