- Hign-concerned Chemical: None
- Output Power: 201 – 300W
- is_customized: No
- Output Current: 0-10A
- Model Number: GA3010H GA3010L GA3010B
- Output Frequency: 50HZ/60HZ
- Brand Name: wanptek
- Output Type: SINGLE
- Origin: Mainland China
- Features 1: Laboratory power supply
- Features 2: DC Power Supply
- Features 3: Adjustable power supply
- Features 4: USB fast charging interface with display

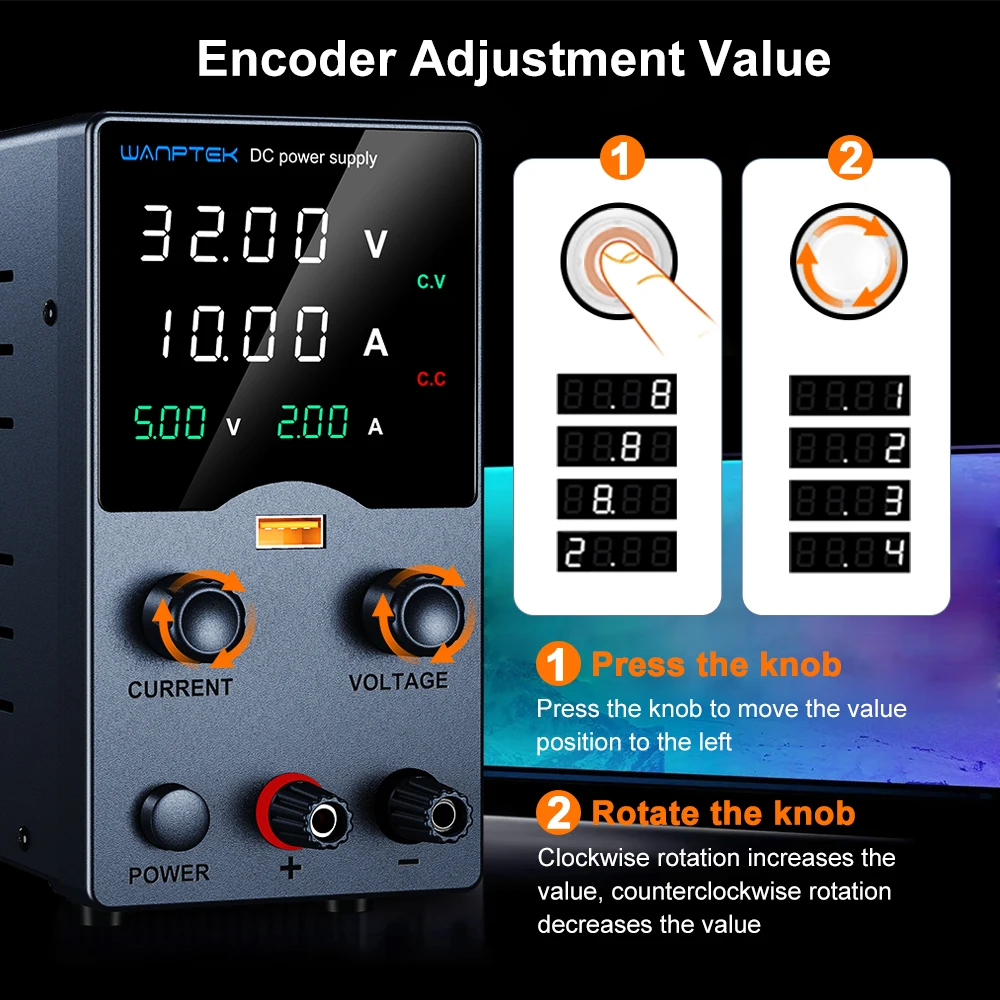

- Features 5: Encoder adjustment
- Features 6: 32V 5A Power Supply
- Features 7: 32V 10A Power Supply
- Features 8: 62V 5A Power Supply
- Features 9: 120V 3A Power Supply
Attention: ( Before Payment )
GA Series (Optional）
1.GA305H/L/B with USB Output Display Encoder Adjustment DC Power Supply 32V 5A
2.GA3010H/L/B with USB Output Display Encoder Adjustment DC Power Supply 32V 10A
3.GA605H/L/B with USB Output Display Encoder Adjustment DC Power Supply 62V 5A
4.GA1203H/L/B with USB Output Display Encoder Adjustment DC Power Supply 120V 3A
Product Features
1. All models are micro-switching DC power supplies.
2. Small size, light weight, high power density.
3. Constant voltage and constant current automatic switching.

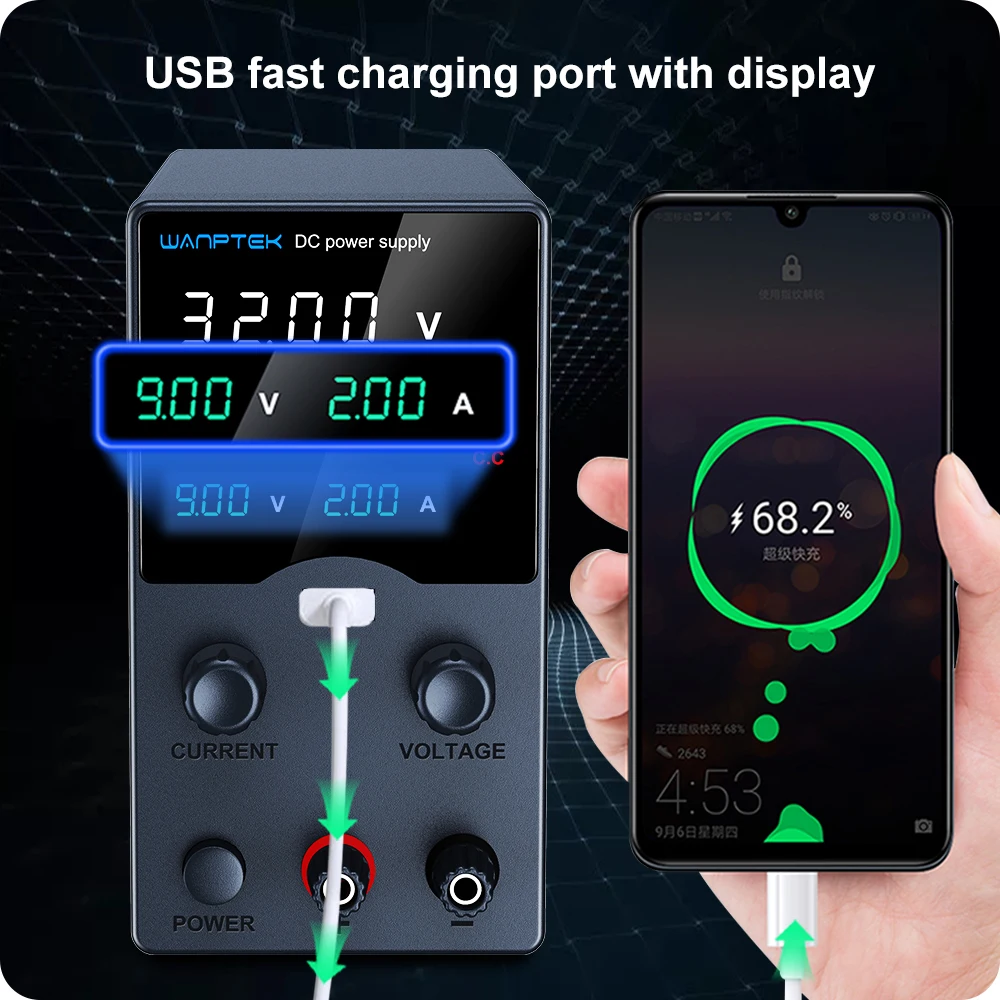

4. With USB fast charging interface, with output display,.
5. Adjustable output voltage and current: output voltage and output current can be continuously adjusted between 0 and rated value.

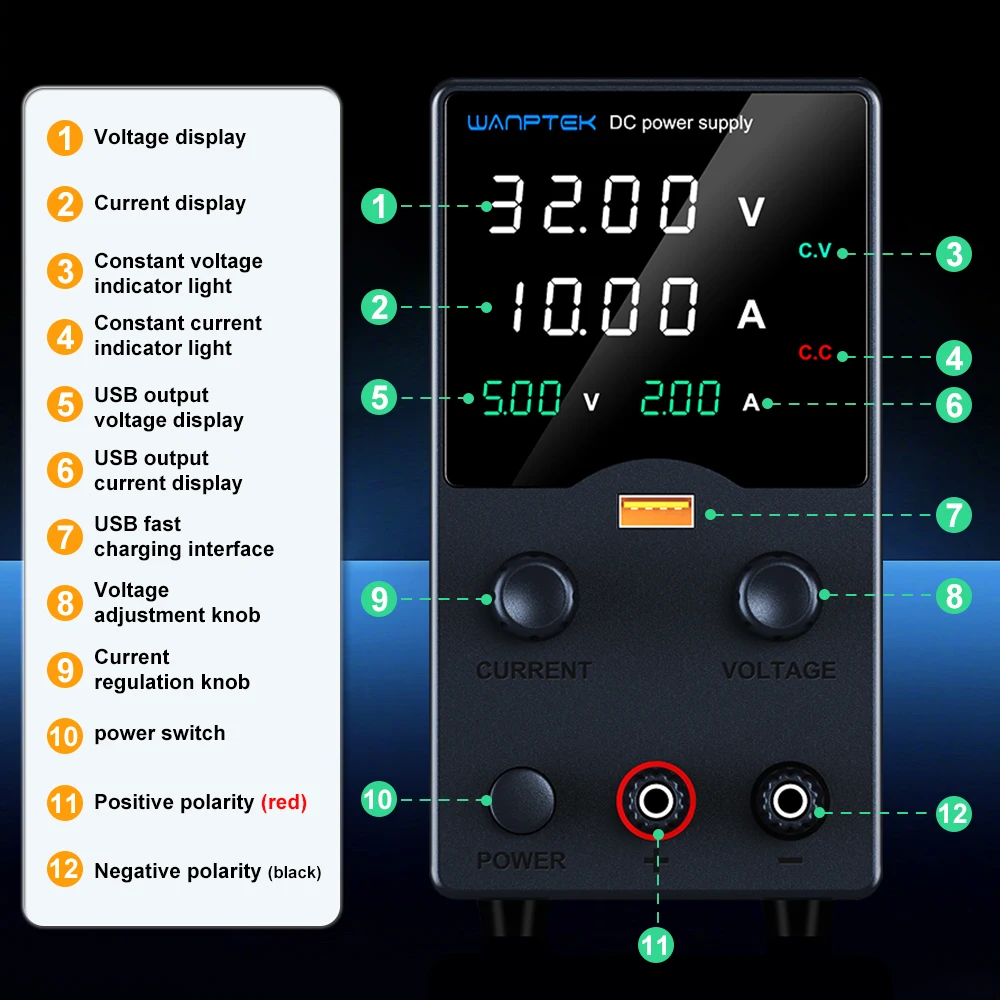

6. Voltage, current, Four-window/two-color display, high precision, with the characteristics of voltage stabilization, current limiting, and simple operation.
7. With over voltage protection (OVP), over current protection (OCP), over temperature protection
8. Temperature-controlled fan cooling, low noise, long life
9. The output voltage range is continuously adjusted from 0 to the rated voltage.
10. The output current range is continuously adjusted from 0 to the rated current

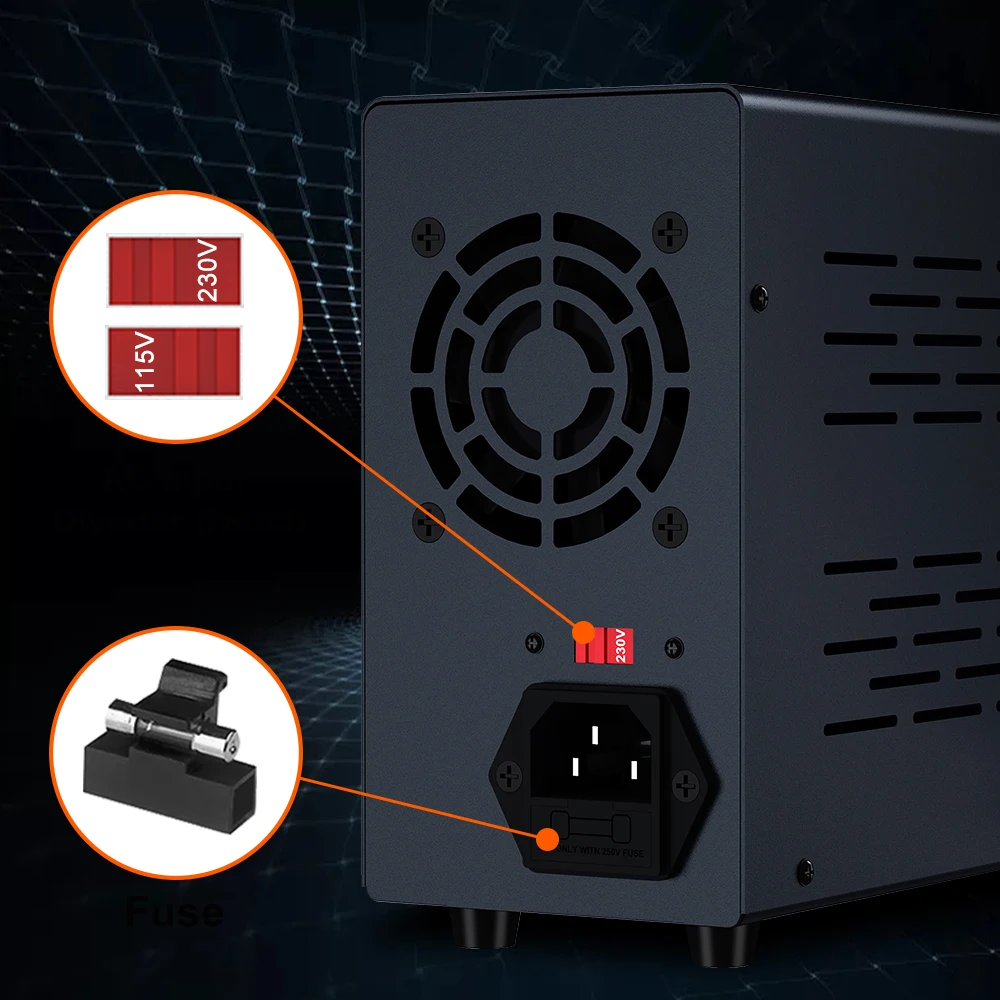

11. AC 110v and 220v can work, rest assured to choose.
Applied Scenes
1. Production line test.
2. Mobile phone repair,computer repair,monitor repair,electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching,school,factory,scientific research production lines,maintenance power supply.
6. All other occasions requiring DC power supply.

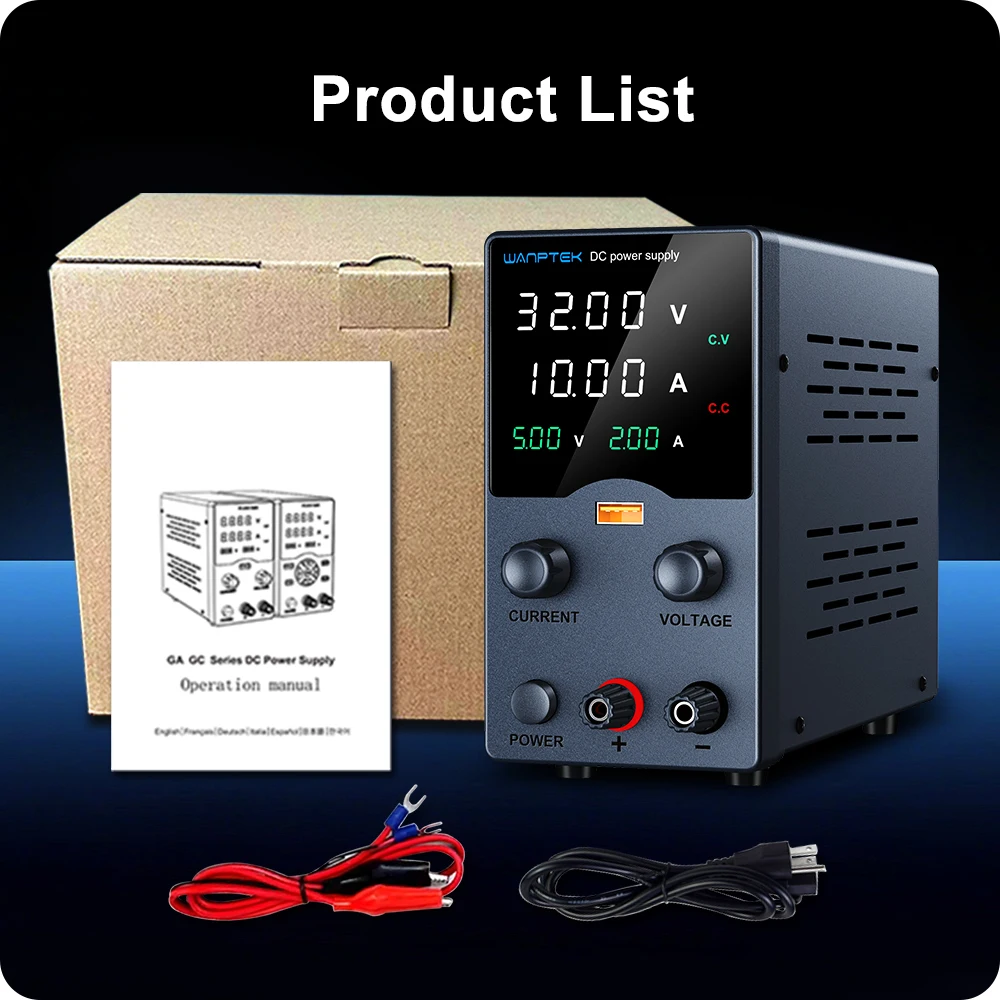

Product Package
1x DC power supply
1x Power cord (EU)
1x Test line
1x User manual
Only logged in customers who have purchased this product may leave a review.
| Delivery from | Poland, spain, United States |
|---|---|
| Hign-concerned Chemical | None |
| Output Power | 201 – 300W |
| is_customized | No |
| Output Current | 0-10A |
| Model Number | GA3010H GA3010L GA3010B |
| Output Frequency | 50HZ/60HZ |
| Brand Name | wanptek |
| Output Type | SINGLE |
| Origin | Mainland China |
| Features 1 | Laboratory power supply |
| Features 2 | DC Power Supply |
| Features 3 | Adjustable power supply |
| Features 4 | USB fast charging interface with display |
| Features 5 | Encoder adjustment |
| Features 6 | 32V 5A Power Supply |
| Features 7 | 32V 10A Power Supply |
| Features 8 | 62V 5A Power Supply |
| Features 9 | 120V 3A Power Supply |
| Color | GA1203B 120V 3A, GA1203H 120V 3A, GA1203L 120V 3A, GA3010B 32V 10A, GA3010H 32V 10A, GA3010L 32V 10A, GA305B 32V 5A, GA305H 32V 5A, GA305L 32V 5A, GA605B 62V 5A, GA605H 62V 5A, GA605L 62V 5A |
