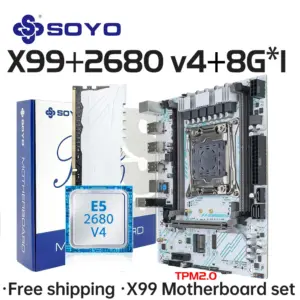

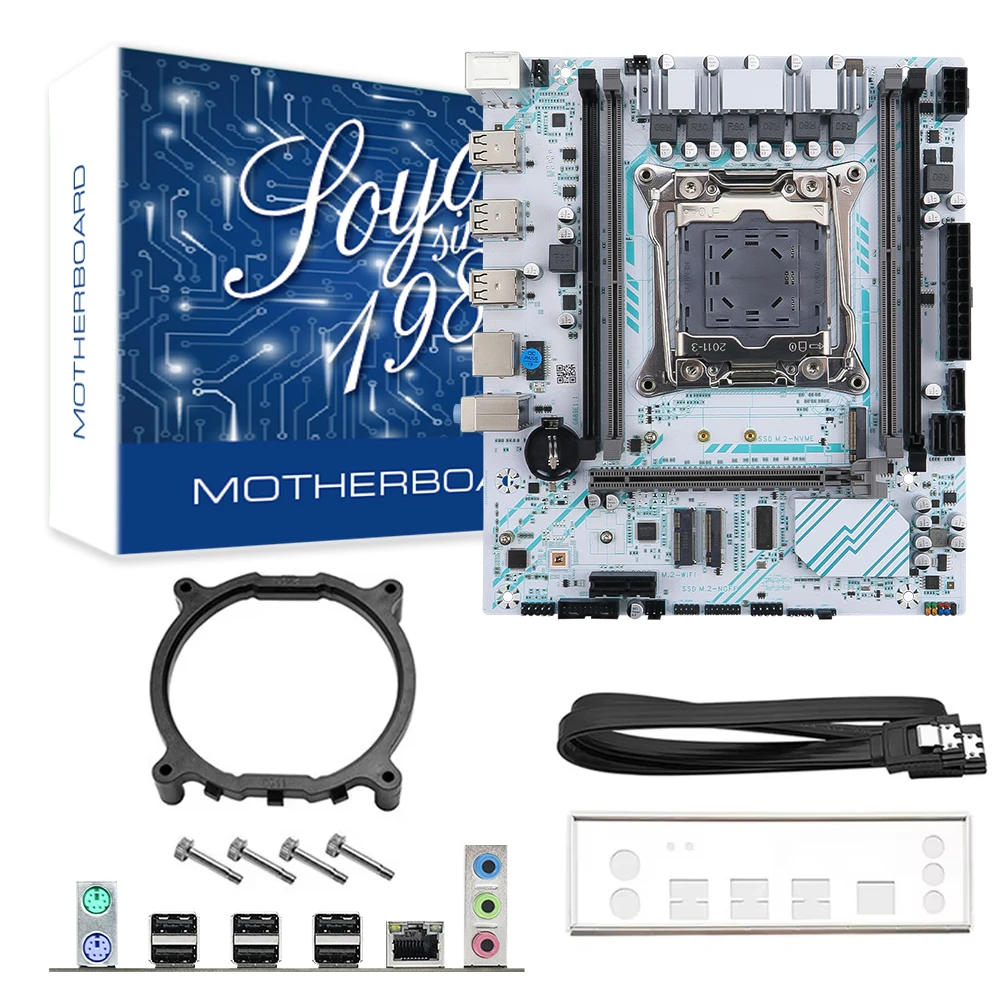

X99 Motherboard LGA 2011-3 Set Kit Xeon E5 2680 V4 CPU Processor 8g*1 DDR4 REG ECC RAM Memory M.2 NAME For Computer SOYO

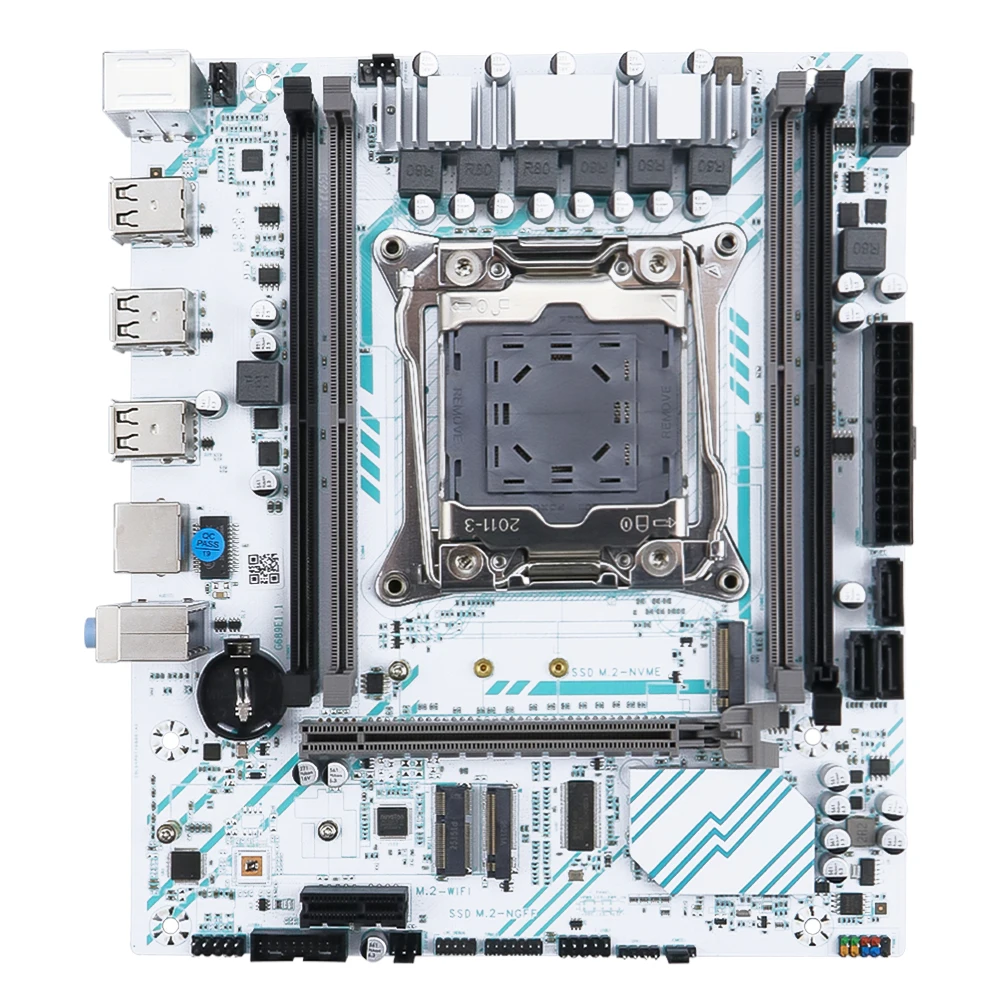

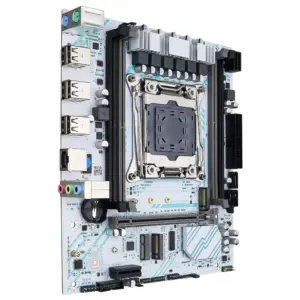

Motherboard: 1*SY-X99 D4

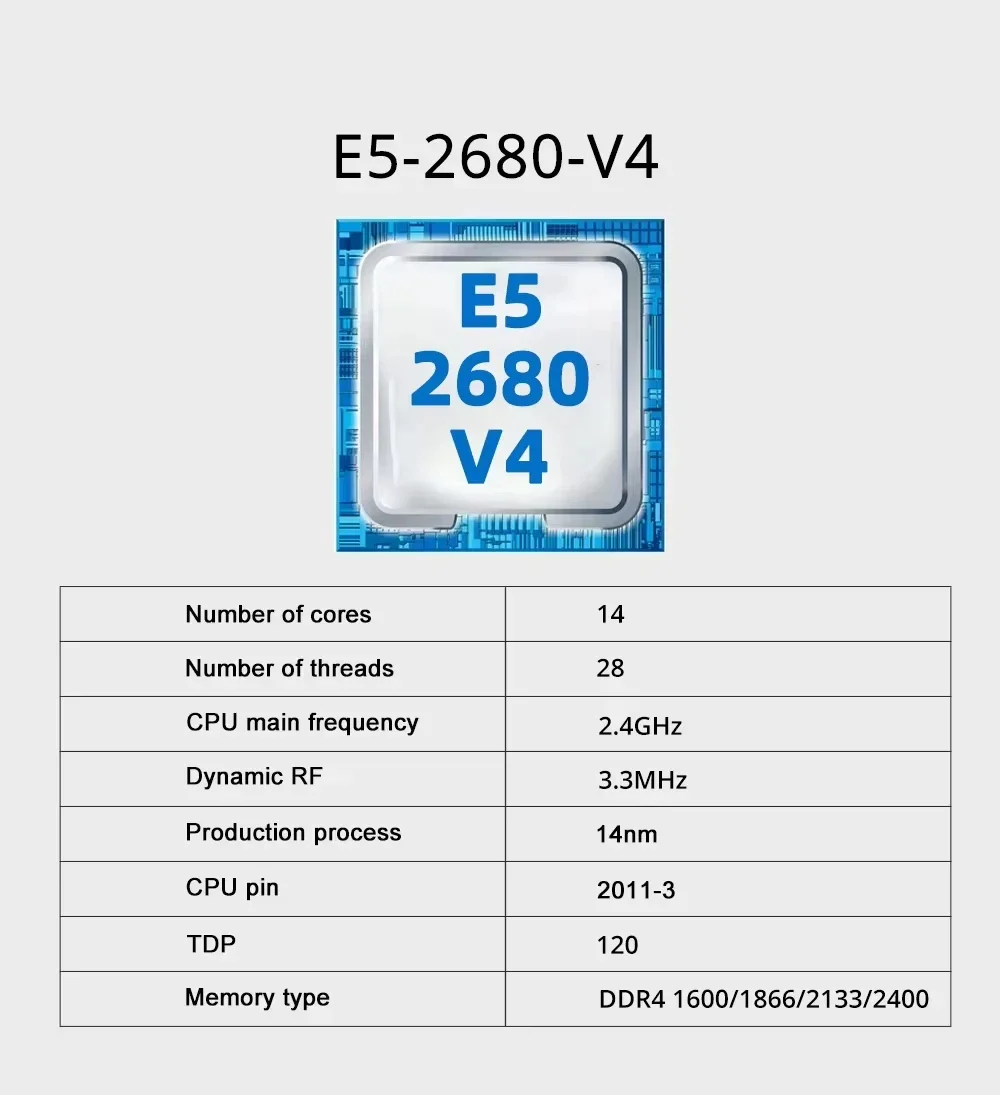

CPU:

Processor Series: Intel Xeon
Model number: E5 2680 V4
Processor Speed: 2.4GHz
Maximum core frequency: 3.3GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 14
The number of threads: 28
L3 cache size (MB): 35 MB
Wattage: 120 Watts
cpu will be final double tested before shipping

In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don’t place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)

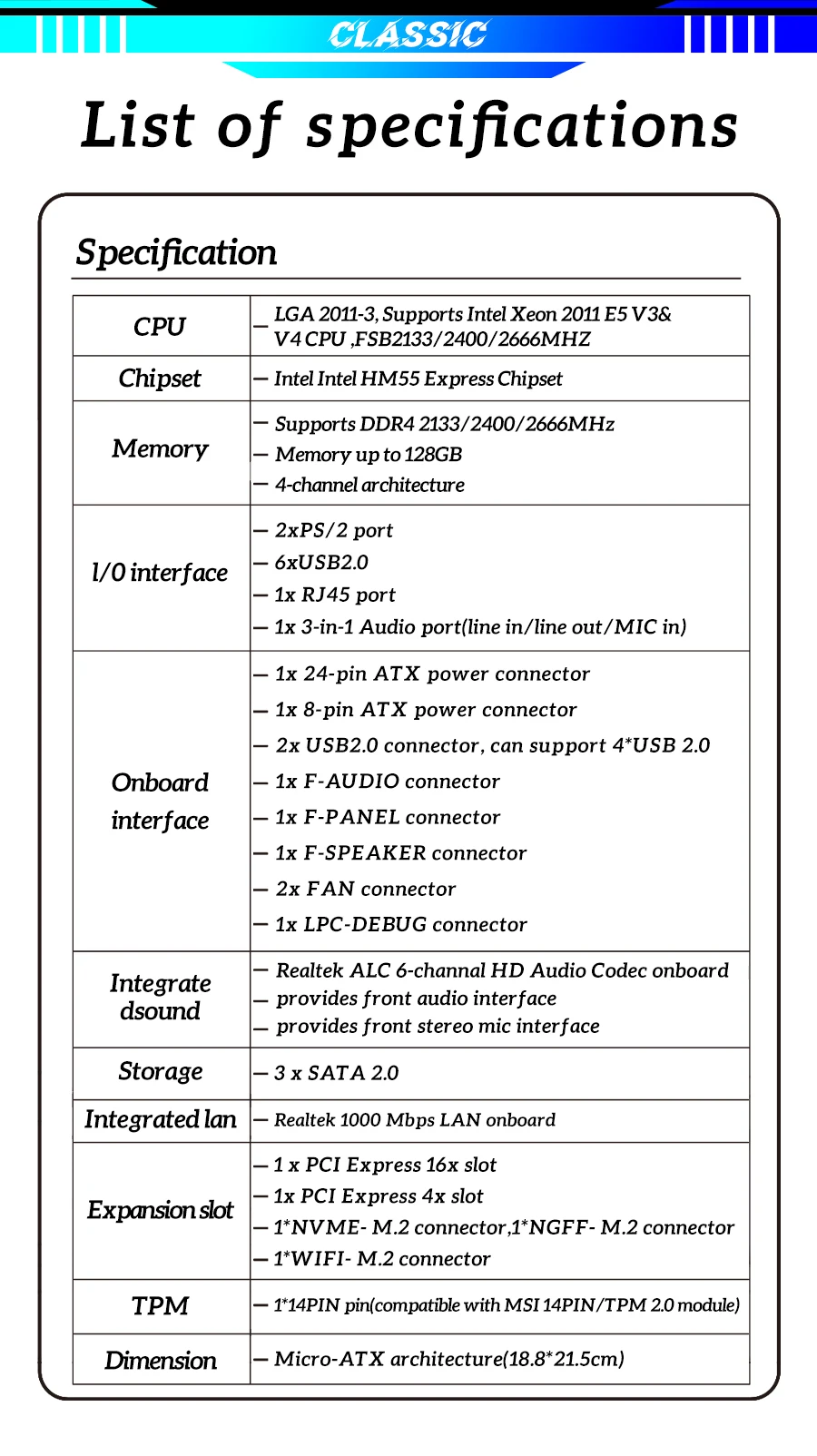

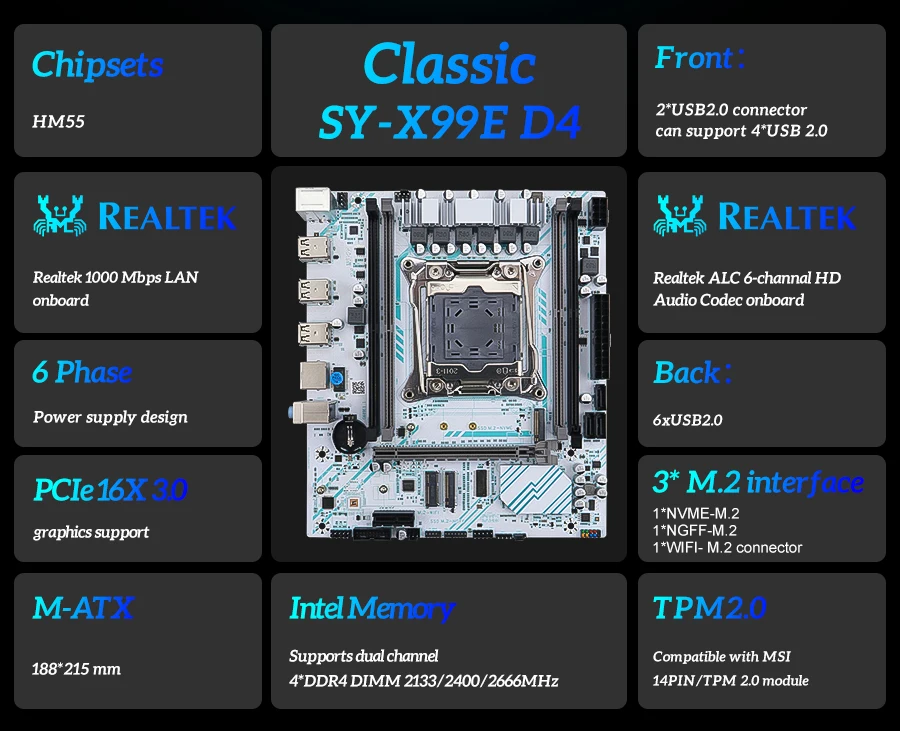

**otherboard Specifications**

**CPU Support**

– Intel LGA 2011-3 Socket

– Compatible with Intel Xeon E5 V3 & V4 Series Processors

– FSB Speeds: 2133/2400/2666 MHz

**Chipset**

– Intel Panther point X99C612/H81/HM55/B75/P75/Q75/H77 etc.; If you can’t accept, please don’t buy.

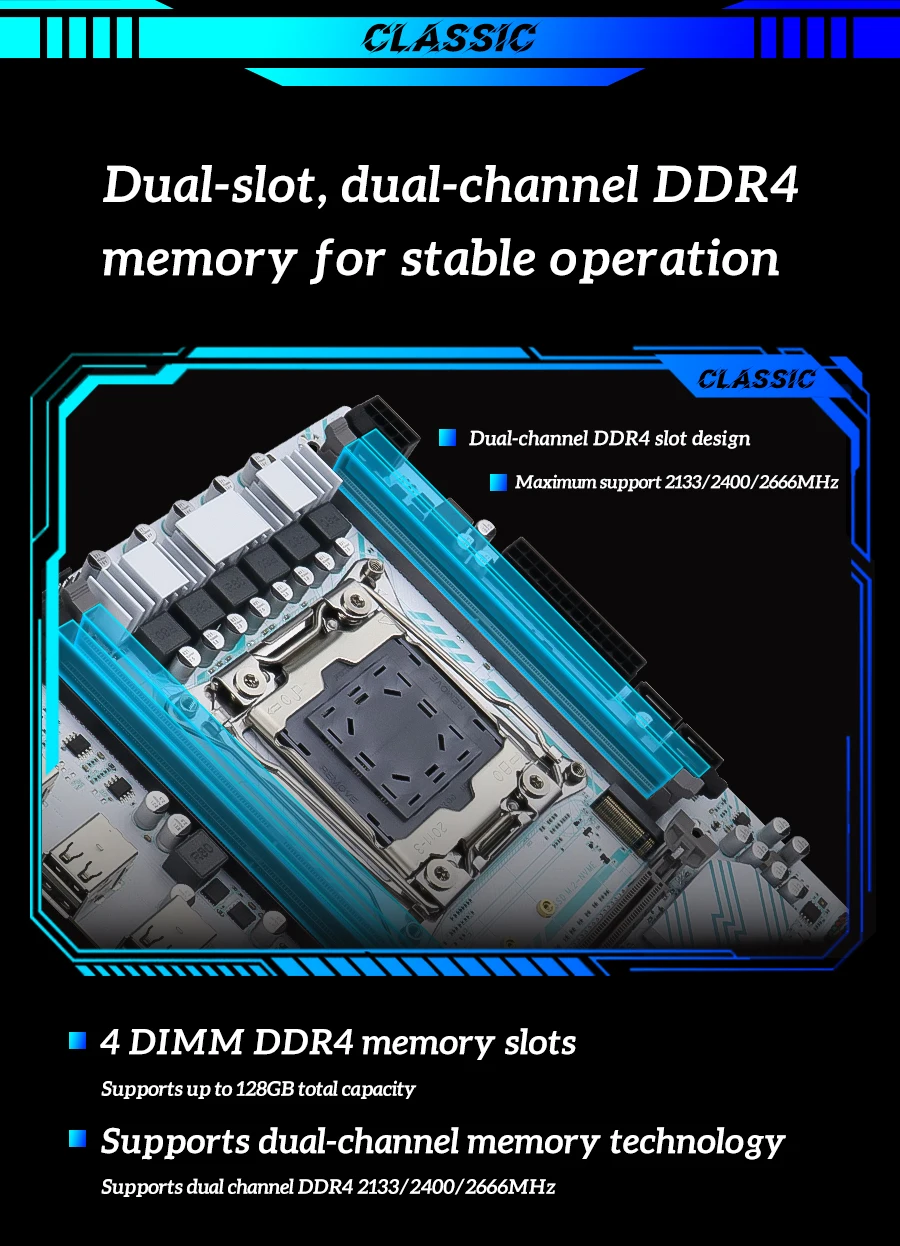

**Memory**

– DDR4 Support: 2133/2400/2666 MHz

– Maximum Capacity: 128GB

– 4-Channel Architecture

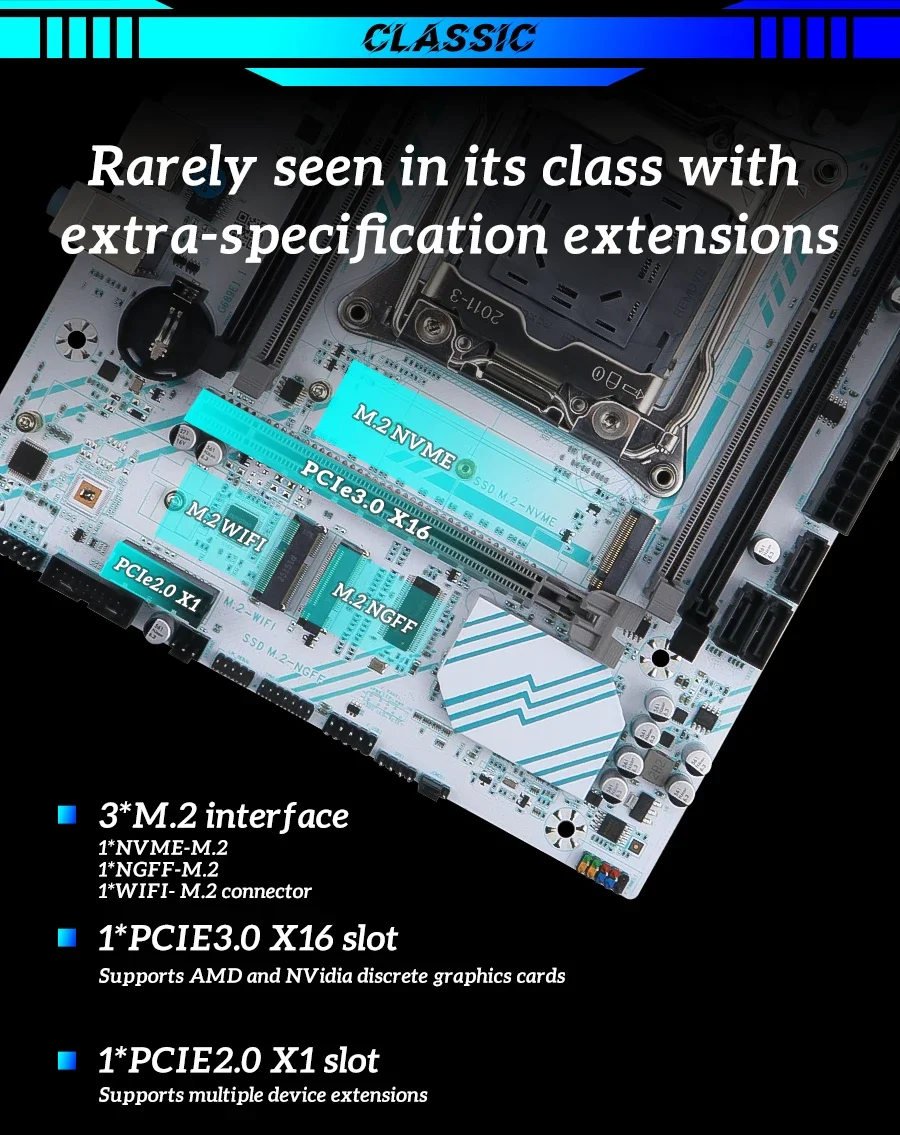

**Storage**

– 3x SATA 2.0 (3 Gb/s) Ports

– 1x NVME M.2 Slot

– 1x NGFF M.2 Slot

– 1x WIFI M.2 Slot

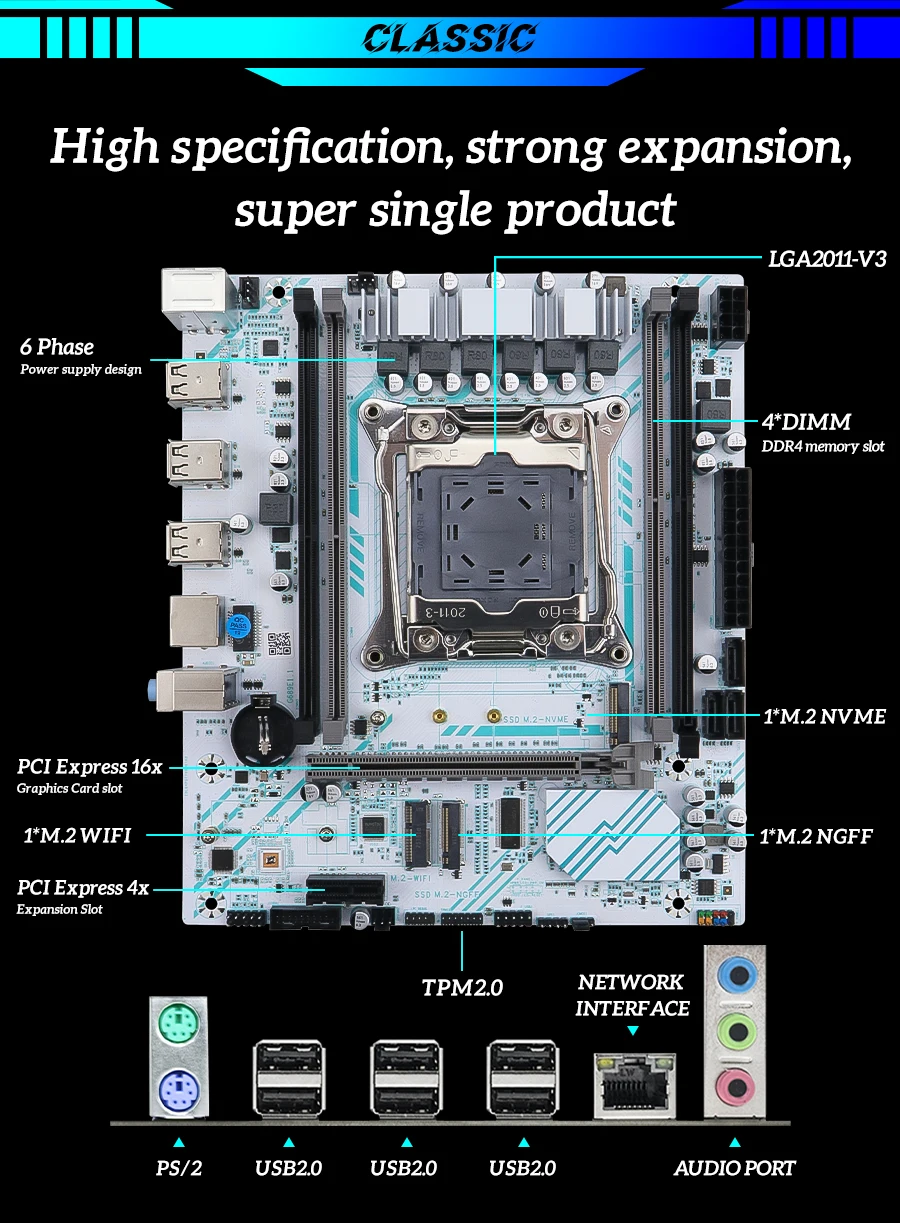

**I/O Ports**

– **Rear Panel:**

– 2x PS/2 Ports

– 6x USB 2.0 Ports

– 1x RJ45 Gigabit LAN Port (10/100/1000 Mbps)

– 1x 3-in-1 Audio Port (Line In/Line Out/Mic In)

– **Front Panel Headers:**

– 1x F_AUDIO (Front Audio)

– 1x F_PANEL (Front Panel Controls)

– 1x F_SPEAKER (System Speaker)

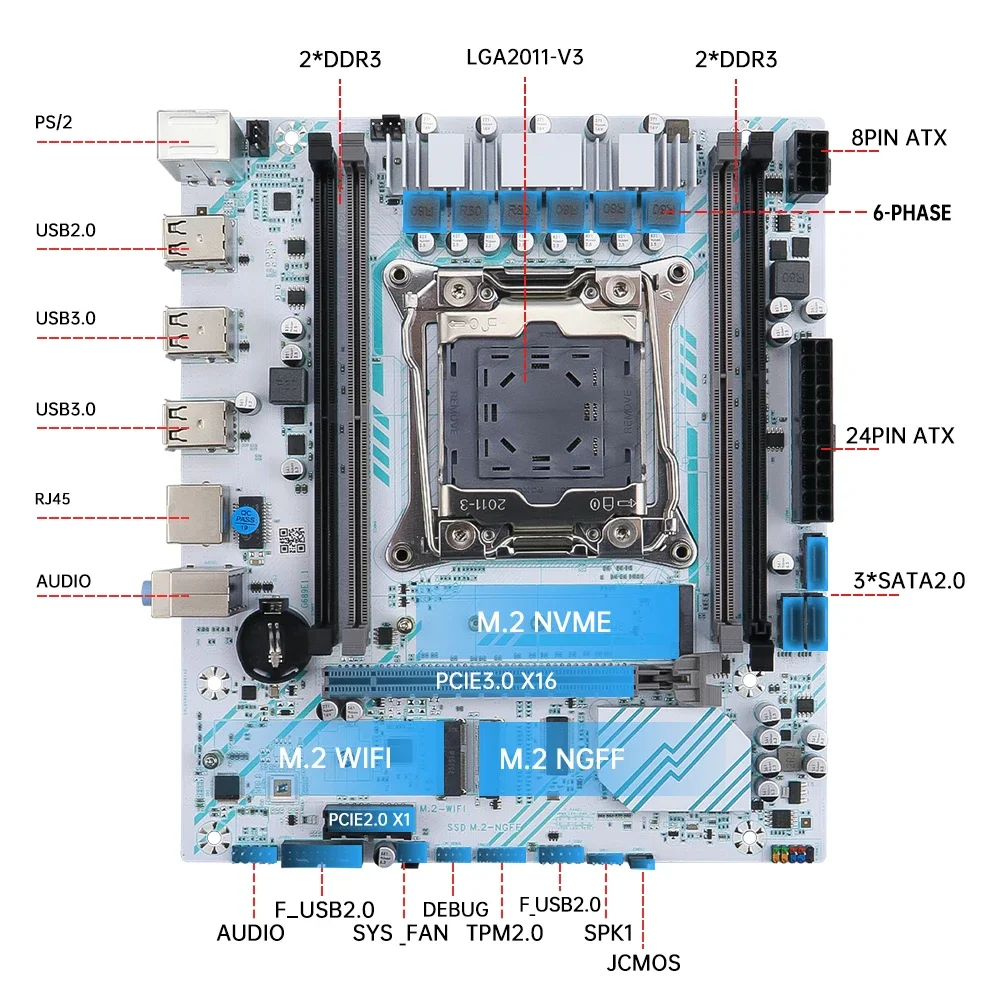

**Onboard Connectors**

– 1x 24-Pin ATX Power Connector

– 1x 8-Pin ATX12V Power Connector

– 2x USB 2.0 Headers (Supports 4x USB 2.0 Ports)

– 2x Fan Headers (CPU_FAN + SYS_FAN)

**Audio**

– Realtek ALC 6-Channel HD Audio Codec

– Front Audio and Stereo Mic Support

**Networking**

– Integrated Realtek Gigabit LAN (10/100/1000 Mbps)

**Expansion Slots**

– 1x PCI Express x16 Slot

– 1x PCI Express x4 Slot

**Additional Features**

– 1x LPC Debug Header

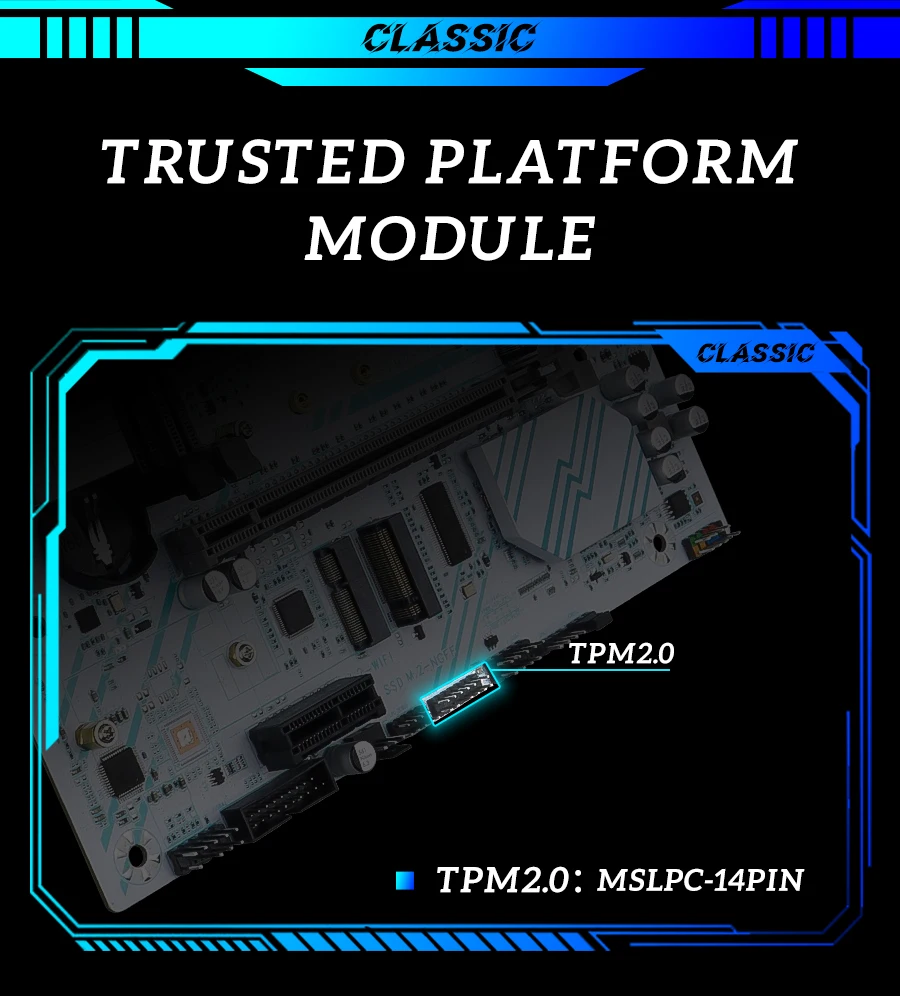

– 1x TPM Header (Security Module Support)

– 1x JCMOS Header (CMOS Clear)

**Form Factor**

– Micro-ATX Design (18.8 x 21.5 cm)

**Key Features**

– **Enterprise-Grade Memory**: 128GB DDR4 4-Channel Support

– **Triple M.2 Flexibility**: NVME, NGFF, and WIFI Expansion

– **Legacy Connectivity**: Dual PS/2 + 6x USB 2.0 Ports

– **Robust Cooling**: Dedicated CPU/SYS Fan Headers

– **Server-Ready**: Xeon E5 V3/V4 Support for Workstations
