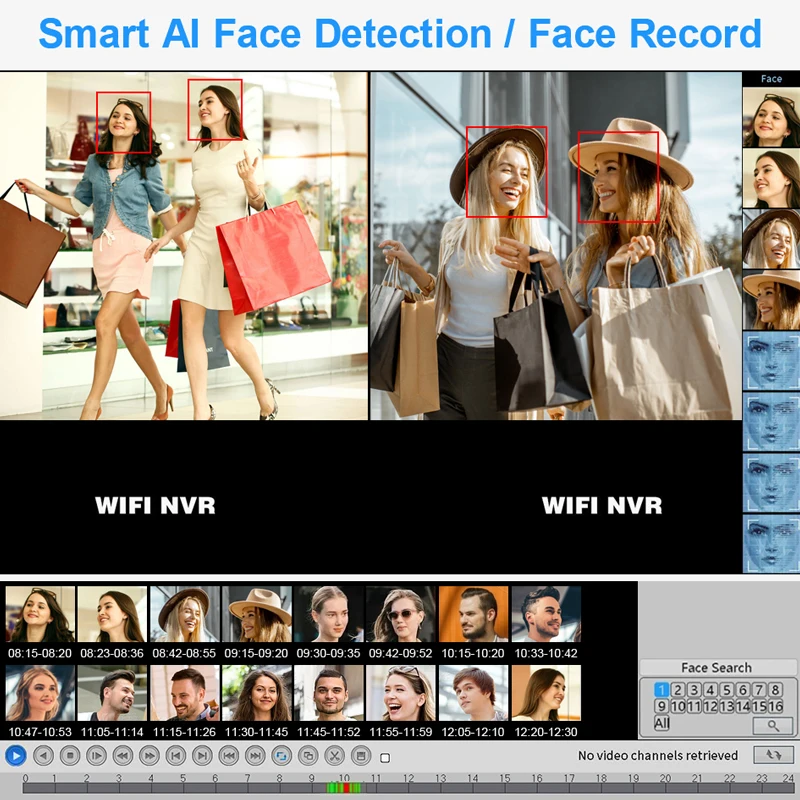

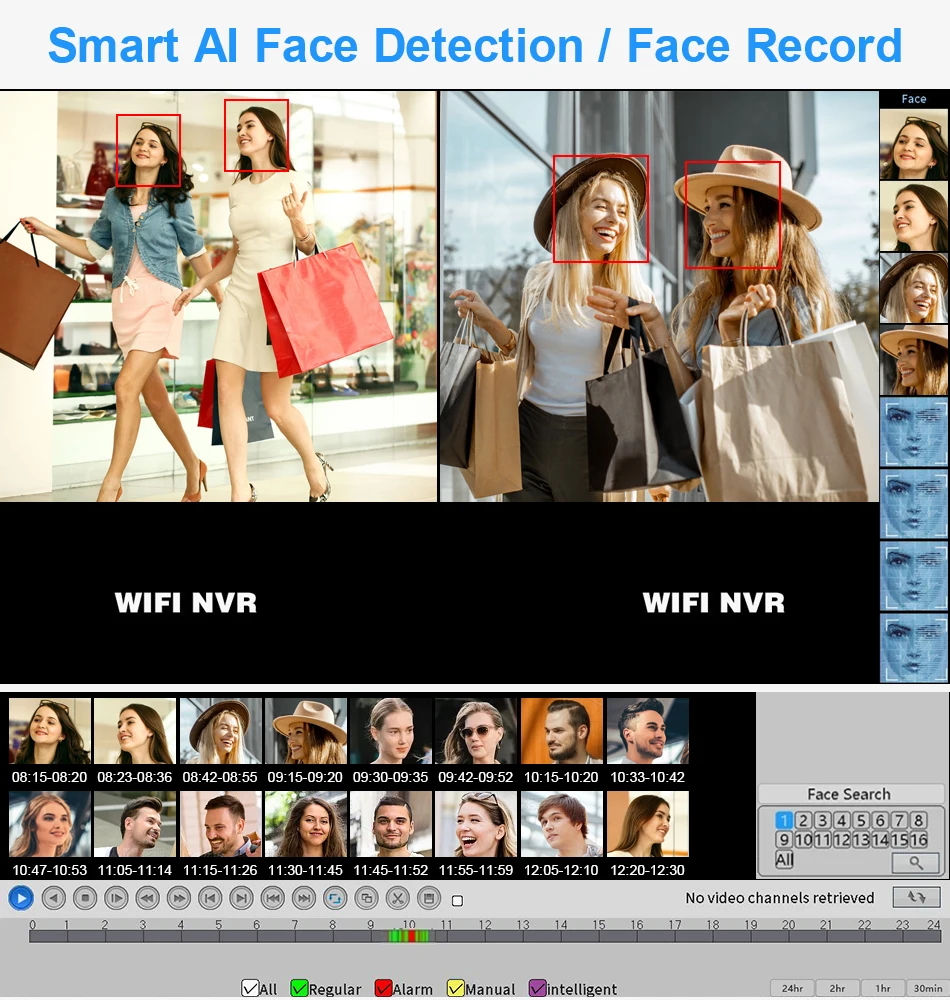

Smart AI Face Recognition/Face detection/face playbackace

AI face detection is more easy to catch the detail arround you . When someone invades, the “smar” security camera can clearly capture the details of the person’s face and protect your property at all times.

AI Humanoid Motion Detection & Email Alert/Record

You can createmultiple motion detection settings for camera, including Human Body Detection,Line Crossing Detection, Intrusion Detection and Specific Region Detection;
When motion is detected, the NVR can send email or start record to the hard disk without missing any important events.

How to check the NVR connect with network successfully?

Note：The NVR can’t be connected to WiFi wirelessly at present. it can be only fonnected by network cable.

Two ways to check the network status:
(1) Right Click the mouse- NetDetect- Remote Net Detect- Diagnosis Result, If it shows Test Success, the network is connected.

(2) Go to Mian Menu- Advanced-Version, check Net Status is connected which means your NVR is connected with the network.

Wireless Configuration/Channel Set.

Note: The original cameras are paired with NVR at manufacturing site. This instruction is for the extra cameras and connected failed cameras.

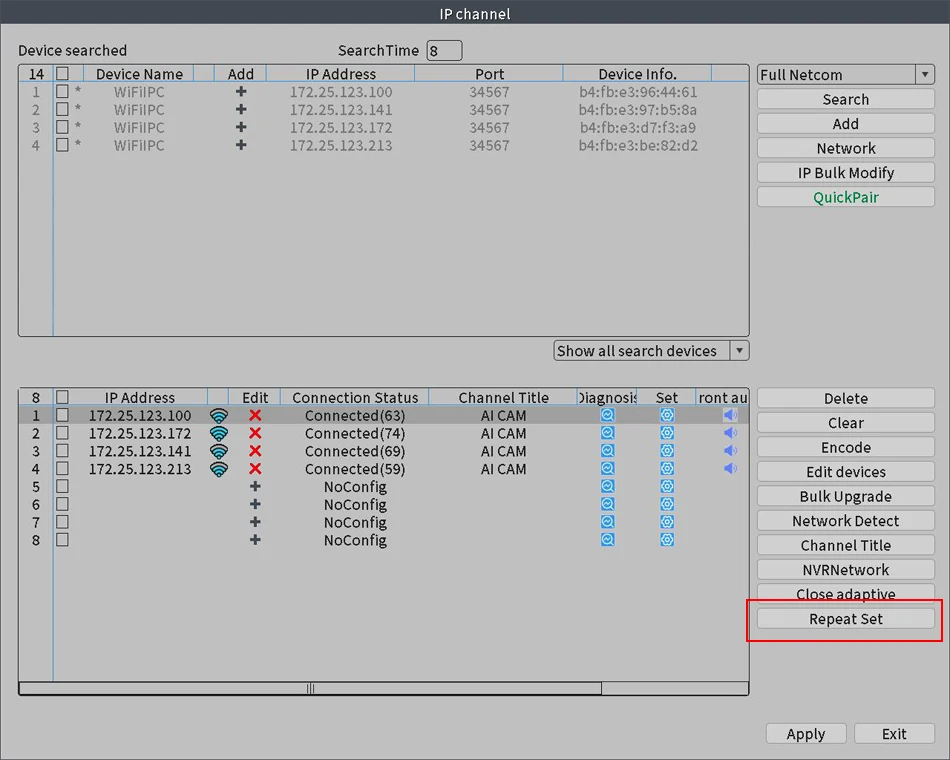

3. Repeat Setting interface descrition

Right click the mouse- Wireless/Channel set- Repeat Set.
There are three Repeat Modes: Auto Repeat, OpenRepeat, CloseRepeat. Under normal circumstances, it is recommanded to set to Auto Repeat mode, Repeat Modes can be set in the pop-up option box when clicking the corresponding IPC Cameras.

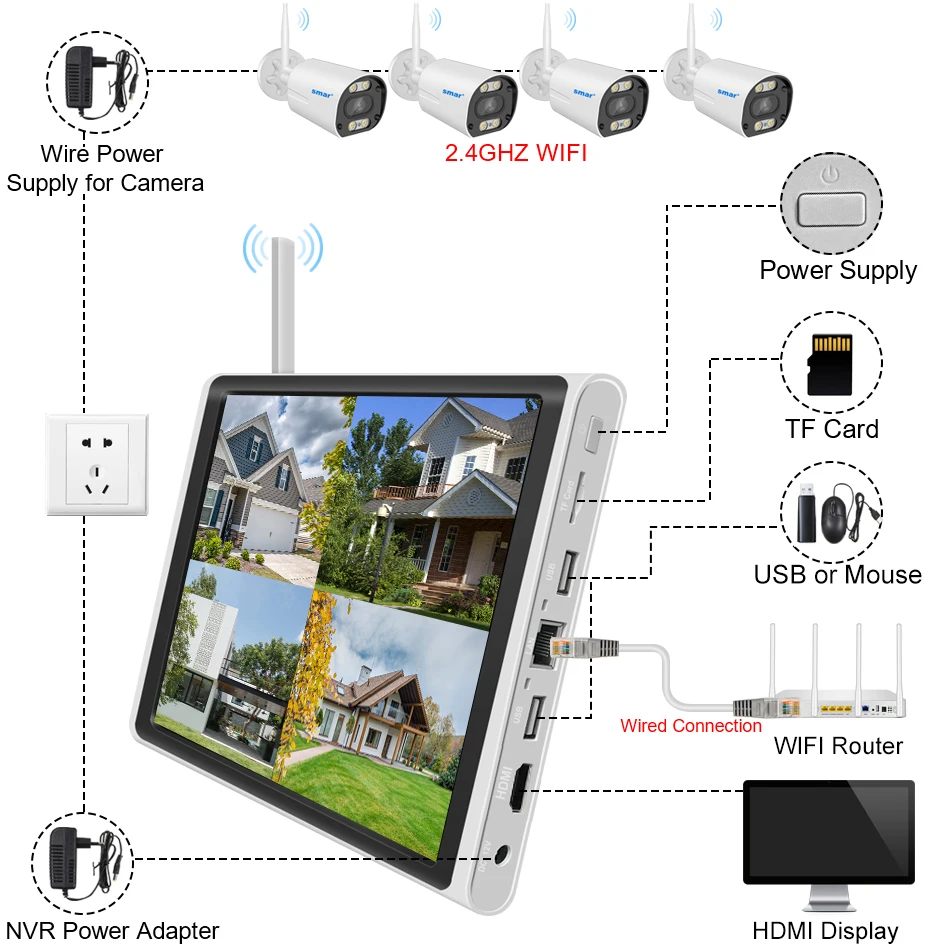

Wireless NVR supports wired and wireless two ways to access the camera(supported by some models). The two modes are set as follows:
1. Wireless configuration: right click mouse- Wireless/Channel Set, Delete the Offline Cameras first, then click on the Wireless code to Pair/QuickPair, then the image will automatically show after pairing successully.
2. Wired configuration: Connecting NVR to camera with an Ethernet cable will automatically obtain network settings for automatic internet access, After the Ethernet cable is plugged in, NVR will give priority to wired access, and the cameras will show on the screen automatically.

AutoRepeat:

AutoRepeat mode, at most two levels of repeat can be realized, NVR→IPC1→IPC2.The IPC devices connected to the NVR will automatically turn on the repeat function. If the repeat fundtion is turned on, the corresponding IPC font is green (IPC1) And device connected to IPC will not enable the repeat function, If the repeat function is not turned on, the corresponding IPC font is white (IPC2,that is , the device cannot be repeated after IPC2)

OpenRepeat:

This mode will forcibly open the repeat mode(restart is still maintained) . This mode is used for three-level or above repeat , it is not reconmended to turn on this mode because the transmission load of the WIFI module during the three-level or above repeat is big.

CloseRepeat:

This mode will forcibly close the repeat mode (restart remains),this mode is used when is a complex environment,IPC maybe repeated to an undesirable IPC, at this time you can turn off the repeated equipment to prevent wrong repeat (or use forced connection function).

NVR Size and Multi angle display:

Multi Languages of WiFi NVR:

The WiFi NVR Support Multi Language, as English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc…Total 28 languages

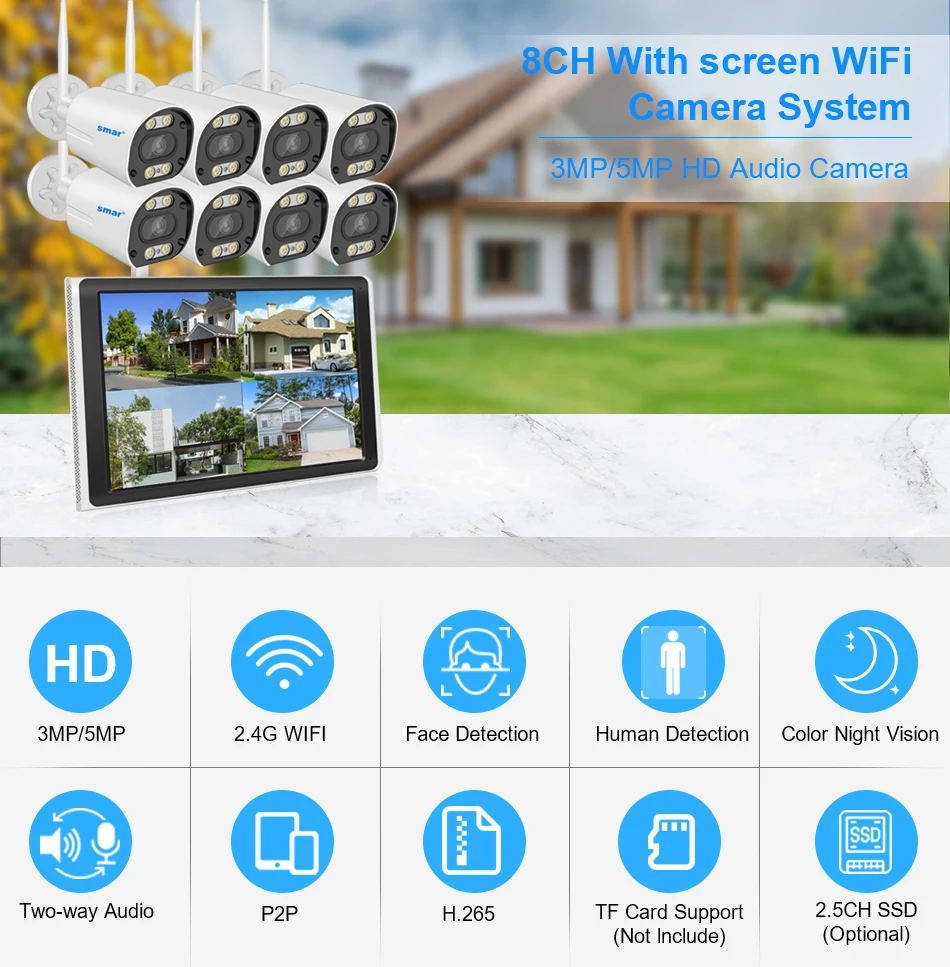

ChannelType of NVR:

Support 8CH 3MP Wifi Model, Playback 4CH 3MP

Easy access via multi-platform

Support Mobile Phone iOS, Android System，Remote view of mobile phones, any time… any where…

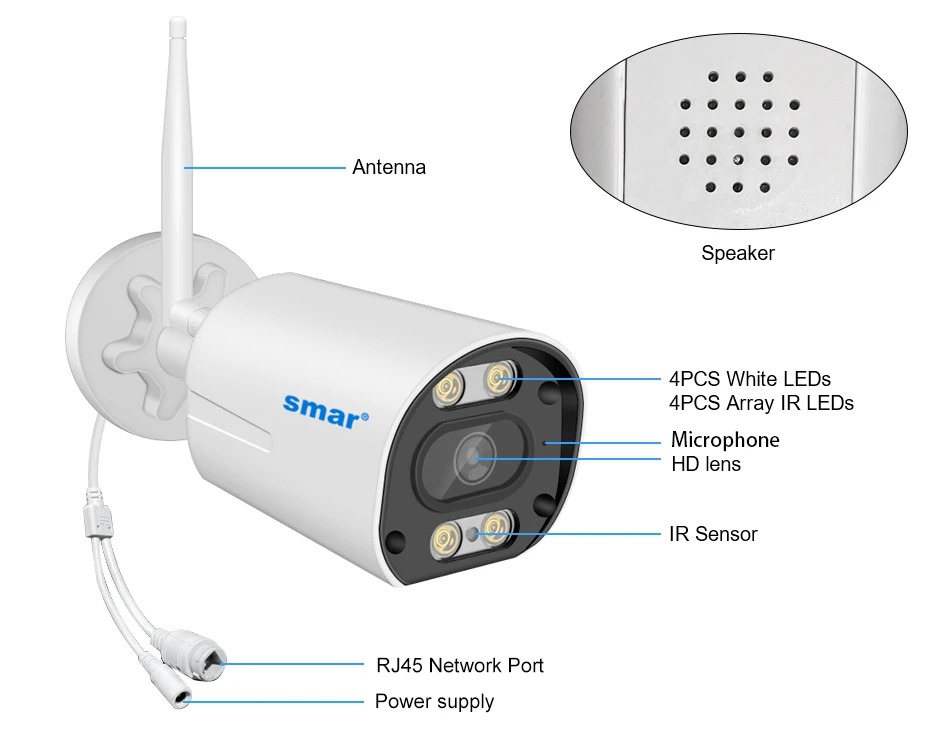

Camera Features:

Image Sensor: HD Color CMOS.
Image Resolution: 2048*1536P
Lens: 3.6MM HD Mega Pixels Lens.

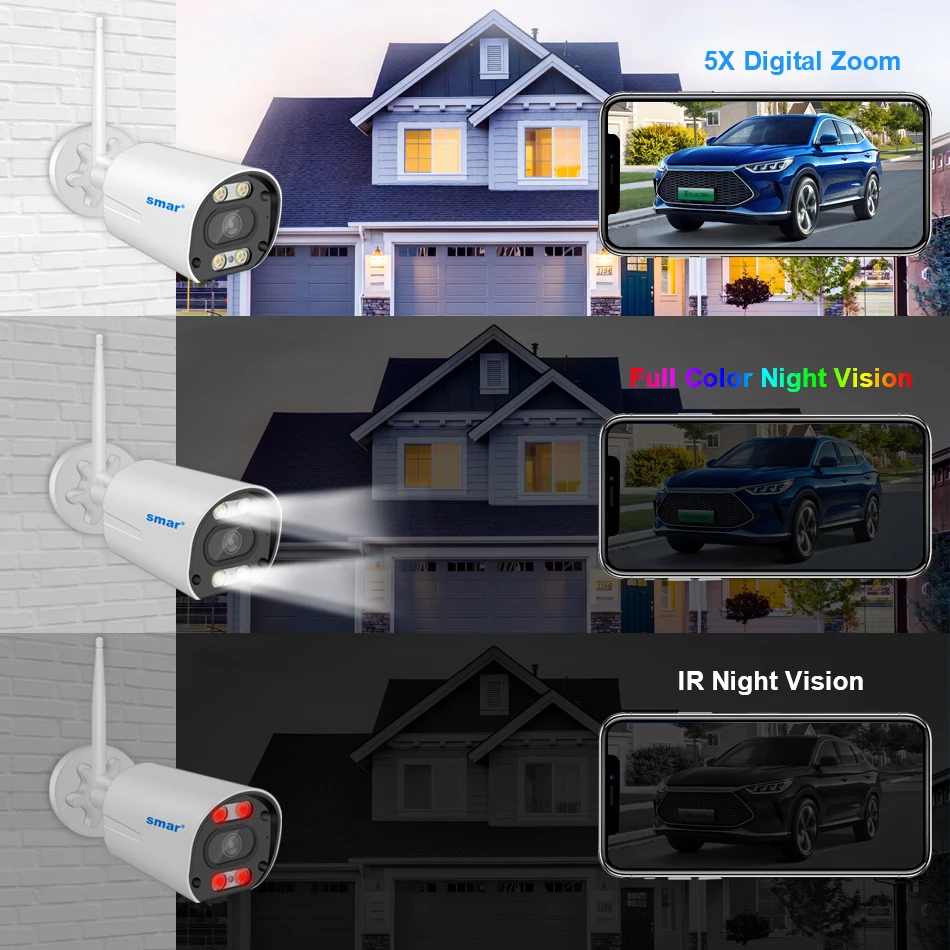

IR Night Vision: It has 4pcs dual light wick led and supports three modes (Day Vision, Night Vision, Full Color Night Vision,IR distance:10-20M), when movement is deteced, turn on full color mode..

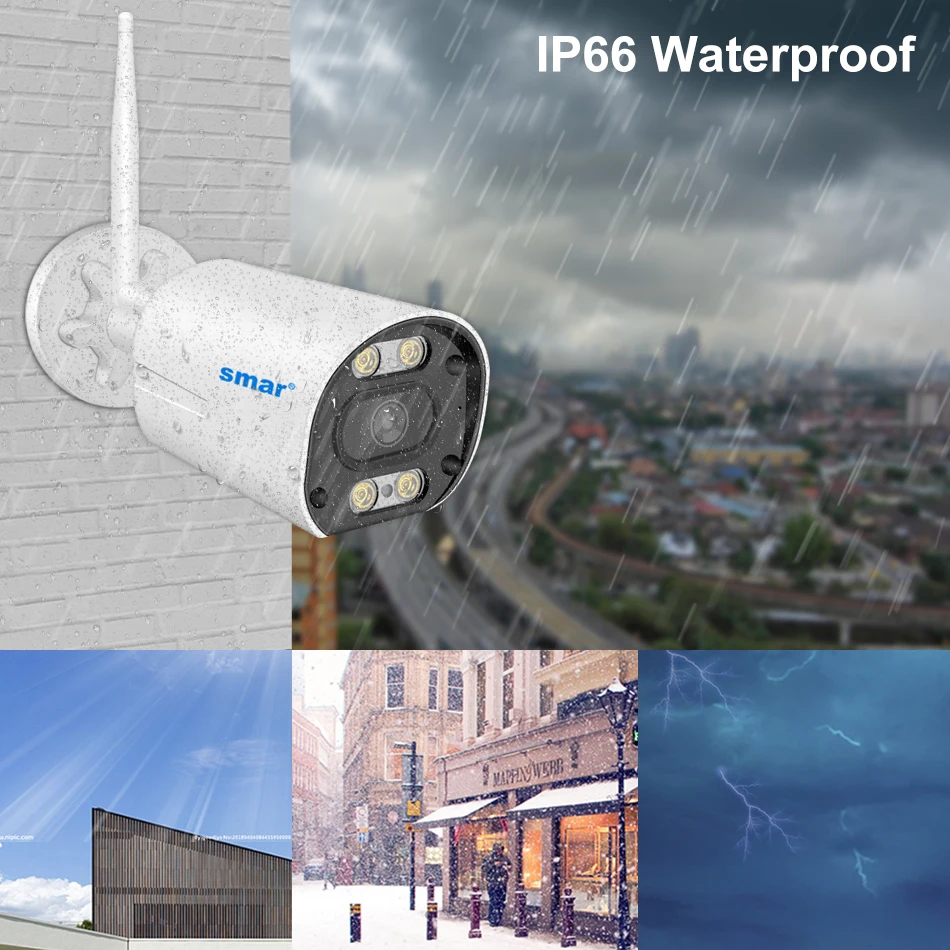

Weatherproof: Yes(IP66).
The built-in Speakers and microphones of the camera,Two way audio function;
Minimum Illumination: Colour 0.1 Lux, B/W 0.01Lux
2/3/4 x Colorful CMOS 2.0MP IR LEDs IP Cameras for option.

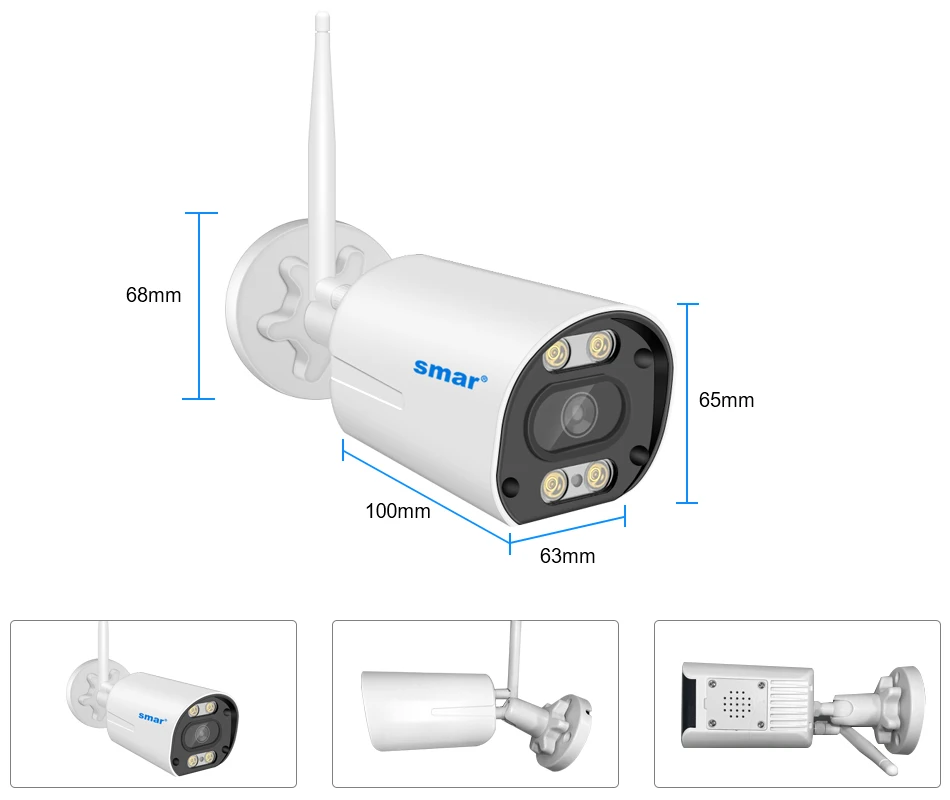

Camera Size and Multi angle display:

How to remote view through Mobile phone?

1. You must be download XMEye APP in your mobile phone;
2. Open software,register account and login;
3. Click “+” to ADD Device ( Scan QR Code Serial Number);
4. Add successfully, Live video.

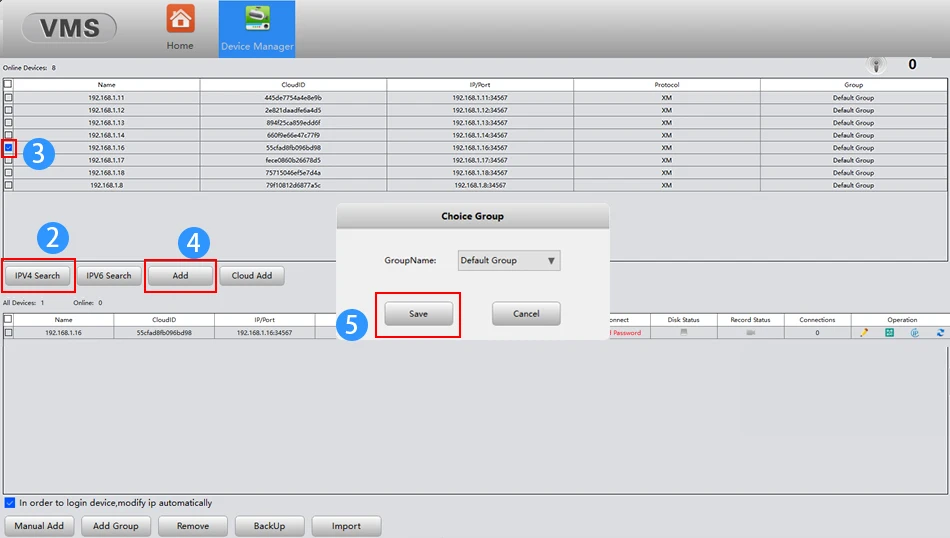

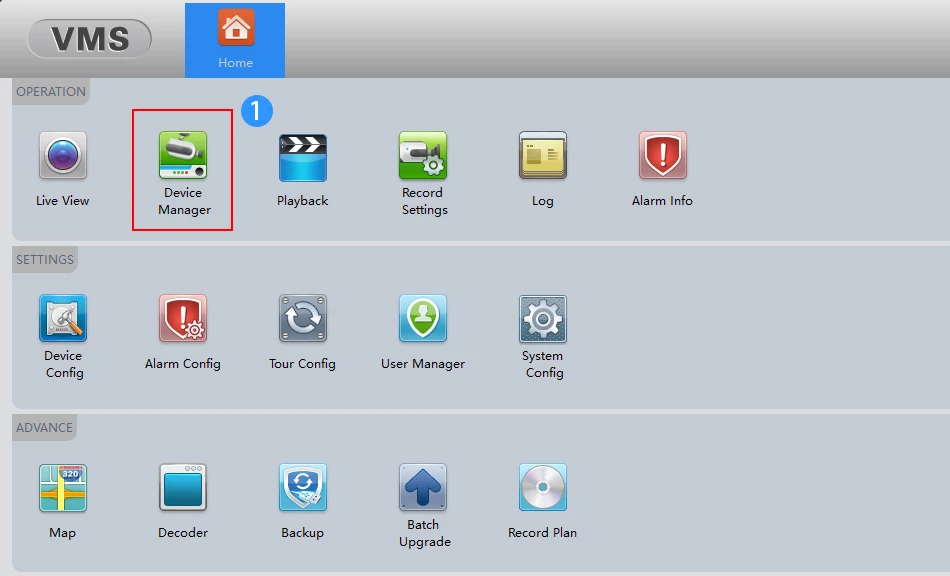

How to manage the cameras through PC client?

1. Please used your mobile phone to scan the QR code as below, and then click to download；
2. Please install VMS software on your computer, then login VMS Software, Username: admin, Password:admin

3. Please click the Device Manager-IPV4 Search-choose address of IP Camera- ADD-SAVE,Search and Camera successfully;
4. Click t he Live View, then click IP Address of Default Group, then you will can Watching Video.

We operate warehouses in Europe, Russia, Brazil, and Mexico, allowing us to offer you fast and tax-free shipping to these regions. If your order is fulfilled from our China warehouse, we will arrange an upgraded shipping method based on stock availability in the warehouse closest to your delivery destination.

1.Shipment from China might come with additional Custom Fees, VAT, Taxes & Remote Area Fees, please to learn about your country’s custom policies, Smar is not responsible for those charges.

2. If a package is held by destination country customs, the buyer is responsible for clearance. Should you encounter any issues, please contact us—we will assist you with the customs clearance process.

All products come with a one-year warranty from the date of delivery. If a manufacturing defect occurs within this period, we will repair or replace it for you.

Please note the warranty does not cover damage from accidents, improper use, or natural disasters.

Here’s how it works:

– 1st month: Free replacement, no questions asked.

– Months 2–6: We cover repair/replacement costs; you pay shipping.

– Months 7–12: Repair or replacement at 50% of product price, plus shipping.

If you have any concerns, please reach out to us first—we’re here to help and resolve any issues quickly.

FAQ:

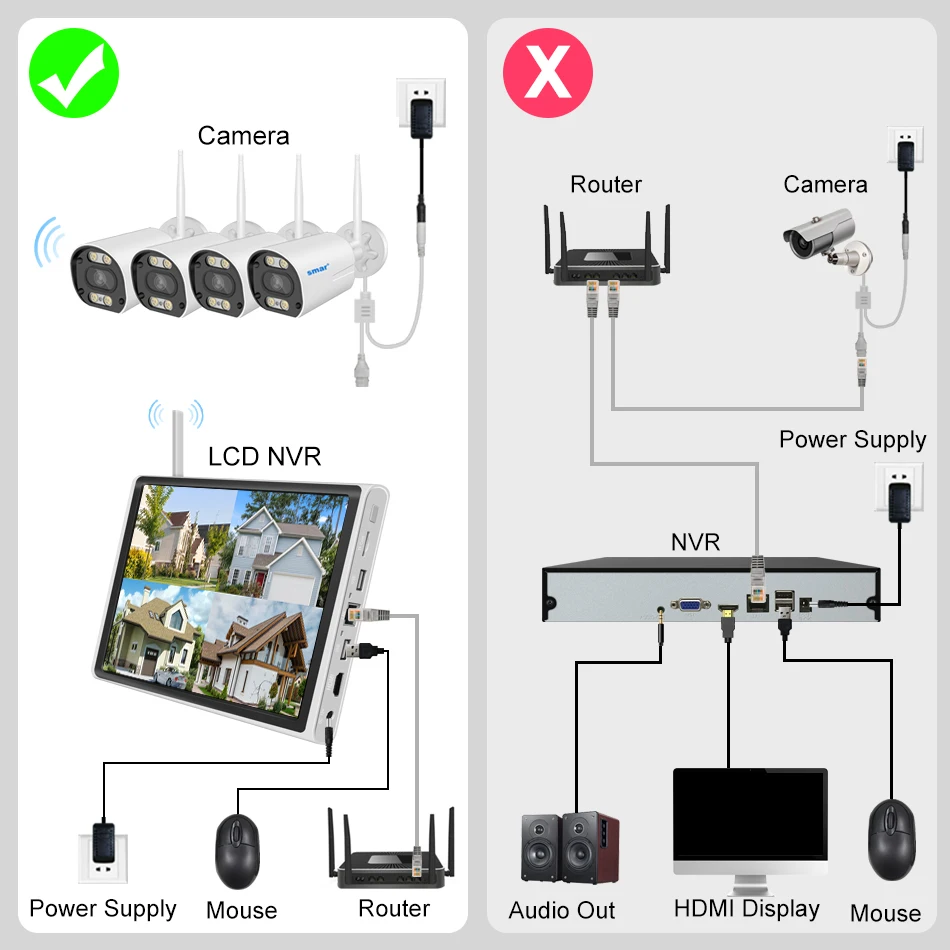

Q1: How does the WiFi camera and WiFi NVR in the Wireless Camera Kit work?
A: Our WiFi camera has been matched before leaving the factory. When you supply power to WiFi camera and WiFi NVR, WiFi NVR will automatically connect to WiFi camera; Then you can watch the image, which is really plug and play, and the operation is very simple;

Q2: How does the WiFi NVR connect to the WiFi Router?
A: Connect WiFi NVR to WiFi Router through Network Cablee (Note: Unable to connect wirelessly)

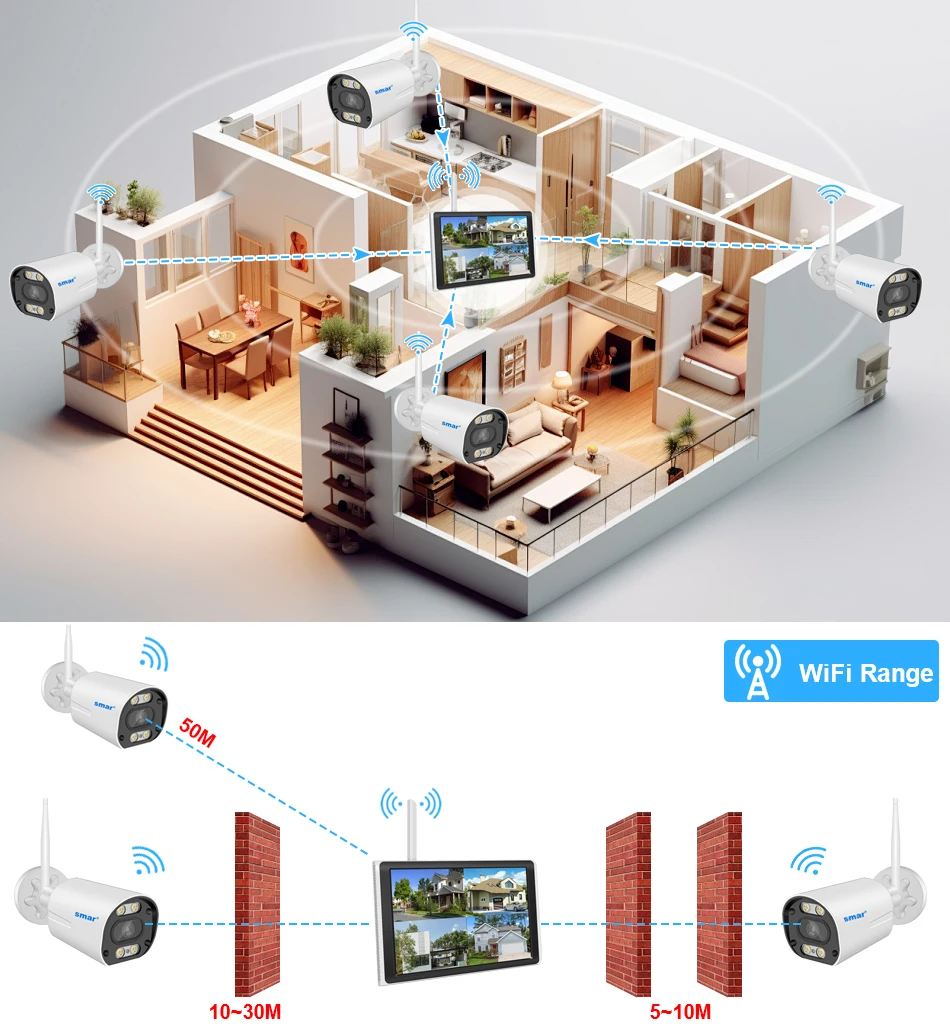

Q3: How far is the WiFi camera from the WiFi NVR to work properly?
A: This distance needs to be determined according to the on-site environment. We installed WiFi camera about 30 meters away from the WiFi NVR. There are five walls between them. After several hours of on-site testing, their work has been very stable! If your environment is very open, WiFi camera and
the distance of WiFi NVR can reach within 100m; (field test required)

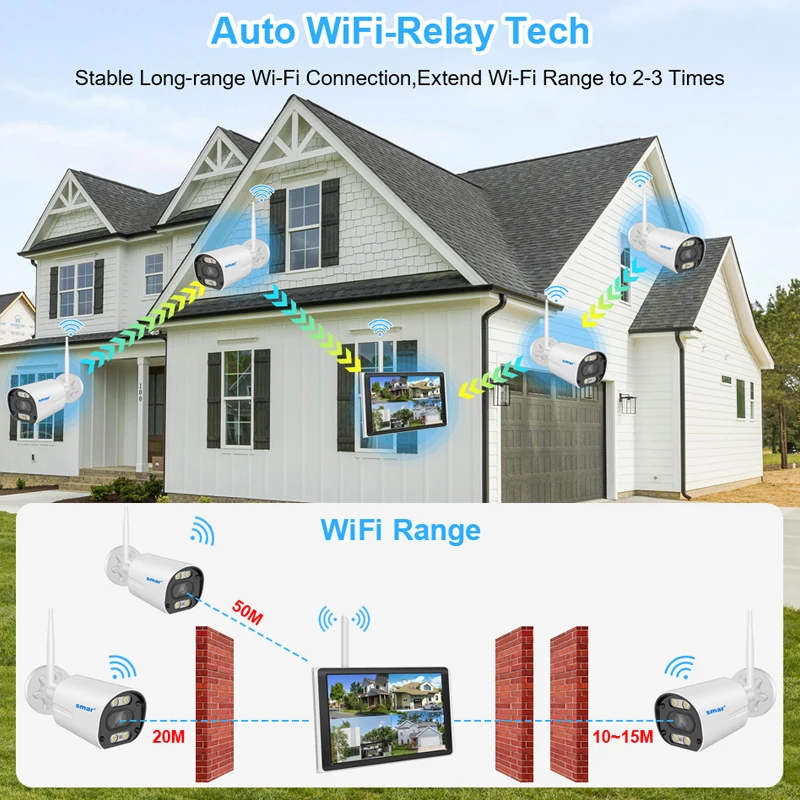

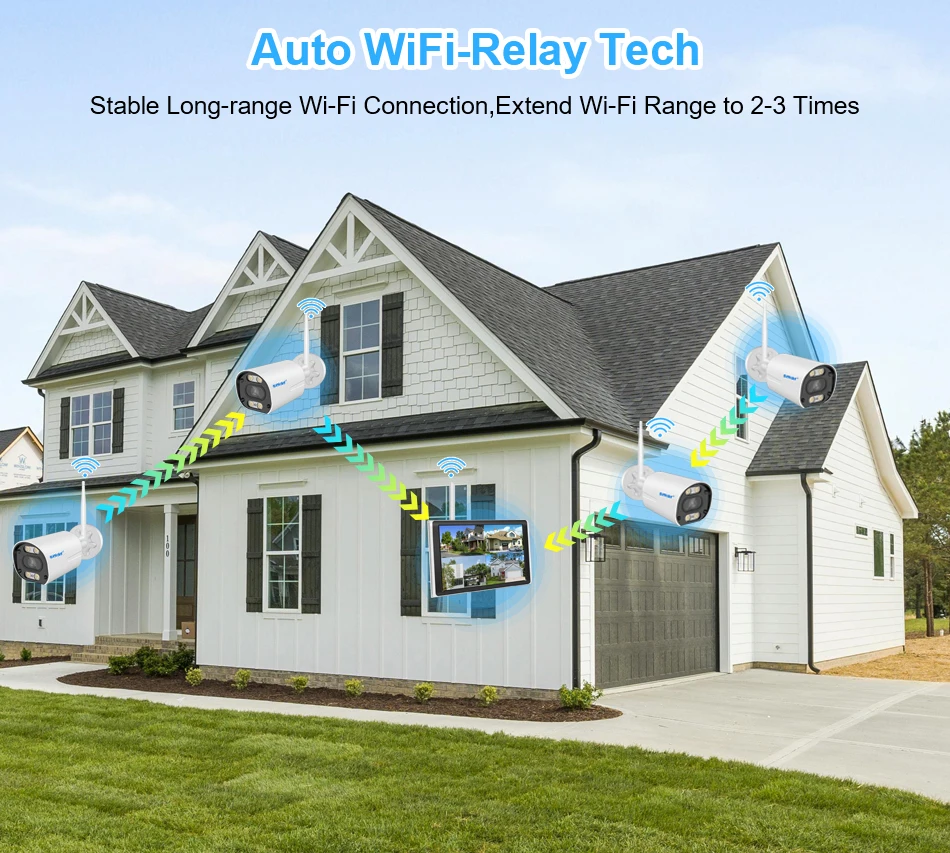

Q4: What is cascading technology?
A: Usually, our camera is a transmitter; The purpose of the cascade technology is that it can turn each WiFi camera into a transmitter and a receiver. It can receive WiFi NVR signals and then transmit the signals to nearby WiFi cameras;
The cascading technology module is built into the body of each WiFi camera. It adopts the latest cascading technology, supports automatic cascading and manual cascading, and greatly improves the coverage and stability of wireless signals;

Q5: How do i add a new camera? what should i do when there is no camera display on the screen
A: In some situations, you may need to add a new camera to your NVR . For example, you may need to replace a broken camera, or if you have an expandable NVR, you can add extra cameras.
1) Please use an Ethernet cable connect the camera to your NVR first.
2) Right Click the mouse→Wireless/Channel Set→Code for Wireless/QuickPair →wait for the new camera IP address show up, then Exit.
3 After that you can unplug the Ethernet cable.

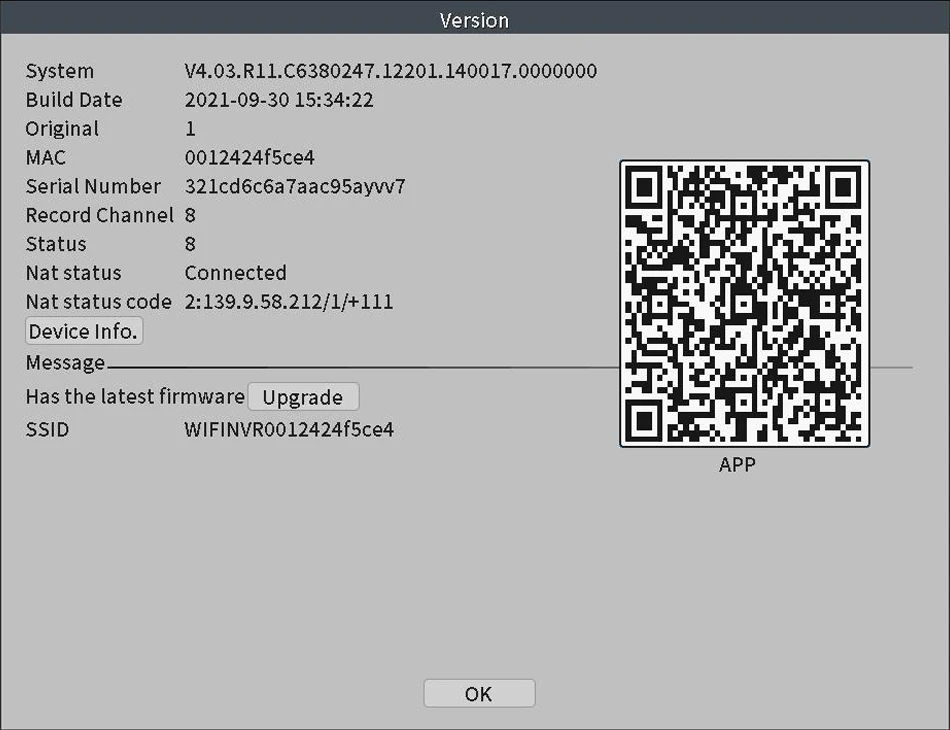

Q6: How to find my NVR’s serial number/Cloud ID?
A: Please right-click mouse navigates to Main Menu→Advanced→Version.
