- Hochbesorgniserregende Chemikalie: Keiner
- Modellnummer: ZA-120/240/360
- Stromspannung: 12V
- Fan Speed: 700 – 2400rpm
- Used For: Case,Radiator
- Power Interface: 4PIN,5v-3pin ARGB
- Package: Ja
- Noise: 25dBA
- Lines: 4 LINES
- Fan Life: 100000 hrs
- Blade Quantity: 7
- Bearing: Fluid Bearing
- Air Volume: 62.4
- Herkunft: Festlandchina
- Markenname: Jonsbo
- Series: ZA-120/240/360
- Power (W): 2.64
- Fan Size: 12cm
ZA-120
Model: ZA-120W Black and White/Forward and Reverse
Fan size: 120mm (L) * 120mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 21.46-62.40 CFM
Wind pressure: 0.49-2.46 mmH2O
Noise level: 21.3-37.3 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.22A LED 0.71A
Power: FAN 2.64W LED 3.55W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 32 around+9 parallel axis
ZA-240
Model: ZA-240B Black and White/Forward and Reverse
Fan size: 242mm (L) * 123mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 21.46-62.40 CFM
Wind pressure: 0.49-2.46 mmH2O
Noise level: 21.3-37.3 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.43A LED 1.16A
Power: FAN 5.16W LED 5.80W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 52 around+18 parallel axis
ZA-360
Model: ZA-360B Black and White/Forward and Reverse
Fan size: 362mm (L) * 123mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 21.46-62.40 CFM
Wind pressure: 0.49-2.46 mmH2O
Noise level: 21.3-37.3 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.61A LED 1.35A
Power: FAN 7.32W LED 6.75W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 68 around+27 parallel axis
Attention: The ZA/ZB-360 fan requires your motherboard or controller to support at least 68 light bead (some motherboards support adjusting the number of light bead)
null
null
null
null
null
null
null
null
null
null
null
null
22 reviews for JONSBO ZA-120/240/360 Case Cooling Fan ARGB 12cm Connected Building Block Fan PWM Silent Chassis Fan
Nur eingeloggte Kunden, die dieses Produkt gekauft haben, können eine Bewertung abgeben.
| Farbe | ZA-120B, ZA-120BR, ZA-120W, ZA-120WR, ZA-240B, ZA-240BR, ZA-240W, ZA-240WR, ZA-360B, ZA-360BR, ZA-360W, ZA-360WR |
|---|---|
| Hochbesorgniserregende Chemikalie | Keiner |
| Modellnummer | ZA-120/240/360 |
| Stromspannung | 12V |
| Fan Speed | 700 – 2400rpm |
| Used For | Case,Radiator |
| Power Interface | 4PIN,5v-3pin ARGB |
| Package | Ja |
| Noise | 25dBA |
| Lines | 4 LINES |
| Fan Life | 100000 hrs |
| Blade Quantity | 7 |
| Bearing | Fluid Bearing |
| Air Volume | 62.4 |
| Herkunft | Festlandchina |
| Markenname | Jonsbo |
| Series | ZA-120/240/360 |
| Power (W) | 2.64 |
| Fan Size | 12cm |
| RGB Support | A-RGB |
| Blade Color | Andere |

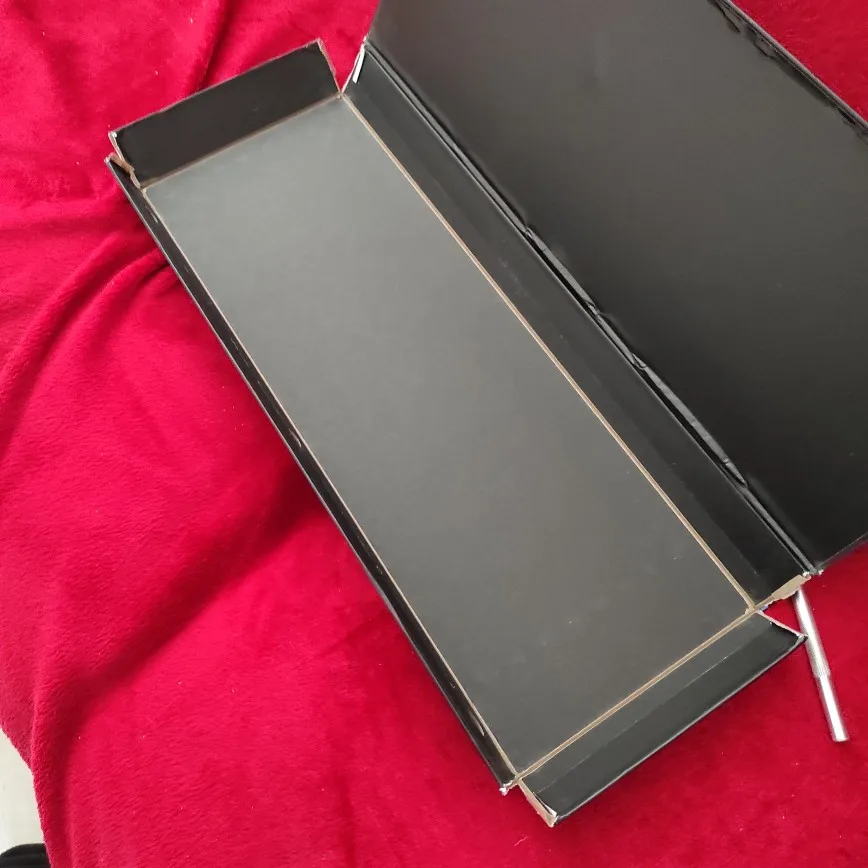

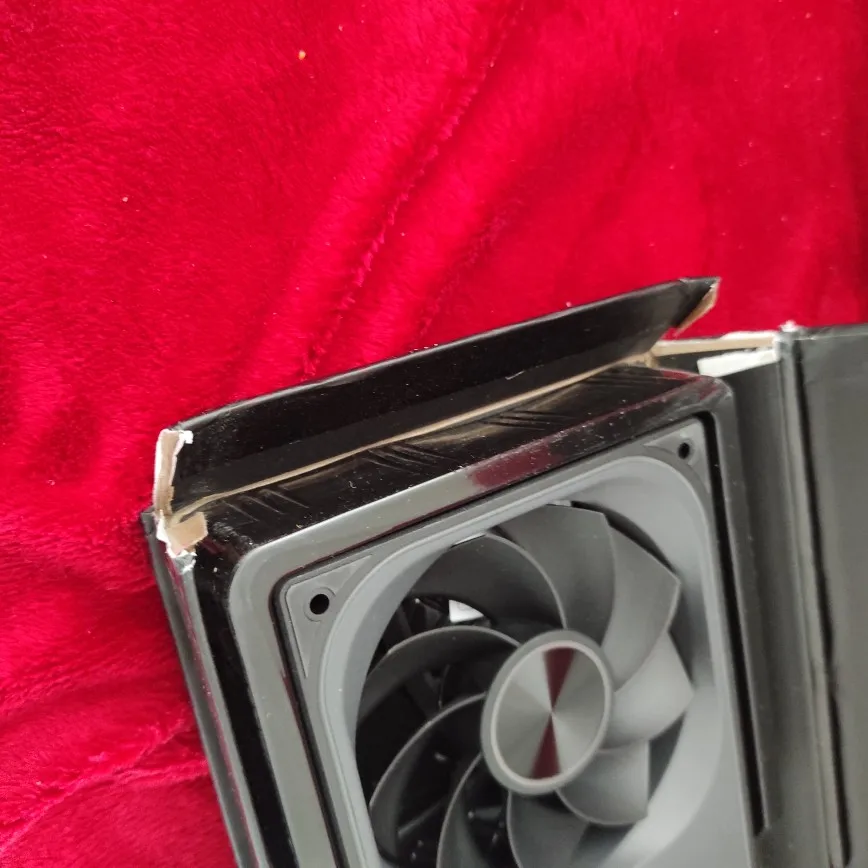

No protection, just a plastic bag.

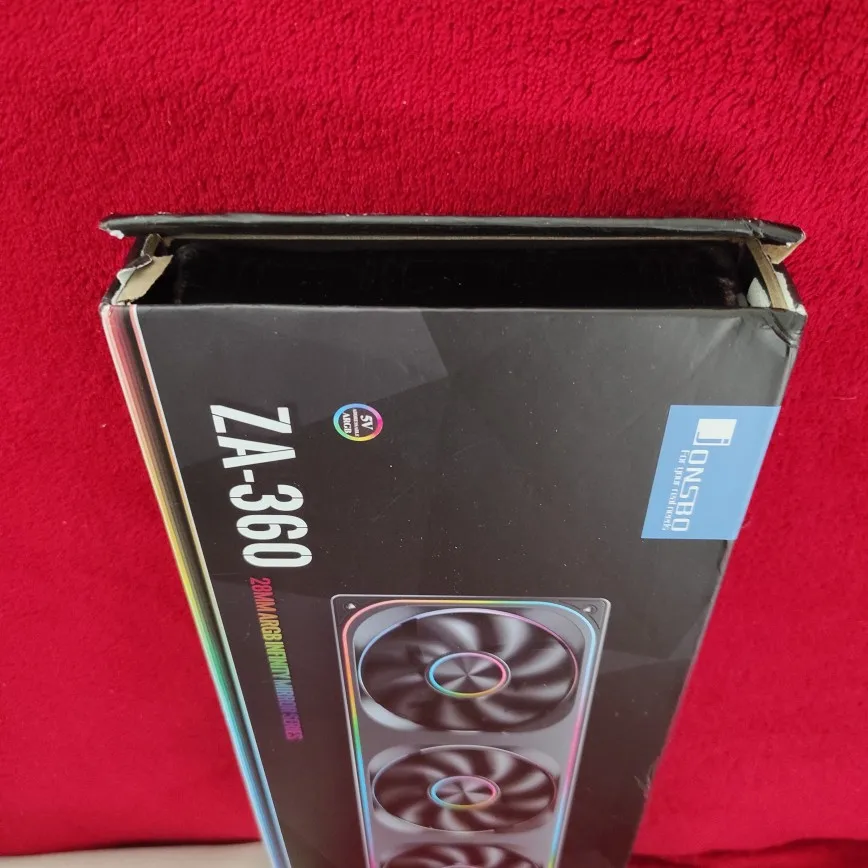

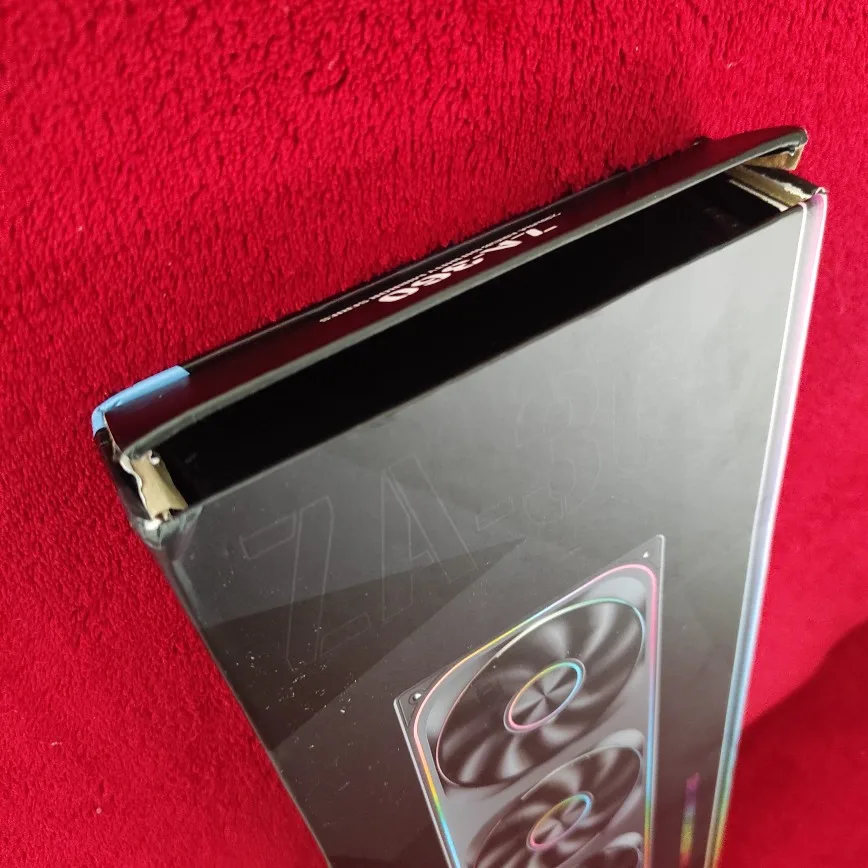

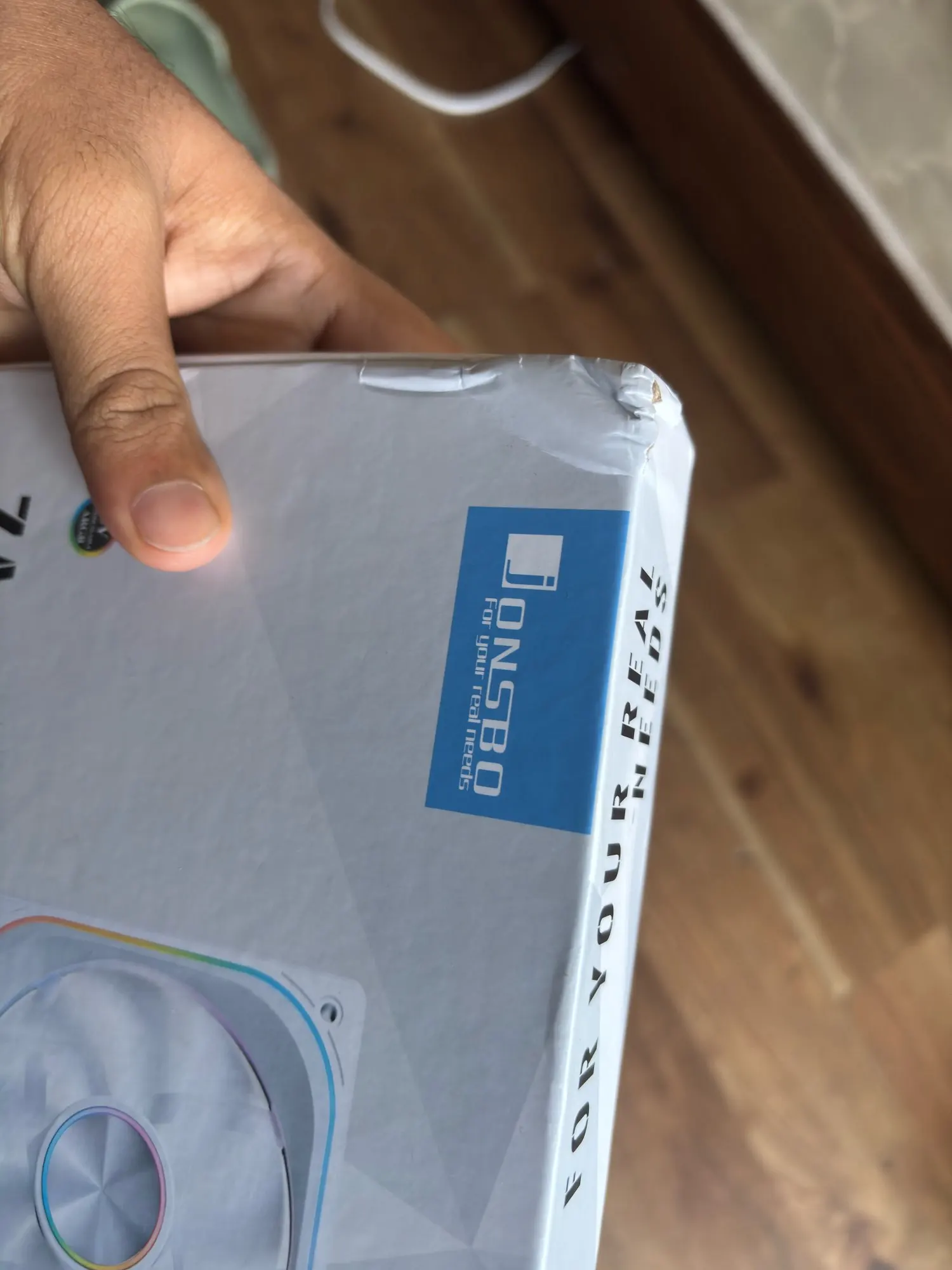

Box damaged in several places.
For a premium product with a price of almost €50 excluding discounts, efforts need to be made on the packaging! !
The fans seem intact, that's the main thing.
But I'm not sure if I'll buy from you again.

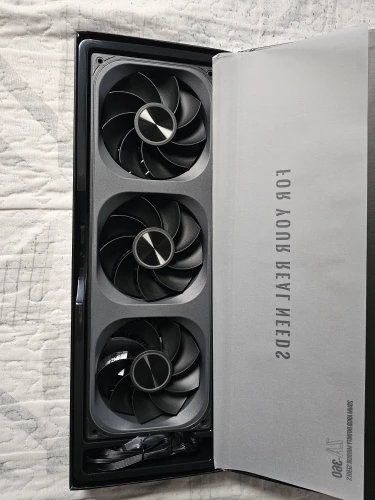

well protected by careful packaging
The fan is of very high quality.
The price is a bit expensive, but undoubtedly justified.
Thank you to the seller
