Smart Home Devices 6 Inch knx Multi-functional Touch Screen Control Panel Central Controller for Scenes Switch

Willkommen in unserem Shop

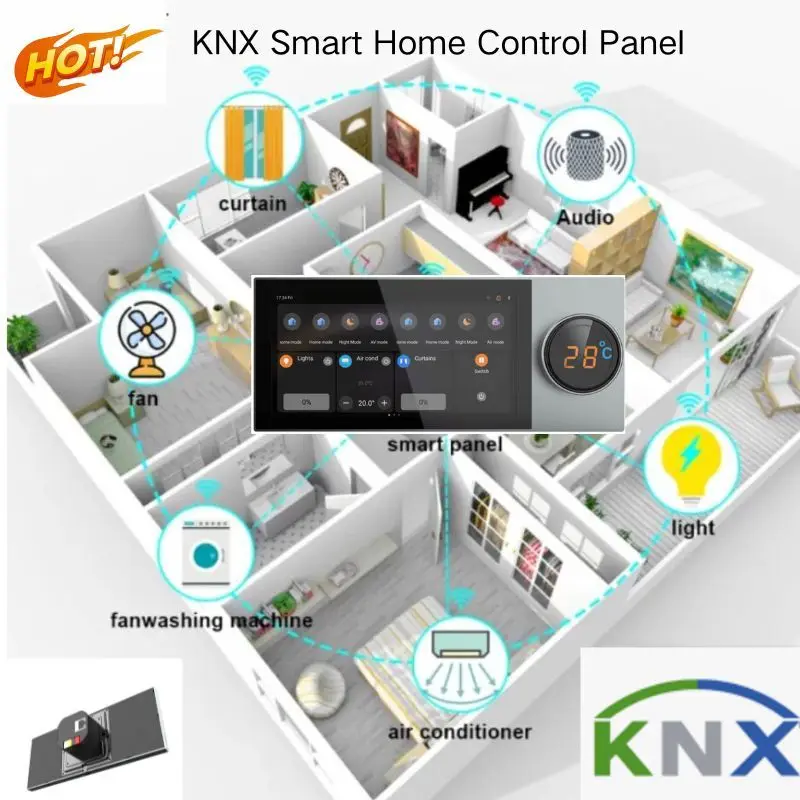

The 6 inch KNX Smart Control Panel redefines intelligent building management with its innovative dual-screen design. Featuring a 6" Android touchscreen and a dedicated 1.22" rotary knob display, this KNX-certified panel delivers seamless control over lighting, HVAC, shading, and multi-room audio—all from one elegant, flush-mounted interface. Professional-grade sensors and quad-array microphones enable context-aware automation and reliable voice control in any environment.

ETS Compatibility Note: This product is currently compatible with KNX ETS version 6.06. Support for ETS 6.3 is under development and not yet available.

✨ Key Features

📡 Native KNX/EIB Bus Integration

Direct connection to KNX systems without gateways. Supports:

20 customizable scenes

52 KNX devices (switches, dimmers, RGB, curtains, HVAC, floor heating, fresh air)

Real-time bus monitoring and diagnostics

🖥️ Dual-Screen Interactive Experience

6" 720P LCD Touchscreen running Android 11 for full control interface

1.22" Rotary Knob Screen for quick adjustments and system status at a glance

🎤 Professional Voice Control System

Quad linear microphone array with noise cancellation

iFlytek voice recognition engine

5-meter effective voice pickup range

🌡️ Environmental Intelligence

Built-in sensors for automated responses:

Temperature & humidity sensor

Ambient light sensor

50cm proximity sensor

🔊 Premium Audio Performance

Dual 1W speakers with BOX sound chamber for clear voice feedback and background music playback.

🔌 Flexible Power & Connectivity

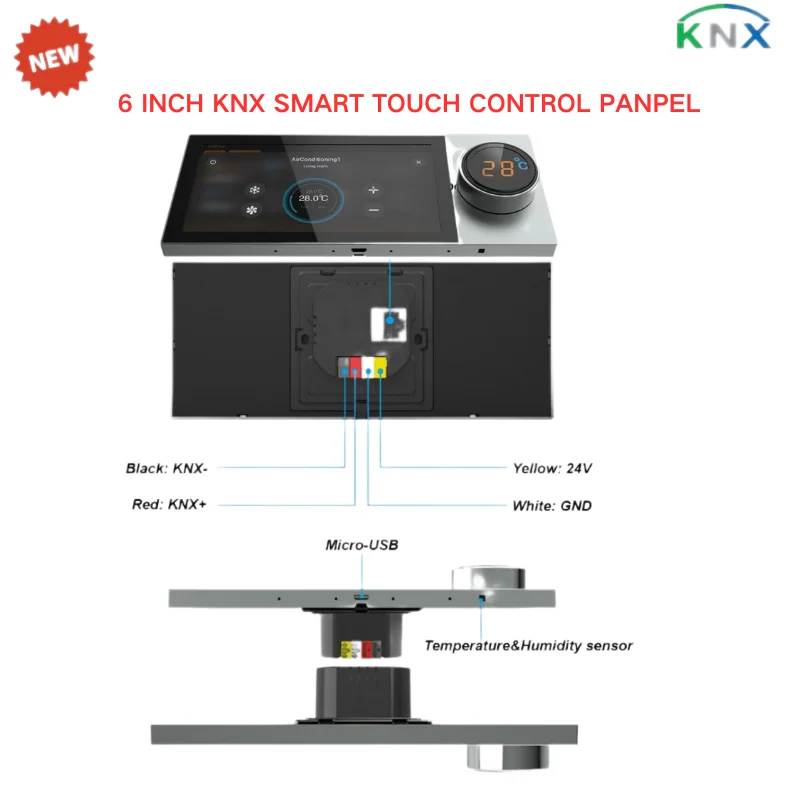

Power Options: 24V DC input or PoE (IEEE 802.3af compatible, optional)

Network: 100M Ethernet + 2.4GHz WiFi (802.11 b/g/n)

Bluetooth 4.2 for peripheral connectivity

🔧 ETS Configuration Support

✅ Compatible with KNX ETS 6.06

🔄 ETS 6.3 compatibility coming soon (currently not supported)

Easy configuration via standard KNX database files

✅ Certifications & Support

Certifications

KNX Association Certified

CE, RoHS Compliant

Garantie

12-month manufacturer warranty

Technical Support

ETS configuration guidance

KNX system integration support

Firmware update service

⚠️ Important Notes

ETS Version Requirement

Must use ETS 6.06 for configuration and commissioning

ETS 6.3 is not currently supported

Database files available for download from our support portal

Installation Safety

Professional installation required by certified KNX electrician

Disconnect main power before installation

Indoor use only – not suitable for bathrooms or wet locations

Do not use PoE and KNX auxiliary power simultaneously

Environmental Requirements

Keep away from direct water exposure

Maintain adequate ventilation

Avoid extreme temperature conditions

If you need ETS files related to the product, please contact us via the following methods:WeChat/WhatsApp: +86 13138858876

、

Q: Is KNX license included?
A: Yes, the panel is fully KNX certified and ready for system integration.

Q: Can I use it without KNX?
A: Basic Android functions work standalone, but KNX connection is required for device control features.

Q: When will ETS 6.3 support be available?
A: We are actively developing ETS 6.3 compatibility. Please subscribe to our newsletter for update notifications.

Q: What's included in the package?
A: Panel, mounting bracket, screws, and quick guide. KNX cables and power supply are not included.

Q: Is professional installation necessary?
A: Yes, installation must be performed by a qualified KNX technician.

Q: Can I customize the interface?
A: Yes, through both KNX ETS programming and Android app customization.
