- Substancja chemiczna budząca duże obawy: Nic
- EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
- Current: 10A
- Tworzywo: Plastikowy
- Orzecznictwo: CCC
- Typ przełącznika: Remote Control
- Gwarancja: 1 Year RF 433 MHz 220 V 1CH Remote Smart Home Led Light Switch
- Odległość zdalna: Up to 50 meters(theoretical distance)
- Numer modelu: WS220 T
- Cechy: 433Mhz Wireless control,waterheater control,ceiling fan control
- Typ przedmiotu: SWITCHES
- Nazwa marki: WenQia
- Czy to inteligentne urządzenie: NIE
- Pochodzenie: Chiny kontynentalne
- Power Voltage: AC 85-250 V
- Working Voltage: 1-250 V
- Quiescent Current: less than 5mA
- Max current: 10A
- RF frequency: 433MHz
- Switch Size: 2.1*1.2*0.7in(54*31*17 mm)
- Receiving Sensitivity: more than 97dbm
- Working temperature: -30~+80 Celsius
- Remote operating mode: Momentary / Toggle/ Latched
- Amount of storage remote controls: about 20 pieces
- Remote Size: 2.36*1.18 in(60*30 mm)
- Remote Battery: 2pcs CR2016(Include)
- Receiving range: Up to 50 meters(theoretical distance)
- Support encoding: 1527 Leaning code/2262 Fixing code
- Modulation Mode: ASK superheterodyne wireless reception
- Output Terminal: L and N
- Shell: TAK
- Application scenario: Family, Farm, Factory, Office, Supermarket
- Application2: Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor
- Application3: kitchen,bathroom light,intellience home
How to connect
This light switch can control lamps,bulbs,lights,etc.The L and N line cannot be reversed
Technical data of switch:
Power Voltage: AC 85-250 V
Working Voltage: 1-250 V
Size: 2.1*1.2*0.7in(54*31*17 mm)
Max current: 10A
Quiescent Current: less than 5mA
Amount of storage remote controls: 20pcs
Working temperature: -30~+80 Celsius
Mode: Momentary / Toggle/ Latched/Mix Mode
Code: 1527 learning

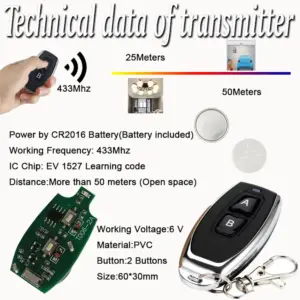

Technical data of remote:
Size: 1.38*1.18 in(35*30 mm)
Battery: 2pcs CR2016(Include)
Receiving Range: Up to 50 meters(theoretical distance)
Button: 2
Feature: Has keychain
Code: 1527 leanring
Material: PVC
For home electric,use in many places:
Three rf modes
You can match the remote with the switch in 3 modes.
Momentary Mode:
1. Press and hold one button, relay will turn on;
2. Release button, this relay will turn off.
Toggle Mode:
1. Press button, relay will turn on;
2. Press same button again, this relay will turn off.
Latched mode:
1. Press button “A”, relay will turn on;
2. Press button “B”, this relay will turn off.(In this mode,you need at least 2buttons remote)
How to set up
A1.Press learning button 1/2 times
A2.Press remote button 1time,momentary/toggle mode succeed.
B1.Press learning button 3 times
B2.Press remote A button 1time,press remote B button 1time,latched modesucceed.
Clean data
Press learning button 8 times. The existing data will be deleted succeed.
Notatka:
1.If one remote has already set up with switch and you want to change modes,you need to clean data again
2.If you have many remotes to control same switch,you need to set up them one by one

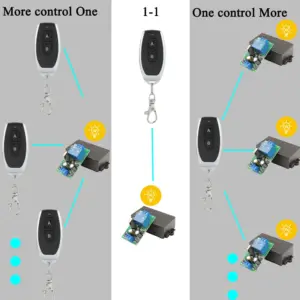

One switch can be controlled by many remotes,one remote can control many switches
Switch Detail
1.Antenna : Extend receiving distance
2.Shell : Protect components from damage during shipping and using
3.Indicator : Light when connected with power
4.Learning Button : Press learing button to set up mode
5.Blue Protection Terminal : High voltage protection
Remote Detail
Indicator light,Silicone button,Metal keychain,Chrome bezel
Qustions and Answers
1.Can i use my own remote to control this switch?
–Sir,please make sure the frequency(433mhz),Code(1527 learning) are same.
2.When the power off and comes again,what status about this switch?
–It is off sir.Default off
3.Can i use many remotes to control one switch?
–Yes,one switch can be controlled by almost 20pcs remotes.
*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
* We have our own factory.Please let us know if you have some OEM projects.We are willing to get a cooperation with you. *
| Kolor | 1 Receiver, 1 Receiver 1 T (A), 1 Receiver 1 T (B), 1 Receiver 1 T (C), 1 Transmitter A, 1 Transmitter B, 1 Transmitter C |
|---|---|
| Substancja chemiczna budząca duże obawy | Nic |
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
| Current | 10A |
| Tworzywo | Plastikowy |
| Orzecznictwo | CCC |
| Typ przełącznika | Remote Control |
| Gwarancja | 1 Year RF 433 MHz 220 V 1CH Remote Smart Home Led Light Switch |
| Odległość zdalna | Up to 50 meters(theoretical distance) |
| Numer modelu | WS220 T |
| Cechy | 433Mhz Wireless control,waterheater control,ceiling fan control |
| Typ przedmiotu | SWITCHES |
| Nazwa marki | WenQia |
| To inteligentne urządzenie | NIE |
| Pochodzenie | Chiny kontynentalne |
| Power Voltage | AC 85-250 V |
| Working Voltage | 1-250 V |
| Quiescent Current | less than 5mA |
| Max current | 10A |
| RF frequency | 433MHz |
| Switch Size | 2.1*1.2*0.7in(54*31*17 mm) |
| Receiving Sensitivity | more than 97dbm |
| Working temperature | -30~+80 Celsius |
| Remote operating mode | Momentary / Toggle/ Latched |
| Amount of storage remote controls | about 20 pieces |
| Remote Size | 2.36*1.18 in(60*30 mm) |
| Remote Battery | 2pcs CR2016(Include) |
| Receiving range | Up to 50 meters(theoretical distance) |
| Support encoding | 1527 Leaning code/2262 Fixing code |
| Modulation Mode | ASK superheterodyne wireless reception |
| Output Terminal | L and N |
| Shell | TAK |
| Application scenario | Family, Farm, Factory, Office, Supermarket |
| Application2 | Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor |
| Application3 | kitchen,bathroom light,intellience home |
