- Sustancia química de alta preocupación: Ninguno
- EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
- Current: 10A
- Material: Plastic
- Certification: ce,ROHS
- Switch Type: APP Control
- Warranty: 2 year
- Número de modelo: 2202W
- Features: Tuya wifi and RF smart switch
- Tipo de artículo: SWITCHES
- Nombre de marca: SLMPLEFUN
- Is Smart Device: Yes
- Origen: China continental
- Control method: Tuya Smart life+RF remote + Voice
- Application: Light Switch DIY Garage Door System/Motor/Water Pump/Household Applian
- Support APP: Tuya and Smart Life
- Working voltage: AC 90~250V or USB Type-C 5V 0.5A
- Input/Output Voltage: 1-250V Dry Contact
- Channel: 2 channel
- WiFI standard: 802.11 b/g/n 2.4GHz
- RF frequency: 433.92 MHz
- Max current: 10A
- Work with: Alexa/Google Home/IFTTT…
- Receiver module size: 65*50*24 mm
- Remote size: 30*60*10 mm
- Remote battery: 2*CR2016(included)
- Support Platform: Android 5.0 & IOS 10 or higher
- Features: Group control
- Features2: Timing function
- Features3: Inching mode
！！NOTE ！！
●Hello, friend, In order to meet the needs of different customers,our purchase page has multiple options to choose from.
●Hello, friend, In order to meet the needs of different customers,our purchase page has multiple options to choose from.
It includes the options for a single receiver . Please verify your order carefully before making the payment. Thank you.

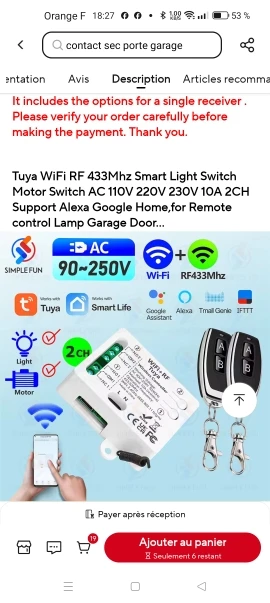

Tuya WiFi RF 433Mhz Smart Light Switch Motor Switch AC 110V 220V 230V 10A 2CH Support Alexa Google Home,for Remote control Lamp Garage Door…
！！NOTE ！！
●Hello, friend, In order to meet the needs of different customers,our purchase page has multiple options to choose from.
●Hello, friend, In order to meet the needs of different customers,our purchase page has multiple options to choose from.
It includes the options for a single receiver . Please verify your order carefully before making the payment. Thank you.
Advantages

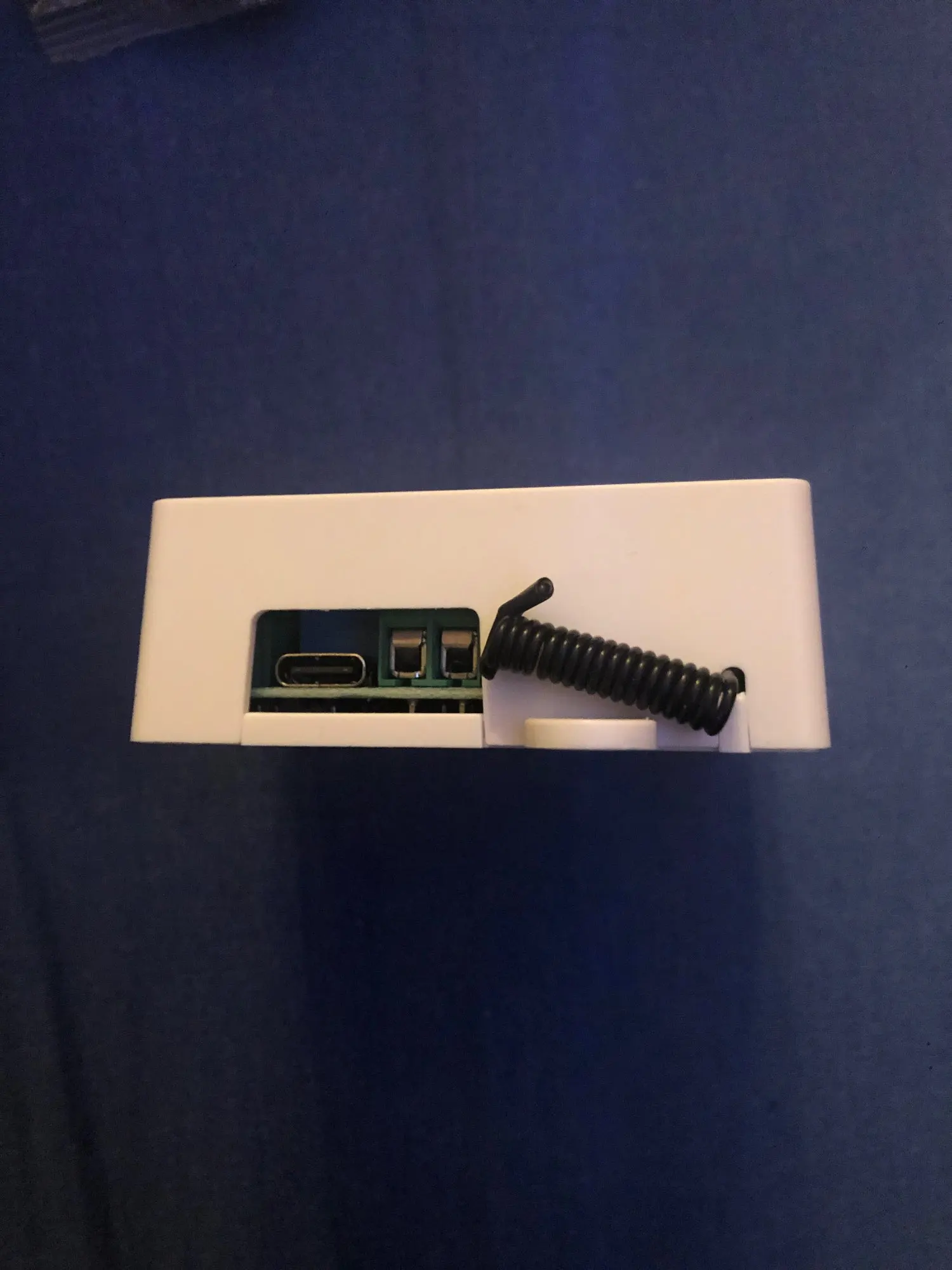

▶2 input power modes
AC 90~250V or USB Type-C 5V-0.5A.
▶1~250V 2-Channels Dry Contact Relay
•Wide range of applications, can be used to connect lights/DC and AC motors/garage door systems/Water Pump/Fan, etc.
•2-channel design, Each channel can independently control the rotation direction of a motor or a light.
▶WiFi and RF control
It supports 3 control methods:
•Tuya or Smart life APP control
•RF433MHZ remote controller
•Voice control.
▶Make any device an Internet device
•It can be used to transform button switches or remote controls to turn the device into an Internet device and achieve intelligence.
▶APP control:
After pairing with the APP, you can control this switch (wifi function) on the Tuya/Smart life APP anytime and anywhere
▶RF433MHZ remote controller:
The receiver supports RF433MHZ remote controller control, and the control range can reach 50m in open areas.
▶Voice control:
Works with Alexa, Google home,etc. and can be controlled by voice.
▶Timing function:
●You can set timers/countdowns/schedules or create usage scenarios, for example you can set lights to automatically turn on at dusk and turn off at dawn.
●You can set the inching mode, which can be well adapted to the garage door system.
▶Group control:
For example, all smart lamps can be set as a group and turned off with one click. One smart switch can be controlled by multiple mobile phones. Share it with your family and make it easy for everyone to control. Great for hard-to-reach lights without a switch.
▶Perfect after-sales and service
●Fast logistics. Delivery within 24 hours after ordering, and delivery to most countries and regions within a week.
●2 years of quality service.
●Our after-sales service team can provide the most professional solutions for any of your problems.
Details description
• Wide range of applications, can be used to connect lights/DC and AC motors/garage door systems/Water Pump/Fan, etc.
• Wide range of applications, can be used to connect lights/DC and AC motors/garage door systems/Water Pump/Fan, etc.
WiFi and RF control
APP control:
After pairing with the APP, you can control this switch (wifi function) on the Tuya/Smart life APP anytime and anywhere
RF433MHZ remote controller:
The receiver supports RF433MHZ remote controller control, and the control range can reach 50m in open areas.
●Voice control:
Works with Alexa, Google home,etc. and can be controlled by voice.
The receiver supports RF433MHZ remote controller control, and the control range can reach 50m in open areas.
●Voice control:
Works with Alexa, Google home,etc. and can be controlled by voice.
Timing function:
●You can set timers/countdowns/schedules or create usage scenarios, for example you can set lights to automatically turn on at dusk and turn off at dawn.
●You can set timers/countdowns/schedules or create usage scenarios, for example you can set lights to automatically turn on at dusk and turn off at dawn.
●You can set the inching mode, which can be well adapted to the garage door system.
NOTE: Each channel can be set individually!
Group control:
For example, all smart lamps can be set as a group and turned off with one click. One smart switch can be controlled by multiple mobile phones. Share it with your family and make it easy for everyone to control. Great for hard-to-reach lights without a switch.

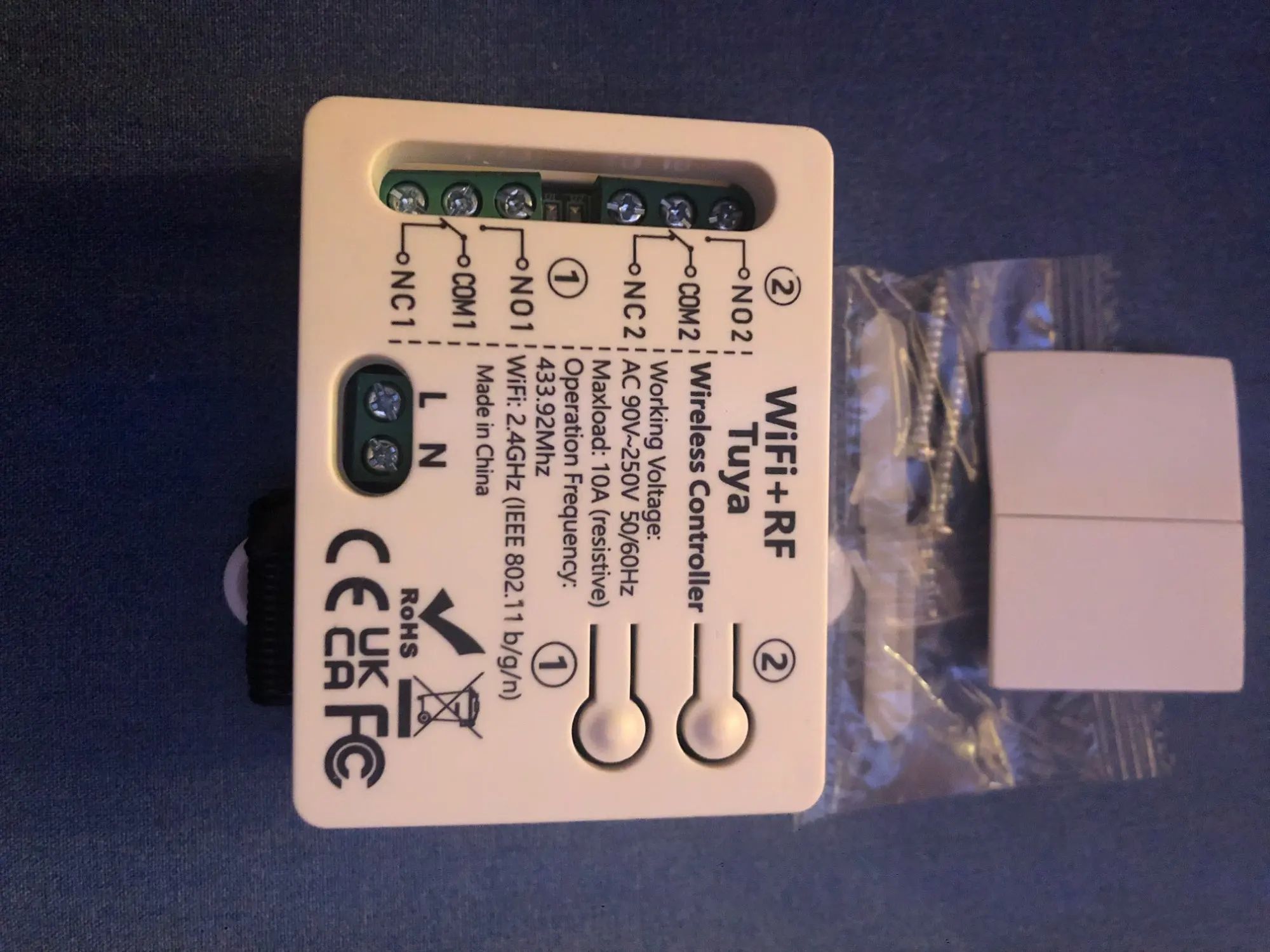

Wiring
Technical parameter
▶WiFi+RF receiver:
Channle: 2 channels
Working Voltage: AC 90~250V or USB Type-C 5V-0.5A
Relay Max current: 10A
Standby power:<10 mA
Output type:Passive output 1-250V dry contact
WiFi:IEEE 802.11 b/g/n 2.4GHz
RF Control:433MHz
Working temperature:-30~+80℃
Support APP:Tuya / Smart Life
Size: 65*50*24 mm
▶RF433mhz Remote Controller
Support encoding : 1527 Leaning code
Remote distance : up to 50m (theoretical distance)
Battery : 2*CR2016 (included)
RF frequency : 433MHz
Size :30*60*10 mm
Modulation : ASK
How to use

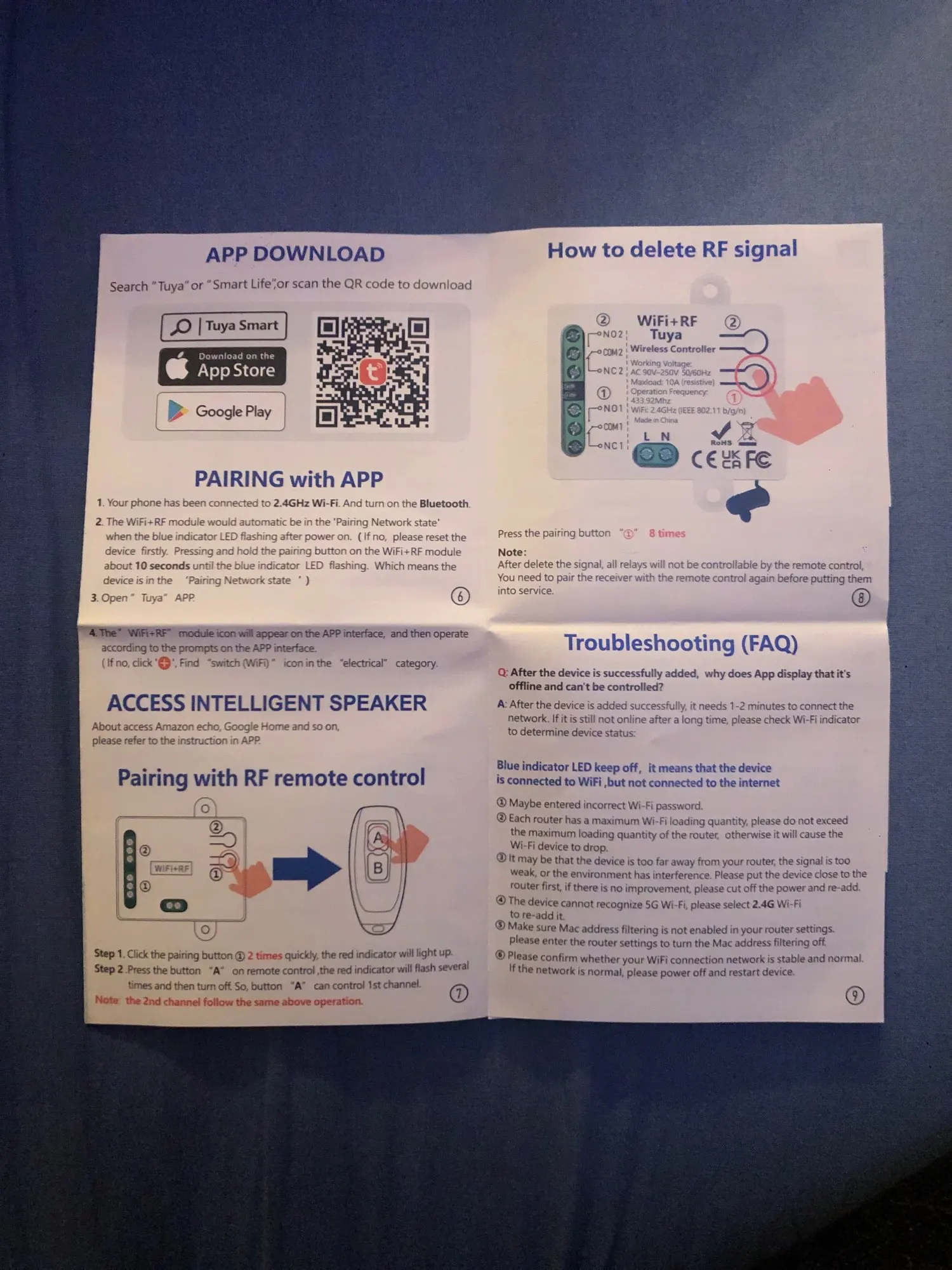

A detailed instruction manual will be sent to you together with the product.
●You need to connect with power and devices first.Download APP
●PAIRING with APP
①Your phone has been connected to 2.4GHzWi-Fi. And turn on the Bluetooth.
②The WiFi+RF module would automatic be in the 'Pairing Network state' .when the blue indicator LED flashing after power on. ( If no, please reset the device firstly. Pressing and hold the pairing button on the WiFi+RF module about 10 seconds until the blue indicator LED flashing. Which means the device is in the 'Pairing Network state' )
③Open "Tuya" APP.
④The "WiFi+RF" module icon will appear on the APP interface, and then operate according to the prompts on the APP interface. ( If no, click '＋', Find "switch (WiFi) " icon in the"electrical"category.
A detailed instruction manual will be sent to you together with the product.
●You need to connect with power and devices first.Download APP
●PAIRING with APP
①Your phone has been connected to 2.4GHzWi-Fi. And turn on the Bluetooth.
②The WiFi+RF module would automatic be in the 'Pairing Network state' .when the blue indicator LED flashing after power on. ( If no, please reset the device firstly. Pressing and hold the pairing button on the WiFi+RF module about 10 seconds until the blue indicator LED flashing. Which means the device is in the 'Pairing Network state' )
③Open "Tuya" APP.
④The "WiFi+RF" module icon will appear on the APP interface, and then operate according to the prompts on the APP interface. ( If no, click '＋', Find "switch (WiFi) " icon in the"electrical"category.
●Pairing with RF remote control
Step 1. Click the pairing button ① 2 times quickly, the red indicator will light up.
Step 2 .Press the button"A"on remote control ,the red indicator will flash several times and then turn off. So, button "A" can control 1st channel.
Note: the 2nd channel follow the same above operation.
●How to delete RF signal:
Press the pairing button "①" 8 times,After delete the signal, all relays will not be controllable by the remote control,
You need to pair the receiver with the remote control again before putting them into service.
ACCESS INTELLIGENT SPEAKER
About access Amazon echo, Google Home and so on, please refer to the instruction in APP.
Troubleshooting (FAQ)
Q: After the device is successfully added, why does App display that it's offline and can't be controlled?
A: After the device is added successfully, it needs 1-2 minutes to connect the network. If it is still not online after a long time, please check Wi-Fi indicator to determine device status:
Blue indicator LED keep off,it means that the device is connected to WiFi ,but not connected to the internet
①Maybe entered incorrect Wi-Fi password.
②Each router has a maximum Wi-Fi loading quantity, please do not exceed the maximum loading quantity of the router, otherwise it will cause the Wi-Fi device to drop.
③It may be that the device is too far away from your router, the signal is too weak, or the environment has interference. Please put the device close to the router first, if there is no improvement, please cut off the power and re-add.
④The device cannot recognize 5G Wi-Fi, please select 2.4G Wi-Fi to re-add it.
⑤Make sure Mac address filtering is not enabled in your router settings.please enter the router settings to turn the Mac address filtering off.
⑥ Please confirm whether your WiFi connection network is stable and normal. lf the network is normal, please power off and restart device.
* If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping! *
*We have our own factory.Please let us know if you have some OEM projects.We are willing to get a cooperation with you.*
| Color | 1 Receiver 1 Remote, 1 Receiver 2 Remote, 1 Receiver 3 Remote, 1 Receiver 5 Remote, 2 Receiver 2 Remote, Only 1 Receiver |
|---|---|
| Sustancia química altamente preocupante | Ninguno |
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
| Current | 10A |
| Material | Plastic |
| Certification | ce,ROHS |
| Switch Type | APP Control |
| Warranty | 2 year |
| Número de modelo | 2202W |
| Features | Group control |
| Tipo de artículo | SWITCHES |
| Nombre de la marca | SLMPLEFUN |
| Is Smart Device | Yes |
| Origen | China continental |
| Control method | Tuya Smart life+RF remote + Voice |
| Application | Light Switch DIY Garage Door System/Motor/Water Pump/Household Applian |
| Support APP | Tuya and Smart Life |
| Working voltage | AC 90~250V or USB Type-C 5V 0.5A |
| Input/Output Voltage | 1-250V Dry Contact |
| Channel | 2 channel |
| WiFI standard | 802.11 b/g/n 2.4GHz |
| RF frequency | 433.92 MHz |
| Max current | 10A |
| Work with | Alexa/Google Home/IFTTT… |
| Receiver module size | 65*50*24 mm |
| Remote size | 30*60*10 mm |
| Remote battery | 2*CR2016(included) |
| Support Platform | Android 5.0 & IOS 10 or higher |
| Features2 | Timing function |
| Features3 | Inching mode |

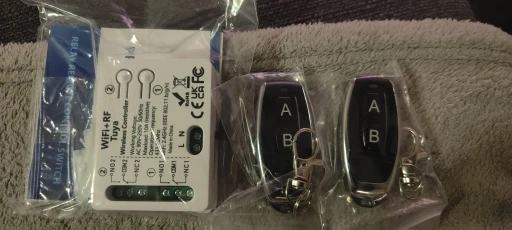

20 reseña para Tuya WiFi RF 433Mhz Smart Light Switch Motor Switch AC 110V 220V 230V 10A 2CH Support Alexa Google Home,for Lamp Garage Door
Solo los clientes registrados que hayan comprado este producto pueden dejar una reseña.
then configure wifi. house
third configure each port yet large port small. I programmed it. 1 second

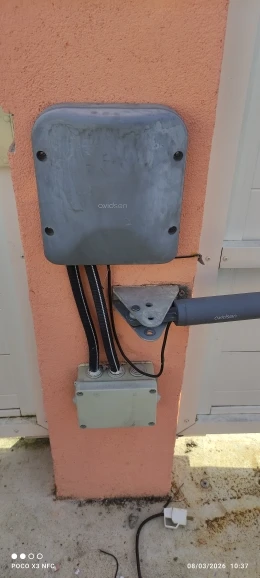

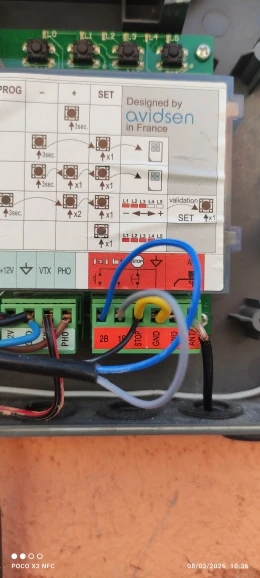

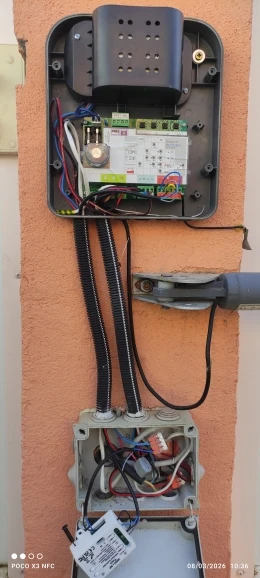

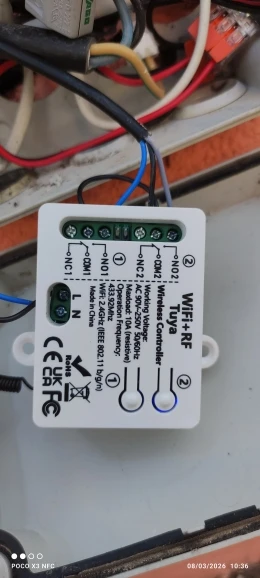

I installed everything.

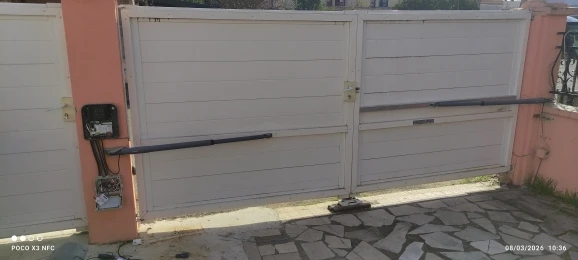

Now I'm opening my portal. online. and Android. car.
